Everything You Should Know About CP4 Fuel Pump Failures In LML Duramax Trucks
The LML Duramax started off in 2011, marking the end of the LMM era, and went all the way to 2016. Then, it was succeeded by L5P in 2017. While LML brought a few advancements in power as well as emission compliance, it also brought about some of the most known problems that continues to plague owners even today, the Bosch CP4 high-pressure fuel pump.
The CP4 Pump: All You Need to Know About This Weak Point
Every LML Duramax came factory fitted with Bosch CP4 pumps. Sadly, this has been a constant failure point. The CP4 was never designed to cope with North American Ultra Low Sulfur Diesel (ULSD), and has led to a catastrophic class lawsuit against General Motors. There has been no resolution, which means the majority of LML owners are stuck without help for any issues related to the pumps.
Most probably, if you are still driving around with an LML, then you are either out of warranty or on the verge of getting there. Making sure you know what your choices are is important in determining the reliability of your truck.
What Does The CP4 Failing Look Like?
Unlike other components failing, the CP4 does not tend to fail in a graceful manner. It instead tends to fail in a catastrophic manner.
With every turn, the mechanical teeth of the pump wear, returning to the fueling tank metallic shards.
Given that the LML employs a closed-loop fuel system, those metallic particles are pulled through the injectors and back to the pump—without being filtered.
Thereafter, the fuel becomes contaminated with heated up particles that damages the injectors, fuel rails, lines, the fuel pressure regulator, and other components.
The damage is multi-faceted, but initially complex, and breakdowns are expensive to fix:
High repairable cost hurt;
High Pressure fuel pump;
All 8 injectors;
Fuel pressure regulator;
Cleaning or replacing both fuel rails and fuel lines.
How to Avoid a CP4 Disaster
- Basic Maintenance
Ensure all systems are integrated as one and consult with certified officials to avoid overheating:
Replace fueling filters post time limit with OE-quality components or equivalent items.
Those two actions can sail far in preserving your fuel system.
This Fuel System provides advanced filters that will protect your Fuel Injection Systems, therefore prolonging the life of both the Injection System and Injectors. These Benefits include 2 Microns filtration rating, a Water Separation Unit filter, and FASS Diesel Fuel Systems patented Air/Vapor removal process.
If you are not yet prepared to replace your pump, consider getting the Exergy Fuel System Saver. It offers:
- A dual 25-micron filter system (compared to 1 single 80-micron OEM screen).
- A failsafe design that shuts down the engine by blocking fuel contaminated with debris.
- This system helps defend your injectors from CP4 issues to avoid thousands of dollars in damage.

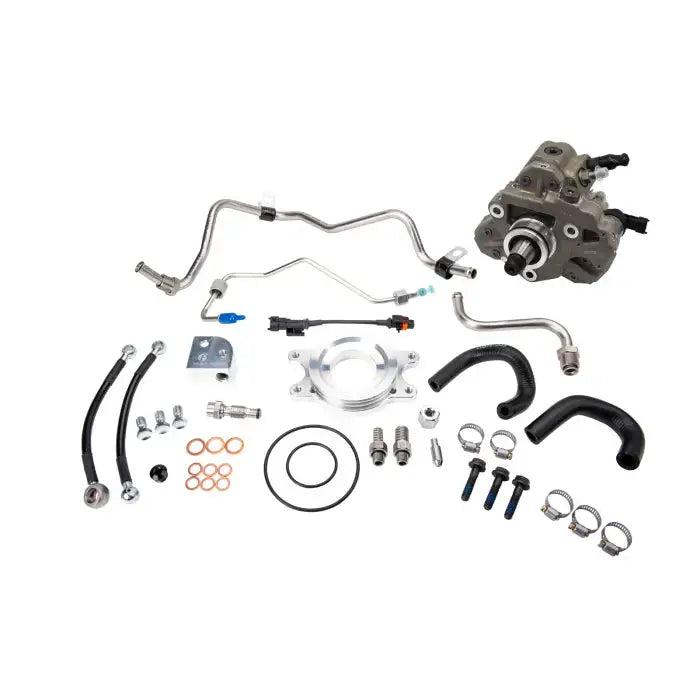

The Permanent Solution: CP3 Conversion
While taking these preventative measures helps, the only long-term solution is removing the CP4 pump. That’s where the CP3 conversion kit comes in.
Why Choose the CP3?
- Proven reliability: Used in GM trucks from 2001–2010 and Cummins from 2003-2018
- Simpler, mechanical design: Less moving parts means lower failure points and greater dependability.
- Power potential: Capable of being upgraded to 10mm or 12mm stroker pumps for 800+ HP builds.
A CP3 retrofit does require some upfront cost and tuning, but that is drastically less than enduring a full CP4 system failure—while also being more dependable.
Final Thoughts
It’s clear by now that the Achilles heel of the LML Duramax platform is the CP4. However, with smart planning and proper upgrades, it does not have to ruin the truck.
Whether you’re safeguarding your current CP4 with FASS and Exergy integration, or going full throttle on a CP3 conversion, placing proactive steps now can spare massive problems – and costly fix expenses – for you in the long run.
