How Turbo Flange Size Affects Exhaust Flow

If you’ve spent any time researching turbo setups for your truck, you’ve probably come across flange specs and figured they were just a boring fitment detail. They’re not. Turbo flange size has a direct effect on how exhaust gas moves through your system, and getting it wrong can hold back performance you’ve already paid for. Whether you’re building a street truck or pushing serious power, understanding how turbo flange size affects exhaust flow is one of the most practical things you can do before you commit to a setup.

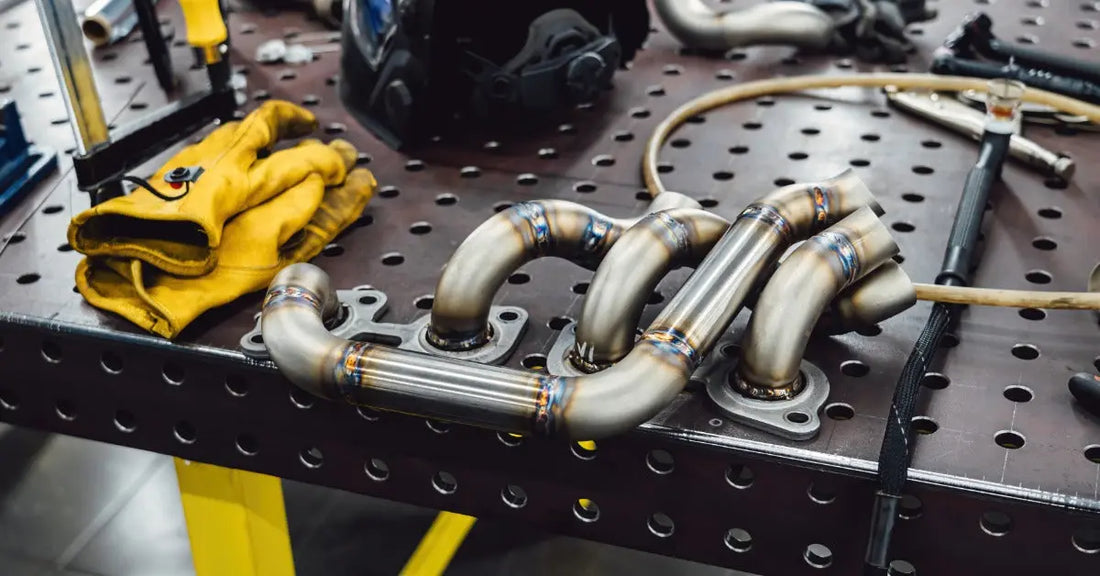

What a Turbo Flange Is

The turbo flange is the mounting interface between your exhaust manifold and the turbocharger itself. It’s the flat, bolted connection point where exhaust gases leave the engine and enter the turbine housing.

Flanges come in different sizes and bolt patterns, and those differences aren’t cosmetic. They control how much exhaust gas can pass through, how quickly it arrives at the turbine wheel, and how much back pressure builds up in the system. Every one of those factors feeds directly into how your turbo performs.

Why Flange Size Matters for Flow

Flange size determines the cross-sectional area of the opening where exhaust enters the turbine. A larger opening allows more exhaust volume to pass through at once. A smaller opening restricts that flow, which affects how the turbo builds boost and how efficiently it can expel exhaust after the turbine wheel does its job.

If you’re running higher displacement engines or towing under load, flow capacity becomes even more important because you’re generating more exhaust volume at lower RPMs. A flange that’s too small for your application creates a bottleneck before the exhaust even reaches the turbine wheel.

Common Flange Sizes and What They’re Built For

The most common turbo flange standards you’ll run into are T3, T4, T6, and V-band configurations:

• T3 flanges are designed for lower-displacement or lower-boost applications. They work well when spool-up speed matters more than peak flow.
• T4 flanges open up the inlet area and handle more volume, making them common in medium-to-high-powered truck builds.
• T6 flanges are larger still and built for high-horsepower diesel applications where exhaust volume is substantial.
• V-band flanges use a clamp-style connection and are popular for their leak resistance and ease of serviceability, not a particular flow rating.

Matching the flange standard to your engine’s output level is what keeps your system balanced. Keep in mind that there are many other flange sizes; these four are simply some of the most common.

The Relationship Between Flange Size and Turbine Housing

Your flange size doesn’t work in isolation. It connects to the turbine housing, and the housing has its own A/R ratio, which describes the relationship between the inlet area and the radius from the turbine centerline to the centroid of that area.

A larger flange paired with a high A/R housing supports high-flow, high-RPM builds. A smaller flange with a lower A/R housing promotes faster spool by keeping exhaust velocity higher through a tighter passage.

When your flange size and A/R ratio don’t complement each other, you’re either sapping spool response or choking peak power. Getting these two specs to work together is what makes a turbo system perform the way it’s supposed to.

How Mismatched Flanges Create Restrictions

Running a flange that doesn’t match your manifold or turbine housing creates a step in the exhaust path. Even a small step, where the manifold opening is larger than the flange opening or vice versa, creates turbulence in the exhaust stream. Turbulent flow is less efficient than smooth, laminar flow, and that inefficiency shows up as slower spool, higher exhaust gas temperatures, and reduced turbine efficiency.

On a diesel truck that already runs elevated EGTs under load, adding restriction at the flange connection can push temperatures into ranges that accelerate wear on turbine components. Matching flange dimensions precisely to your manifold outlet eliminates that step and keeps the exhaust path clean.

Back Pressure and What It Does to Your Engine

Back pressure is the pressure that builds up in your exhaust system when flow is restricted. Some back pressure is unavoidable, but excessive back pressure caused by an undersized flange forces the engine to work harder to push exhaust out during the exhaust stroke.

In diesel engines, back pressure affects scavenging efficiency and can interfere with variable geometry turbo systems that rely on controlled exhaust pressure to function correctly. Keeping your flange sized appropriately for your flow demands is one of the most direct ways to manage back pressure at the source.

How Flange Size Affects Spool Time

Spool time, the time it takes your turbo to build usable boost, depends heavily on exhaust velocity hitting the turbine wheel. Smaller flanges accelerate exhaust gases by reducing the passage area, which can help smaller turbos spool faster at lower RPMs. That’s useful for street trucks that need low-end responsiveness.

Larger flanges support higher exhaust volume but may slow spool on a turbo that isn’t sized to take advantage of that flow. Matching flange size to turbo frame size and your engine’s RPM range keeps spool characteristics predictable.

Gasket and Seal Integrity at the Flange Connection

The flange connection is a high-heat, high-pressure point in your exhaust system, and it’s one of the most common spots for leaks to develop. An exhaust leak at the turbo inlet doesn’t just let exhaust escape; it changes the pressure and velocity characteristics of the gas entering the turbine housing. That affects boost consistency and can allow soot and exhaust gases to contaminate the engine bay.

Using the correct gasket material for your heat range and torquing the flange hardware to spec keeps the connection sealed under sustained load. If you’re running a high-output build, a multi-layer steel gasket at the turbo flange is worth the upgrade over standard paper or composite options.

Choosing the Right Flange for Your Build

Getting the right turbo flange for your setup comes down to three things: your engine’s displacement and output level, your turbo frame size, and your manifold outlet dimensions. Start with your engine’s exhaust volume at your target RPM range, then work outward. Your turbo frame size should support that volume without being oversized to the point of killing spool. Additionally, your manifold outlet should match the flange inlet dimension so there’s no step in the flow path.

If you’re sourcing a quality setup and want to make sure your turbo flange size affects exhaust flow in the right way, check out Tameless Performance. Our Parker Speed turbo flange options give you a reliable starting point for building a system that flows and seals the way it should.
