Turbocharger Anatomy Explained: How Each Part Works
A turbocharger looks simple from the outside, but every section has a specific job. Exhaust energy spins one wheel, a shaft transfers that motion, and another wheel compresses incoming air before it reaches the engine. Understanding turbocharger anatomy and how each part works can make turbo shopping less confusing.
A turbo is not one oversized power part. It is a matched system, and every section affects how the truck responds.
How the Exhaust Side Converts Energy
The exhaust side begins with the turbine housing. Exhaust gas leaves the engine and follows a curved passage toward the turbine wheel. That passage is often called the volute, and its shape helps direct exhaust energy where the turbo can use it.
The size and design of the turbine housing influence how quickly the turbo responds. A tighter housing can keep exhaust velocity higher and help the wheel react sooner. A larger housing may support more exhaust flow, but it can feel slower in a mismatched setup.
Inside the housing, the turbine wheel converts exhaust energy into rotation. Exhaust gas moves across the blades and spins the wheel at high speed. That motion travels through the shaft to the compressor wheel on the opposite side.
The turbine side has to match the truck’s job. A tow-focused setup may need strong response in the lower and middle parts of the revolutions-per-minute (RPM) range. A higher-output build may need more flow at higher engine speed. Bigger is not automatically better when response and drivability matter.
How the Air Side Builds Pressure
The compressor housing makes up the air side of the turbocharger. It receives filtered air through the inlet, surrounds the compressor wheel, and directs pressurized air toward the charge-air system. Its internal shape helps turn fast-moving air into usable pressure.
The compressor wheel pulls air through the center and pushes it outward through the blades. As the wheel spins, it raises the pressure of the incoming air before sending it through the outlet. That compressed air then travels toward the intercooler.
Compressor wheel measurements get plenty of attention because they are easy to compare. Still, wheel size only tells part of the story. Blade shape, housing design, and the operating range all affect how the turbo behaves.
A larger compressor may support more airflow when the engine needs it. A smaller option may respond sooner and feel better in a daily-driven truck. The right choice depends on the truck’s use and the rest of the build.
How the Center Section Supports Speed

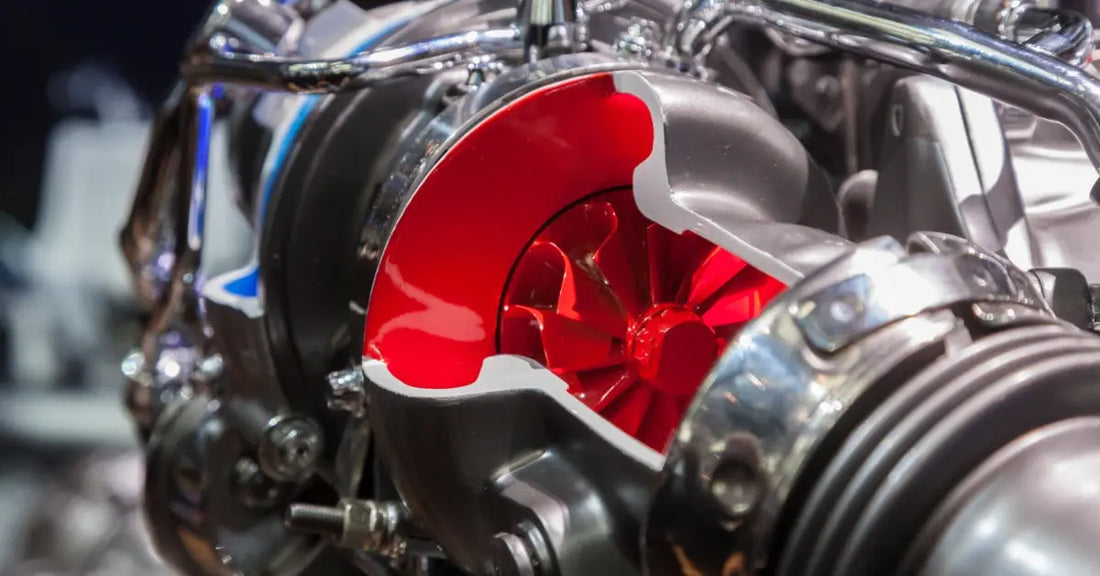

Between the exhaust and air sides sits the center housing and rotating assembly (CHRA). This section contains the shaft, bearing system, and oil passages that support the rotating group. It connects the turbine wheel to the compressor wheel and keeps both sides moving together.
The shaft has a demanding job. One end sits next to hot exhaust gas, while the other drives the compressor. It must transfer motion smoothly while handling very high rotational speed.
Oil moves through the center section to lubricate the bearing system and help control heat. A restricted oil feed or poor drain path can create problems even when the turbo is properly sized. Clean oil and correct routing matter because the rotating assembly depends on a steady supply.
Common center-section components include:
- Journal bearings that support the shaft on a film of oil
- Ball-bearing cartridges that can reduce friction in some applications
- Thrust bearings that help control forward and backward shaft movement
- Sealing components that help manage oil inside the center section
One bearing style is not the automatic winner for every truck. The turbo still needs to match the engine and supporting setup. A well-matched journal-bearing turbo can be a better choice than a poorly selected ball-bearing unit.
How the Control Hardware Manages Boost
A turbocharger needs a way to manage how much exhaust energy reaches the turbine. On many fixed-geometry turbos, a wastegate opens a bypass path around the turbine wheel after the system reaches its target pressure. An actuator controls when that path opens.
The wastegate helps prevent the turbo from continuing to build pressure beyond the intended range. If it opens too early, the truck may not reach the expected boost level. If it does not open correctly, the system can create an overboost condition.
Some diesel trucks use a variable geometry turbocharger (VGT) instead. A VGT uses movable vanes around the turbine wheel to change how exhaust gas reaches the blades. The vane position can help the turbo respond sooner at lower engine speed and manage flow as demand increases.
This system also affects exhaust pressure and drivability. A mismatch with the engine controls can change how the truck responds. Turbo selection should account for the factory hardware and current modifications.
How the Supporting Parts Affect Results
The turbocharger cannot do its job alone. Intake parts must deliver clean air without excessive restriction, while the charge-air system has to hold the pressure the compressor creates. A good turbo can still feel lazy when the surrounding system has leaks.
The intercooler also matters because compression creates heat. Hotter air is less dense, so the charge-air system needs to manage temperature before the air reaches the engine. The intercooler and plumbing help that airflow reach the engine effectively.
Before choosing a turbo, review the parts around it:
- Intake tubing and filtration
- Charge pipes, boots, and clamps
- Intercooler size and condition
- Oil feed and drain routing
- Exhaust manifold and flange fitment
- Fuel-system and engine-control support
These parts do not always need a replacement at the same time. They do need to be considered before buying a turbo that expects more than the current setup can provide. Planning the system first can prevent wasted money and fitment problems.
Understanding turbocharger anatomy also helps with troubleshooting. If the truck loses boost, the problem may come from a split boot rather than the compressor wheel. If oil appears near the turbo, the cause may involve the drain path instead of a failed center section.
How To Choose the Right Turbo Setup
The right turbo depends on how you use the truck. A tow rig usually needs predictable response and usable airflow underload. A higher-output build may place more emphasis on top-end flow, but it still needs the right turbine match and supporting parts.
Start with the truck year and engine, then define the long-term goal. Review the turbo’s sizing and control style before confirming fitment. Looking at the complete setup gives you a better answer than choosing from one wheel measurement.
When you are comparing turbos or related Powerstroke diesel performance parts, Tameless Performance can help you match the part to the goal. We sell diesel performance parts online nationwide and support truck owners with straightforward product guidance. Browse the available turbo and supporting components or contact our team before ordering if you need help confirming fitment for your Powerstroke build.
