Screamer Turbo Chevy LLY/LBZ/LMM Duramax 2004.5-2010
Screamer Turbo Chevy LLY/LBZ/LMM Duramax 2004.5-2010

Description

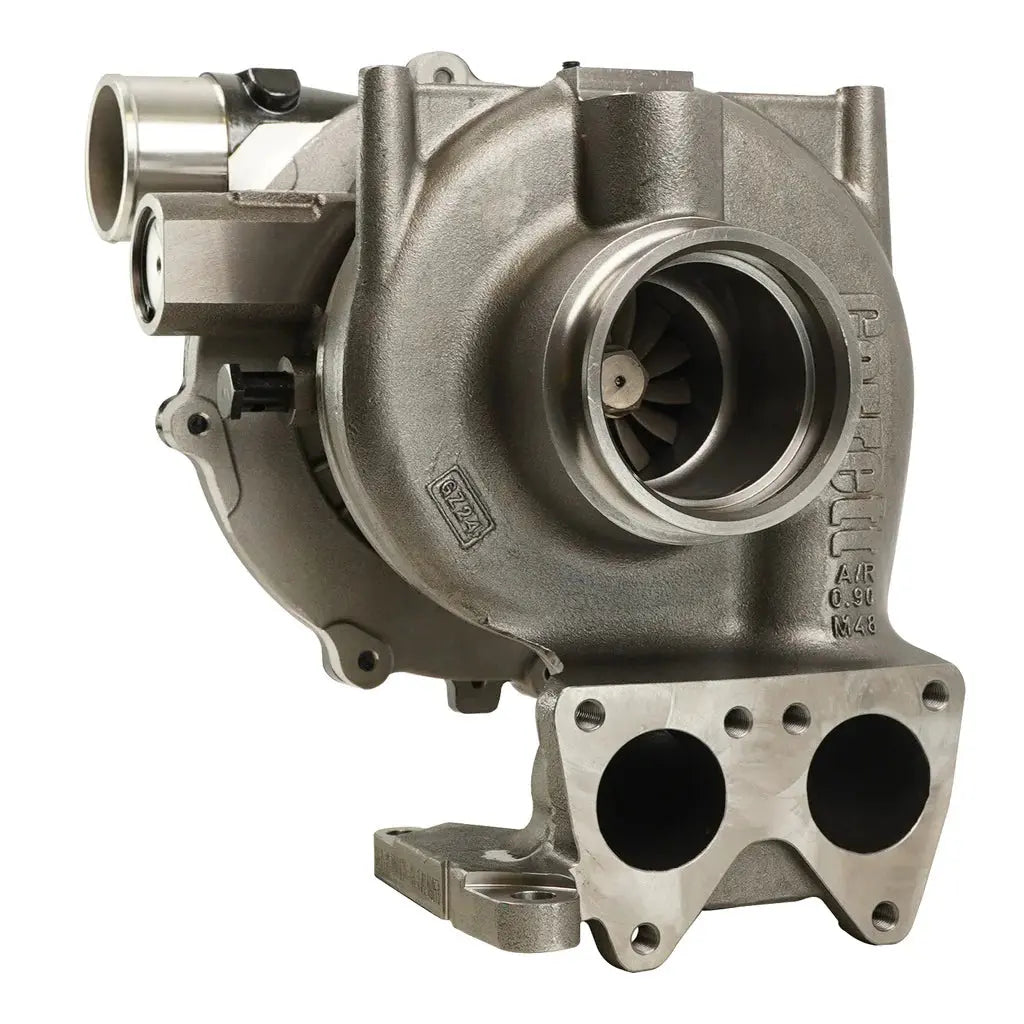

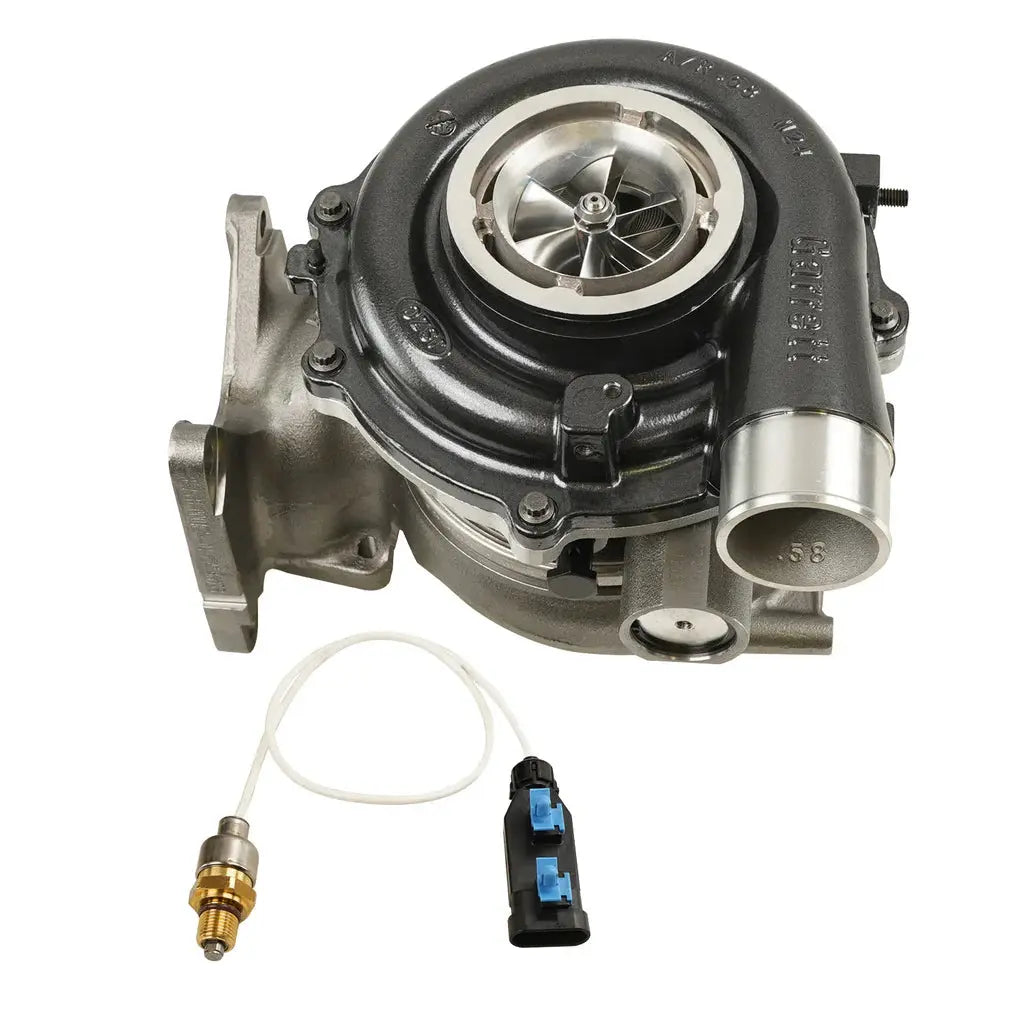

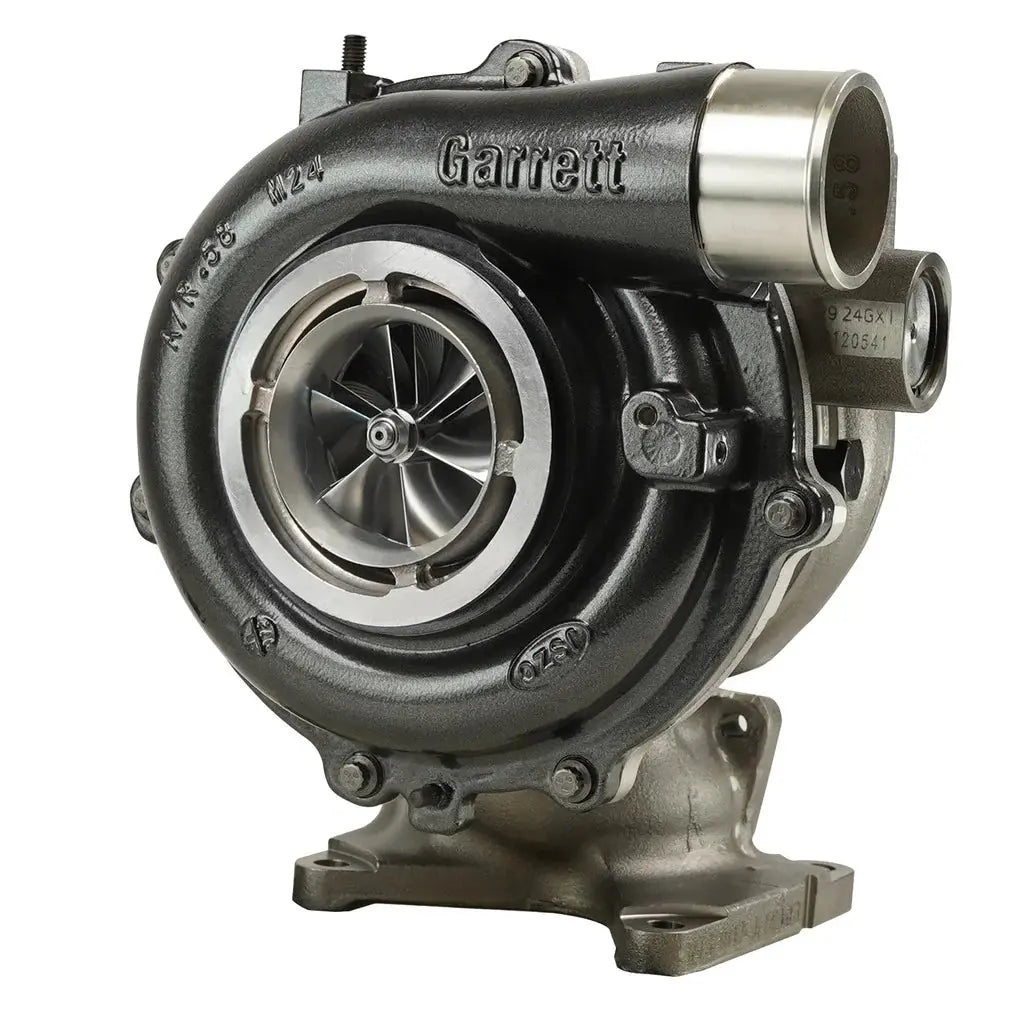

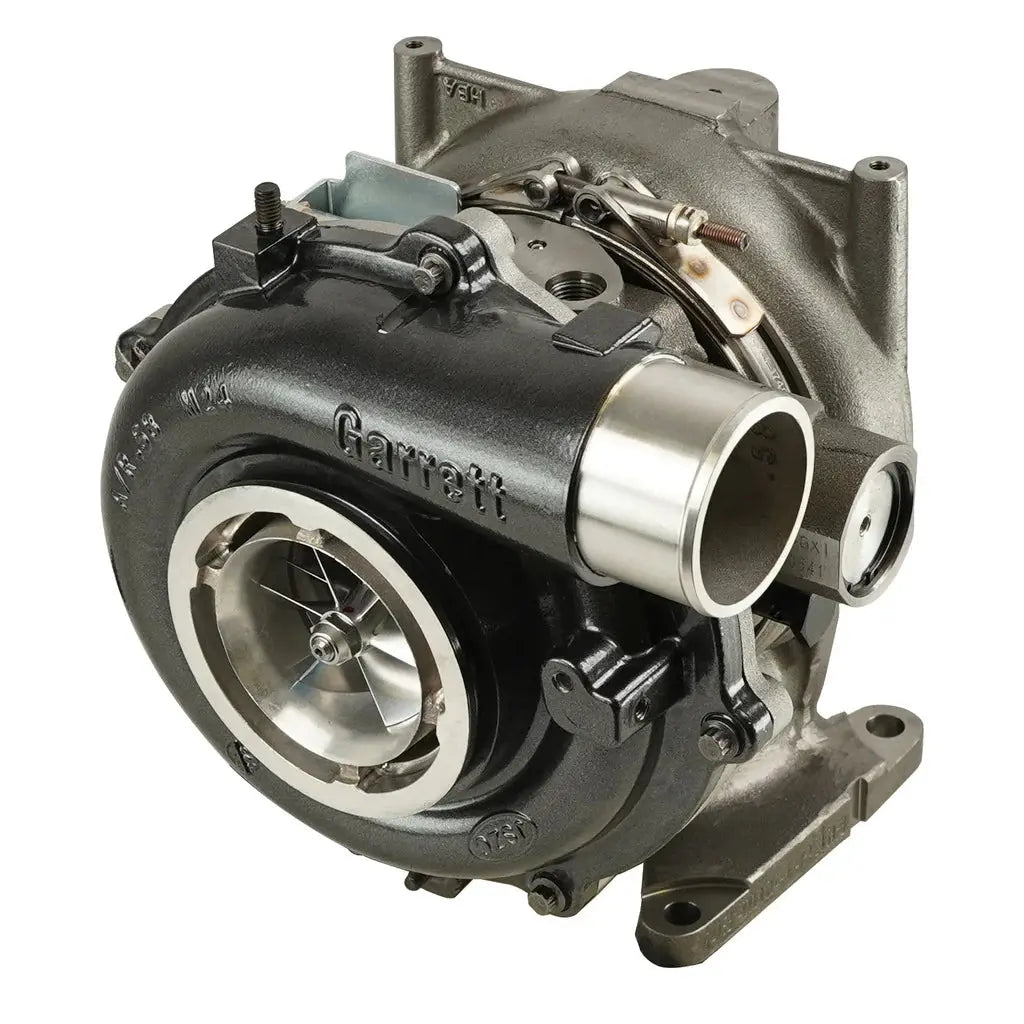

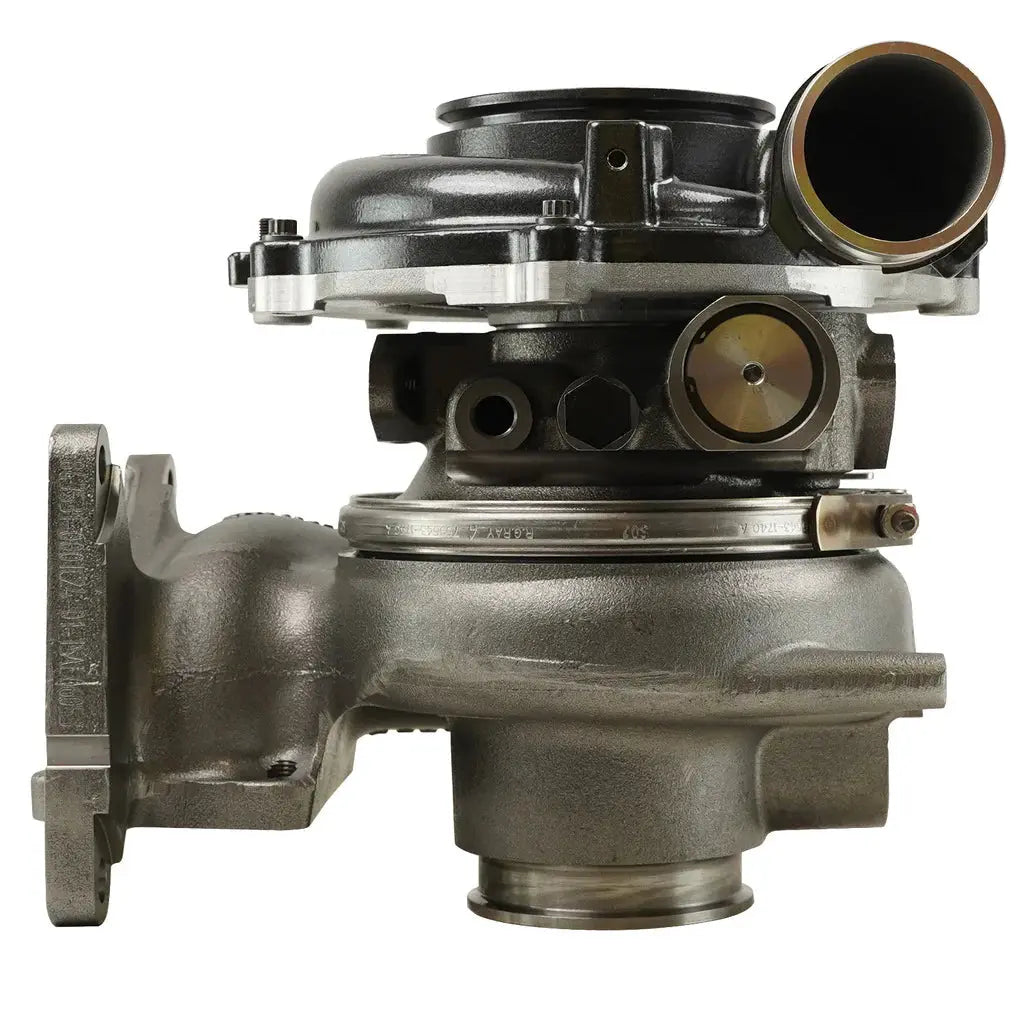

BD Screamer Drop-In Turbo – 2004.5–2016 GM Duramax

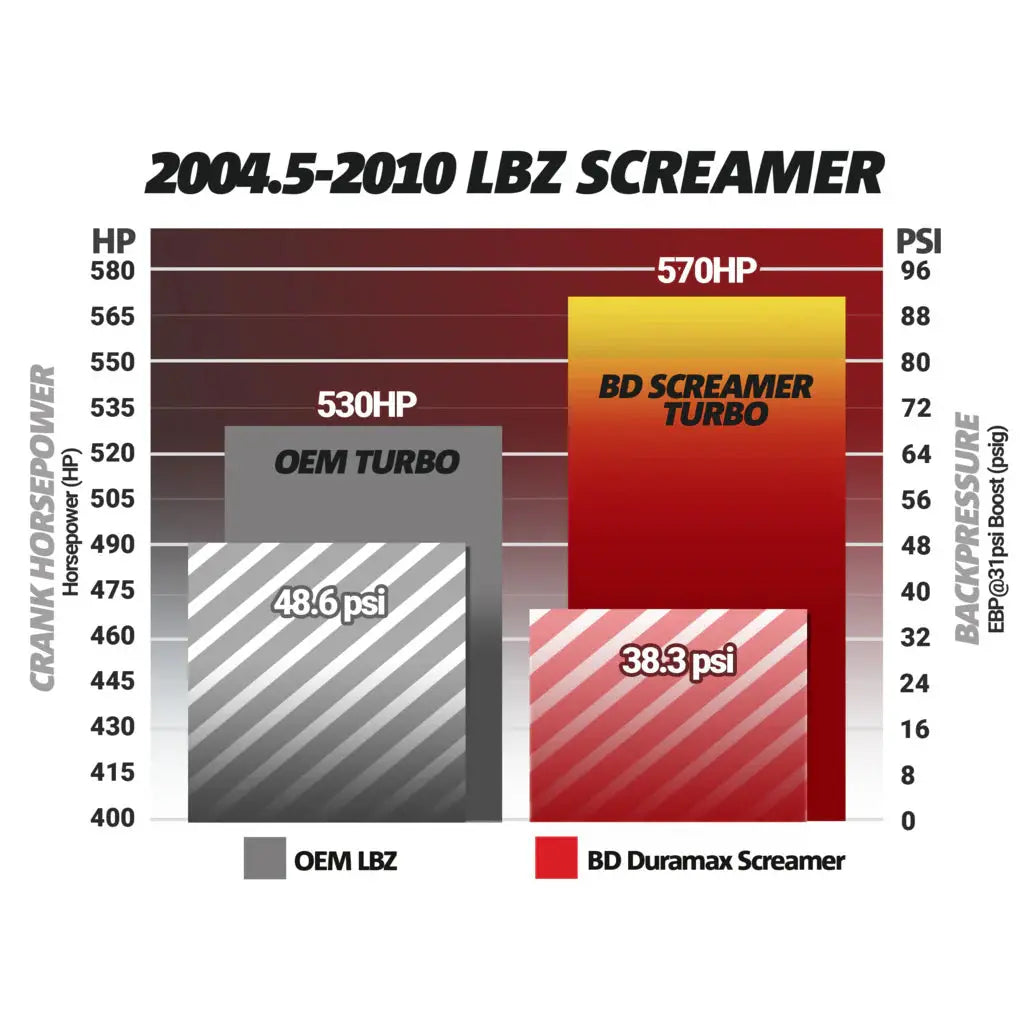

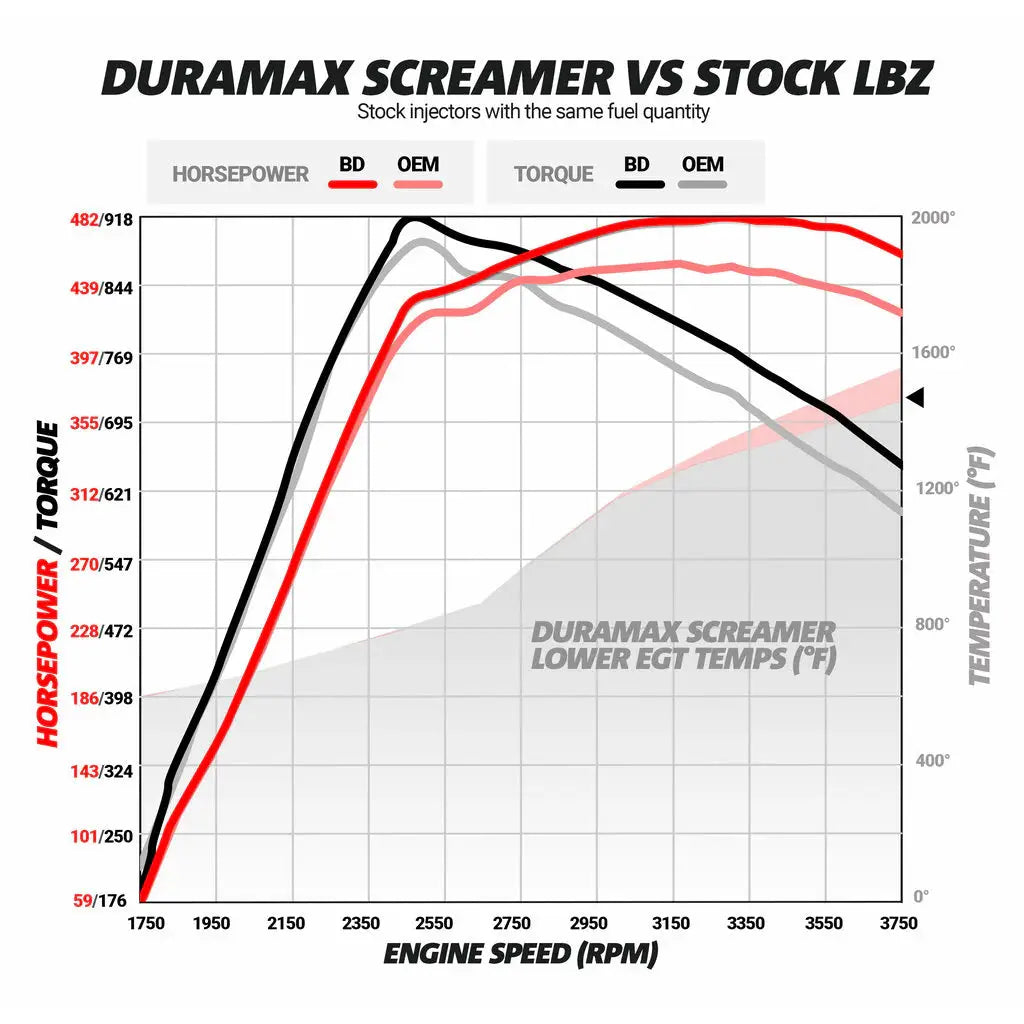

The drop-in, stock-appearing Screamer turbo for the 2004.5–2016 Duramax uses modern turbocharger technology to increase airflow without sacrificing low-end response. Boost pressure can be increased for more horsepower potential, and testing with identical tuning and fuel showed higher output and lower peak EGTs. The Screamer turbo is compatible with any box-style tuner, with added gains available through custom tuning.
Features
50-state legal under CARB EO No. D-553-23.
Equipped with a 65mm billet compressor wheel.
Outperforms the Garrett Powermax Stage 1.
New “mixed flow” turbine wheel design increases efficiency and turbo flow.
Spools exactly like a factory LBZ turbo.
Supports up to 85 lb/min of airflow.
Delivers more boost with lower drive pressure and reduced EGTs.
Suggested power support up to 690 crank horsepower.
VSR high-speed balanced for reliability and smooth operation.
2004.5–2005 LLY models require adapter cable part number 771864-0001.
Install Time
15 Hours
Note
2004.5–2005 LLY applications must use adapter cable 771864-0001.
Emissions
This product is covered under CARB Executive Order and is legal for sale and use in all 50 states. (EMS:1)
Fitments
Chevy LLY/LBZ/LMM Duramax 2004.5-2010
Specifications
SKU: 1045840
GTIN: 990011407953
Manufacture Name: BD Diesel
Shipping Weight: 54
Shipping Length: 16
Shipping Width: 16
Shipping Height: 19
EO Number:
Cross Reference #
Warranty
Warranty
Parts coverage: 24 Months
