2005-2023 Tacoma/2007-2021 Tundra/2008-2022 Sequoia/2016-2023 Titan XD/2019-2023 GM 1500 Delta Joint Kit Icon Vehicle Dynamics

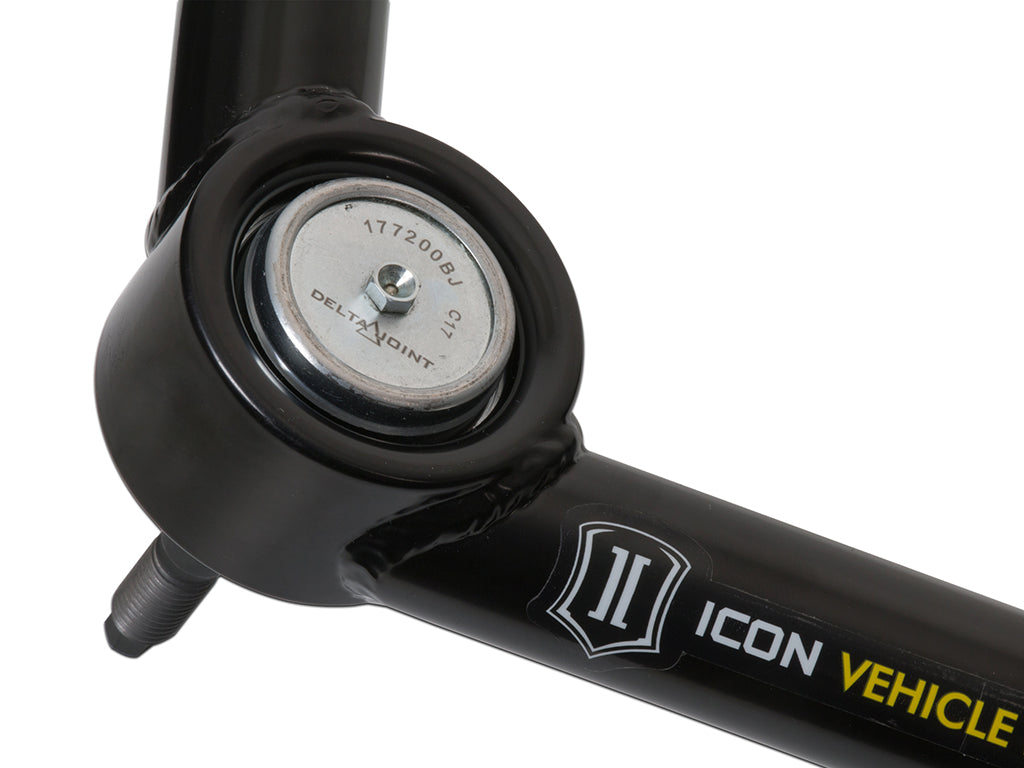

ICON's Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.

The Delta Joint's zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation.

What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint.

• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball
• Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris
• Metal on metal internals and a greasable design for maximum longevity and noise-free operation
• Capable of high angularity required for lifted applications
• Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly
• Pullout strength greater than comparable industry standard uniball
• Application specific taper pins for precise fit across a wide range of vehicles
• 5 Year ICON Limited Warranty (When used with ICON Vehicle Dynamics suspension components, visit www.iconvehicledynamics.com/deltajoint for more info)

• Color: Silver, Black
• Material: Steel
• Adjustable: No
• Ball Joint Assembly: Yes
• Castle Nut Included: Yes
• Cotter Pin Hole: No
• Cotter Pin Included: No
• Dust Boot Included: No
• Grade Type: Performance
• Grease Fitting Included: Yes
• Greaseable: Yes
• Mounting Hardware Included: Yes
• Mounting Type: Press In
• Nuts Included: Yes
• Pre Greased: Yes
• Quantity: Pair
• Retaining Ring Included: Yes
• Suspension Grade Type: Performance
• Tapered Stud: Yes
• Thread Direction: Clockwise (Right)
• Washers Included: Yes
