2008-2010 Ford F-250/F-350 Super Duty 4WD Diesel 2.5 Inch Lift Suspension System W/ Expansion Packs Icon Vehicle Dynamics

The ICON 2.5 Inch suspension system is a great way to lift your 4WD 2008-2010 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

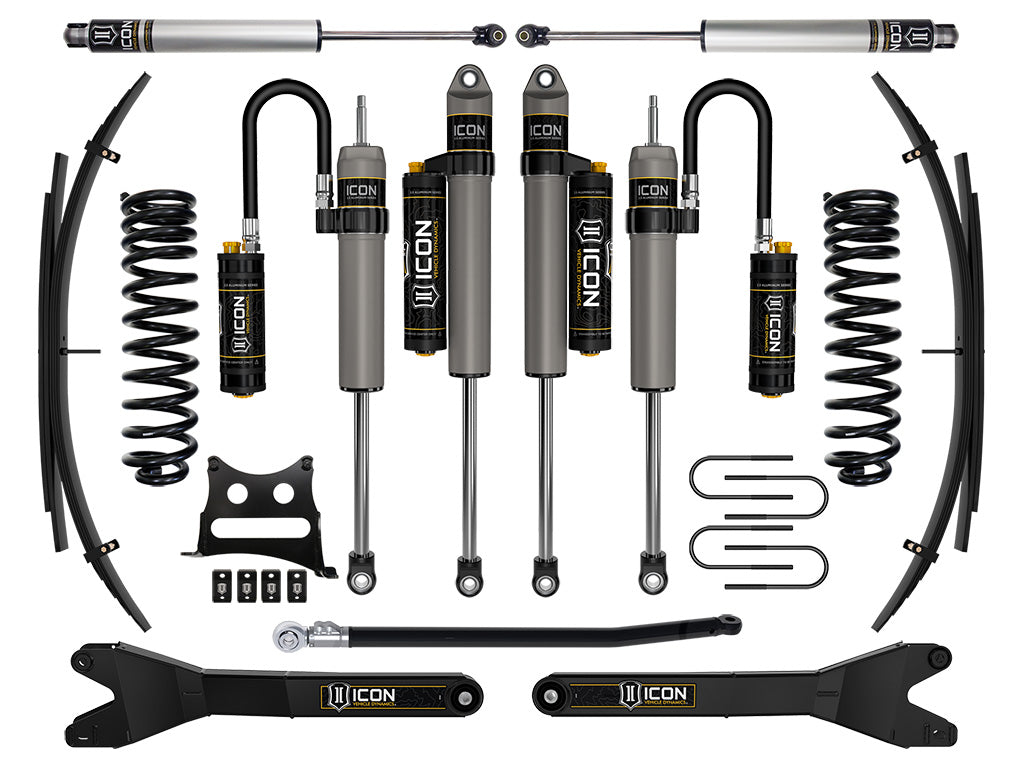

ICON's Stage 1 System is comprised of dual rate coil springs, alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir shocks front and rear. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs provide 2.5 Inch of front lift over stock
• Match tuned internal reservoir 2.0 Aluminum Series shocks
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won't sag or break
• No drive shaft modifications required
• 100 Percent Bolt-on system - no drilling, cutting or welding necessary for install

• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Front Spring Rate Type: Progressive Dual Rate
• Grade Type: Performance
• Leaf Spring Leaf Quantity: 7.0
• Maximum Lift Front: 2.5 Inch
• Maximum Lift Rear: 2.0 Inch
• Minimum Lift Rear: 0.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 64035 - 05-16 FSD Adj Track Bar W/Fk Rod End, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit
