Auxiliary Heated Fuel Filter Kit for 03-18 Dodge Ram Cummins Fleece Performance

Introducing our all-new full featured auxiliary fuel filter kit for the 2003-2018 Dodge Cummins. This kit builds off our standard auxiliary kit with the addition of an integral high-flow fuel heating element and Water-In-Fuel (WIF) sensor.

The kit includes everything you need to properly route, plumb and filter fuel for your Cummins engine from a Fleece Performance lift pump to the injection pump. Our kit improves accessibility to the fuel filter as well as reduces your ongoing maintenance cost with a lower cost Donaldson filter.

Application notes:

• A Fleece Performance fuel filter delete is required for use with this product and must already be installed or purchased separately.
• This kit does not include a quick disconnect fitting to adapt to the OE lift pump.
• If you are running this kit with a stock OE sending unit on the fuel tank use P/N: FPE-QUCON-OE-38to allow for an AN connection to the stock quick disconnect style fitting.

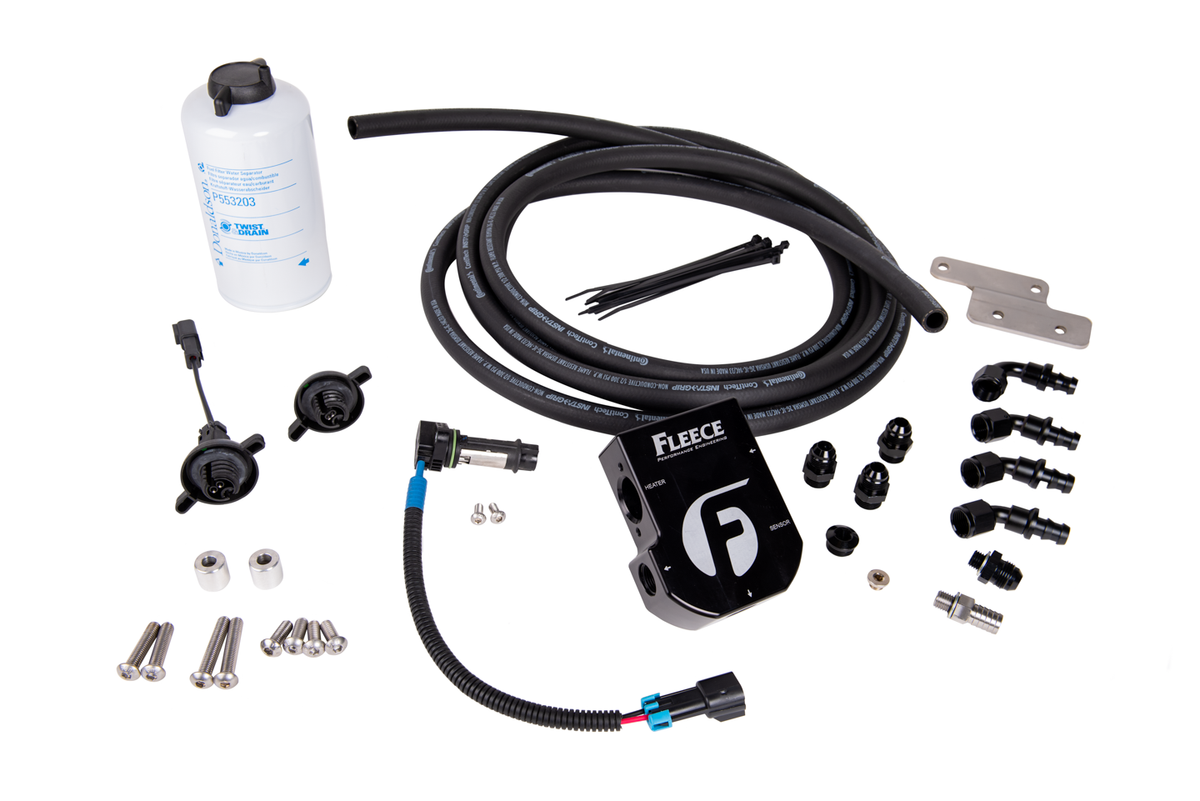

Kit includes:

• Fuel filter base with integral heater and mounting hardware
• Donaldson 3 micron fuel filter and water separator
• Push Lock hose and all necessary AN and barb fittings
• CP3 Feed fittings for 5.9L and 6.7L CP3 pumps
• Water-In-Fuel (WIF) sensor and adaptation harness

Fuel heater specifications:

• Temperature switching points: ON: 28.4F +/-5.4F,  OFF: 48.2F +/- 5.4F
• At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element.

2003 Dodge Ram 2500/3500 5.9L 24V Cummins
2004 Dodge Ram 2500/3500 5.9L 24V Cummins
2005 Dodge Ram 2500/3500 5.9L 24V Cummins
2006 Dodge Ram 2500/3500 5.9L 24V Cummins
2007 Dodge Ram 2500/3500 5.9L 24V Cummins
2007.5 Dodge Ram 2500/3500 6.7L 24V Cummins
2008 Dodge Ram 2500/3500 6.7L 24V Cummins
2009 Dodge Ram 2500/3500 6.7L 24V Cummins
2010 Ram 2500/3500 6.7L 24V Cummins
2011 Ram 2500/3500 6.7L 24V Cummins
2012 Ram 2500/3500 6.7L 24V Cummins
2013 Ram 2500/3500 6.7L 24V Cummins
2014 Ram 2500/3500 6.7L 24V Cummins
2015 Ram 2500/3500 6.7L 24V Cummins
2016 Ram 2500/3500 6.7L 24V Cummins
2017 Ram 2500/3500 6.7L 24V Cummins
2018 Ram 2500/3500 6.7L 24V Cummins
