Ceramic Coated Cast Manifold And Up-Pipe Bundle For 2001-2004 Silverado/Sierra 2500/3500 HD LB7 Duramax HSP Diesel

The HSP Diesel Ceramic Coated Cast Manifold and Up-Pipe Bundle is the ultimate exhaust flow and reliability upgrade for the 2001-2004 LB7 Duramax. Combining HSP's high-flow one-piece cast manifolds with heavy-duty 2 Inch replacement up-pipes, this package eliminates common factory failure points while improving turbo response, exhaust flow, durability, and overall performance.

The factory exhaust manifolds and up-pipes are both known restrictions on the LB7 platform. Cracking manifolds, warped flanges, leaking bellows, and broken hardware are all common issues that can lead to power loss, excessive heat, and costly repairs.

HSP Diesel engineered this bundle to solve those problems while dramatically improving airflow and reliability.

Factory manifolds are restrictive and prone to cracking or warping over time. The OEM up-pipes are also known to fail at the bellows, causing boost and exhaust leaks that reduce performance and reliability.

By upgrading both components together, you create a complete high-flow exhaust path from the manifolds to the turbocharger. This results in lower exhaust gas temperatures, faster spool-up, improved throttle response, increased reliability, and additional horsepower potential.

The HSP One Piece Cast Manifolds are manufactured from high-strength cast steel and precision finished on a 5-axis CNC machine for superior fitment and flow characteristics. Their high-flow, low-profile design removes the common restriction found in the factory driver-side manifold while providing increased strength compared to multi-piece welded designs.

The included HSP 2 Inch Up-Pipes are constructed from heavy-wall 304 stainless steel with reinforced sleeved bellows to withstand extreme heat and pressure. Combined with the improved manifold flow, these up-pipes help maximize turbo efficiency and durability under demanding conditions.

Both the manifolds and up-pipes are ceramic coated for superior heat management and protection up to 2,000 DegreeF.

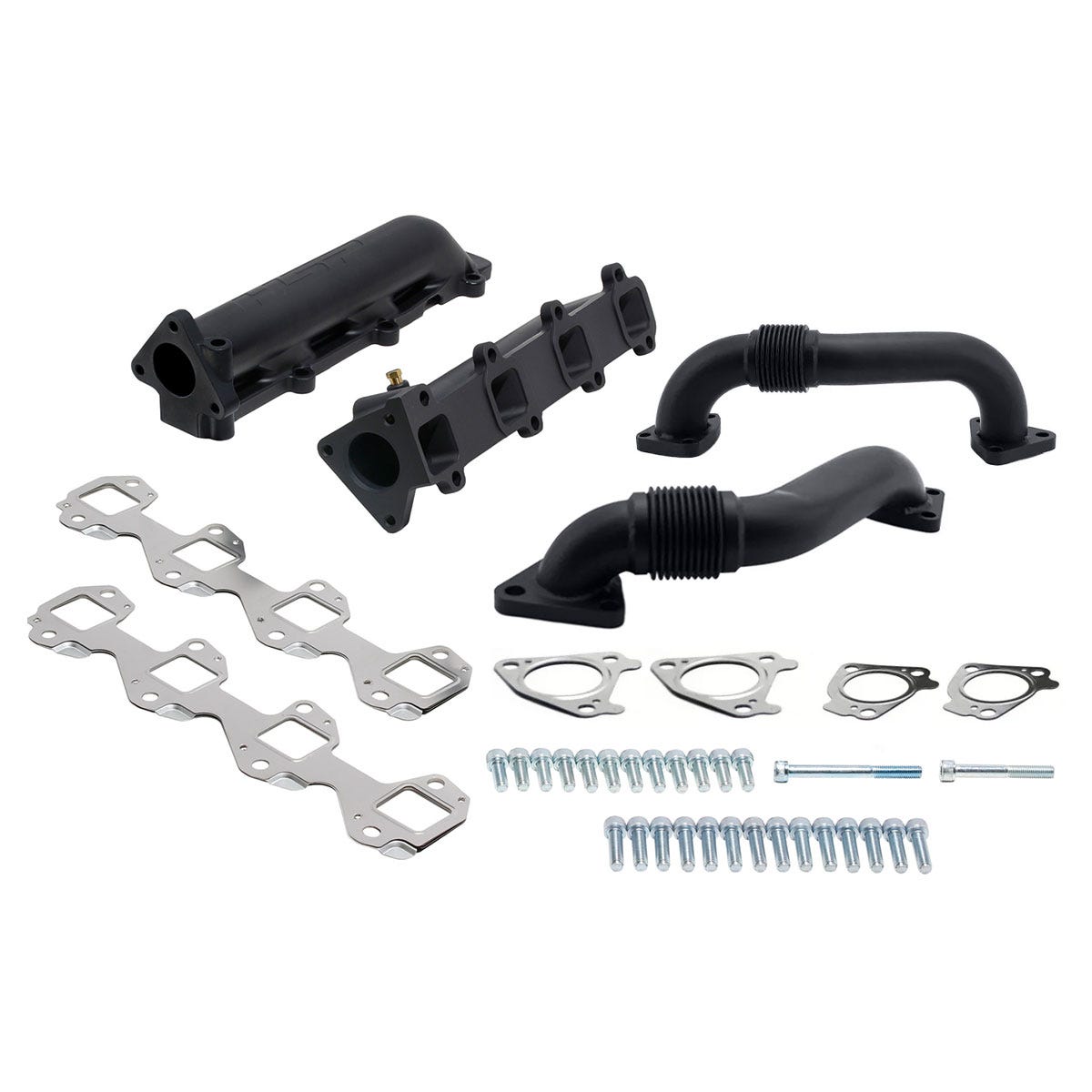

• (1) LB7 One Piece Cast Manifold - Driver Side (HSP-IN-660-D)
• (1) LB7 One Piece Cast Manifold - Passenger Side (HSP-IN-660-P)
• (1) 2 Inch Replacement Passenger Up-Pipe
• (1) 2 Inch Replacement Driver Up-Pipe
• (2) 1/8 Inch NPT Brass Plug (RFB-811-RFAB)
• (1) Manifold Gasket Set (RFB-820-RFAB)
• (2) Up-Pipe Gasket (Turbo Side)
• (2) Up-Pipe Gasket (Manifold Side)
• (12) M10x1.5x25mm Socket Head Cap Bolts (RFB-833-RFAB)
• (14) M10x1.5x35mm Bolts (RFB-834-RFAB)
• (1) M10x1.5x80mm Bolt (RFB-859-RFAB)
• (1) M10x1.5x100mm Bolt (RFB-860-RFAB)

• LB7 Duramax: 2001-2004 Chevrolet Silverado / GMC Sierra HD (VIN Code 1)

The engine code is determined by the 8th character of the VIN number. The 10th character indicates the model year of the vehicle.

• Complete manifold and up-pipe upgrade package
• High-flow one-piece cast manifold design
• Heavy-wall 304 stainless steel up-pipes
• Reinforced heavy-duty sleeved bellows
• Lower exhaust gas temperatures
• Improved turbo spool-up and throttle response
• Eliminates common factory exhaust restrictions
• Ceramic coating rated up to 2,000 DegreeF
• Increased reliability and durability
• Includes all necessary gaskets and hardware

Details:

• Category: Exhaust Up Pipe
• Fits: 2001-2004 Siverado/Sierra 2500/3500 HD
• Location: Passenger Side|Driver Side
• Fuel Type: Diesel
• Engine Manufacturer: Duramax
• Engine Designation: LB7
• Material: Cast Steel / 304 Stainless Steel
• Sold As: Each
• Vehicle Make: Chevy / GMC
• Engine Years: 2001-2004
• Universal: No

2001-2004 Chevrolet Silverado 2500 HD, 2001-2004 Chevrolet Silverado 3500 HD, 2001-2004 GMC Sierra 2500 HD, 2001-2004 GMC Sierra 3500 HD

SKU: HSP-D-039-HSP-C

GTIN: 680332334945

Manufacture Name: HSP Diesel

Shipping Weight: 32

Shipping Length: 24

Shipping Width: 16

Shipping Height: 10
