Cognito 1.5-3.5 Inch Lift Elite Performance Leveling Kit w/ Cognito 2.5 RR Coilovers, 2.5 PB Shocks, and Billet UCAs for 19-26 Silverado/Sierra 1500 2WD/4WD

Upgrade your Silverado/Sierra 1500 with a complete leveling solution engineered for performance, durability, and straightforward installation. Designed for both 2WD and 4WD models, this all-in-one package eliminates the guesswork by including the premium components needed to properly level your truck while improving ride quality, handling, and suspension performance. Our Cognito billet control arms are precision-machined from high-quality 6061 aluminum and finished in durable black anodize, resulting in a lightweight yet highly durable component proving to be one of the strongest upper control arms we've developed to date.

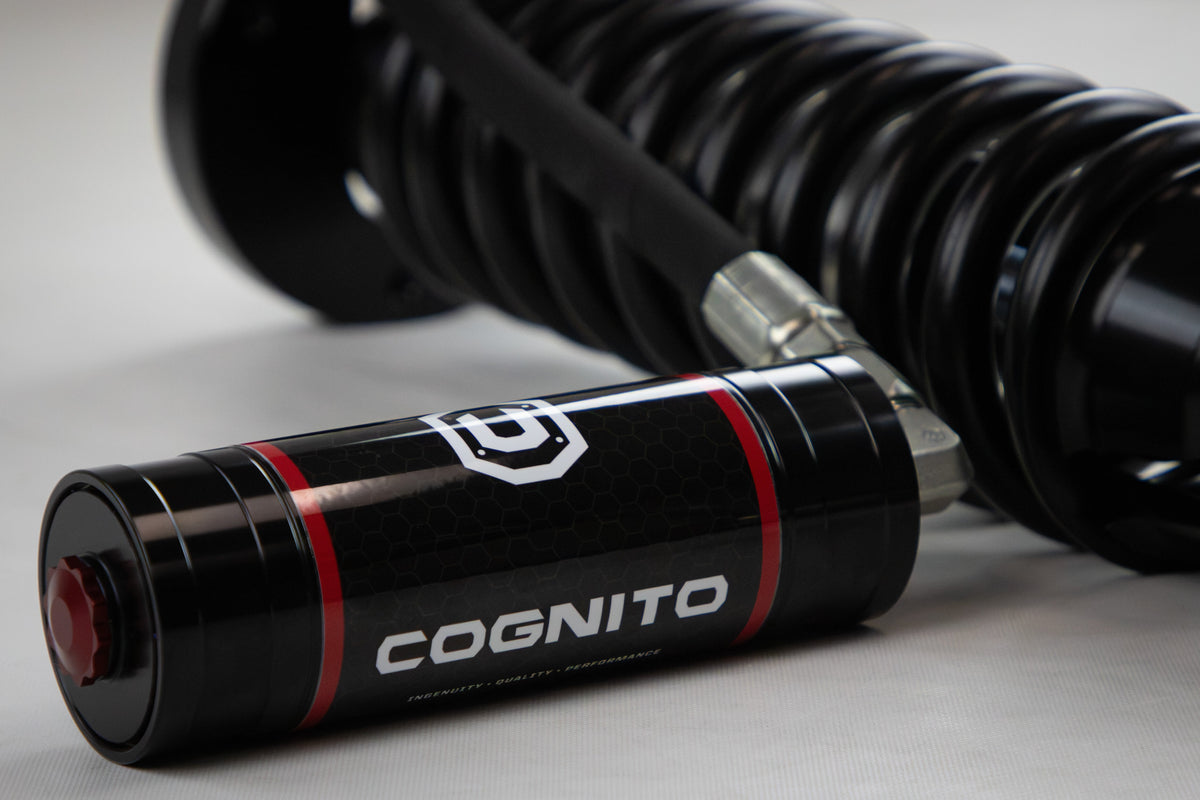

All required hardware and detailed step-by-step instructions are included for a smooth and hassle-free installation. This kit is paired with Cognito 2.5-inch diameter coilover shocks with remote reservoirs, engineered specifically for GM half-ton trucks to deliver exceptional ride quality, control, and durability in a direct bolt-on package. These coilovers also offer ride height adjustability to yield 1.5-3 Inch of front lift over stock, allowing you to dial in your desired stance.

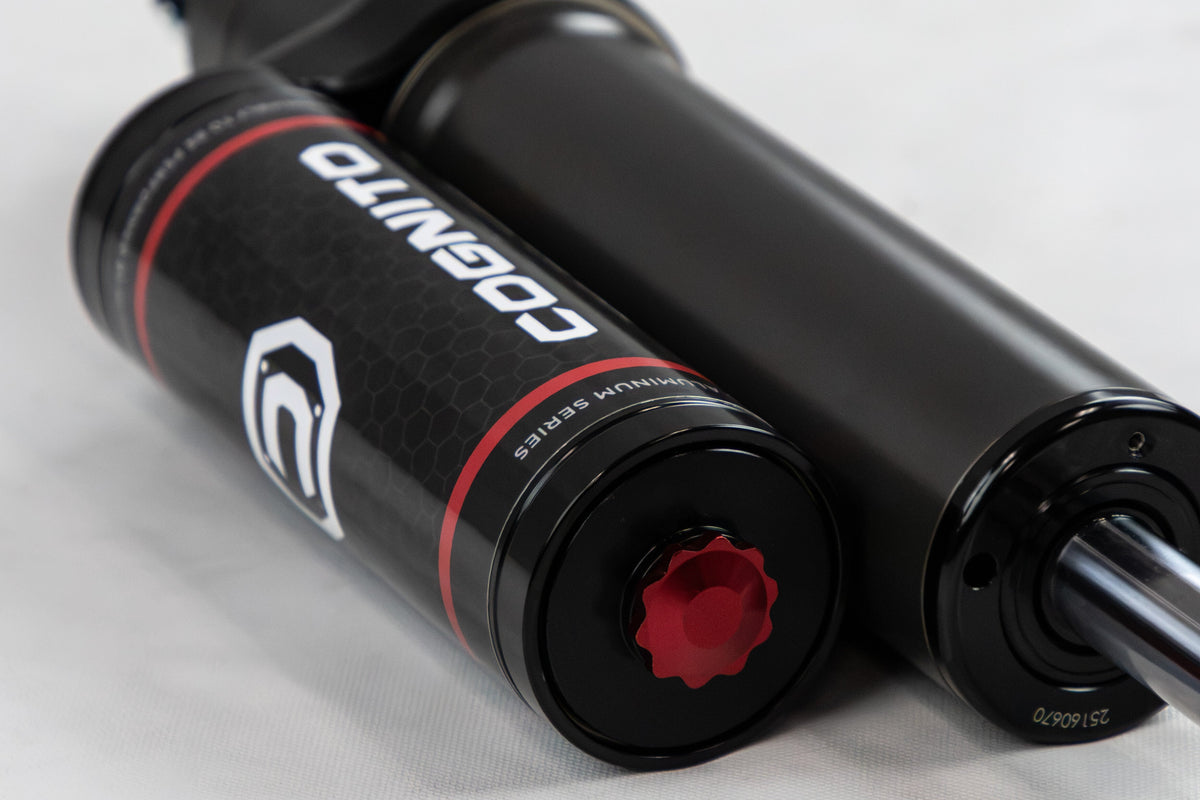

Their larger diameter and remote reservoir design helps improve cooling capacity and maintain consistent damping performance under demanding conditions. Rounding out the rear are Cognito 2.5-inch piggyback reservoir rear shocks that improve rear ride quality as well as performance, and provide a balanced tuning feel to the suspension.

Features and Benefits:

• Adjustable Ride Height Yields 1.5-3.5 Inch of Front Lift
• Cognito Billet Upper Control Arm Kit
• Cognito 2.5 Series Remote Reservoir Coilover Front Shocks
• Cognito 2.5 Series Piggyback Reservoir Rear Shocks
• Enhances the Trucks Appearance and Reduces the Factory Nose Down Rake
• Improved Ball Joint Angle
• Maintains Adequate Droop Travel for Superior Ride Quality
• 4-hour DIY Install Time

Details:

• Position: Front and Rear
• Grade Type: Performance
• Mounting Hardware Included: Yes
• Shocks Included: Yes
• Struts Included: Yes
• Adjustable Control Arm: Yes
• Bushings Included: Yes
• Installation Time: 4 Hour
• Maximum Lift: 3.5 Inch
• Maximum Lift Height Front: 3.5 Inch
• Coil Spring Color: Black
• Coil Spring End 1 Type: Square
• Coil Spring End 2 Type: Square
• Coil Spring Material: Steel
• Coils Quantity Front: 2
• Coils Quantity Rear: 0
• Front Spring Rate Type: Linear
• Coil Spring Maximum Inside Diameter: 3 Inch
• Front Spring Rate: 700 PPI
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 700 PPI
• Fitment Summary: 2022 Chevrolet Silverado 1500 LTD, 2022 Chevrolet Silverado 1500 Nueva, 2019-2026 Chevrolet/GMC Silverado/Sierra 1500, 2022 GMC Sierra 1500 Limited, 2022 GMC Sierra Nueva
• Make: Chevrolet, GMC
• Application Summary: Cognito 1.5-3.5in Elite Perf Lvl Kit w/ CMS 2.5RR/2.5PB w/ Billet UCA, GM1500 19-26
• Fitment Notes: Up to 35x12.50 Inch Tire with Minor Fender Trimming, with 0 Inch Maximum Lift Rear, Raises Front 0 Inch - 1 Inch, Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install, Requires Trimming of Upper Control Arm Droop Stops, 18 mm Offset Aftermarket Wheels Recommended, with 2 Inch Maximum Lift Rear, Raises Front 1 Inch - 3 Inch, Raises Front 0 Inch - 1.5 Inch, Raises Front 1.5 Inch - 3.5 Inch, Up to 34x12.00 Inch Tire with Minor Fender Trimming

Kit Components:

• 110-91357 (1) 2019+ GM 1500/SUV Coilover RR Front Pair
• 110-91359 (1) 2019+ GM 1500 2.5 PB Rear Pair
• 110-91399 (1) 19 GM 1500/21 GM SUV Billet Arm Kit
• HP9324 (1) Hardware Pack, GM ARC System Bypass

Notes:

• Note: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Note: Trimming of the upper control arm stop required or down travel will be limited by upper arm stop
• Note: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 1.5-3.5 Inch over stock. Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1.5 Inch over stock.
• Note: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1-3 Inch over stock. Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1 Inch over stock.
• Note: This product requires bypassing Adaptive Ride Control (ARC) system, if equipped.
• Note: Not recommended for models equipped with 4-cylinder engine
• Note: Will not fit Silverado 1500 ZR2 or Sierra 1500 AT4X
• Note: Included rear shocks are compatible with 0-2 Inch of rear lift on most models. Rear shocks are not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4.
• Note: Recommend replacing OE rear blocks on Silverado 1500 Trail Boss and Sierra 1500 AT4 models with 1 Inch rear blocks if level stance is desired.
