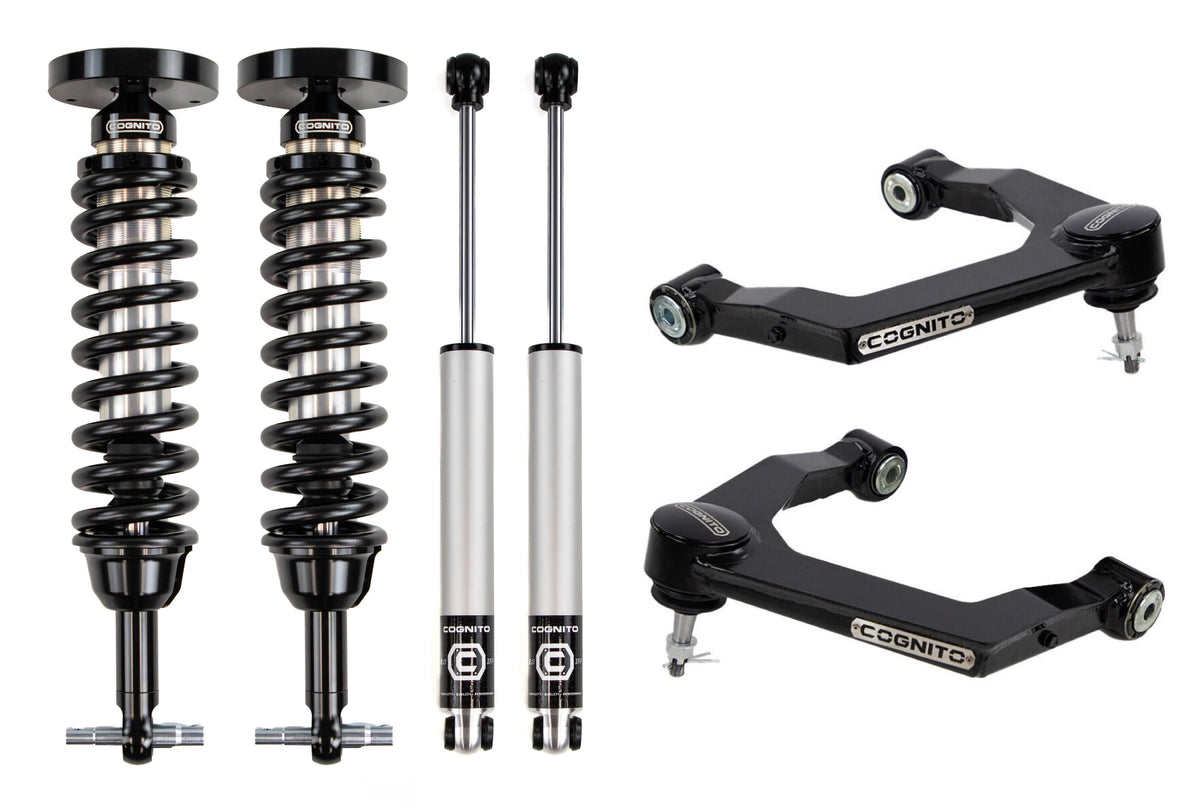

Cognito 1.5-3.5 Inch Lift Performance Leveling Kit w/ Cognito 2.5 IFP Coilovers, 2.0 IFP Shocks, and SM Series UCAs for 19-26 Silverado/Sierra 1500 2WD/4WD

Upgrade your Silverado/Sierra 1500 with a complete leveling solution engineered for performance, durability, and straightforward installation. Designed for both 2WD and 4WD models, this all-in-one package eliminates the guesswork by including the premium components needed to properly level your truck while improving ride quality, handling, and suspension performance. The Cognito SM Series Upper Control Arms are designed to provide improved performance, style, and function for stock, leveled, and lifted applications.

Constructed from heavy-duty boxed sheet metal and finished in a durable semi-gloss black Powdercoat, these arms feature corrected ball joint angles for leveled and lifted trucks while allowing increased droop travel for improved ride quality and suspension performance. Each arm is equipped with Cognito Alpha Joints and maintenance-free pivot bushings. This kit is paired with Cognito 2.5-inch diameter coilover shocks with internal floating pistons, engineered specifically for GM half-ton trucks to deliver exceptional ride quality, control, and durability in a direct bolt-on package.

These coilovers also offer ride height adjustability to yield 1.5-3 Inch of front lift over stock, allowing you to dial in your desired stance. Their larger diameter and internal floating piston design helps maintain consistent damping performance under demanding conditions. Rounding out the rear are Cognito 2.0-inch IFP rear shocks that improve rear ride quality as well as performance, and provide a balanced tuning feel to the suspension.

Features and Benefits:

• Adjustable Ride Height Yields 1.5-3.5 Inch of Front Lift
• Cognito SM Series Upper Control Arm Kit
• Cognito 2.5 Series IFP Coilover Front Shocks
• Cognito 2.0 Series IFP Rear Shocks
• Enhances the Trucks Appearance and Reduces the Factory Nose Down Rake
• Improved Ball Joint Angle
• Maintains Adequate Droop Travel for Superior Ride Quality
• 4-hour DIY Install Time

Details:

• Position: Front and Rear
• Grade Type: Performance
• Mounting Hardware Included: Yes
• Shocks Included: Yes
• Struts Included: Yes
• Adjustable Control Arm: No
• Bushings Included: Yes
• Installation Time: 4 Hour
• Maximum Lift: 3.5 Inch
• Maximum Lift Height Front: 3.5 Inch
• Coil Spring Color: Black
• Coil Spring End 1 Type: Square
• Coil Spring End 2 Type: Square
• Coil Spring Material: Steel
• Coils Quantity Front: 2
• Coils Quantity Rear: 0
• Front Spring Rate Type: Linear
• Coil Spring Maximum Inside Diameter: 3 Inch
• Front Spring Rate: 700 PPI
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 700 PPI
• Fitment Summary: 2022 Chevrolet Silverado 1500 LTD, 2022 Chevrolet Silverado 1500 Nueva, 2019-2026 Chevrolet/GMC Silverado/Sierra 1500, 2022 GMC Sierra 1500 Limited, 2022 GMC Sierra Nueva
• Make: Chevrolet, GMC
• Application Summary: Cognito 1.5-3.5in Perf Lvl Kit w/ CMS 2.5/2.0 IFP w/ SM UCA, GM1500 19-26
• Fitment Notes: Up to 35x12.50 Inch Tire with Minor Fender Trimming, with 0 Inch Maximum Lift Rear, Raises Front 0 Inch - 1 Inch, Requires Slight Sanding of Rear Shock Mounts, Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install, 18 mm Offset Aftermarket Wheels Recommended, with 2 Inch Maximum Lift Rear, Raises Front 1 Inch - 3 Inch, Raises Front 0 Inch - 1.5 Inch, Raises Front 1.5 Inch - 3.5 Inch, Up to 34x12.00 Inch Tire with Minor Fender Trimming

Kit Components:

• 110-91356 (1) 2019+ GM 1500/SUV Coilover IFP Front Pair
• 110-91358 (2) 2019+ GM 1500 2.0 IFP Rear Single
• 110-90784 (1) Balljoint SM Series Upper Control Arm Kit for 2019-2020 GM 1500
• HP9324 (1) Hardware Pack, GM ARC System Bypass

Notes:

• Note: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Note: Slight Modifications To Factory Shock Mounts May Be Required
• Note: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 1.5-3.5 Inch over stock. Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1.5 Inch over stock.
• Note: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1-3 Inch over stock. Chevrolet Silverado 1500 Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1 Inch over stock.
• Note: This product requires bypassing Adaptive Ride Control (ARC) system, if equipped.
• Note: Not recommended for models equipped with 4-cylinder engine
• Note: Will not fit Silverado 1500 ZR2 or Sierra 1500 AT4X
• Note: Included rear shocks are compatible with 0-2 Inch of rear lift on most models. Rear shocks are not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4.
• Note: Recommend replacing OE rear blocks on Silverado 1500 Trail Boss and Sierra 1500 AT4 models with 1 Inch rear blocks if level stance is desired.
