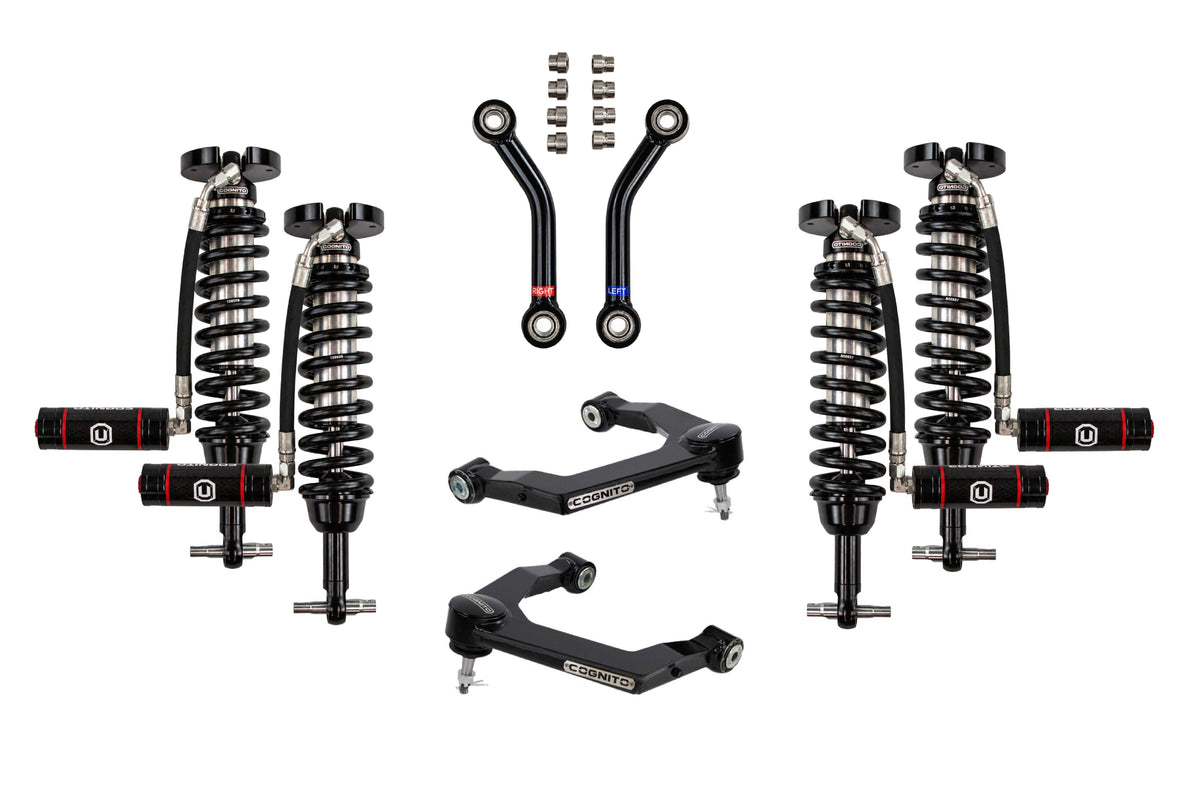

Cognito 2021-2026 Chevrolet Tahoe & Suburban/2021-2026 GMC Yukon & Yukon XL, 2.5-3.25 Inch Lift, SM UCA, w/ Cognito RR Coilovers

The Cognito 21-26 GM SUV Elite Level Kit is engineered to increase wheel travel, damping capability, and suspension performance for exceptional vehicle control and ride quality on and off the road. Adjustable front coilovers provide 2.5-3.25 Inch of lift, while adjustable rear coilovers provide 3-4 Inch, allowing fitment of larger and more aggressive tires. Cognito 2.5 Series coilovers feature vehicle-specific tuning, corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, and remote reservoirs that help maintain cooler operating temperatures during extended off-road use.

Fully rebuildable and re-tunable, the shocks can be serviced and customized as driving needs change. SM Series Upper Control Arms feature Cognito Alpha Joint ball joints for increased strength, durability, and high-angle articulation while providing an expanded alignment range and helping maintain proper suspension geometry at increased ride heights. FK rod-end bearings provide extended longevity and minimal deflection.

Fabricated Cognito GM SUV rear toe links help maintain proper rear-end alignment at taller ride heights, improving suspension geometry and reducing unwanted tire wear and handling characteristics. With up to a 20 percent increase in front wheel travel over stock, this Elite Level Kit delivers the suspension capability needed for improved performance, comfort, and control.

Features and Benefits:

• Adjustable front coilovers provide 2.5-3.25 Inch of front lift height
• Adjustable rear coilovers provide 3-4 Inch of rear lift height
• Increased lift height allows for fitment of larger and more aggressive tires
• Up to 20 percent increase in front wheel travel over stock
• Cognito shocks feature vehicle specific tune for superior performance and ride quality
• 2.5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8 Inch shafts
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• SM Upper Control Arms with Alpha Joint ball joints for added strength, durability, and alignment spec range
• Fabricated rear toe links allow for proper rear end alignment with taller ride height
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and re-tunable

Details:

• Position: Front and Rear
• Grade Type: Performance
• Mounting Hardware Included: Yes
• Adjustable Control Arm: No
• Bushings Included: Yes
• Maximum Lift: 3.25 Inch
• Maximum Lift Height Front: 3.25 Inch
• Maximum Lift Height Rear: 4 Inch
• Coil Spring Color: Black
• Coil Spring End 1 Type: Square
• Coil Spring End 2 Type: Square
• Coil Spring Material: Steel
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Progressive
• Rear Spring Rate Type: Linear
• Fitment Summary: 2021-2026 Chevrolet Suburban, 2021-2026 Chevrolet Tahoe, 2021-2026 GMC Yukon XL, 2021-2026 GMC Yukon
• Make: Chevrolet, GMC
• Application Summary: Cognito GM SUV 21-26 Elite Lvl Lift Kit, SM UCA w/ Cognito RR Coilovers
• Fitment Notes: Raises Rear 2.5 Inch - 3.5 Inch, Raises Front 2.5 Inch - 3.25 Inch, Up to 33X12.50 Inch Tire with Minor Fender Trimming, Requires Recalibration of Advanced Driver Assistance Systems (ADAS) After Install, 0 mm Offset Aftermarket Wheels Recommended, Raises Front 2 Inch - 2.75 Inch, without Magnetic Ride Control, Raises Rear 3 Inch - 4 Inch

Kit Components:

• 110-90784 (1) Balljoint SM Series Upper Control Arm Kit for 2019-2020 GM 1
• 110-91357 (1) 2019+ GM 1500/SUV 2.5 RR Coilover Front Pair
• 110-91361 (1) 2019+ GM 1500/SUV 2.5 RR Coilover Rear Pair
• 110-91409 (1) 21-26 GM SUV Toe Link Kit Dr/Pass

Notes:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5 with 4.75 Inch Backspace / 0mm Offset
• Recommended Aftermarket Wheels: 18x9 with 5 Inch Backspace / 0mm Offset
• Recommended Aftermarket Wheels: 20x9 with 5 Inch Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33 Inch x12.50 Inch (Larger tires may fit but fender trimming and modifications may be required)
• Tech Note: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Tech Note: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Tech Note: Trimming required for recommended tire size
• Tech Note: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Tech Note: Most SUV submodels equipped with gasoline engines will have front lift height range of 2.5-3.25 Inch over stock
• Tech Note: Most SUV submodels equipped with diesel engines will have front lift height range of 2-2.75 Inch over stock
• Tech Note: Will not fit SUV submodels equipped with Magnetic Ride Control and/or Adaptive Air Ride suspension.
• Tech Note: Most Tahoe/Yukon submodels will have rear lift height range of 3-4 Inch over stock
• Tech Note: Most Suburban/Yukon XL submodels will have rear lift height range of 2.5-3.5 Inch over stock
