Connect Lite Digital Monitoring System FASS

FASS Connect Lite Digital Monitoring System - engineered by FASS Fuel Systems for dependable performance and long service life.

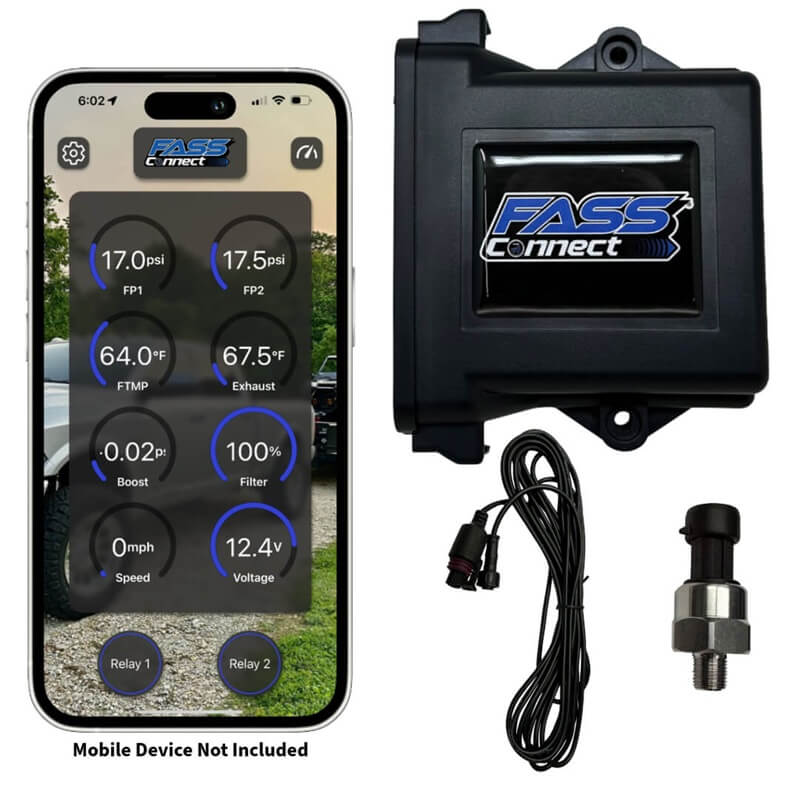

What's Included In The FC3001K FASS Connect Kit:

• (1) FASS Connect ECU
• (1) 0-100 PSI Fuel Pressure Sensor
• (1) 15 Foot Fuel Pressure Sensor Harness
• FASS Connect App available for free and can be downloaded on the Apple App Store or Google Play Store
• (2) Ring Terminals
• (1) Micro add-a-fuse and corresponding fuse
• (1) Mini add-a-fuse and corresponding fuse

The FASS Connect Lite has 5 sensor inputs that allow you to utilize a 0 to 100 PSI pressure, -40 Degree to 260 Degree temperature, and a 2,000 Degree exhaust gas temperature sensor. Not only is the FASS Connect a monitoring system, it also has 2x relay trigger outputs that allow you to power-on your FASS Fuel Heaters or other accessories like auxiliary lights right from the FASS Connect APP!

The FASS Connect App can monitor up to 8 parameters at a time, the 5 sensor inputs plus filter life, GPS speed, and battery voltage. The FASS Connect ECU communicates wirelessly to the FASS Connect APP giving you an ultra-clean installation and flexibility.

This kit includes the FASS Connect ECU, and a 0-100 PSI fuel pressure sensor (additional sensors available for purchase as accessories). Adding a second fuel pressure sensor to your FASS System allows you to monitor the filter life of your Extreme Water Separator in real-time, letting you know when it's time to change your filters.

Sensors can be mixed and matched to run any combination of the available accessory sensors that you need to best suit your application.

Part Number: FC3001K

Details:

• Fuel Type: Diesel

Universal

SKU: FC3001K

GTIN:

Manufacture Name: FASS Fuel Systems

Shipping Weight:

Shipping Length:

Shipping Width:

Shipping Height:

EO Number:

Cross Reference #
