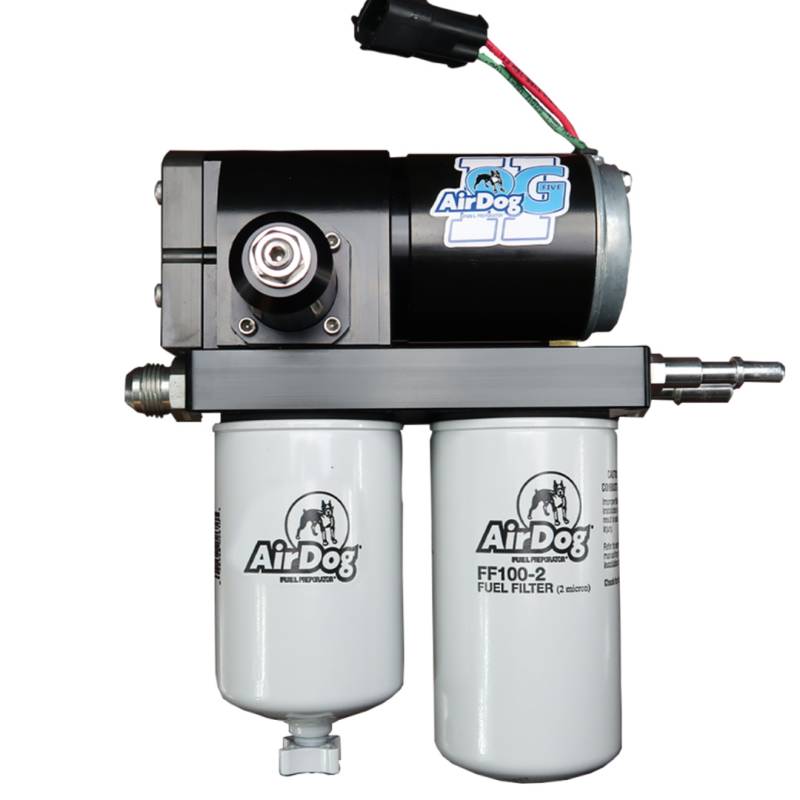

This is the AirDog II-5G DF-220-5G fuel system for the 2001-2010 Chevy/GMC Duramax 6.6L Diesel. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly to the factory injection pump feed line on the frame.
The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This system is one of our easiest installations.
Our Duramax kits usually see the largest performance gains as these trucks do not come with a lift pump from the factory. This is a 220GPH (Gallon Per Hour) lift pump system for moderately modified trucks.

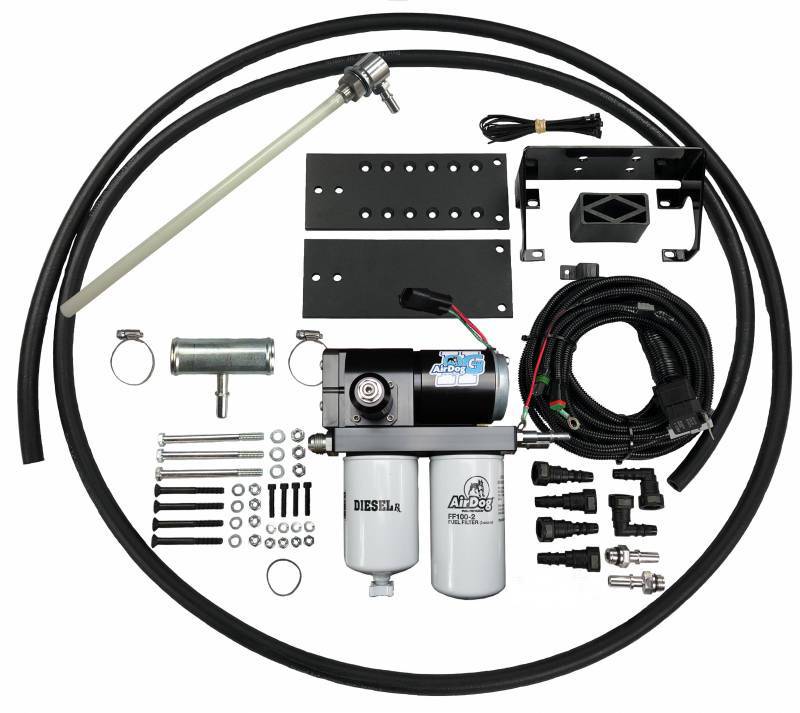

Check out our installation manual for a list of parts that are included with this kit.
Details:
- Gallons per hour: 220GPH
- Manufacturer: Duramax
- Make: GM/Chevy
- Liter: 6.6L
- Engine Version: LB7
- Engine Years: 2001-2004
- Fuel Type: Diesel
