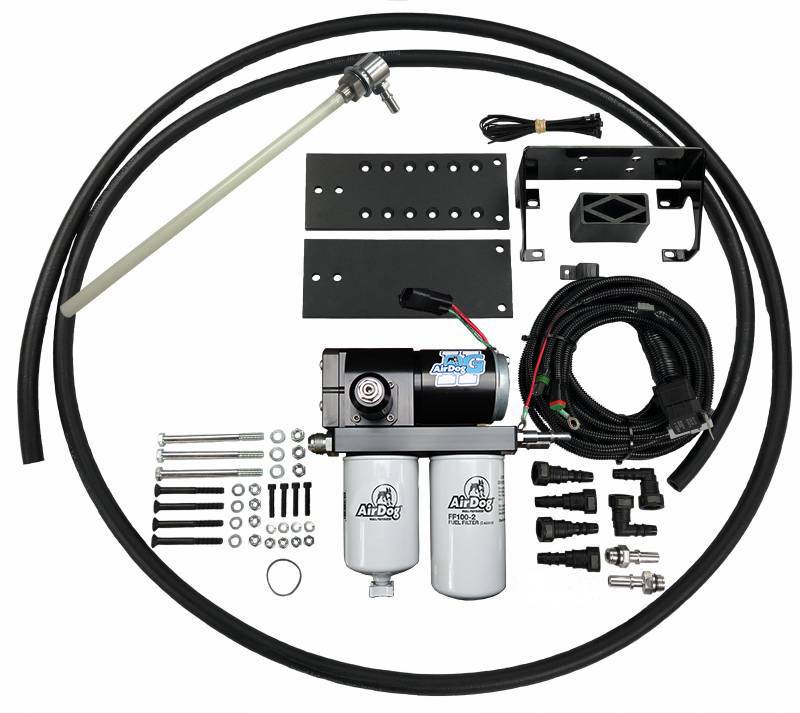

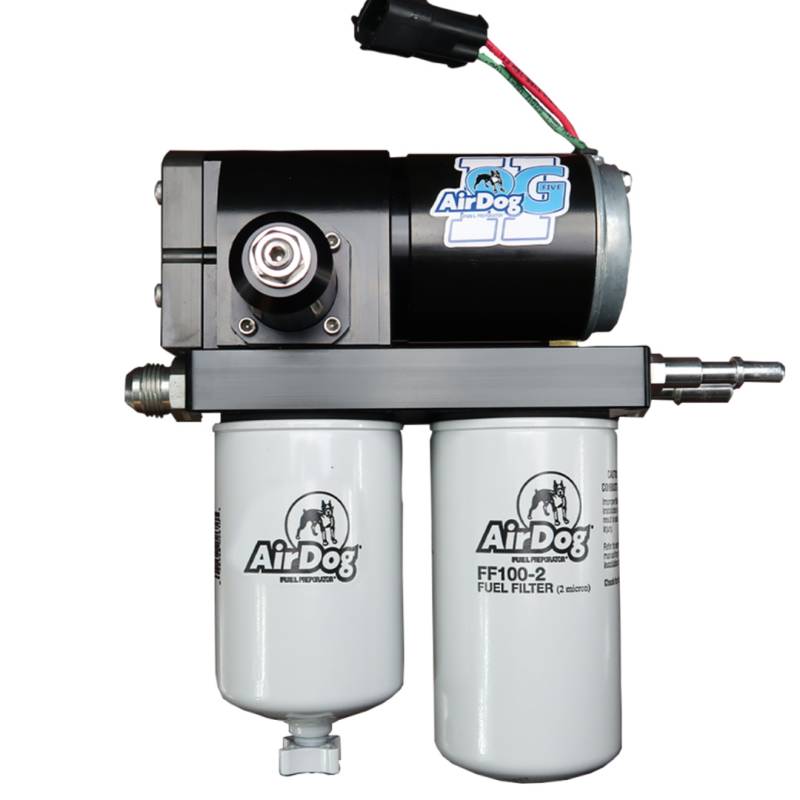

This is the AirDog II-5G DF-220-5G fuel system for the 2019 to 2020 RAM Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.
A 5/8 Inch draw straw is used to pull fuel from the tank. This will bypass the factory in-tank lift pump.
The pressure side connects directly into the side of the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8 Inch suction line once the module is modified.
This is a 220GPH (Gallon Per Hour) lift pump system for highly modified trucks. Check out our installation manual for a list of parts that are included with this kit.
Details:
- Gallons per hour: 220GPH
- Manufacturer: Cummins
- Make: Dodge
- Liter: 6.7L
- Valve: 24V
- Engine Years: 2019-2023
- Fuel Type: Diesel
