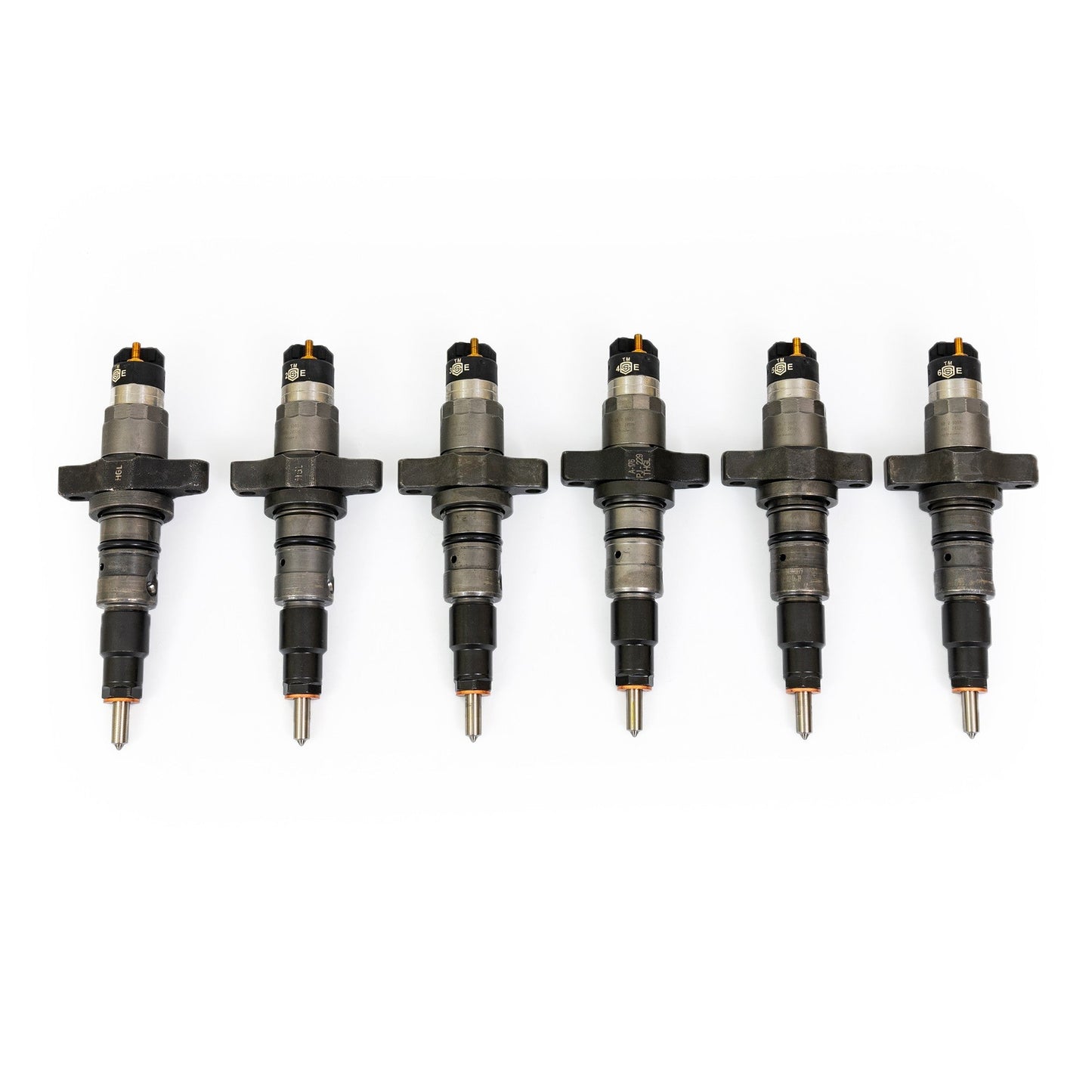

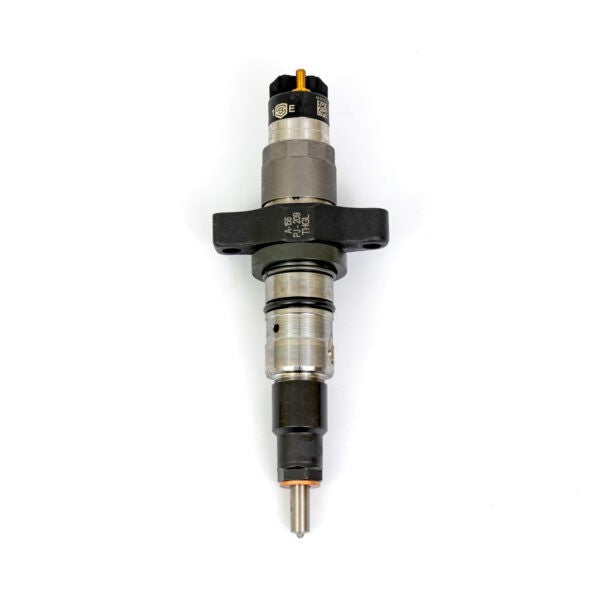

Early 5.9 Cummins Injectors. All prices listed are for full sets of injectors.
S&S Upgrade Benefits
- SAC nozzles for all sizes (except TorqueMaster)
- Proprietary nozzle honing process for clean and consistent holes
- Nozzles flow-matched to 1 percent variance per set, using OE standards
- Viscor SAE-J967
- 40 degrees C
- 100 bar
- Injectors flow-matched to 3 percent variance per set
- Viscor SAE-J967
- 40 degrees C
- 4 different pressure/energizing points per injector
- Injection profiles (rate shape) aligned
- Injector build spec custom-matched to nozzle flow rate for each size
- 250 percent (3700 cc/min) and up feature internal body modifications
- Increased nozzle flow slows down the open/closing time
- Body modifications improve the injection rate shape
Options
- Brand new or Bosch remanufactured bodies available
- We only use reman bodies direct from Bosch for quality purposes, which differ from Bosch-certified remans
- The industry has adopted a percent increase in nozzle flow over stock as the sizing convention
- Available sizes: TorqueMaster, 20 percent, 40 percent, 60 percent, 80 percent, 100 percent, 150 percent, 200 percent, 250 percent, 300 percent, 350 percent, 400 percent, 450 percent, 500 percent
Details:
- Engine Manufacturer: Cummins
- Liter: 5.9
- Cylinders: 6
- BlockType: L
- Fuel Type: Diesel
- CID: 359
- Engine Bore Inches: 4.02
- Engine Bore Metric: 102
- Engine Stroke Inches: 4.72
- Engine Stroke Metric: 120
- Size: 100 Percent Over
- Condition: New
- Sold As: Set
