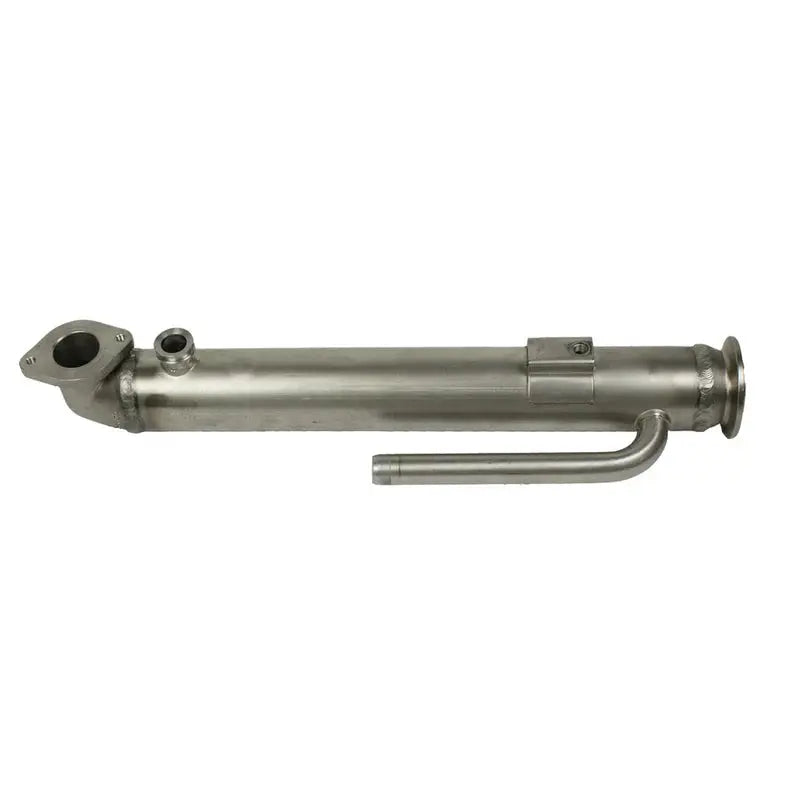

EGR Cooler Replacement w/Round Tube Ford 6.0L Power Stroke 2003-2004 (up to 09/22/2003)

BD Heavy Duty EGR Cooler – 2003–2007 Ford 6.0L Power Stroke (Up to 9/22/03)

BD's Heavy Duty EGR Coolers for 2003–2007 6.0L Ford Power Stroke Diesels are designed to replace the failure-prone OEM units that suffer from weak brazed joints. When these factory units fail, coolant can leak into the cylinders, causing hydrolock and severe engine damage. BD's upgraded coolers use TIG-welded 304L stainless steel tubes with 0.375" outer diameter and 0.048" wall thickness for superior strength and reliability.

Water deflectors are integrated into the design to increase turbulence, improving heat dissipation and reducing the risk of overheating. Each unit is pressure tested and includes an O-ring and threaded insert. No tuning is required, and the unit will not trigger a check engine light.

Features

Heavy-duty direct replacement for 2003–2007 6.0L Power Stroke engines.
Constructed with TIG-welded 304L stainless steel tubing for long-lasting durability.
Water deflectors improve coolant turbulence and heat dissipation.
Prevents coolant leaks and engine hydrolock caused by OEM cooler failures.
Includes O-ring and threaded insert.
No tuner required and emissions safe.
Backed by BD's 5-year limited warranty.

Install Time

5 Hours

Warranty

Parts coverage: 60 Months / Unlimited Miles

Note

Fits models up to production date 9/22/2003.

Emissions

This product does not require a CARB EO and is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

Power Stroke 2003-2004 (up to 09/22/2003)

SKU: 1090201

GTIN: 990011403528

Manufacture Name: BD Diesel

Shipping Weight: 8

Shipping Length: 28

Shipping Width: 9

Shipping Height: 7

EO Number:
