Exhaust Manifold Kit - Ford 6.7L Power Stroke F250 / F350 Pick-Up 2015-2019 & F350 / F450 / F550 Cab & Chassis 2017-2019

BD Exhaust Manifold Set – Ford 6.7L Power Stroke

BD focused on addressing one of the most common failure points on the Ford 6.7L Power Stroke: the exhaust manifolds. These heavy-duty manifolds are crafted from 0.275" thick-walled high-silicon ductile cast iron, making them 75% thicker than stock to combat cracking caused by extreme exhaust temperatures. Thermal durability is further enhanced with longer exhaust studs, black oxide coated spacers, and precision-machined thick bolting flanges. Designed to be fully EGR compatible and 50-state legal, this manifold set offers long-term reliability and peace of mind.

Features

Legal for use in all 50 states under CARB EO No. D-553-17 and SEMA Certification No. SC-BDD01-0050.
Provides an average flow increase of 8.1% over stock (OEM avg 169 cfm/port vs. BD avg 174 cfm/port).

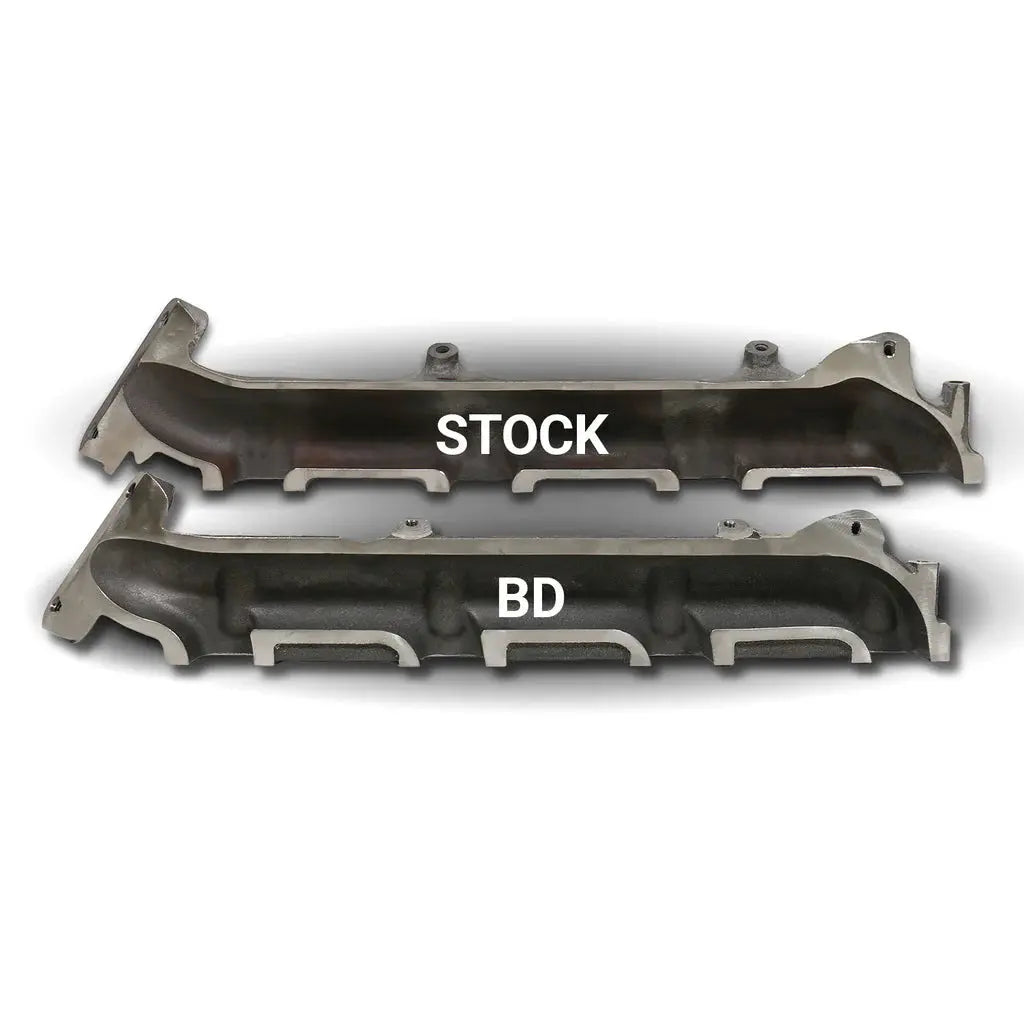

Constructed from high-silicon ductile cast iron with 75% thicker walls to retain heat and prevent warping.
Thicker machined bolting flanges for added durability.
Includes extra-long stud and spacer kit to fit across all 8 cylinders.
Longer studs and black oxide coated spacers improve thermal resistance.
Designed using CFD and gasket matched for optimized flow.
High-temp POR 15 black coating protects against heat and corrosion.

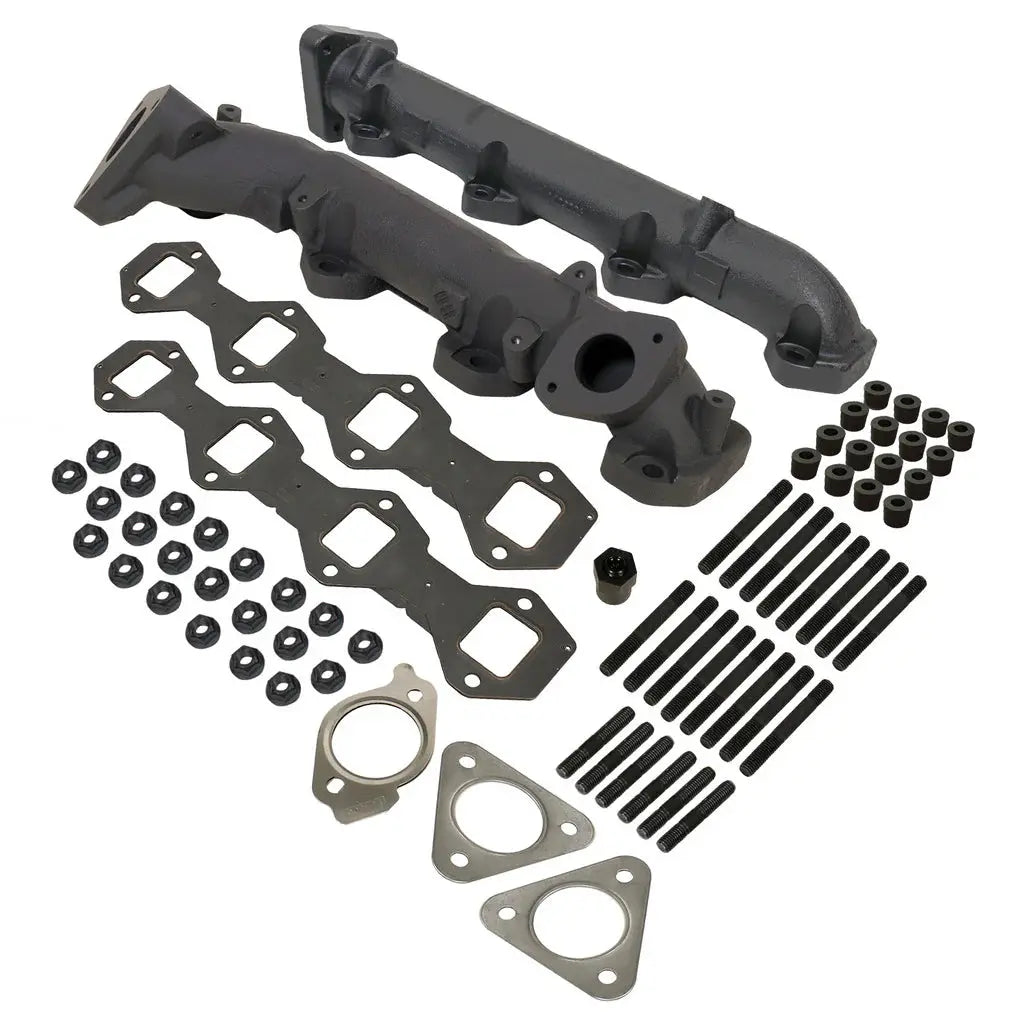

Gaskets included: exhaust manifold, crossover tube, and EGR port.

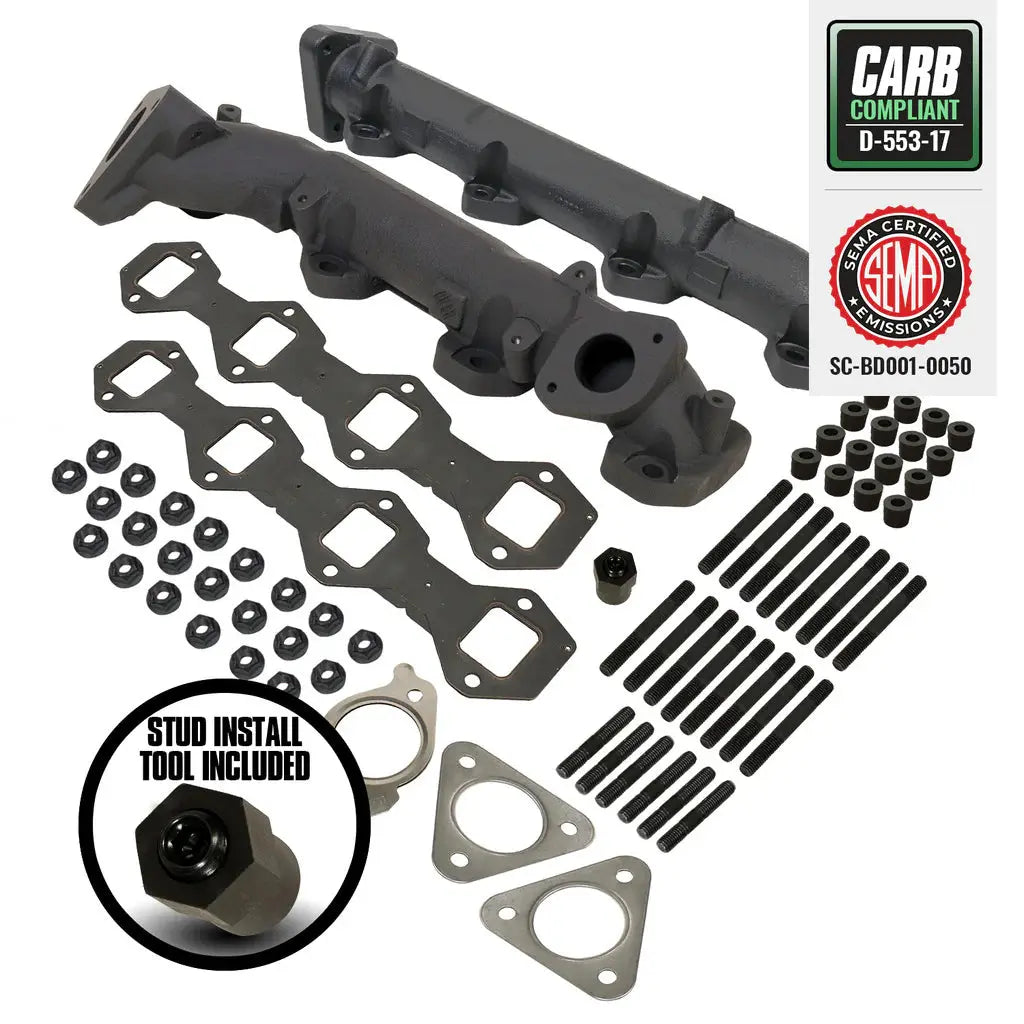

M8 stud installation tool included.
Fully EGR compatible for emissions compliance.

Install Time

9 Hours

Note

Replaces OEM part numbers FC3Z9430B, DC3Z9430A (right side) and DC3Z9431A (left side).
For trucks using the MPD budget SXE turbo kit, part number 1043006 must be used with an OEM passenger side manifold.

Emissions

This product is covered under a CARB Executive Order and is legal for sale and use in all 50 states. (EMS:1)

Ford 6.7L Power Stroke F250 / F350 Pick-Up 2015-2019 & F350 / F450 / F550 Cab & Chassis 2017-2019

SKU: 1043008

GTIN: 990011408479

Manufacture Name: BD Diesel

Shipping Weight: 26

Shipping Length: 28

Shipping Width: 9

Shipping Height: 8

EO Number:

Cross Reference # Replaces OEM Part #FC3Z9430B,DC3Z9430A (Right Side) / DC3Z9431A (Left Side)
