FASS Fuel Systems Drop-In Series Diesel Fuel System for 2017-2024 Ford 6.7L Powerstroke (DIFSFRD1001)
⚠ WARNING: Cancer & Reproductive Harm
California Proposition 65 Warning - P65warnings.ca.gov

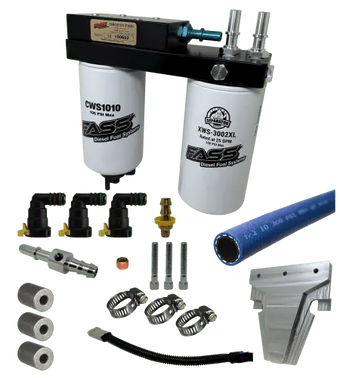

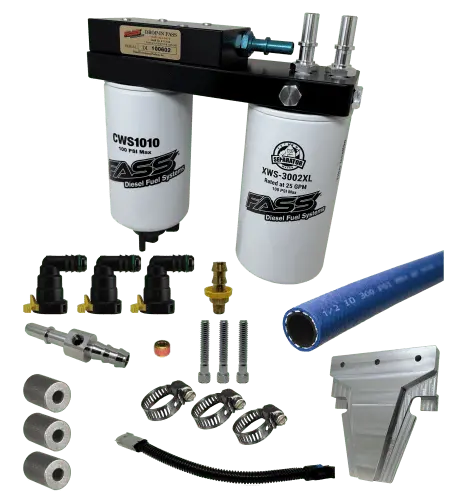

The FASS Drop-In Series Diesel Fuel System is a 100% plug-and-play filtration upgrade for 2017-2024 Ford F-250, F-350, and F-450 6.7L Powerstroke engines. This system protects your fuel injection components, increases fuel lubricity, and ensures optimal engine performance with enhanced filtration.
- Compatible with 2017-2024 Ford F-250, F-350, F-450 6.7L Powerstroke
- Removes over 99% of water, air, and debris from fuel
- 2 Micron absolute filtration rating
- Retains factory in-tank lift pump
- No cutting, wiring, or modifications required for installation
- Backed by a limited lifetime warranty
- Features Performance Radius Cuts for optimal fuel flow
- Electric heater options available for improved cold weather reliability
- Filters required: XWS3002XL & CWS1010
Designed specifically for the 2017-2024 Ford F-250, F-350, and F-450 6.7L Powerstroke engines, the FASS Drop-In Series Diesel Fuel System offers unmatched fuel filtration, ensuring the longevity and performance of your fuel injection system. This system is engineered to eliminate over 99% of water, air, and debris from your diesel fuel, protecting your injection components from contamination and excessive wear, which can result in costly repairs.
The Drop-In Series Fuel System is a plug-and-play upgrade that retains the functionality of the OEM in-tank lift pump and requires no additional modifications. This system is designed for both short and long bed crew cab trucks and can be installed in under an hour, making it an easy upgrade for those who are mechanically inclined. Note that installation on cab and chassis models may require modifications.
FASS's Extreme Water Separator (XWS) technology, third-party proven to remove over 99% of water, is an industry leader. If the water separator reaches capacity, it safely shuts down your truck to prevent fuel system damage. Additionally, this system incorporates Performance Radius Cuts (PRC), ensuring smooth fuel flow and eliminating air and vapor reintroduction that commonly occurs with lesser systems.
The system also retains the factory water-in-fuel sensor, a feature unique to FASS Drop-In Series systems. In cold weather conditions, an electric heater option is available for added reliability. By using the required XWS3002XL and CWS1010 filters, you can ensure optimal filtration and protection for your Powerstroke engine.
Technical Specifications
- Compatibility: 2017-2024 Ford F-250, F-350, F-450 6.7L Powerstroke
- Filtration Rating: 2 Microns absolute
- Water Separation: Over 99% with Extreme Water Separator technology
- Installation: Plug-and-play, no additional modifications required
- Required Filters: XWS3002XL & CWS1010
- Optional Features: Electric heater for cold weather reliability
- Performance Features: Retains factory in-tank lift pump, air separation for improved fuel lubricity, Performance Radius Cuts for optimized fuel flow
Download the (DIFSFRD1001) Crew Cab Short Bed Manual Here
Download the (DIFSFRD1001) Crew Cab Long Bed Manual Here
Part # DIFSFRD1001
