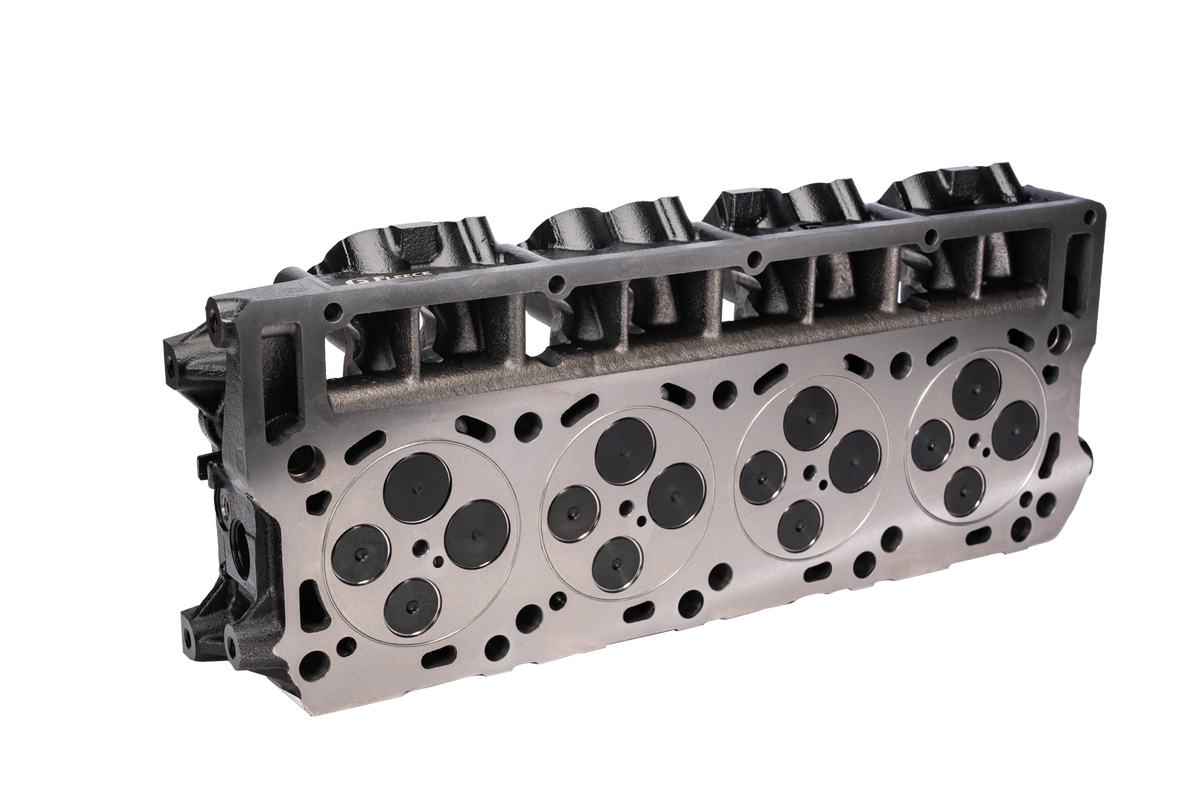

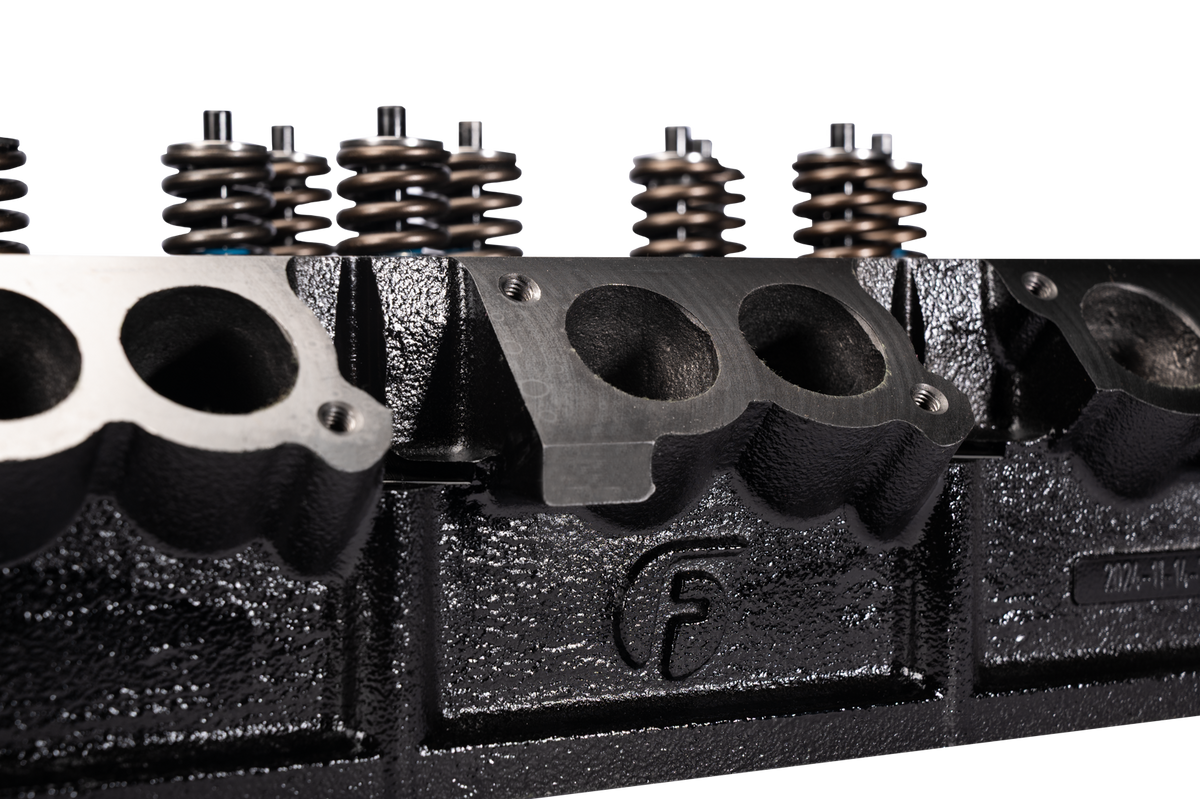

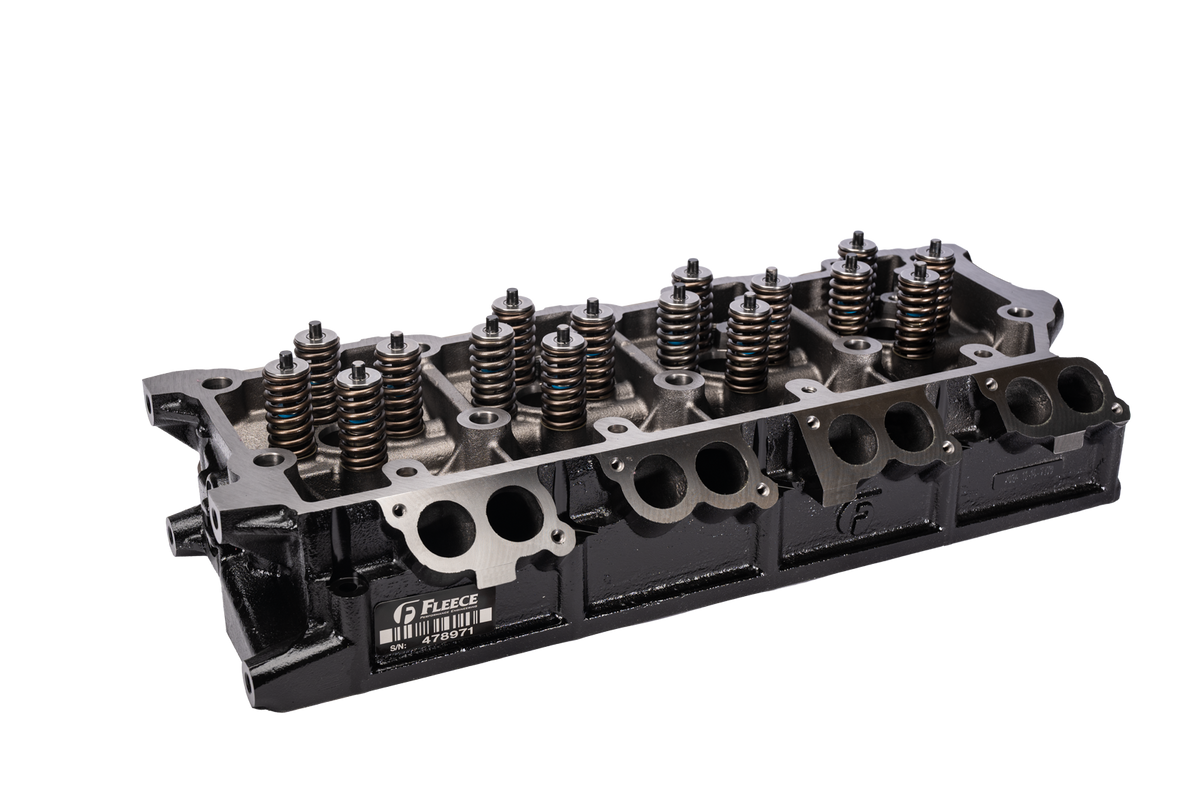

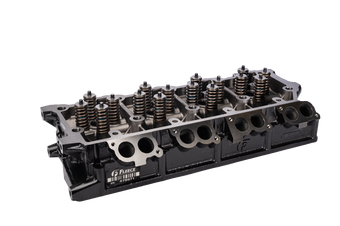

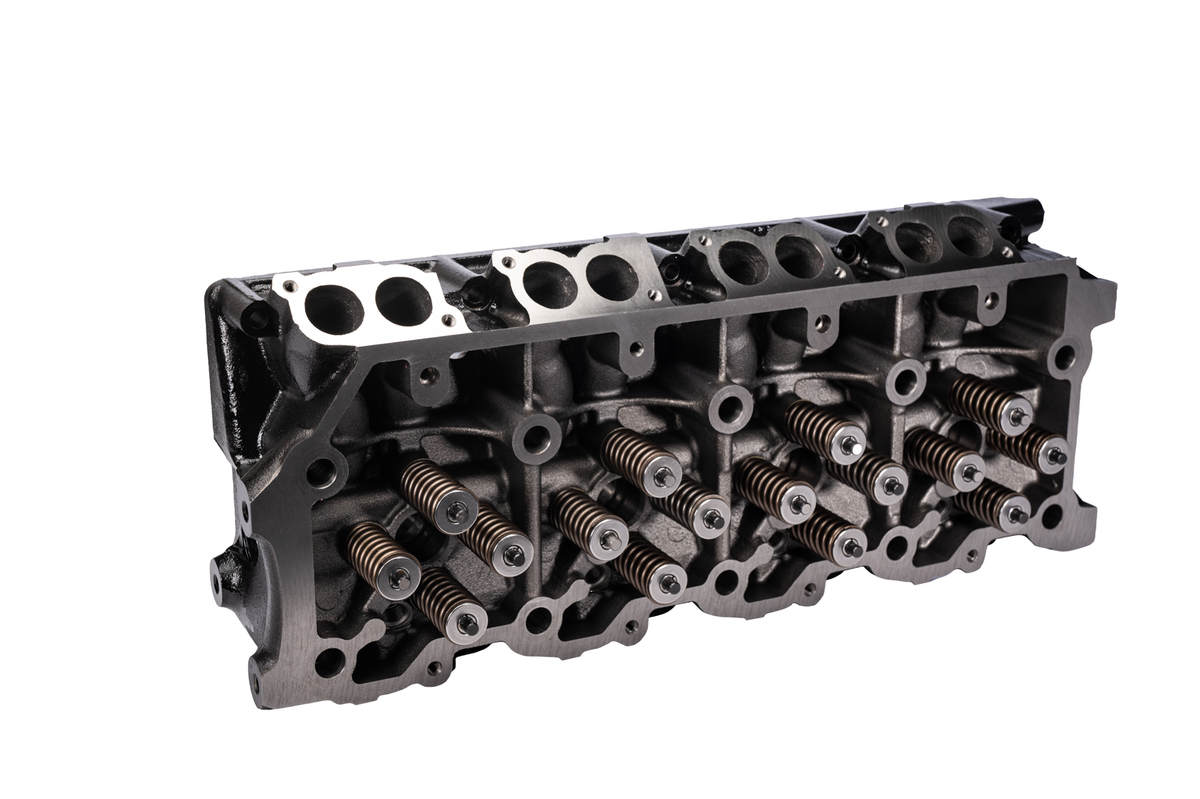

Freedom Series HD Cylinder Head for the 6.0L PowerStroke - 20mm Dowel Fleece Performance

Introducing the all-new, Fleece Performance Freedom Series HD cylinder heads for the 2003-2007 6.0L Ford Power Stroke. Each cylinder head is manufactured in our state-of-the-art Freedom Racing Engine shop and is guaranteed to meet or exceed factory specifications.

Our HD cylinder heads are built on a brand-new casting that has been engineered from the ground up for increased durability and longevity.

Fully assembled and ready to install - all heads are equipped with hardened, oversized press-in valve seats, new valve guides, springs, valves, and valve seals.

Standard with our one-piece O-rings in the head to ensure maximum cylinder sealing. Perfect for a daily driver or heavy-duty towing application where reliability and uptime are a must.

Features:

• Brand-new, higher tensile strength casting
• Race-proven formula with hardened, oversized press-in valve seats provides maximum durability and longevity
• Fleece Performance exclusive single-piece O-ring design ensures complete combustion sealing vs. traditional stainless wire that must be seamed.
• New valvetrain including Stainless Steel/Inconel alloy valves, springs, retainers, and keepers
• No core charge or core to return.

What sets our cylinder heads apart from the competition:

• Improved casting. This isn't your run of the mill, rinse and repeat OE casting. Engineered from the ground up with years of testing and development - our higher tensile strength alloy castings incorporate increased wall thickness and additional material where it counts, providing for a more durable and longer lasting cylinder head.
• Extreme duty valve seats. Race proven and stronger than OEM - our American made valve seats provide for longevity and stability in the cylinder head. Produced from a tungsten alloy for increased hardness, these seats deliver a substantially higher wear resistance vs. a stock replacement seat.
• Single piece O-ring. Our 6.0L cylinder head is the only cylinder head available with a single piece hoop style O-ring. Our single piece O-ring ensures complete sealing of combustion vs. traditional stainless wire that has a seam.

Application Notes:

• All 20mm dowel heads are configured for 2-bolt rocker box configurations.
• Fleece Performance recommends the use of 6.4L pushrods (Ford Part No. 8C3Z-6565-B) when installing these cylinder heads. 6.4L pushrods are 0.050 inch shorter in length vs. a 6.0L pushrod and will accommodate the tolerance stack ups that can be encountered with a replacement cylinder head.
• Head gasket not included. We recommend the use of Ford Part No.KZ3Z-6051-B.

• Fits: 2003-2007 Ford F250/2003-2007 Ford F350/2003-2007 Ford F450/2003-2007 Ford F550
• Engine Manufacturer: Powerstroke
• Year Range: 2003-2007
• Fuel Type: Diesel
• Liter: 6.0 Liter
• Size: 20mm
• Series: Freedom Series
• Material: Cast Iron
• Color: Black
• Sold As: Each
• Warranty: 1 Year Limited Parts Warranty

2003 Ford Super Duty 6.0L Powerstroke
2004 Ford Super Duty 6.0L Powerstroke
2005 Ford Super Duty 6.0L Powerstroke
2006 Ford Super Duty 6.0L Powerstroke
2007 Ford Super Duty 6.0L Powerstroke

Application notes:
Cylinder heads are sold invidually and configurable for either passenger or drivers side use.
All 20mm dowel heads are configured for 2-bolt rocker box configurations.
Fleece Performance recommends the use of 6.4L pushrods (Ford Part No. 8C3Z-6565-B) when installing these cylinder heads. 6.4L pushrods are 0.050” shorter in length vs. a 6.0L pushrod and will accommodate the tolerance stack ups that can be encountered with a replacement cylinder head.
Head gasket not included. We recommend the use of Ford Part No.KZ3Z-6051-B.
