Iron Horn 5.9L Cummins Turbo Kit
Iron Horn 5.9L Cummins Turbo Kit
Description
BD Iron Horn Turbo Kit for 5.9L Cummins (2003–2007)
If you are looking for an easy economical turbo upgrade, or, replace your tired turbo and aging exhaust manifold, then BD's Iron Horn series for your 3rd generation 5.9L Cummins offers a clean, drop-in installation. Featuring BorgWarner SX-E cartridges and 2-piece pulse exhaust manifold, BD's Iron Horn turbocharger kits are engineered to give optimal performance while reducing EGT's and high drive pressures. The Iron Horn is available in a number of configurations to match your performance level without compromising drivability.
FEATURES
Increase airflow for more power, response, and reliability
Replace your factory turbo with a S300 SX-E Borg Warner T4 flange turbo

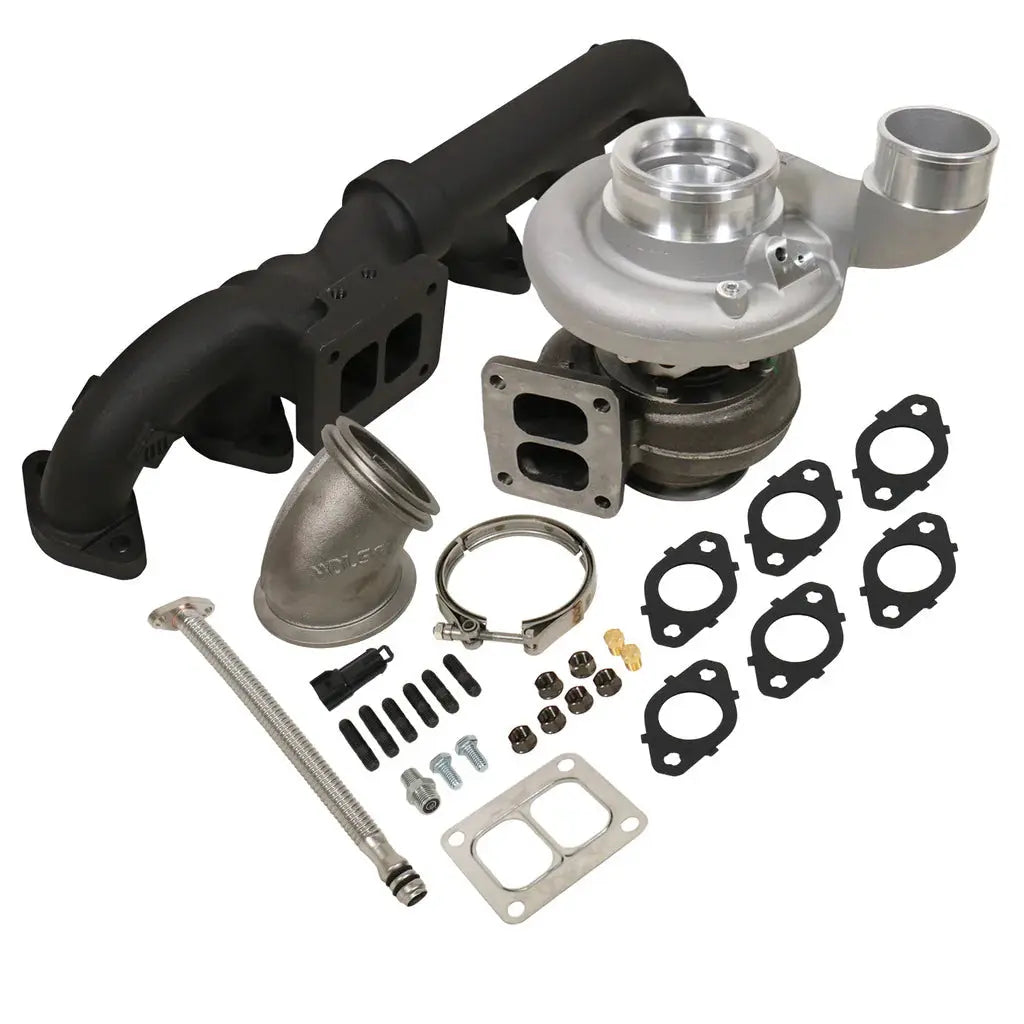

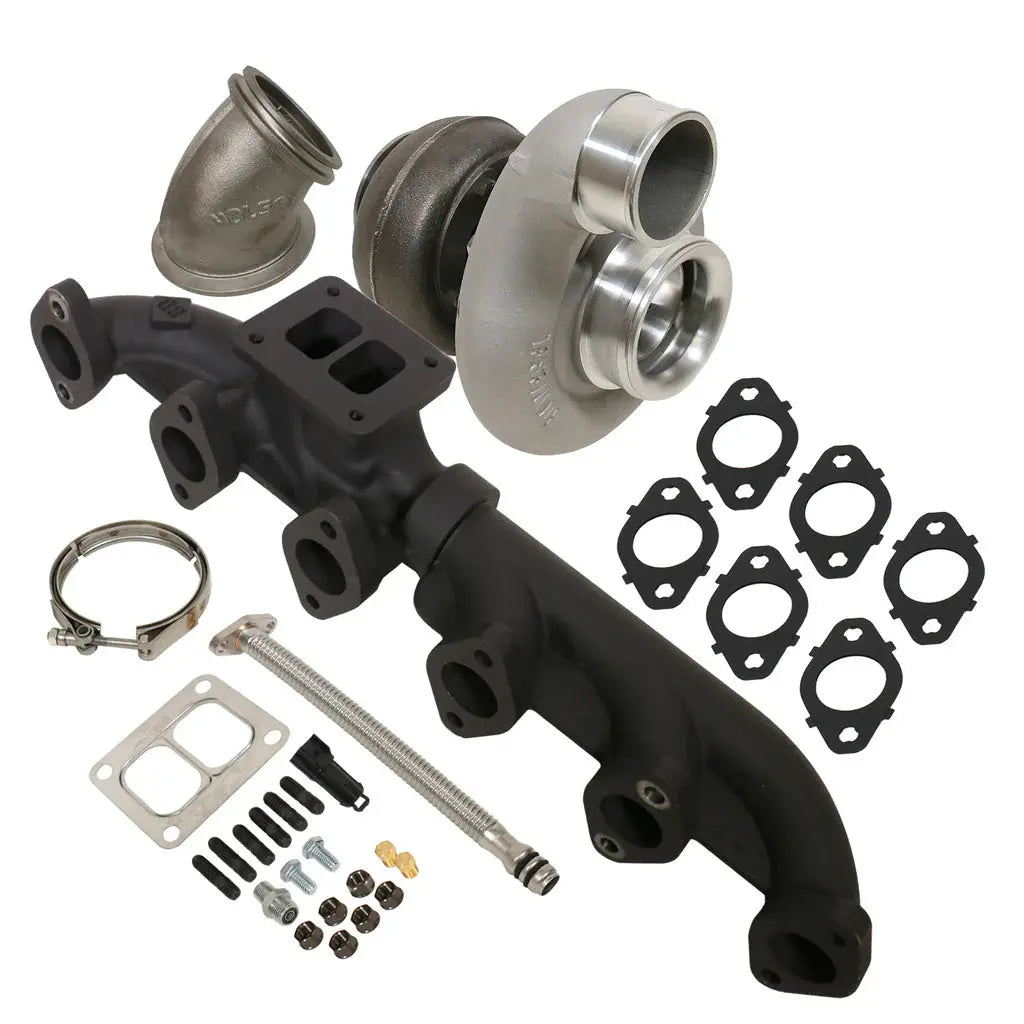

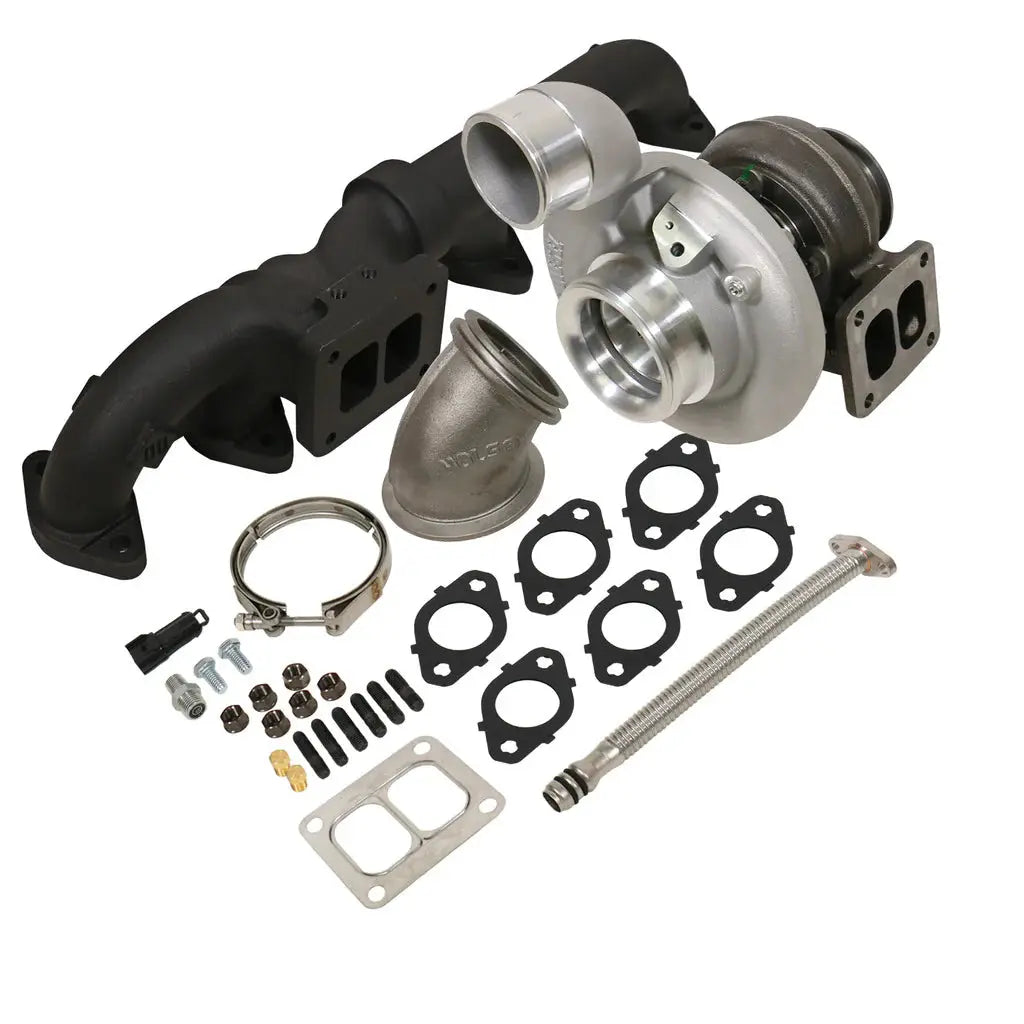

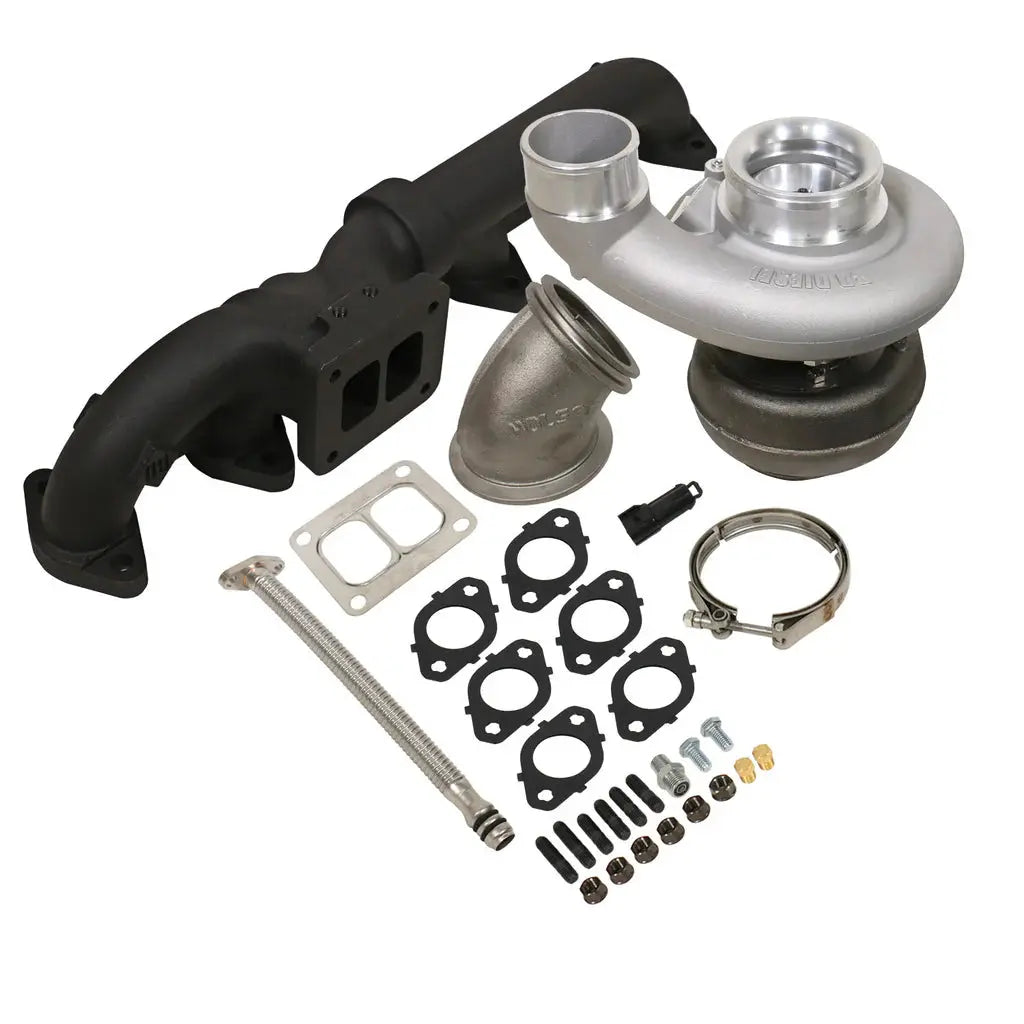

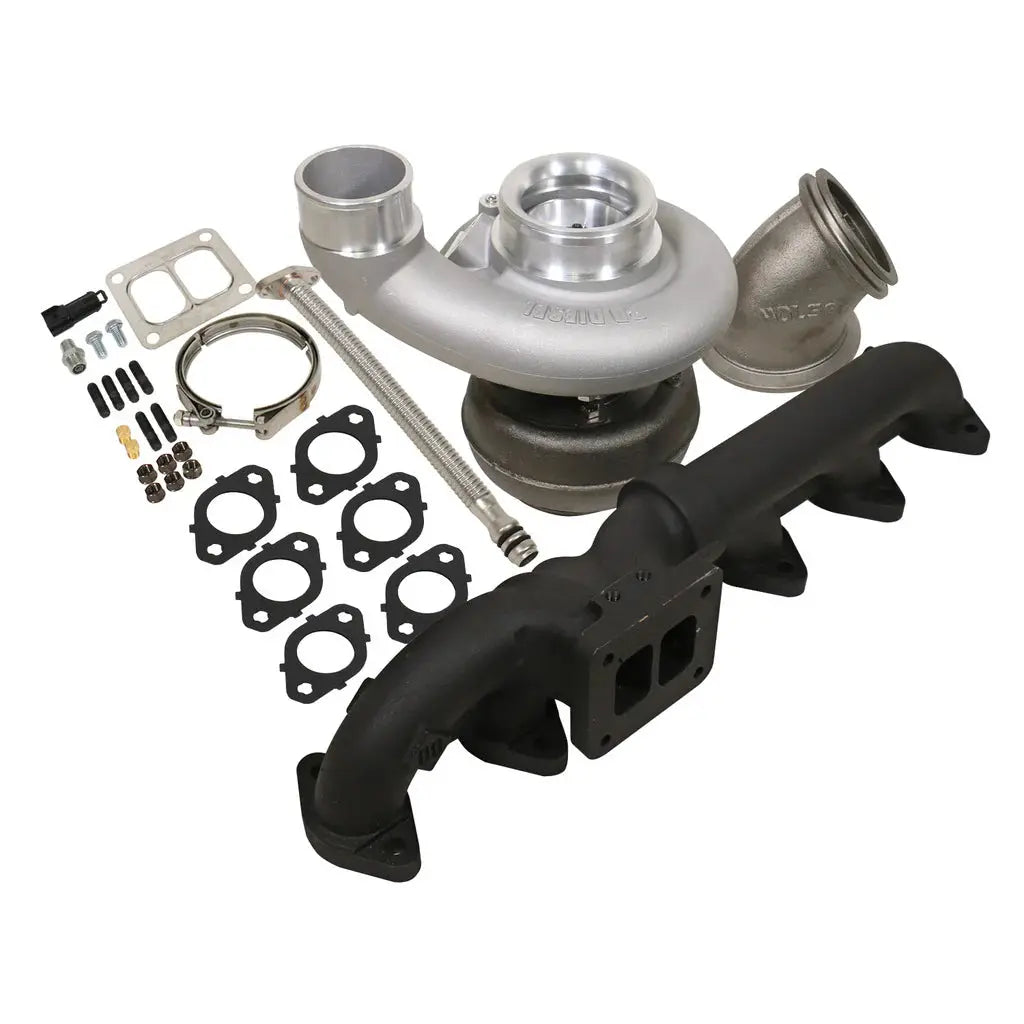

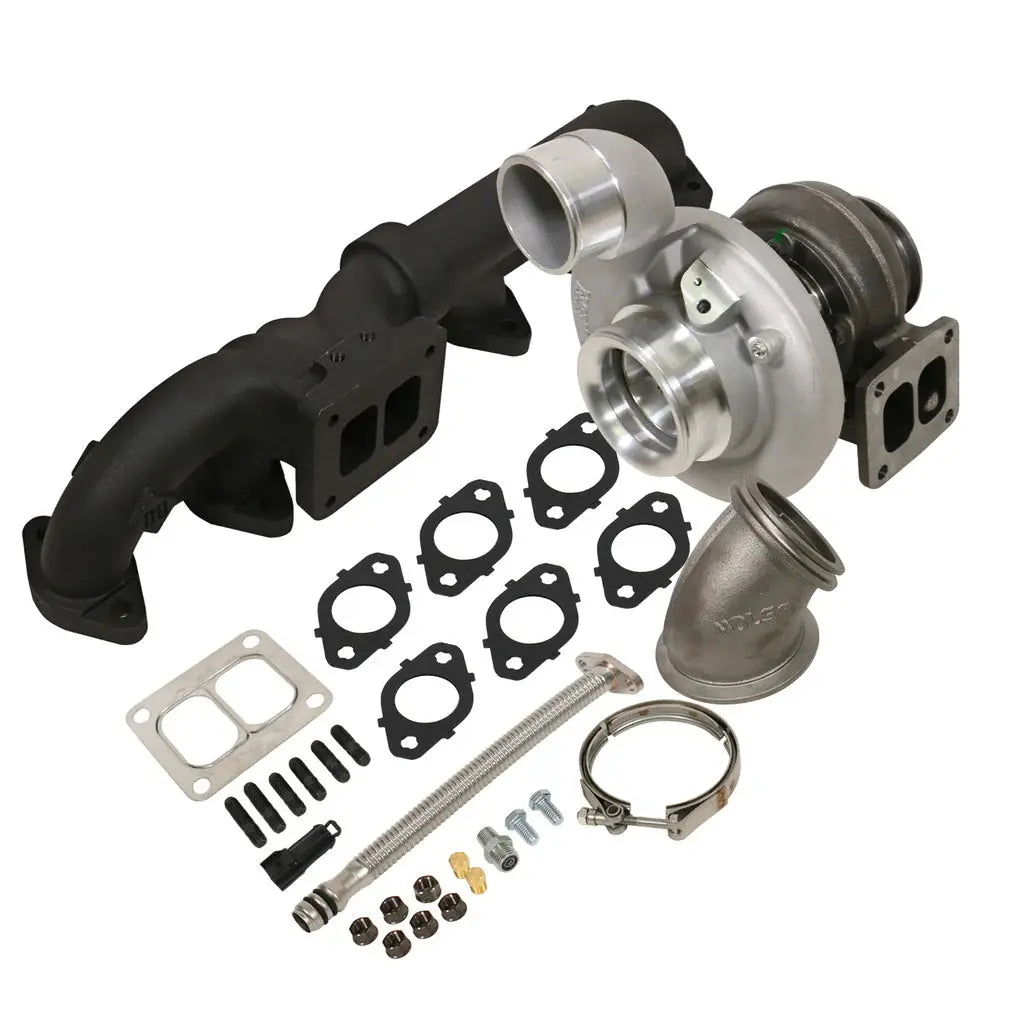

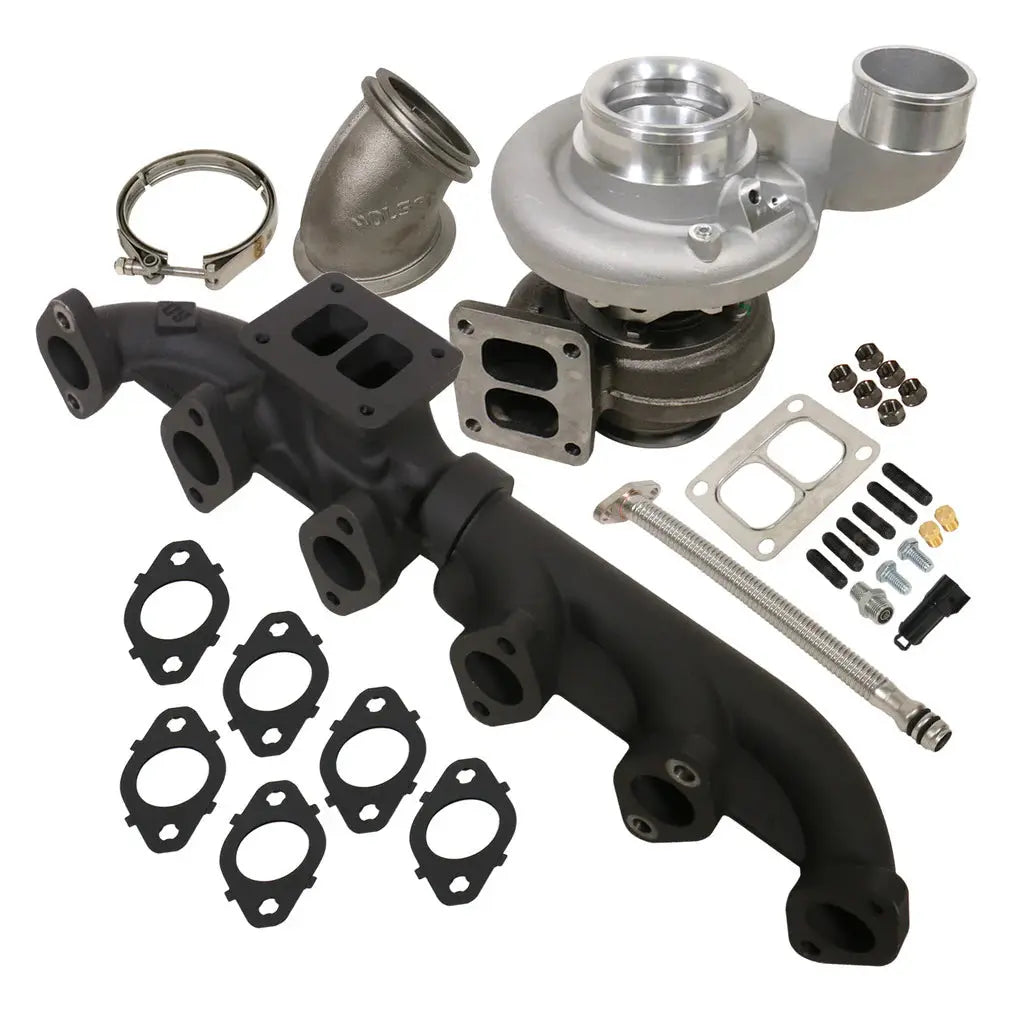

Kit includes a 5.9L 2-piece BD high flow pulse T4 manifold and gaskets
No extra piping required, it drops in place for an easy, clean installation
Comp Wheel: 61.44mm (2.42in) to 69.00mm (2.72in)
Turbine Wheel: 76mm (2.99in) or 80mm (3.15in)
A/R Ratio: 0.91, 1.00 or 1.10 depending on application

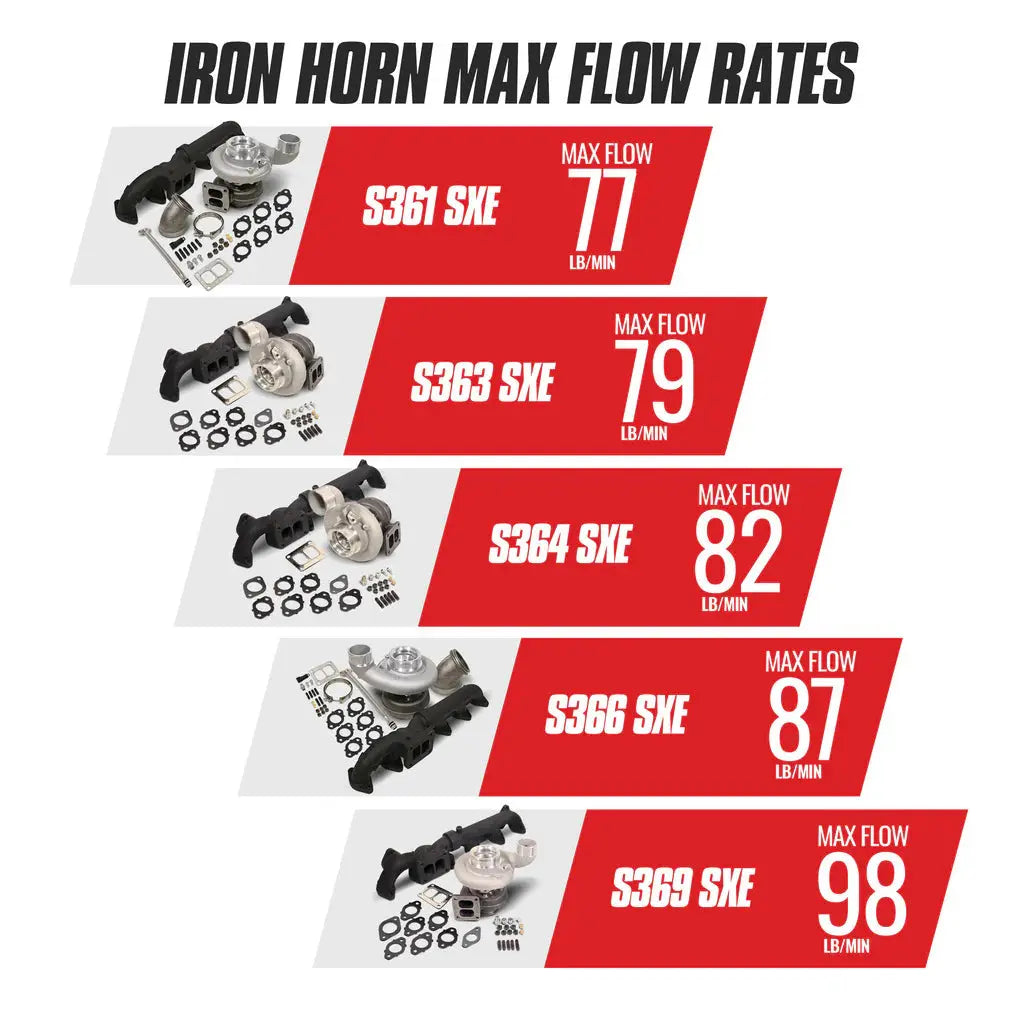

Flow: 77 Lb/min to 98 Lb/min

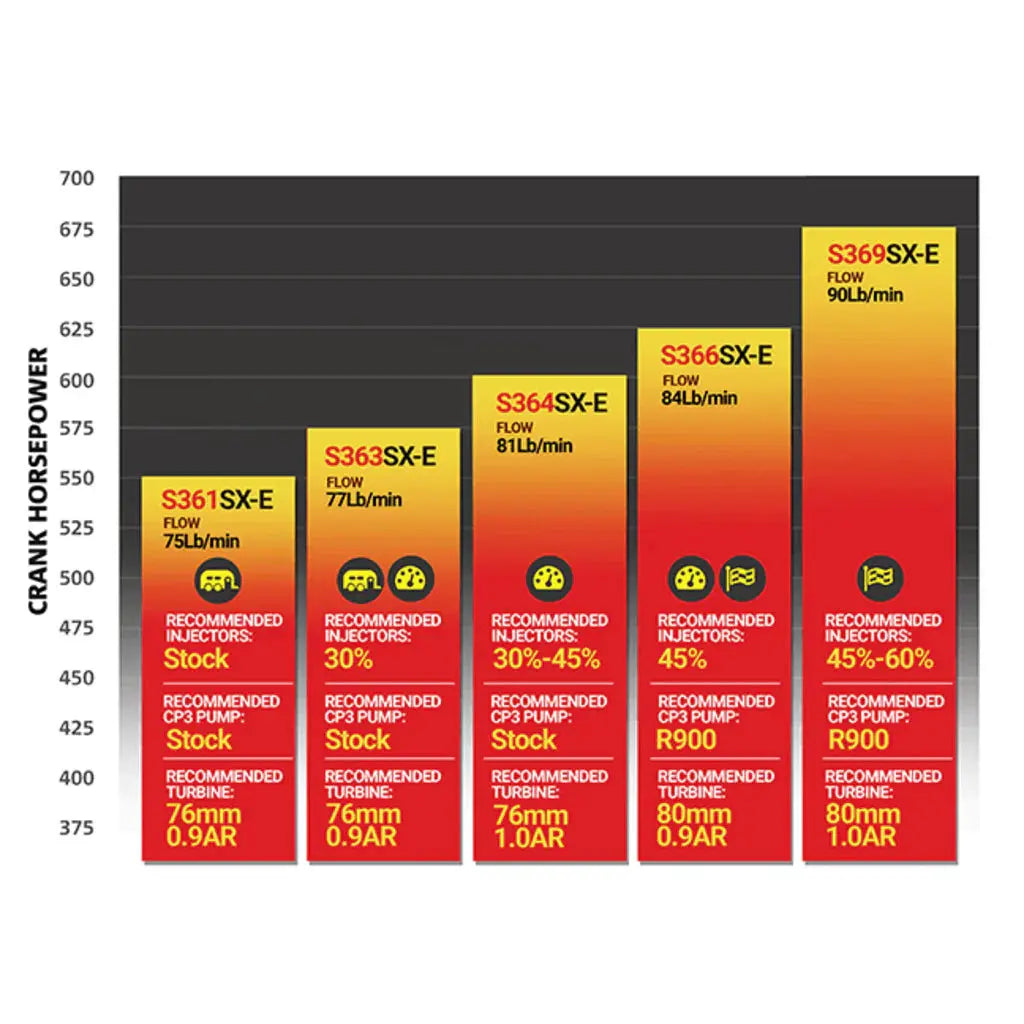

Approximate rated 500hp - 700hp (depending on truck configuration)
INSTALL TIME
6 Hours
NOTE
2003 to 2004 model year (305HP output) Dodge Ram 2500/3500 with HY35 turbocharger will require a 2004.5-2007 style aftermarket downpipe such as Flo Pro part number 20811 and OEM V-band Part# 52121285AA
Aftermarket air intake kits may need alteration
Not for sale on licensed California vehicles
Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
EMISSIONS
This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
Fitments
2003 Ram: Cummins 5.9L
2004 Ram: Cummins 5.9L
2004.5 Ram: Cummins 5.9L
2005 Ram: Cummins 5.9L
2006 Ram: Cummins 5.9L
2007 Ram: Cummins 5.9L
Instructions
Specifications
SKU:
GTIN:
Manufacture Name: BD Diesel
Shipping Weight:
Shipping Length:
Shipping Width:
Shipping Height:
EO Number:
Cross Reference #
Warranty
WARRANTY
Parts
12-Months
12,000 Miles
