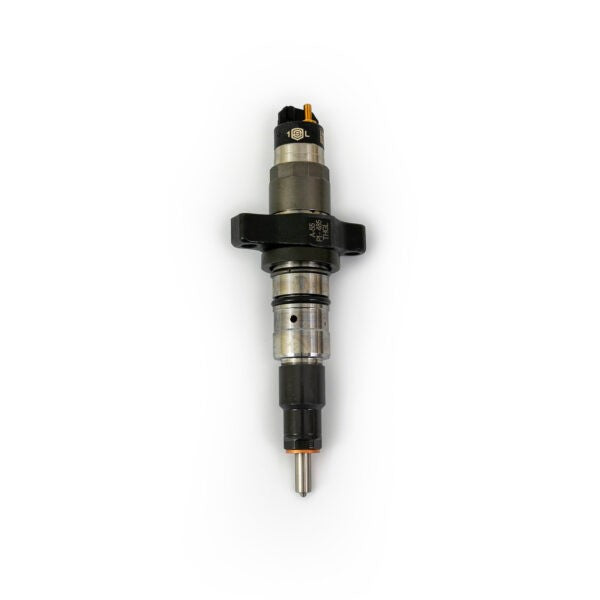

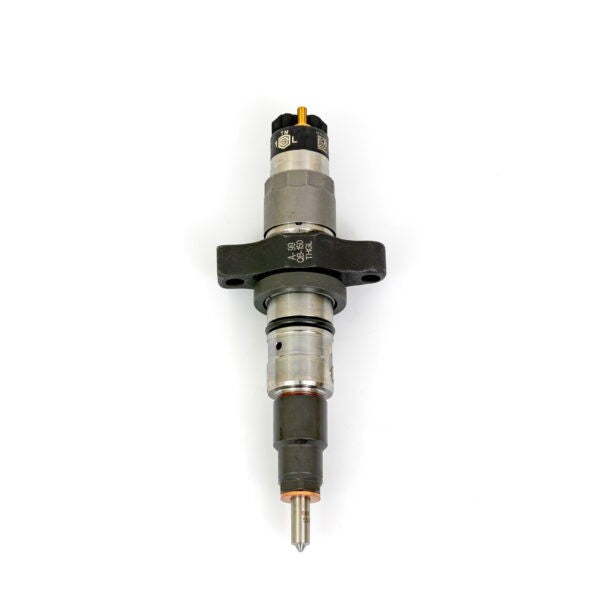

Late 5.9 2003-2007 Cummins Fuel Injector S&S Diesel

Late 5.9L Cummins Injectors (2004.5-2007).

S&S Upgrade Benefits

• SAC nozzles for all sizes (except TorqueMaster)
• Proprietary nozzle honing process for clean and consistent holes
• Nozzles flow-matched to 1 percent variance per set, using OE standards
• Viscor SAE-J967
• 40 degrees C
• 100 bar
• Injectors flow-matched to 3 percent variance per set
• Viscor SAE-J967
• 40 degrees C
• 4 different pressure/energizing points per injector
• Injection profiles (rate shape) aligned
• Injector build spec custom-matched to nozzle flow rate for each size
• 250 percent (3700 cc/min) and up feature internal body modifications
• Increased nozzle flow slows down the open/closing time
• Body modifications improve the injection rate shape

Options

• Brand new or Bosch remanufactured bodies available
• We only use reman bodies direct from Bosch for quality purposes, which differ from Bosch-certified remans
• The industry has adopted a percent increase in nozzle flow over stock as the sizing convention
• Available sizes: TorqueMaster, 30 percent, 45 percent, 60 percent, 80 percent, 100 percent, 150 percent, 200 percent, 250 percent, 300 percent, 350 percent, 400 percent, 450 percent, 500 percent

Details:

• Engine Manufacturer: Cummins
• Liter: 5.9
• Cylinders: 6
• BlockType: L
• Fuel Type: Diesel
• CID: 359
• Engine Bore Inches: 4.02
• Engine Bore Metric: 102
• Engine Stroke Inches: 4.72
• Engine Stroke Metric: 120
• Size: 100 Percent Over
• Condition: New

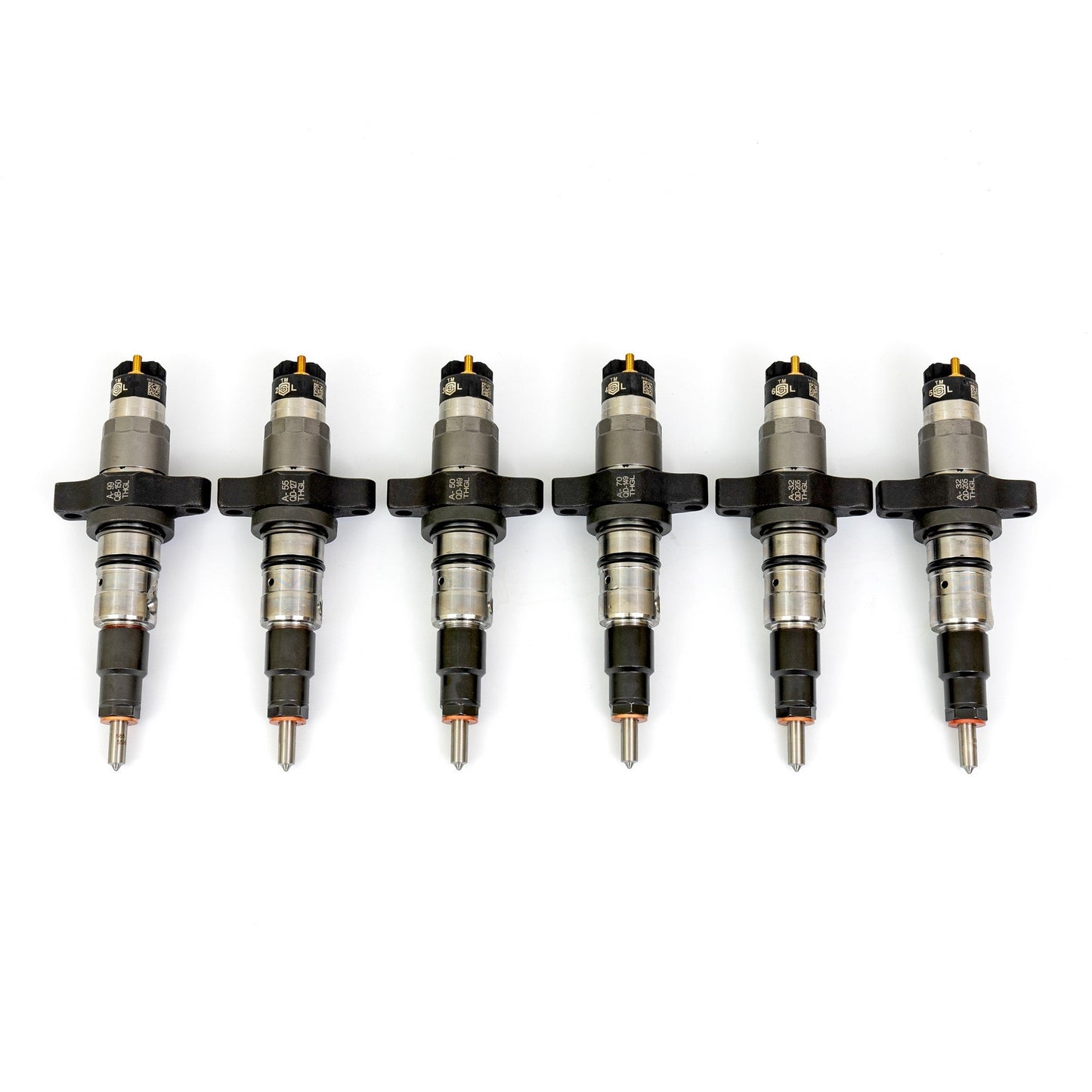

• Sold As: Set

2003-2007 Dodge Ram and compatible 5.9L Cummins common-rail applications
