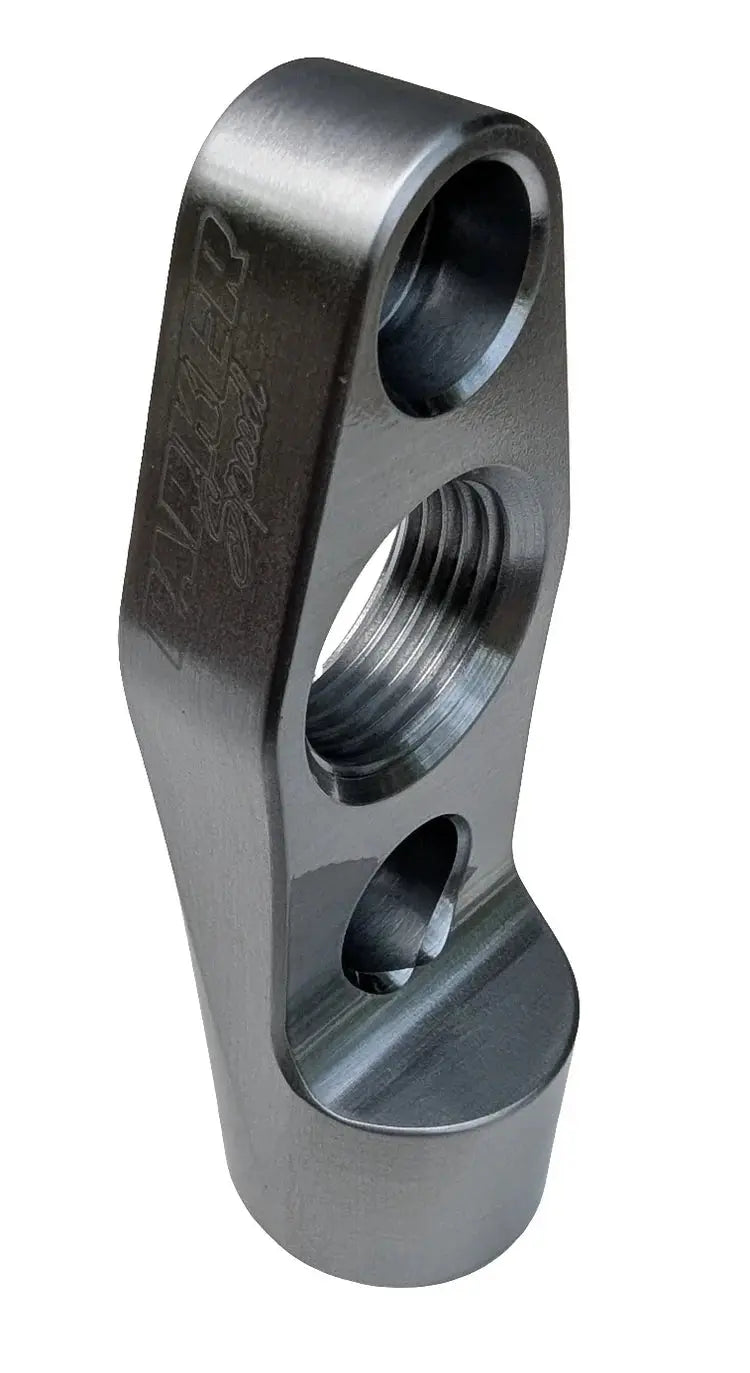

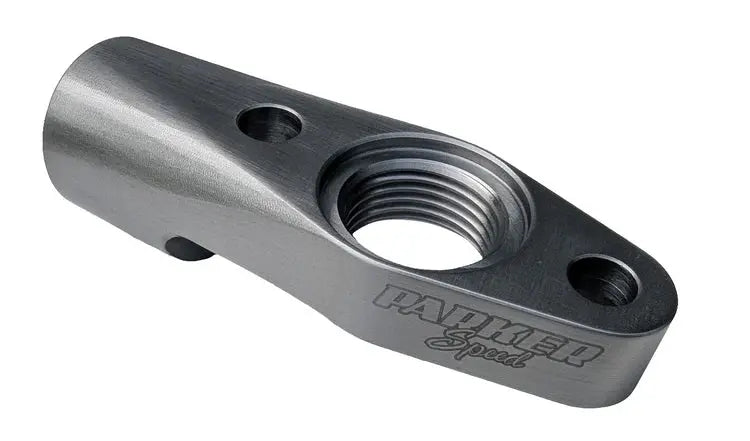

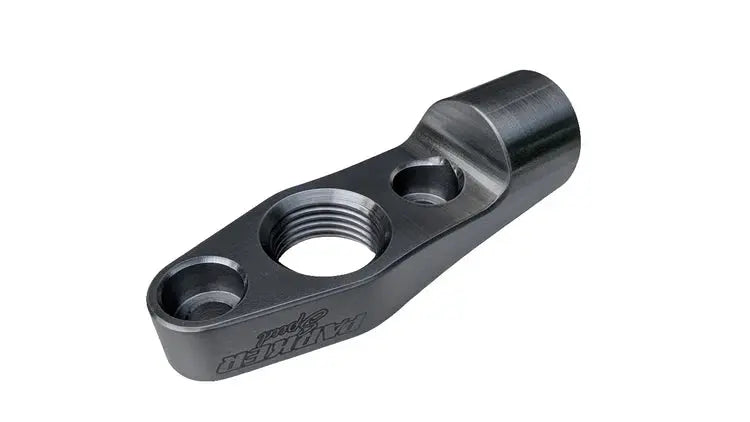

Parker Speed Small Frame Turbo Oil Drain Mount
Parker Speed Small Frame Turbo Oil Drain Mount
Description
Small Frame Turbo Oil Drain Mount – Available at Tameless Performance
Support Your Turbocharger Through the Oil-Drain Connection
The Small Frame Turbo Oil Drain Mount provides a strong mounting point for compatible turbochargers while incorporating a convenient oil-drain connection. Available at Tameless Performance, this compact mount is designed for turbochargers with 2.000-inch oil-drain bolt-hole spacing.
Key Features
2.000" Bolt-Hole Spacing
Designed for compatible small-frame turbochargers with oil-drain mounting holes spaced 2.000 inches apart.
7/8" Support Counterbore
The mount features a 7/8-inch counterbore machined to a depth of 0.750 inch, providing mechanical support for the turbocharger through the mounting assembly.
Secondary Turbo Support
The deep counterbore is designed to continue supporting the turbocharger even if the mount’s welded connection becomes damaged.
-10 ORB Thread
A -10 ORB threaded connection provides a secure interface for a compatible turbo oil-drain fitting and hose assembly.
O-Ring Included
The required O-ring is included to help provide a properly sealed connection at the turbocharger oil-drain flange.
Benefits
Integrated Mounting and Drain Solution
Combines turbocharger support with an oil-drain connection, helping simplify custom turbo-system fabrication.
Compact Installation
Designed for small-frame turbochargers where packaging space and secure mounting are important considerations.
Added Mechanical Support
The counterbored design supports the turbocharger directly instead of relying solely on the strength of the welded joint.
Applications
This mount is intended for compatible small-frame turbochargers with 2.000-inch oil-drain bolt-hole spacing and systems using a -10 ORB oil-drain connection.
Important Fitment Information
Measure Before Ordering
Confirm the bolt-hole spacing and oil-drain dimensions on your turbocharger before purchasing. Compatibility should not be determined by turbo frame size alone.
All Sales Are Final
Verify all measurements and connection requirements before placing your order.
Conclusion
The Small Frame Turbo Oil Drain Mount, available at Tameless Performance, combines secure turbocharger support with a compact -10 ORB oil-drain connection. Its deep counterbore and included O-ring make it a practical solution for compatible custom turbo installations.
