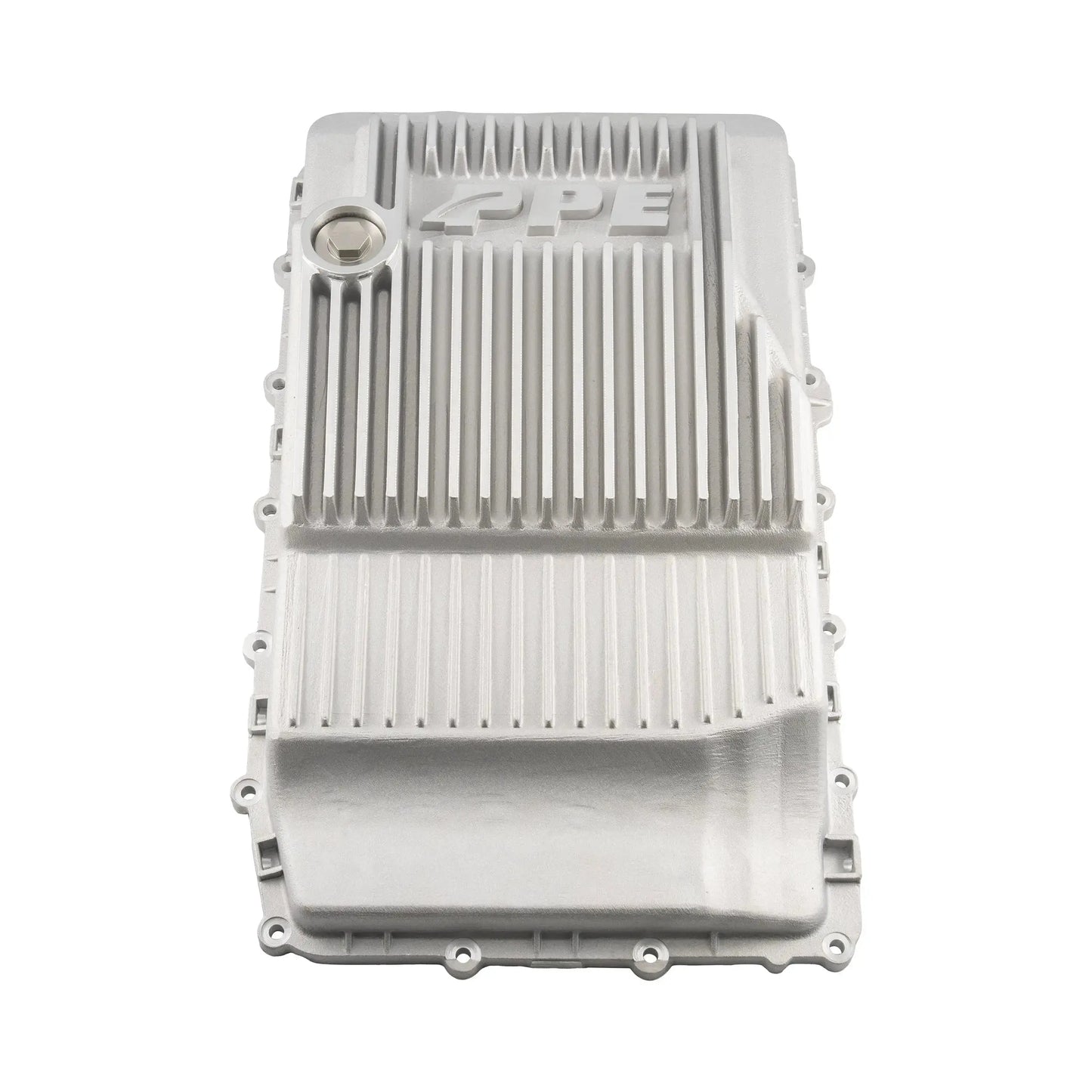

PPE 2017-2026 Ford 10R60/10R80/10R100 Heavy-Duty Cast Aluminum Transmission Pan - Deep
PPE 2017-2026 Ford 10R60/10R80/10R100 Heavy-Duty Cast Aluminum Transmission Pan - Deep
Description
Cast Aluminum Deep 10R60/10R80/10R100 Transmission Pan
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 1.75 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your 10 speed transmission running longer, healthier, and cooler with PPE.
Note1: New for 2025, certain Ford Super Duty trucks equipped with the 7.3L engine may come with either the 10R140 TorqShift ten-speed transmission or the 10R100 (TorqShift-G) ten-speed transmission. These transmissions use different pans that are not interchangeable. PPE Part Number 3280534XX is designed for the 10R140, while 3280536XX fits the 10R100. Please verify your transmission type before placing an order to ensure proper fitment.
Note2: Not compatible with F-150 3.5L Hybrid PowerBoost models
Fitments
2026 Ford Ranger 4 Cyl 2.3 Liter Turbo; 2025-2026 Ford Ranger 4 Cyl 2.3 Liter Turbo; 2025 Ford F-350 Super Duty 8 Cyl 6.8 Liter Gas; 2025 Ford F-250 Super Duty 8 Cyl 7.3 Liter Gas; 2025 Ford F-250 Super Duty 8 Cyl 6.8 Liter Gas; 2025 Ford Explorer 4 Cyl 2.3 Liter Turbo; 2025 Ford Expedition 6 Cyl 3.5 Liter Turbocharged; 2025 Ford Bronco 2 3L I4 Gas EcoBoost ; 2024-2025 Ford Ranger 6 Cyl 3.0 Liter Turbo; 2024-2025 Ford Ranger 6 Cyl 2.7 Liter Turbo; 2024-2025 Ford Mustang 8 Cyl 5.0 Liter; 2024 Ford Expedition 6 Cyl 3.5 Liter Turbocharged; 2023-2024 Ford F-350 Super Duty 8 Cyl 6.8 Liter Gas; 2023-2024 Ford F-250 Super Duty 8 Cyl 6.8 Liter Gas; 2023-2024 Ford F-150 6 Cyl 3.5 Liter Twin Turbo; 2023-2024 Ford F-150 6 Cyl 2.7 Liter Twin Turbo; 2023 Ford F-150 8 Cyl 5.0 Liter; 2023 Ford Bronco 6 Cyl 2.7 Liter Twin Turbo; 2022-2024 Lincoln Navigator 6 Cyl 3.5 Liter Twin Turbo; 2022-2024 Ford Expedition 6 Cyl 3.5 Liter Turbocharged; 2022 Lincoln Navigator 6 Cyl 3.5 Liter Twin Turbo; 2022 Ford F-150 8 Cyl 5.0 Liter; 2022 Ford F-150 6 Cyl 3.5 Liter Twin Turbo; 2022 Ford F-150 6 Cyl 3.3 Liter; 2022 Ford F-150 6 Cyl 2.7 Liter Twin Turbo; 2021-2025 Ford Bronco 4 Cyl 2.3 Liter Turbo Gas; 2021-2024 Ford Ranger 4 Cyl 2.3 Liter Turbo; 2021-2022 Ford Expedition 6 Cyl 3.5 Liter Turbo Charged; 2021 Ford Mustang 4 Cyl 2.3 Liter Turbo; 2021 Ford F-150 6 Cyl 3.5 Liter Twin Turbo; 2021 Ford F-150 6 Cyl 3.0 Liter Turbo; 2021 Ford F-150 6 Cyl 2.7 Liter Twin Turbo; 2020-2025 Lincoln Aviator 6 Cyl 3.0 Liter Twin Turbo; 2020-2024 Ford Explorer 6 Cyl 3.0 Liter Twin Turbo; 2020-2024 Ford Explorer 4 Cyl 2.3 Liter Turbo; 2020-2022 Ford Explorer 4 Cyl 2.3 Liter Turbo; 2020 Ford Ranger 4 Cyl 2.3 Liter Turbo; 2020 Ford F-150 8 Cyl 5.0 Liter; 2020 Ford F-150 6 Cyl 3.5 Liter Twin Turbo; 2020 Ford F-150 6 Cyl 2.7 Liter Twin Turbo; 2019 Ford F-150 6 Cyl 3.0 Liter Turbo; 2018-2023 Ford Mustang 8 Cyl 5.0 Liter; 2018-2020 Ford F-150 6 Cyl 3.5 Liter Twin Turbo; 2017 Ford F-150 6 Cyl 3.5 Liter Twin Turbo
Instructions
Specifications
SKU: 328053620
GTIN: 840171224009
Manufacture Name: PPE
Shipping Weight: 12
Shipping Length: 20.5
Shipping Width: 13.5
Shipping Height: 6
EO Number:
Cross Reference #
Warranty
California Proposition 65 Warning
California Proposition 65 Warning - P65warnings.ca.gov
328053620
PPE 2017-2026 Ford 10R60/10R80/10R100 Heavy-Duty Cast Aluminum Transmission Pan - Deep
Cast Aluminum Deep 10R60/10R80/10R100 Transmission Pan
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 1.75 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your 10 speed transmission running longer, healthier, and cooler with PPE.
Note1: New for 2025, certain Ford Super Duty trucks equipped with the 7.3L engine may come with either the 10R140 TorqShift ten-speed transmission or the 10R100 (TorqShift-G) ten-speed transmission. These transmissions use different pans that are not interchangeable. PPE Part Number 3280534XX is designed for the 10R140, while 3280536XX fits the 10R100. Please verify your transmission type before placing an order to ensure proper fitment.
Note2: Not compatible with F-150 3.5L Hybrid PowerBoost models
