Description

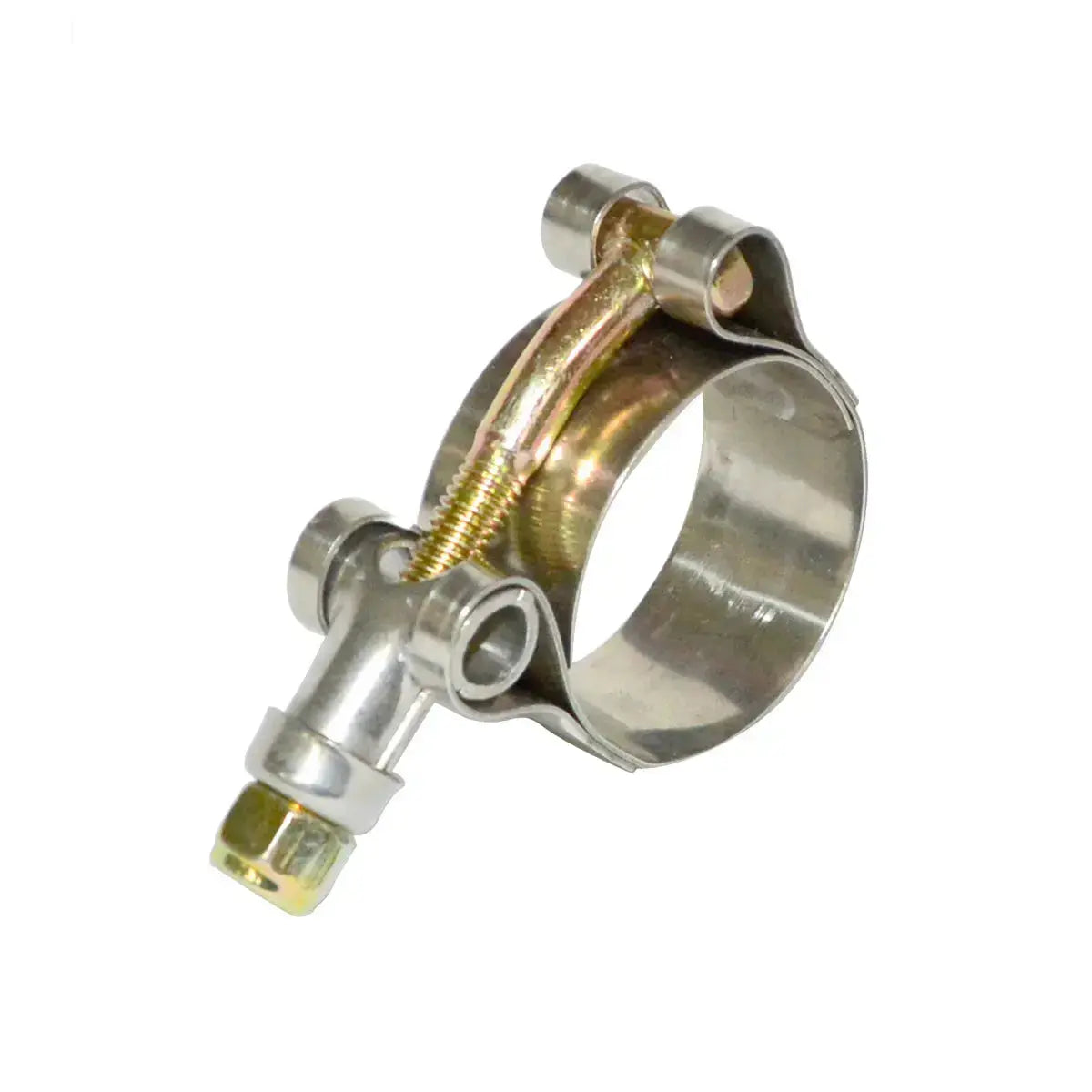

T-Bolt Clamps made from 304 Stainless Steel
Manufactured for added strength and reliability using 304 stainless steel T-Bolt and a Nyloc nut these clamps are easy to install and offer excellent clamping power for both stock and high-performance applications.
Note: The Hose ID and Hose OD are provided for reference, assuming a 1/4" hose wall thickness. For best results, measure the actual installed hose OD and refer to the Clamp Range columns.
PPE Part No.
UPC
Clamp ID
Hose ID
Clamp Range
515150100
840171210941
1.5"
1"
37-42mm
515175125
840171210774
1.75"
1.25
43-49mm
515200150
840171210743
2"
1.5"
47-55mm
515225175
840171210620
2.25"
1.75"
54-62mm
515250200
840171210606
2.5"
2"
60-68mm
515262212
840171210453
2.625"
2.125"
63-71mm
515275225
840171210347
2.75"
2.25"
67-75mm
515287237
840171210330
2.875"
2.375"
70-78mm
515300250
840171210309
3"
2.5"
73-81mm
515325275
840171210026
3.25"
2.75"
79-87mm
515350300
840171210002
3.5"
3"
84-92mm
515375325
840171209808
3.75"
3.25"
92-100mm
515400350
840171209785
4"
3.5"
98-106mm
515425375
840171209525
4.25"
3.75"
105-113mm
515450400
840171209501
4.5"
4"
108-116mm
515475425
840171209310
4.75"
4.25"
114-122mm
515500450
840171209297
5"
4.5"
121-129mm
515525475
840171209167
5.25"
4.75"
127-135mm
515550500
840171209150
5.5"
5"
133-141mm
515575525
840171208962
5.75"
5.25"
140-148mm
515600550
840171208948
6"
5.5"
146-154mm
515625575
840171208665
6.25"
5.75"
152-160mm
515650600
840171208658
6.5"
6"
159-167mm
Fitments
Instructions
Specifications
SKU: 515275225
GTIN: 840171210347
Manufacture Name: PPE
Shipping Weight: 0.15
Shipping Length: 4
Shipping Width: 4
Shipping Height: 1
