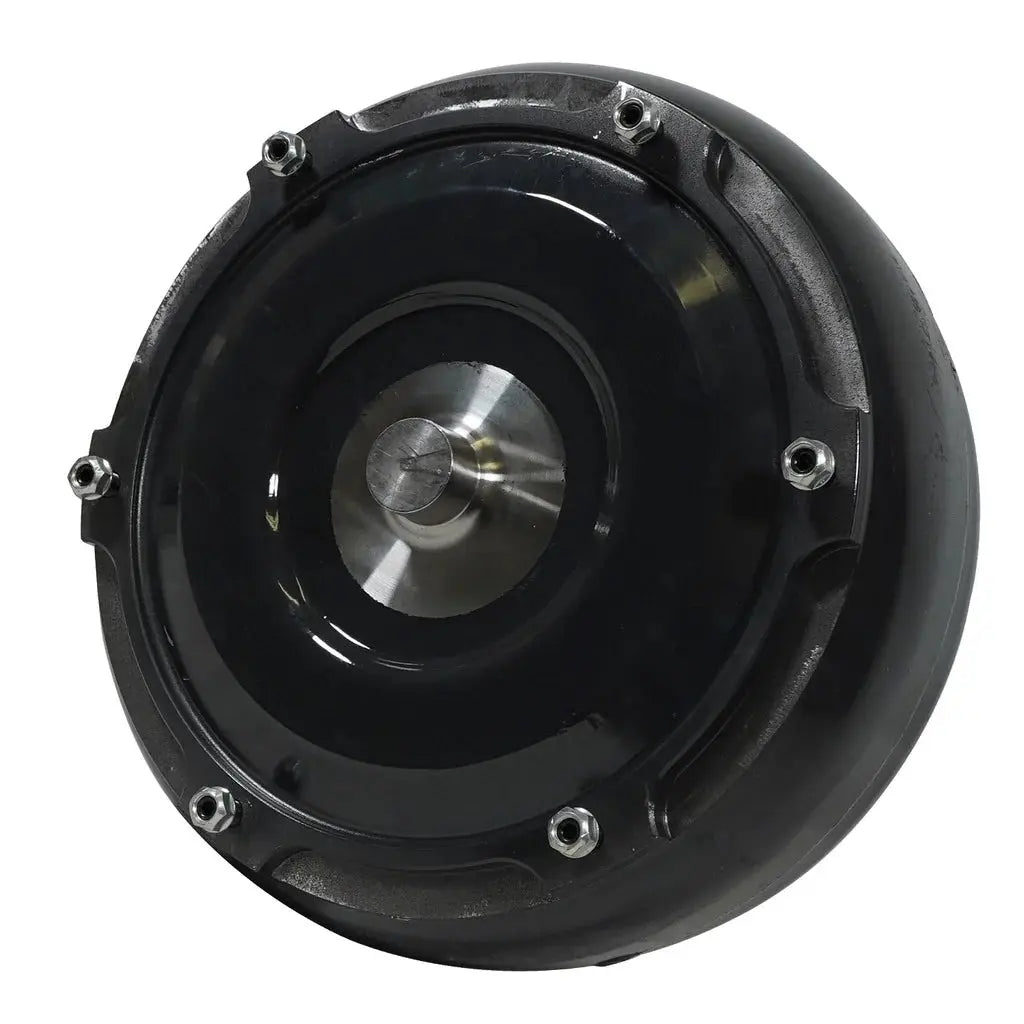

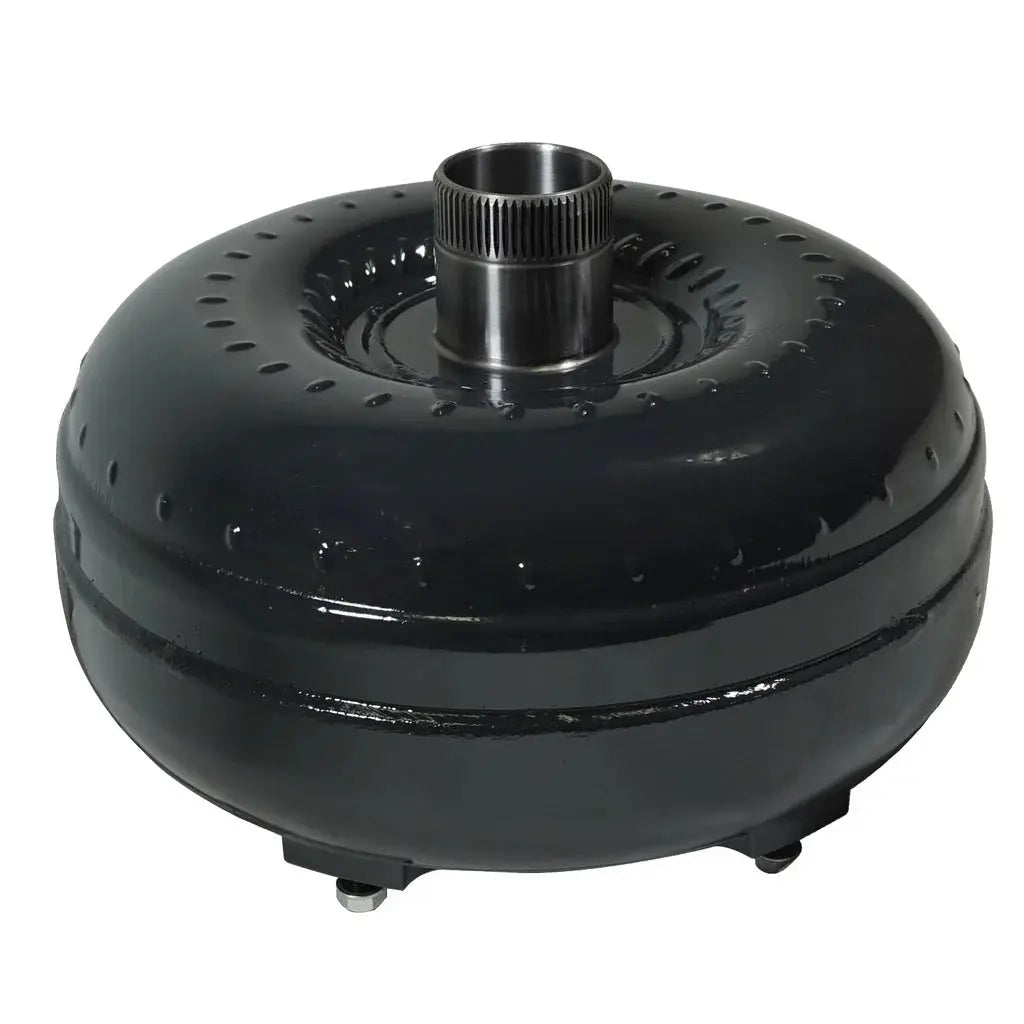

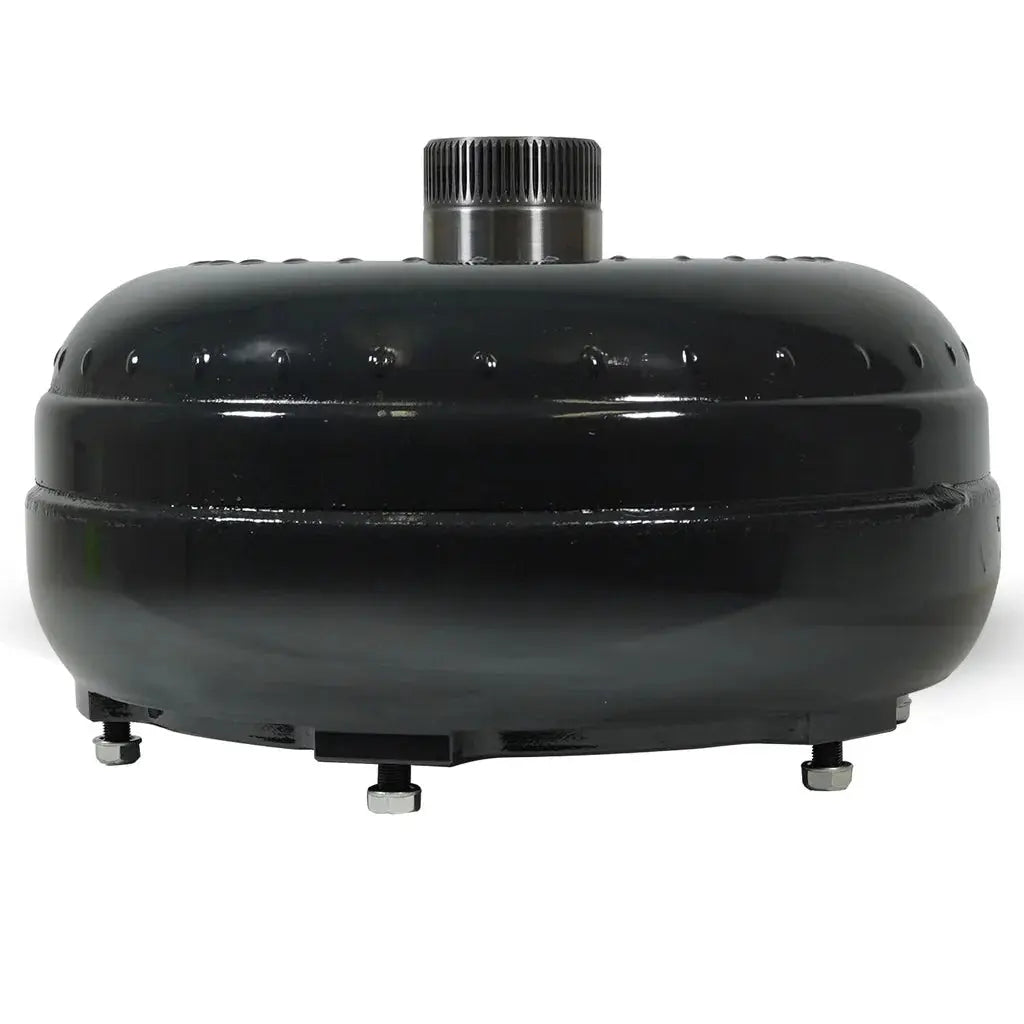

PROFORCE 4D TORQUE CONVERTER FORD F250/F350/F450/F550 6.7L 2011-2019 6R140

The BD 6R140 ProForce 4D Torque Converter is designed for hard-working and modified 6.7L PowerStroke Diesels. This torque converter is equipped with four clutch surfaces designed to handle heavy towing loads and is rated for up to 900+ horsepower. BD’s in-house CNC machined forged cover resists warping and maintains balance while supporting the additional clutch count. BD also developed a custom piston, bearing hub, return springs, and backing plate to retain the OEM captured clutch design — preserving the drivability that 6R140 owners expect.

Features

• 23% increased piston area for added clutch clamping force
• Billet bearing hub, piston, and clutch retainer
• Captured clutch design with clutch return springs
• Increased clutch and steel plate count improves heat dissipation
• Includes installation hardware
• Factory furnace-brazed pump and turbine fins
• Four friction surfaces vs. factory two
• Stamp-forged one-piece cover

Install Time
7 Hours

Note

• No race abuse covered
• Will not fit early 2011 trucks with 8-bolt flex plate – must update to 6-bolt

Emissions
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included.

FORD F250/F350/F450/F550 6.7L 2011-2019 6R140

SKU: 1030238

GTIN: 990011410830

Manufacture Name: BD Diesel

Shipping Weight: 70

Shipping Length: 15

Shipping Width: 15

Shipping Height: 11

EO Number:

Cross Reference #
