Protect68 Pressure Control Kit Dodge 6.7L Cummins 68RFE 2007.5-2018
Protect68 Pressure Control Kit Dodge 6.7L Cummins 68RFE 2007.5-2018
Description
BD ProTect68 Transmission Pressure Control Kit – 68RFE

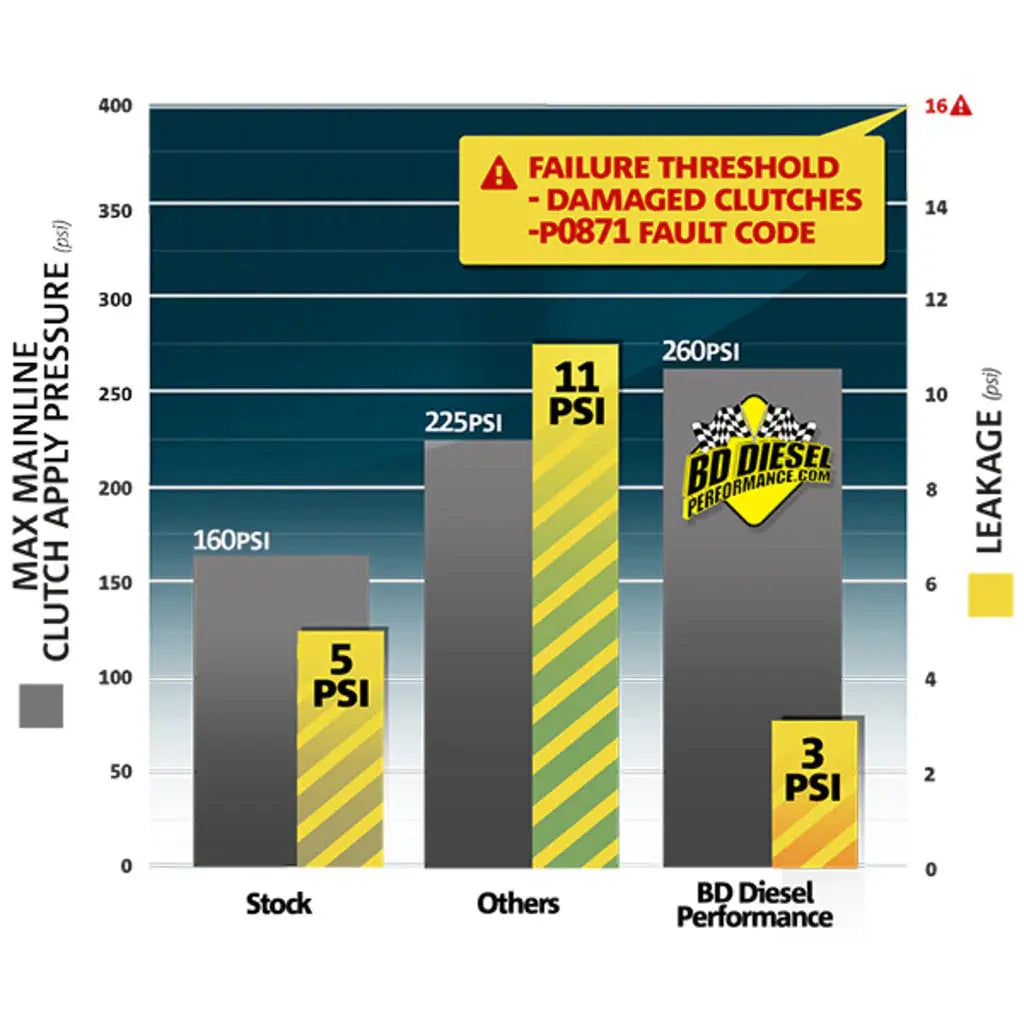

The BD ProTect68 Transmission Pressure Control Kit delivers up to 150% of the torque holding force in stock 68RFE transmissions—without requiring pump modifications or transmission removal. Designed to address the weak points of the 68RFE, the kit includes an industry-leading custom bonded gasket valve body separator plate and gaskets that significantly reduce cross leaks, even under elevated line pressures. A heavy-duty accumulator plate prevents accumulator blow-out, while the electronic pressure control module increases clutch apply pressure up to 250 PSI.
This module dynamically adjusts hydraulic pressures based on turbo boost and engine load, preventing clutch slippage and extending transmission life. Installation takes just 2 to 3 hours, with no full transmission relearn required. Ideal for stock transmissions up to 450HP. For higher power levels or demanding use, a full BD 68RFE transmission is recommended.
Features

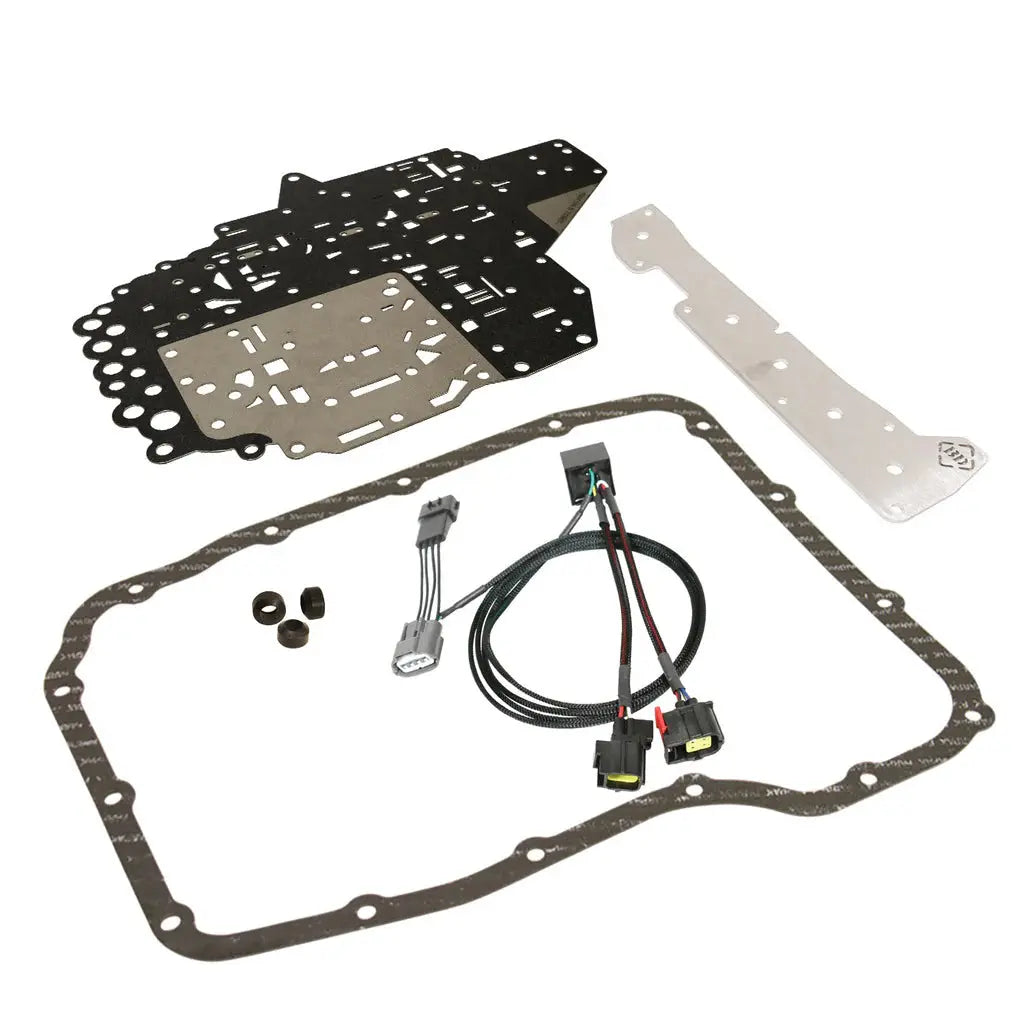

Includes an upgraded 68RFE accumulator plate and custom bonded separator gasket.
Delivers up to 56% more theoretical holding power.
Increases clutch apply pressure up to 250 PSI at full throttle.
Dynamic pressure control adjusts in real-time based on engine load and boost.
Reduces internal cross leaks, improves line pressure stability, and prevents slippage.
No tuning required and no pump modifications needed.
Kit includes pan gasket, three doughnut seals, and a check ball.
Supports up to 450HP on a fresh stock transmission.
Install Time
3 Hours
Note
Not compatible with existing transmission pressure tuning. If pressure tuning is already installed, use part number 1030373 instead.
Emissions
This product does not require a CARB EO and is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
Fitments
Dodge 6.7L Cummins 68RFE 2007.5-2018
Specifications
SKU: 1030362
GTIN: 990011405584
Manufacture Name: BD Diesel
Shipping Weight: 3.5
Shipping Length: 24
Shipping Width: 15
Shipping Height: 4
EO Number:
Cross Reference #
Warranty
Warranty
Parts coverage: 12 Months / 24,000 Miles
