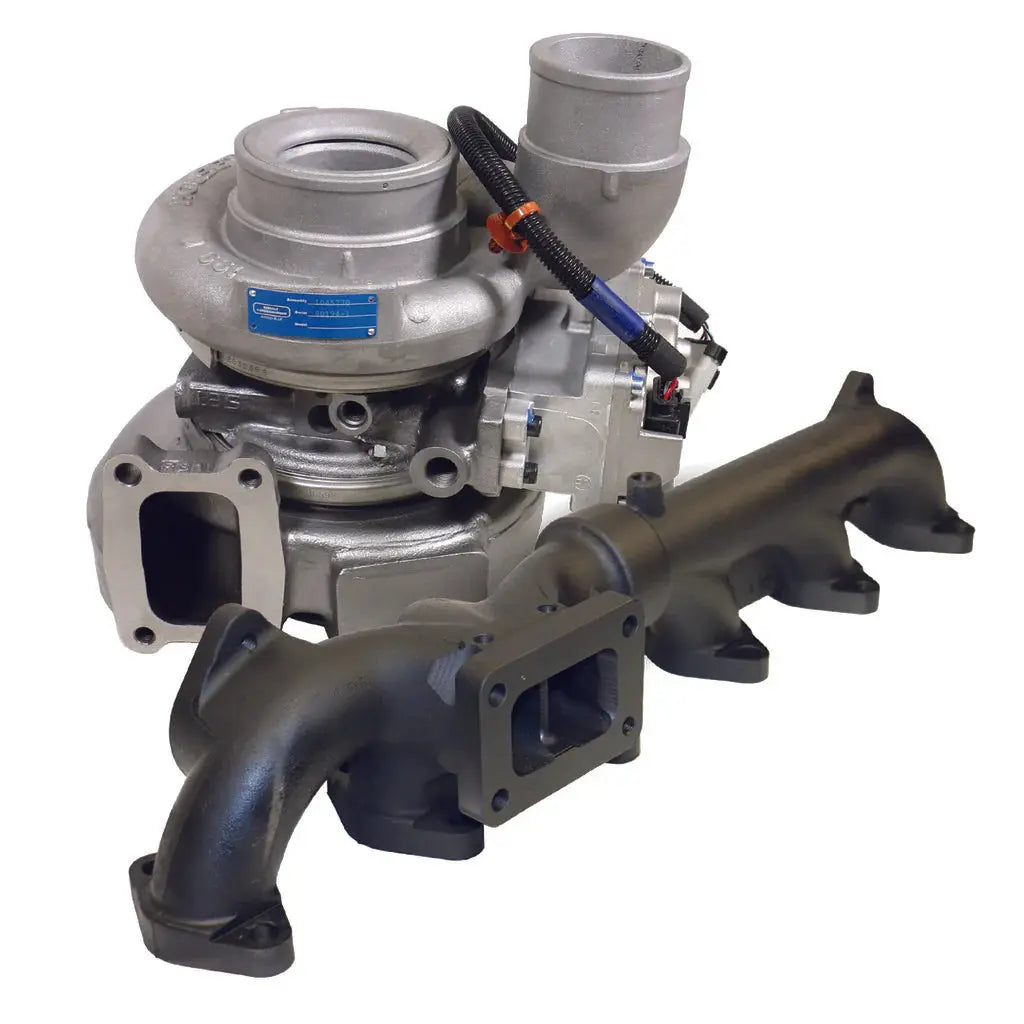

Screamer Turbo Manifold Package RAM 6.7L Cummins 2013-2018
Screamer Turbo Manifold Package RAM 6.7L Cummins 2013-2018
Description

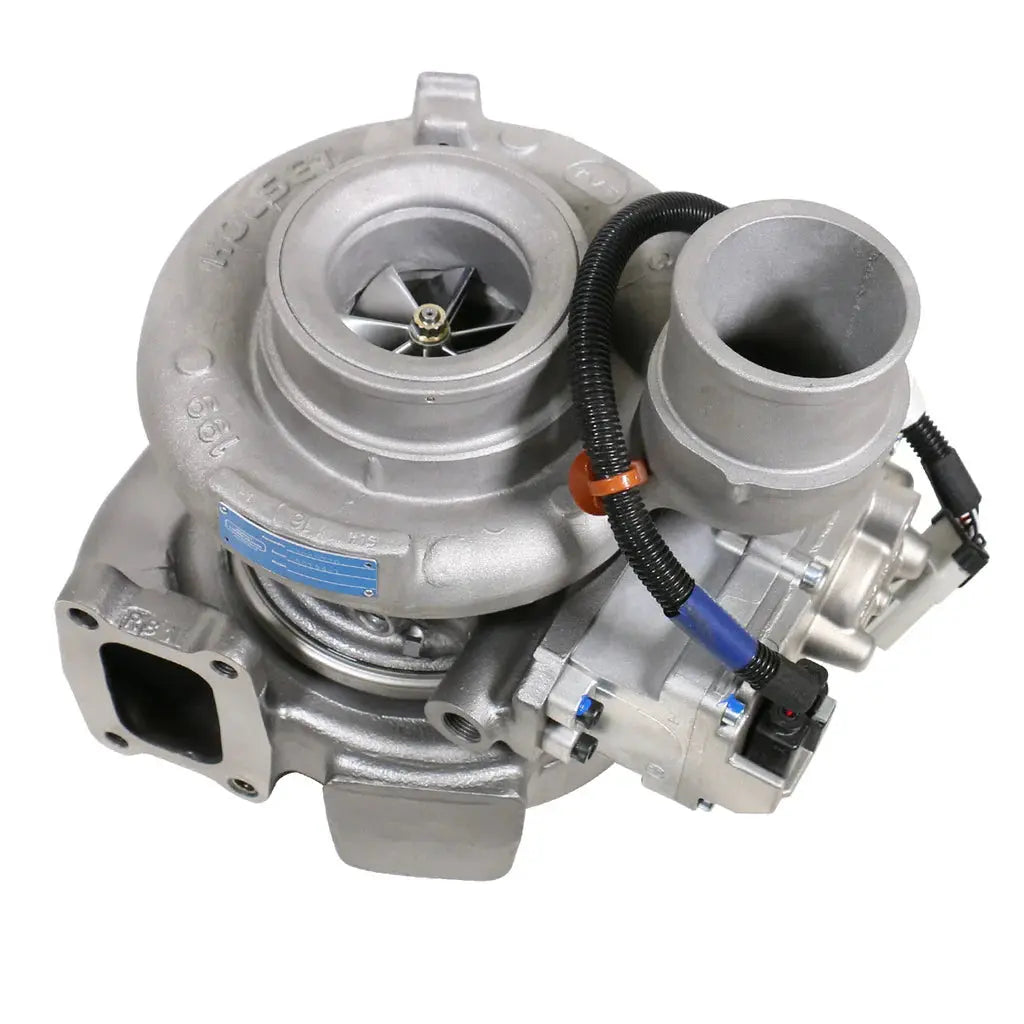

A drop-in, stock-location, stock-looking replacement that is anything but stock! The larger Ballistic Billet compressor wheel and BD’s exclusive Low MOI QST turbine wheel reduce backpressure, improve response, increase efficiency, and maximize turbine flow. This translates into higher potential power output — supporting up to 690HP with proper modifications. No extra parts needed — just bolt it in and go.
Perfectly matched with a high-silicon ductile iron pulse manifold built to handle extreme heat and vibration. Precision slip joints allow for expansion and contraction, minimizing fatigue and significantly extending lifespan.
Features
Turbocharger:
- 50-State Legal – CARB EO No. D-553-5
- Drops into the stock location
- Supports modifications up to 690HP
- Ballistic Billet 64.5mm 7+7 blade compressor wheel
- Low MOI QST 70mm 12-blade turbine wheel
- QST design reduces moment of inertia by 15% for quicker spool
- 25% thinner turbine blades increase gas flow and efficiency
- Each actuator is calibrated and tested
- VSR high-speed balanced

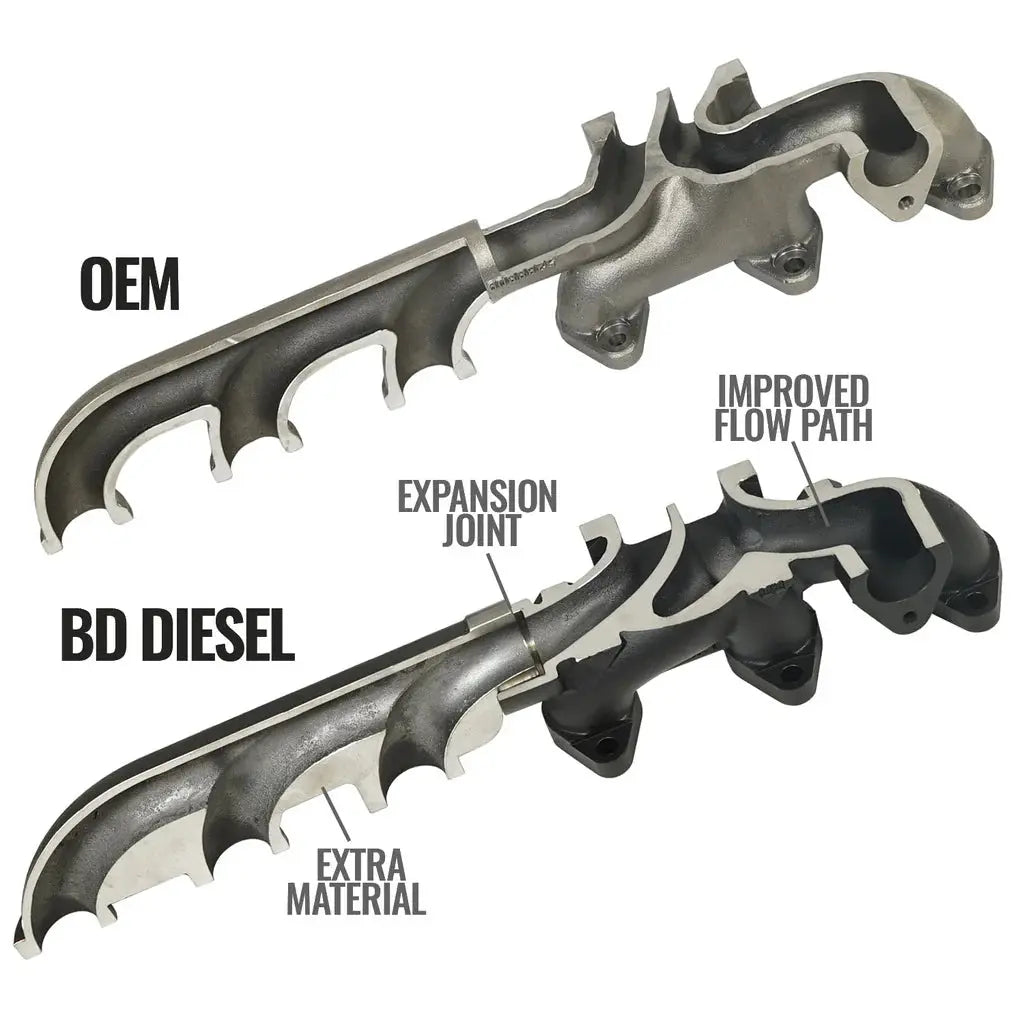

Manifold:
- Pre-drilled for pyrometer probes
- Compatible with Holset HE351 Turbo
- Cast from high-silicon ductile iron to handle DPF regen temperatures
- Thick-walled casting and slip joints prevent cracking and leaks
- Larger port design accommodates power increases
- Quick spool and low drive pressures for improved performance
- Fully EGR compatible
- Open throat outlet flange outperforms stock
- Gaskets, bolts, and spacers sold separately
Install Time
9 Hours
Note
- For pickup models only – Cab & Chassis cores not accepted
- Speed sensor not included – reuse your original sensor
- Use caution with custom tuning; excessive vane restriction may cause non-warrantable failure
- Not for sale on licensed California vehicles
Emissions
This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA.
Fitments
RAM 6.7L Cummins 2013-2018
Specifications
SKU: 1045871
GTIN: 990011409742
Manufacture Name: BD Diesel
Shipping Weight: 83
Shipping Length: 46
Shipping Width: 16
Shipping Height: 15
EO Number:
Cross Reference #
Warranty
Warranty
Parts: 24-Months
