SKU:105740-07K
Suncoast TCC Signal Damper Piston Kit
Suncoast TCC Signal Damper Piston Kit
Description
TCC signal dampers are used in Ford 10R140 transmissions to dampen or smooth out the signal fluid pressure applied from each control solenoid before the fluid flows to the TCC control valve. This allows for a smoother apply of the converter.
When the bore and/or piston wears out, it cannot effectively dampen the variation in pressure. This can result in TCC apply and release concerns, TCC codes and overheating and TCC shudder.
Replacing these worn out dampers can require replacing the entire control valve body, or reaming the bore and installing an oversized piston.

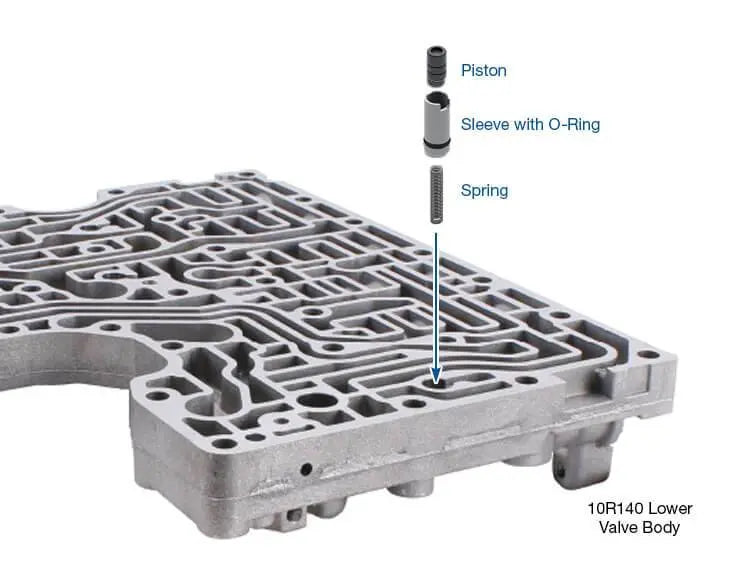

Sonnax TCC signal damper piston kit 105740-07K includes an O-ringed sleeve to allow a long-lasting, quick repair, no reaming required. The O-ring provides a positive seal against critical pressure loss even in worn bores.
- Hardcoat anodized aluminum piston combats premature wear
- Annular grooves added to the piston reduces wear rate
- Highly wear-resistant sleeve to prevent future wear
- O-Ring provides positive seal to prevent critical pressure leakage in worn bores
- Mating spring to re-establish OE dampening action
- Drop-in Zip Valve™ parts install quickly and easily

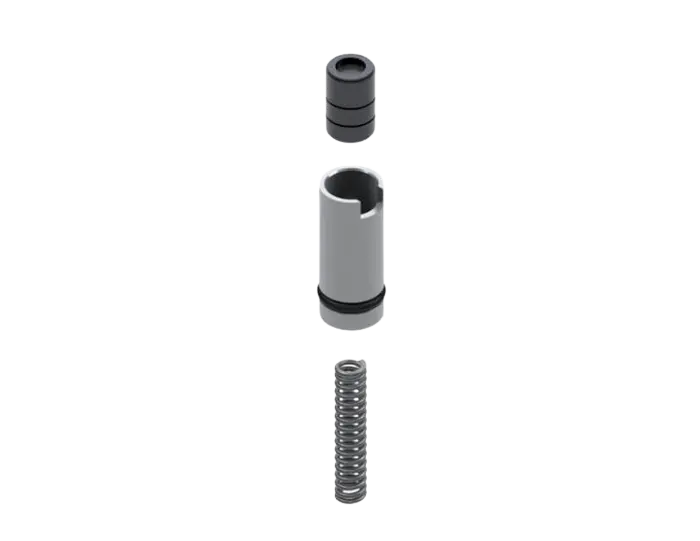

- Piston
- Sleeve
- Spring
- O-Rings (2) 1 Extra
Symptoms:
- TCC apply & release concerns
- TCC codes & concerns
- TCC shudder
Fitments
2025 Ford F-250 Super Duty
2025 Ford F-350 Super Duty
2025 Ford F-450 Super Duty
2025 Ford F-550 Super Duty
2024 Ford F-250 Super Duty
2024 Ford F-350 Super Duty
2024 Ford F-450 Super Duty
2024 Ford F-550 Super Duty
2023 Ford F-250 Super Duty
2023 Ford F-350 Super Duty
2023 Ford F-450 Super Duty
2023 Ford F-550 Super Duty
2022 Ford F-250 Super Duty
2022 Ford F-350 Super Duty
2022 Ford F-450 Super Duty
2022 Ford F-550 Super Duty
2021 Ford F-250 Super Duty
2021 Ford F-350 Super Duty
2021 Ford F-450 Super Duty
2021 Ford F-550 Super Duty
2020 Ford F-250 Super Duty
2020 Ford F-350 Super Duty
2020 Ford F-450 Super Duty
2020 Ford F-550 Super Duty
Instructions
Specifications
SKU: 105740-07K
GTIN: 840385619677
Manufacture Name: Suncoast Performance
Shipping Weight: 1 lb
Shipping Length: 4 in
Shipping Width: 4 in
Shipping Height: 4 in
EO Number:
Cross Reference #
Warranty
