SKU:10R60-260MM

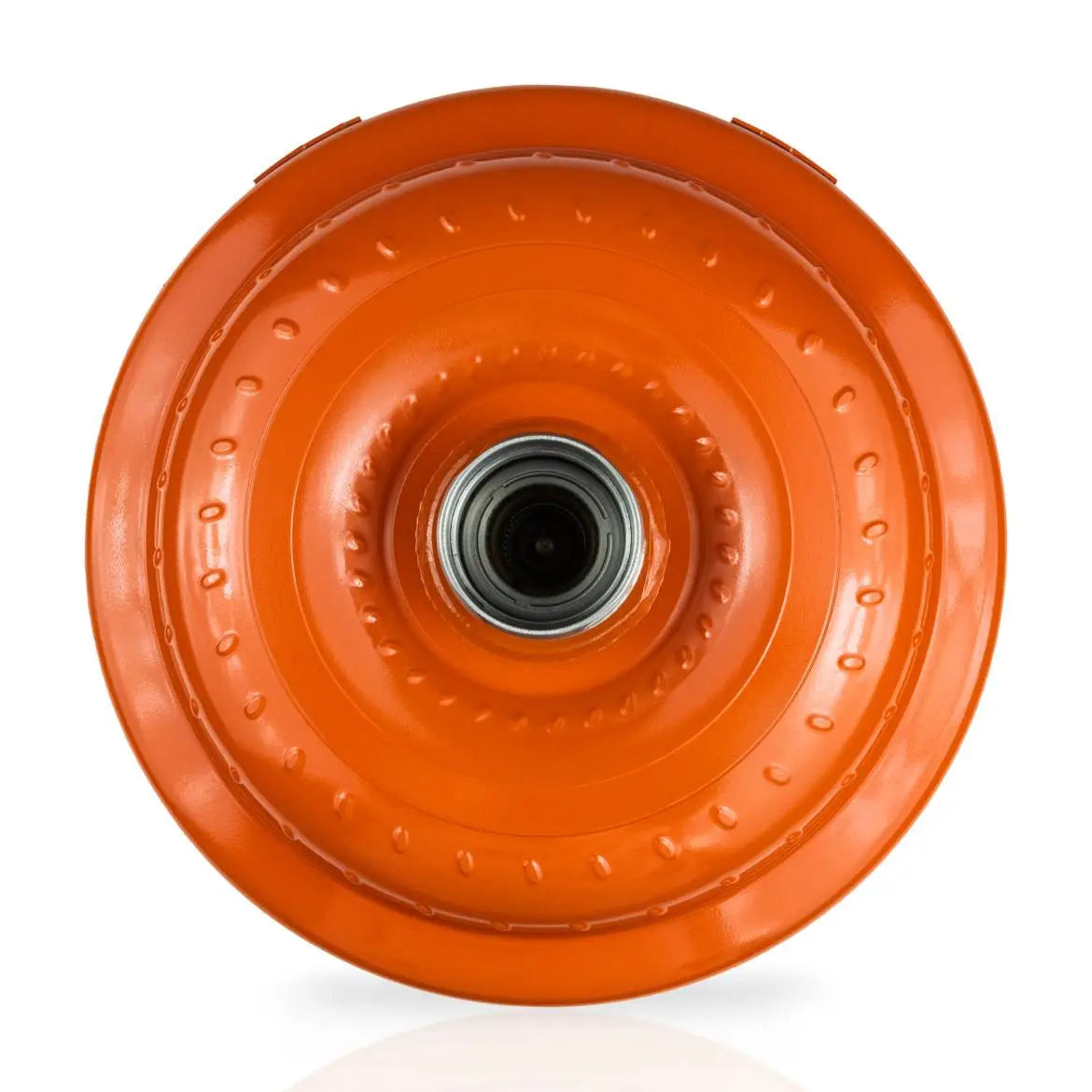

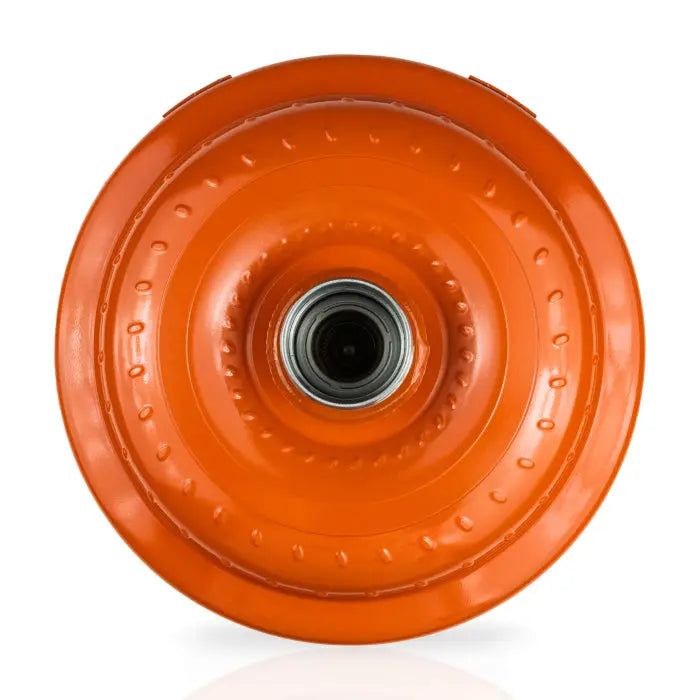

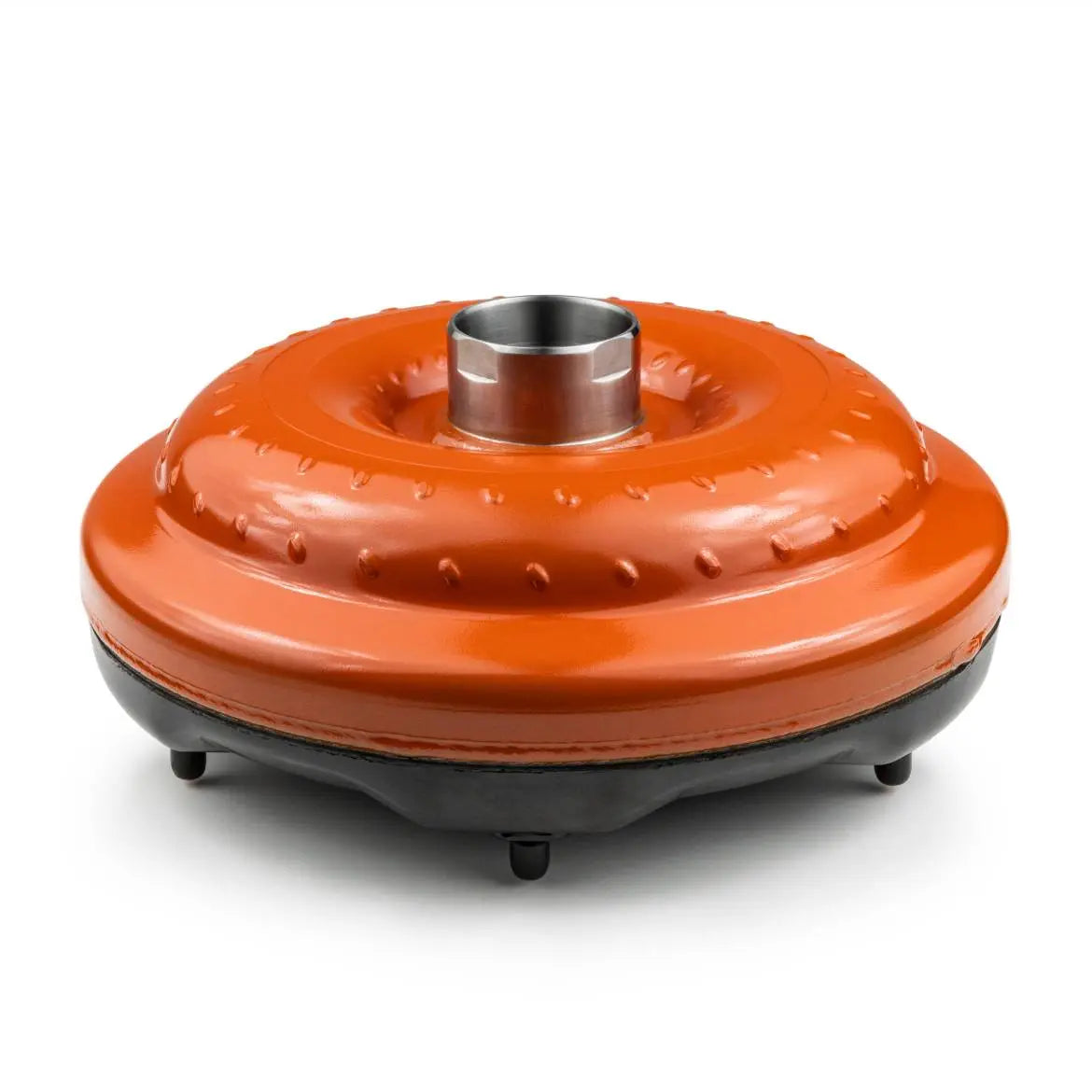

SUNCOAST PRO-LOC 10R60 CONVERTER 260MM
SUNCOAST PRO-LOC 10R60 CONVERTER 260MM
Description
Features and Benefits:
- New billet stator (several to choose from)
- New thrust Bearings
- New friction material
- New converter hub
- New Sprag Assembly
Car makers don't often collaborate on projects, especially when they're direct competitors. However, looming government fuel economy and emissions mandates can make strange bedfellows. And so, the Ford 10R60 10-speed automatic transmission was born. It was co-developed with General Motors, although Ford apparently took the engineering lead on the design. The mission was to create a 10 speed transmission that could improve both the fuel efficiency and performance of high-horsepower engines. The resulting Ford 10R60 transmission was advanced enough to handle the power of the Ford Ranger, Bronco, and Explorer.
Like it or not, a CVT transmission is one of the most efficient gearboxes ever invented. Because there are no actual gears, optimal engine speed can be continuously maintained depending on the load. This allows for seamless acceleration under hard throttle, and lower fuel consumption when you’re just cruising. On a traditional geared transmission, a certain amount of energy gets lost every time a gear ratio is changed. This penalizes both fuel economy and performance, because the engine has to climb back to the RPMs it was just at. The Ford 10R60 10-speed transmission is designed to combine the efficiency benefits of a CVT, with the stepped feel of a traditional automatic transmission.
To create this optimal blend of performance and efficiency, the 10R60 transmission has a wide 7.39 gear ratio spread and a low 4.70 first gear for maximum performance off-the-line. Even though this Ford 10 speed automatic transmission has such a wide gear ratio, it has extremely small steps between the gears. This means the engine RPM only drops (approximately) 20% with each shift, which keeps the engine in the ideal RPM range to achieve either peak performance or efficiency (much like a CVT transmission). The Ford 10R60 also has three overdrive gears, which it can downshift from very quickly.
10R60 Transmission Gear Ratios
First – 4.70
Second – 2.99
Third – 2.15
Fourth – 1.80
Fifth – 1.52
Sixth – 1.28
Seventh – 1.00
Eighth – 0.85
Ninth – 0.69
Tenth – 0.64
Reverse – 4.87
As shown above this transmission offers a beautiful shift recovery in every gear which lends itself the perfect unit for narrow power bands. This allows the use of much larger camshafts in a naturally aspirated application. If you are looking into going to a forced induction setup this shift recovery allows for larger turbo and AR housing for max performance.
This new torque converter comes with a billet stator with a variety of stall speeds available.
Fitments
2026 Ford Bronco
2026 Ford Explorer
2026 Ford Explorer Sport
2026 Ford Explorer Sport Trac
2026 Ford Ranger
2025 Ford Bronco
2025 Ford Explorer
2025 Ford Explorer Sport
2025 Ford Explorer Sport Trac
2025 Ford Ranger
2024 Ford Bronco
2024 Ford Explorer
2024 Ford Explorer Sport
2024 Ford Explorer Sport Trac
2024 Ford Ranger
2023 Ford Bronco
2023 Ford Explorer
2023 Ford Explorer Sport
2023 Ford Explorer Sport Trac
2023 Ford Ranger
2022 Ford Bronco
2022 Ford Explorer
2022 Ford Explorer Sport
2022 Ford Explorer Sport Trac
2022 Ford Ranger
2021 Ford Bronco
2021 Ford Explorer
2021 Ford Explorer Sport
2021 Ford Explorer Sport Trac
2021 Ford Ranger
2020 Ford Bronco
2020 Ford Explorer
2020 Ford Explorer Sport
2020 Ford Explorer Sport Trac
2020 Ford Ranger
2019 Ford Bronco
2019 Ford Explorer
2019 Ford Explorer Sport
2019 Ford Explorer Sport Trac
2019 Ford Ranger
2018 Ford Bronco
2018 Ford Explorer
2018 Ford Explorer Sport
2018 Ford Explorer Sport Trac
2018 Ford Ranger
Instructions
Specifications
SKU: 10R60-260MM
GTIN: 840385617659
Manufacture Name: Suncoast Performance
Shipping Weight: 51 lb
Shipping Length: 14.5 in
Shipping Width: 16 in
Shipping Height: 12 in
EO Number:
Cross Reference #
Warranty
California Proposition 65 Warning
California Proposition 65 Warning - P65warnings.ca.gov
10R60-260MM
SUNCOAST PRO-LOC 10R60 CONVERTER 260MM
Features and Benefits:
- New billet stator (several to choose from)
- New thrust Bearings
- New friction material
- New converter hub
- New Sprag Assembly
Car makers don't often collaborate on projects, especially when they're direct competitors. However, looming government fuel economy and emissions mandates can make strange bedfellows. And so, the Ford 10R60 10-speed automatic transmission was born. It was co-developed with General Motors, although Ford apparently took the engineering lead on the design. The mission was to create a 10 speed transmission that could improve both the fuel efficiency and performance of high-horsepower engines. The resulting Ford 10R60 transmission was advanced enough to handle the power of the Ford Ranger, Bronco, and Explorer.
Like it or not, a CVT transmission is one of the most efficient gearboxes ever invented. Because there are no actual gears, optimal engine speed can be continuously maintained depending on the load. This allows for seamless acceleration under hard throttle, and lower fuel consumption when you’re just cruising. On a traditional geared transmission, a certain amount of energy gets lost every time a gear ratio is changed. This penalizes both fuel economy and performance, because the engine has to climb back to the RPMs it was just at. The Ford 10R60 10-speed transmission is designed to combine the efficiency benefits of a CVT, with the stepped feel of a traditional automatic transmission.
To create this optimal blend of performance and efficiency, the 10R60 transmission has a wide 7.39 gear ratio spread and a low 4.70 first gear for maximum performance off-the-line. Even though this Ford 10 speed automatic transmission has such a wide gear ratio, it has extremely small steps between the gears. This means the engine RPM only drops (approximately) 20% with each shift, which keeps the engine in the ideal RPM range to achieve either peak performance or efficiency (much like a CVT transmission). The Ford 10R60 also has three overdrive gears, which it can downshift from very quickly.
10R60 Transmission Gear Ratios
First – 4.70
Second – 2.99
Third – 2.15
Fourth – 1.80
Fifth – 1.52
Sixth – 1.28
Seventh – 1.00
Eighth – 0.85
Ninth – 0.69
Tenth – 0.64
Reverse – 4.87
As shown above this transmission offers a beautiful shift recovery in every gear which lends itself the perfect unit for narrow power bands. This allows the use of much larger camshafts in a naturally aspirated application. If you are looking into going to a forced induction setup this shift recovery allows for larger turbo and AR housing for max performance.
This new torque converter comes with a billet stator with a variety of stall speeds available.
