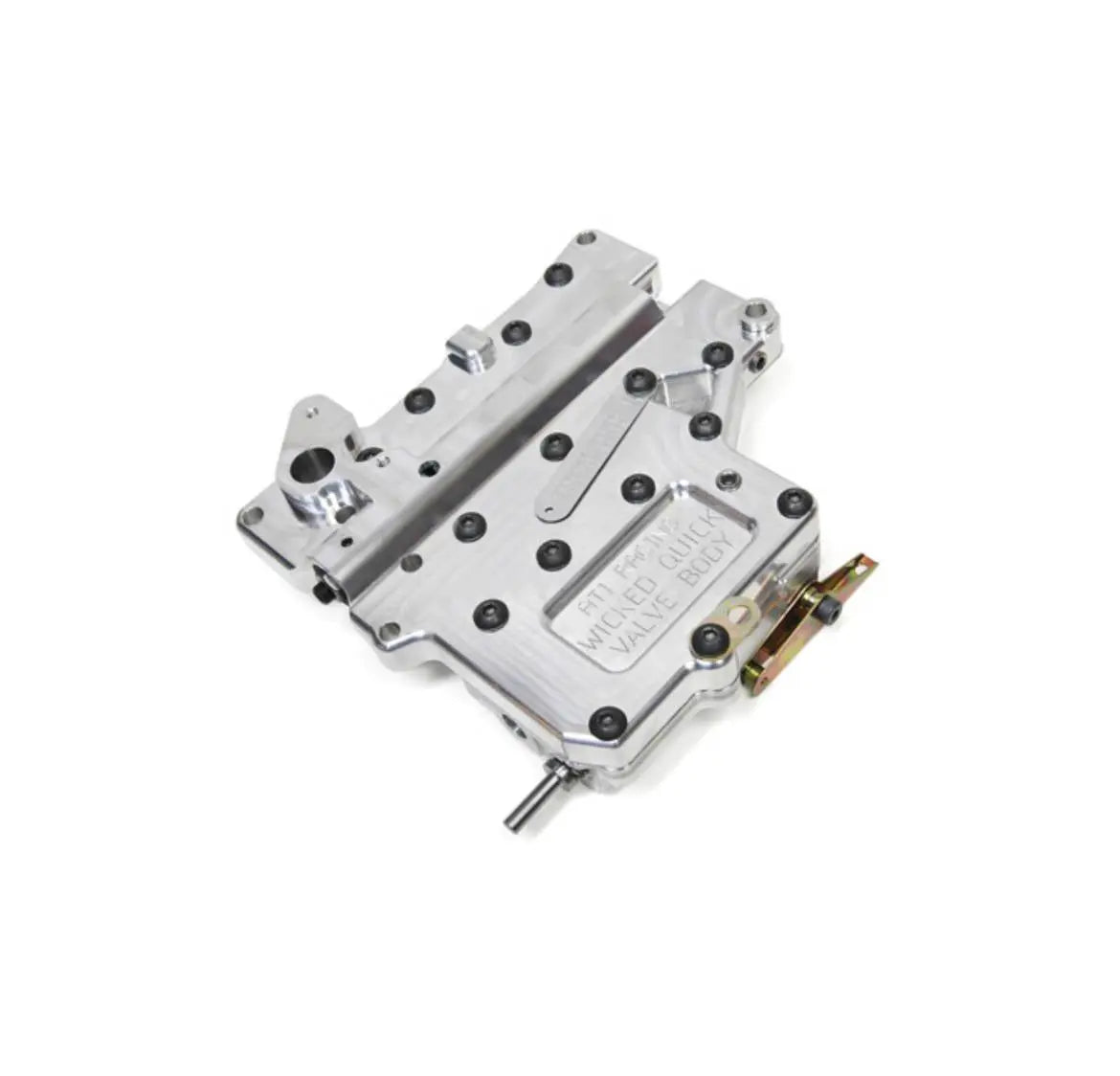

Suncoast Billet Aluminum Safety Reverse Transbrake Wicked Quick Valve Body



BILLET ALUMINUM SAFETY REVERSE TRANSBRAKE WICKED QUICK VALVE BODY



Billet Aluminum Powerglide Wicked Quick Valve Body^®
Comes standard in Superglide 4 and 2 and High Impact Proglides! Perfect for any Powerglide Transmission and a full 7.4 lbs lighter than OEM - weighs 6.8 lbs as is, and 8.4 lbs with solenoid, adapter, filter and spacer. Titanium Bolt option saves another 1/2 pound!



• Direct bolt-on replacement
• Direct replacement for the OEM unit
• Adjustable pressure regulator - U.S. Patent #7,780,564
• ATI Manual Valve - Part #203581
• Fully 5 axis CNC-machined
• Minimum flow restriction passages
• Ultra fast brake!





Related Product Information – For Reference:



ATI Compu-Flow Valve Bodies provide the most accurate and efficient hydraulic controls possible for automatic transmissions. Years of research and testing have enabled ATI to design optimum oil circuitry for all popular transmission applications.



COMPU-FLOW STREET/STRIP VALVE BODIES While any of ATI's Compu-Flow Valve Bodies are "streetable", the Street/Strip Compu-Flow is the #1 choice. These valve bodies provide full automatic shifting if left in drive and manual shifting if low is selected. In either mode, the Street/Strip provides a firm, clean shift.



COMPU-FLOW REVERSE MANUAL VALVE BODIES Our Compu-Flow Reverse Manual Valve Body shifts opposite the OEM units away from neutral when up shifting (P-R-N-1-2-3). There is no automatic shifting. It will leave in the selected gear allowing street driven cars to move off in 2nd or 3rd in slippery conditions. The governor and related components are eliminated, as well as throttle pressure, cables/vacuum lines and linkages. All units freewheel if you lift in low gear; no engine breaking. (Note: All Turbo units freewheel in 2nd gear except #353400 for the T-350) This valve body is not recommended for the Powerglide since it must pass through low to get to neutral.



COMPU-FLOW FORWARD MANUAL VALVE BODIES The Forward Manual Compu-Flow is available with the same features as the reverse manual units, except for the standard OEM shift pattern (P-R-N-3-2-1). Engine braking is available in all gears. The Forward Valve Body provides a generally slower ET for drag racing since the band or clutches are on in low gear.



COMPU-FLOW REVERSE SAFETY TRANSBRAKES These valve bodies have all the same features of the highly successful ATI transbrake and they also have the added feature of reverse safety so that reverse cannot be selected accidentally or inadvertently. The vehicle will only engage reverse gear when reverse is selected and the transbrake solenoid is engaged.



COMPU-FLOW TRANSBRAKES Lock your race car on the starting line for hard, consistent launches. All Compu-Flow Transbrakes are reverse pattern, except for PG applications. These units are fully manual - no automatic shifting. The TH400 unit #403080 has a low draw - 1 amp - solenoids operating pilot circuits. On internal brakes, the solenoid is inside the trans. An ATI transbrake valve body is an excellent choice for bracket and delay box users.

1975 Chevrolet Bel Air
1974 Chevrolet Bel Air
1973 Chevrolet Bel Air
1973 Chevrolet Caprice
1973 Chevrolet Chevelle
1973 Chevrolet Chevy II
1973 Chevrolet El Camino
1973 Chevrolet G10 Van
1973 Chevrolet Impala
1973 Chevrolet Malibu
1973 Chevrolet Nova
1972 Chevrolet Bel Air
1972 Chevrolet Biscayne
1972 Chevrolet C10
1972 Chevrolet Camaro
1972 Chevrolet Caprice
1972 Chevrolet Chevelle
1972 Chevrolet Chevy II
1972 Chevrolet El Camino
1972 Chevrolet G10 Van
1972 Chevrolet Impala
1972 Chevrolet Malibu
1972 Chevrolet Nova
1972 Chevrolet Townsman
1971 Chevrolet Bel Air
1971 Chevrolet Biscayne
1971 Chevrolet C10
1971 Chevrolet Camaro
1971 Chevrolet Caprice
1971 Chevrolet Chevelle
1971 Chevrolet Chevy II
1971 Chevrolet El Camino
1971 Chevrolet G10 Van
1971 Chevrolet Impala
1971 Chevrolet Malibu
1971 Chevrolet Monte Carlo
1971 Chevrolet Nova
1971 Chevrolet Townsman
1970 Chevrolet Bel Air
1970 Chevrolet Biscayne
1970 Chevrolet C10
1970 Chevrolet Camaro
1970 Chevrolet Caprice
1970 Chevrolet Chevelle
1970 Chevrolet Chevy II
1970 Chevrolet El Camino
1970 Chevrolet G10 Van
1970 Chevrolet Impala
1970 Chevrolet Malibu
1970 Chevrolet Monte Carlo
1970 Chevrolet Nova
1970 Chevrolet Townsman
1969 Chevrolet Bel Air
1969 Chevrolet Biscayne
1969 Chevrolet C10
1969 Chevrolet Camaro
1969 Chevrolet Caprice
1969 Chevrolet Chevelle
1969 Chevrolet Chevy II
1969 Chevrolet Corvair
1969 Chevrolet El Camino
1969 Chevrolet G10 Van
1969 Chevrolet Impala
1969 Chevrolet Malibu
1969 Chevrolet Nova
1969 Chevrolet Townsman
1968 Chevrolet Bel Air
1968 Chevrolet Biscayne
1968 Chevrolet C10
1968 Chevrolet Camaro
1968 Chevrolet Caprice
1968 Chevrolet Chevelle
1968 Chevrolet Chevy II
1968 Chevrolet Corvair
1968 Chevrolet El Camino
1968 Chevrolet G10 Van
1968 Chevrolet Impala
1968 Chevrolet Malibu
1968 Chevrolet Nova
1967 Chevrolet Bel Air
1967 Chevrolet Biscayne
1967 Chevrolet C10
1967 Chevrolet Camaro
1967 Chevrolet Caprice
1967 Chevrolet Chevelle
1967 Chevrolet Chevy II
1967 Chevrolet Corvair
1967 Chevrolet El Camino
1967 Chevrolet G10 Van
1967 Chevrolet Impala
1967 Chevrolet Malibu
1967 Chevrolet Nova
1966 Chevrolet Bel Air
1966 Chevrolet Biscayne
1966 Chevrolet C10
1966 Chevrolet Caprice
1966 Chevrolet Chevelle
1966 Chevrolet Chevy II
1966 Chevrolet Corvair
1966 Chevrolet El Camino
1966 Chevrolet G10 Van
1966 Chevrolet Impala
1966 Chevrolet Malibu
1966 Chevrolet Nova
1965 Chevrolet Bel Air
1965 Chevrolet Biscayne
1965 Chevrolet C10
1965 Chevrolet Chevelle
1965 Chevrolet Chevy II
1965 Chevrolet Corvair
1965 Chevrolet El Camino
1965 Chevrolet G10 Van
1965 Chevrolet Impala
1965 Chevrolet Malibu
1965 Chevrolet Nova
1964 Chevrolet Bel Air
1964 Chevrolet Biscayne
1964 Chevrolet C10
1964 Chevrolet Chevelle
1964 Chevrolet Chevy II
1964 Chevrolet Corvair
1964 Chevrolet El Camino
1964 Chevrolet G10 Van
1964 Chevrolet Impala
1964 Chevrolet Malibu
1964 Chevrolet Nova
1963 Chevrolet Bel Air
1963 Chevrolet Biscayne
1963 Chevrolet C10
1963 Chevrolet Chevy II
1963 Chevrolet Corvair
1963 Chevrolet Impala
1963 Chevrolet Nova
1962 Chevrolet Bel Air
1962 Chevrolet Biscayne
1962 Chevrolet C10
1962 Chevrolet Chevy II
1962 Chevrolet Corvair
1962 Chevrolet Impala
1962 Chevrolet Nova
1961 Chevrolet Bel Air
1961 Chevrolet Biscayne
1961 Chevrolet Brookwood
1961 Chevrolet C10
1961 Chevrolet Corvair
1961 Chevrolet Impala
1961 Chevrolet Kingswood
1961 Chevrolet Nomad
1961 Chevrolet Parkwood
1960 Chevrolet Bel Air
1960 Chevrolet Biscayne
1960 Chevrolet Brookwood
1960 Chevrolet C10
1960 Chevrolet Corvair
1960 Chevrolet El Camino
1960 Chevrolet Impala
1960 Chevrolet Kingswood
1960 Chevrolet Nomad
1960 Chevrolet Parkwood
1959 Chevrolet Bel Air
1959 Chevrolet Biscayne
1959 Chevrolet Brookwood
1959 Chevrolet El Camino
1959 Chevrolet Impala
1959 Chevrolet Kingswood
1959 Chevrolet Nomad
1959 Chevrolet Parkwood
1958 Chevrolet Bel Air
1958 Chevrolet Biscayne
1958 Chevrolet Brookwood
1958 Chevrolet Delray
1958 Chevrolet Impala
1958 Chevrolet Nomad
1957 Chevrolet Bel Air
1957 Chevrolet Nomad
1956 Chevrolet Bel Air
1956 Chevrolet Nomad
1955 Chevrolet Bel Air
1955 Chevrolet Nomad
1954 Chevrolet Bel Air
1953 Chevrolet Bel Air
1952 Chevrolet Bel Air
1951 Chevrolet Bel Air
1950 Chevrolet Bel Air

SKU: 203051

GTIN:

Manufacture Name: Suncoast Performance

Shipping Weight: 17 lb

Shipping Length: 12 in

Shipping Width: 12 in

Shipping Height: 12 in

EO Number:

Cross Reference #

California Proposition 65 Warning - P65warnings.ca.gov
