Suncoast TCC Regulator Valve Kit



Fits ’18-earlier only in 68RFE.



In Chrysler 45/545/65/66 and '18-earlier 68RFE transmissions, various converter concerns result from the OE design of the TCC regulator valve. There is minimal valve-to-bore sealing at the line pressure to converter feed circuit, which allows critical apply fluid to leak past the valve spool and directly to exhaust/sump. Typical cores show low vacuum at this critical TCC apply circuit and confirms the issue of poor valve to bore sealing.

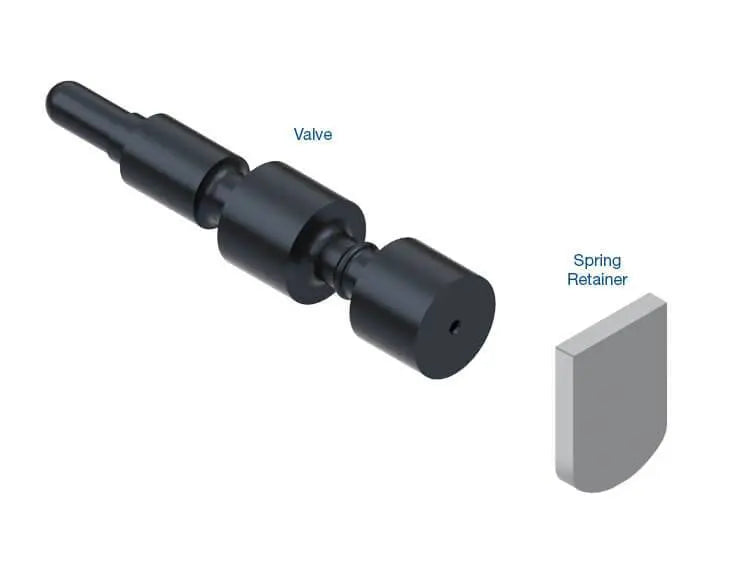

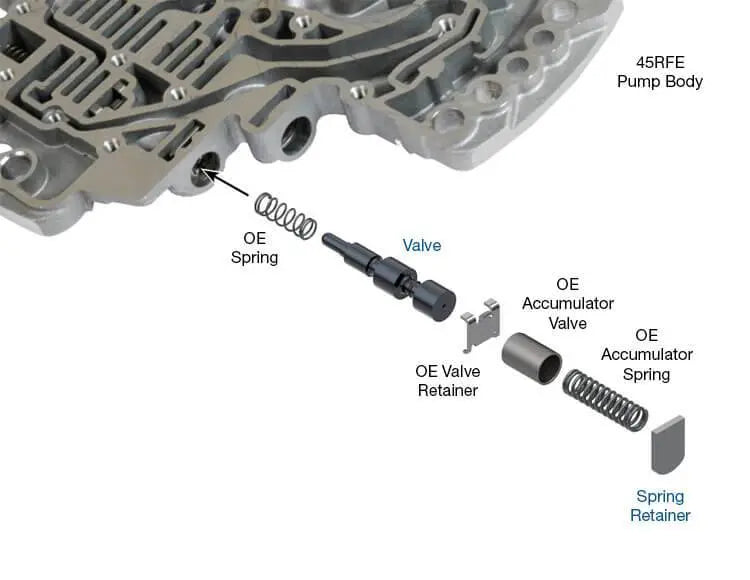

Sonnax enhanced drop-in TCC regulator valve kit 44912-11K incorporates an extended spool for additional sealing support at the critical interface between the line pressure circuit and the TCC apply circuit. The Sonnax valve kit is designed as a quick and inexpensive repair for pumps showing initial signs of wear or as a preventative measure to extend the life of the pump. The kit also includes a sturdier accumulator spring retainer, as the OE retainer is often damaged from excess spring force.



• Hardcoat anodized aluminum valve combats premature wear
• Lengthened critical spool for additional sealing area and wear prevention
• Thicker accumulator spring retainer to replace thinner damaged OE accumulator spring retainer
• Drop-in Zip Valve^™ parts install quickly and easily



Contents:

2018 Dodge Ram 2500
2018 Dodge Ram 3500
2017 Dodge Ram 2500
2017 Dodge Ram 3500
2016 Dodge Ram 2500
2016 Dodge Ram 3500
2015 Dodge Ram 2500
2015 Dodge Ram 3500
2014 Dodge Ram 2500
2014 Dodge Ram 3500
2013 Dodge Ram 2500
2013 Dodge Ram 3500
2012 Dodge Ram 2500
2012 Dodge Ram 3500
2011 Dodge Ram 2500
2011 Dodge Ram 3500
2010 Dodge Ram 2500
2010 Dodge Ram 3500
2009 Dodge Ram 2500
2009 Dodge Ram 3500
2008 Dodge Ram 2500
2008 Dodge Ram 3500
2007 Dodge Ram 2500
2007 Dodge Ram 3500
2021 Dodge Ram 3500
2020 Dodge Ram 3500
2019 Dodge Ram 3500
2013 Dodge Durango
2013 Jeep Grand Cherokee
2012 Dodge Durango
2012 Dodge Ram 1500
2012 Jeep Grand Cherokee
2012 Jeep Liberty
2011 Dodge Dakota
2011 Dodge Durango
2011 Dodge Ram 1500
2011 Jeep Grand Cherokee
2011 Jeep Liberty
2010 Chrysler 300
2010 Dodge Dakota
2010 Dodge Durango
2010 Dodge Ram 1500
2010 Jeep Grand Cherokee
2010 Jeep Liberty
2009 Chrysler 300
2009 Dodge Dakota
2009 Dodge Durango
2009 Dodge Ram 1500
2009 Jeep Grand Cherokee
2009 Jeep Liberty
2008 Chrysler 300
2008 Dodge Dakota
2008 Dodge Durango
2008 Dodge Ram 1500
2008 Jeep Grand Cherokee
2008 Jeep Liberty
2007 Chrysler 300
2007 Dodge Dakota
2007 Dodge Durango
2007 Dodge Ram 1500
2007 Jeep Grand Cherokee
2007 Jeep Liberty
2006 Chrysler 300
2006 Dodge Dakota
2006 Dodge Durango
2006 Dodge Ram 1500
2006 Dodge Ram 2500
2006 Dodge Ram 3500
2006 Jeep Grand Cherokee
2006 Jeep Liberty
2005 Chrysler 300
2005 Dodge Dakota
2005 Dodge Durango
2005 Dodge Ram 1500
2005 Dodge Ram 2500
2005 Dodge Ram 3500
2005 Jeep Grand Cherokee
2005 Jeep Liberty
2004 Dodge Dakota
2004 Dodge Durango
2004 Dodge Ram 1500
2004 Dodge Ram 2500
2004 Dodge Ram 3500
2004 Jeep Grand Cherokee
2004 Jeep Liberty
2003 Dodge Dakota
2003 Dodge Durango
2003 Dodge Ram 1500
2003 Dodge Ram 2500
2003 Dodge Ram 3500
2003 Jeep Grand Cherokee
2003 Jeep Liberty
2002 Dodge Dakota
2002 Dodge Durango
2002 Dodge Ram 1500
2002 Jeep Grand Cherokee
2002 Jeep Liberty
2001 Dodge Dakota
2001 Dodge Durango
2001 Jeep Grand Cherokee
2000 Dodge Dakota
2000 Dodge Durango
2000 Jeep Grand Cherokee
1999 Jeep Grand Cherokee

SKU: 44912-11K

GTIN: 840385621854

Manufacture Name: Suncoast Performance

Shipping Weight: 2 lb

Shipping Length: 4 in

Shipping Width: 4 in

Shipping Height: 4 in

EO Number:

Cross Reference #
