SKU:705063

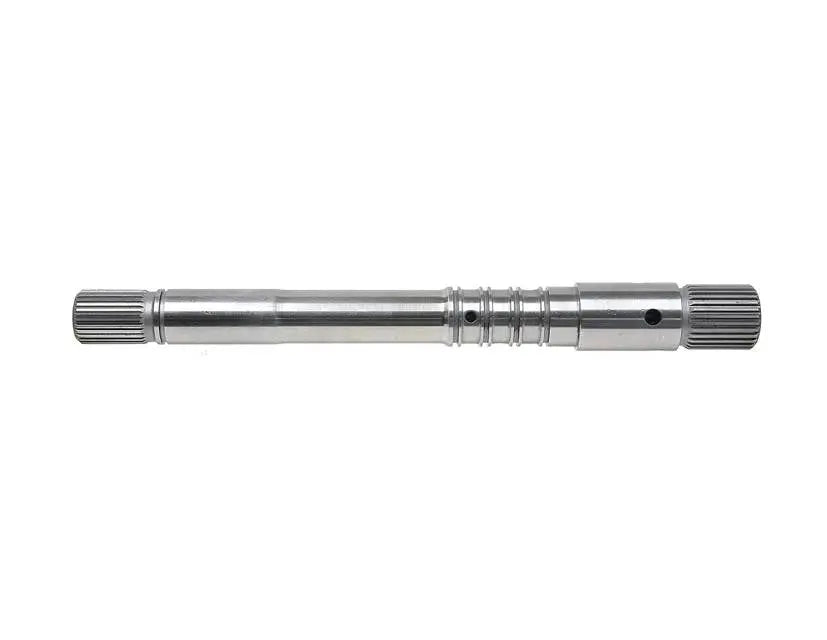

Suncoast 4L65E Input Shaft - 300M, No Reluctor, w/ Capsule
Suncoast 4L65E Input Shaft - 300M, No Reluctor, w/ Capsule
Description
GM 4L65E Input Shaft - 300M - No Reluctor - With Capsule
ATI Racing Torsional Input Shafts work like a torsional spring bar, twisting and returning to totally eliminate breakage while reducing shock loads to the gear train. Designed to fit either the Powerglide or TH400 splines, these shafts are available for V8 and 6-cylinder carriers.
In addition to our precision-machined torsional shafts for PG, TH350 & TH400, Ford C-4, C-6 and AOD, we offer special extreme-duty models for the PG and TH400 made of Vasco steel. This material is exceptionally strong and resilient to withstand the most severe torsional shock.
Why is a well made, straight and correct input shaft important?
Input shafts serve many purposes including:
- Transfer power from the converter to the input sun gear while in low gear.
- Transfer power from the converter to the high gear hub in high gear.
- Direct oil coming from the converter to the front ring on the shaft and out through the pump to the oil cooler.
- Direct oil from the cooler between the 2 rings and down through the center of the shaft to lube and cool the direct clutches, gear set, output shaft bushing and the entire transmission.
- Maintain proper oil pressure in the converter and cooler with its sized holes that are “downstream restrictions” to control the flow out of the converter.
- Center and support the Input Sun Gear from its pitch diameter to the ½ diameter that goes into the bushing on the output shaft
- Center and support the Output Sun Gear (flange gear) via the “wedding band”.
Which companies in the industry are capable of making input shafts properly? Who has the hobs, shapers and cutters to cut splines? Do they have the machines and the expertise that is required to manufacture this critical part? Can they properly heat treat it, straighten and finish grind it? Or, do they just buy it from someone and resell it? One thing is for sure: at ATI, if we have a problem, we have a REASON, not an EXCUSE, because we make it in-house from start to finish. We find the problems, not you. The bottom line is simple: Manufacturing technique for this product is critical. Material is critical. Heat-treat is critical.
Fitments
2009 Chevrolet Express 1500
2009 Chevrolet Express 2500
2009 Chevrolet Trailblazer SS
2009 GMC Envoy Denali
2009 GMC Savana 1500
2009 GMC Savana 2500
2009 Saab 9-7X Aero
2008 Chevrolet Express 1500
2008 Chevrolet Express 2500
2008 Chevrolet Trailblazer SS
2008 GMC Envoy Denali
2008 GMC Savana 1500
2008 GMC Savana 2500
2008 Saab 9-7X Aero
2007 Buick Rainier V8
2007 Cadillac CTS-V
2007 Chevrolet Express 1500
2007 Chevrolet Express 2500
2007 Chevrolet Trailblazer SS
2007 GMC Envoy Denali
2007 GMC Savana 1500
2007 GMC Savana 2500
2006 Buick Rainier V8
2006 Cadillac CTS-V
2006 Chevrolet Avalanche 1500
2006 Chevrolet Express 1500
2006 Chevrolet Express 2500
2006 Chevrolet SSR
2006 Chevrolet Silverado 1500
2006 Chevrolet Trailblazer SS
2006 GMC Envoy Denali
2006 GMC Savana 1500
2006 GMC Savana 2500
2006 GMC Sierra 1500
2006 Pontiac GTO
2005 Buick Rainier V8
2005 Chevrolet Avalanche 1500
2005 Chevrolet Express 1500
2005 Chevrolet Express 2500
2005 Chevrolet SSR
2005 Chevrolet Silverado 1500
2005 GMC Envoy Denali
2005 GMC Savana 1500
2005 GMC Savana 2500
2005 GMC Sierra 1500
2005 Pontiac GTO
2004 Chevrolet Avalanche 1500
2004 Chevrolet Corvette
2004 Chevrolet Express 1500
2004 Chevrolet Express 2500
2004 Chevrolet Silverado 1500
2004 GMC Savana 1500
2004 GMC Savana 2500
2004 GMC Sierra 1500
2004 Pontiac GTO
2003 Chevrolet Avalanche 1500
2003 Chevrolet Corvette
2003 Chevrolet Express 1500
2003 Chevrolet Express 2500
2003 Chevrolet Silverado 1500
2003 GMC Savana 1500
2003 GMC Savana 2500
2003 GMC Sierra 1500
2002 Chevrolet Avalanche 1500
2002 Chevrolet Camaro
2002 Chevrolet Corvette
2002 Chevrolet Express 1500
2002 Chevrolet Express 2500
2002 Chevrolet Silverado 1500
2002 GMC Savana 1500
2002 GMC Savana 2500
2002 GMC Sierra 1500
2002 Pontiac Firebird
2002 Pontiac Trans Am
2001 Chevrolet Camaro
2001 Chevrolet Corvette
2001 Chevrolet Express 1500
2001 Chevrolet Express 2500
2001 Chevrolet Silverado 1500
2001 GMC Savana 1500
2001 GMC Savana 2500
2001 GMC Sierra 1500
2001 Pontiac Firebird
2001 Pontiac Trans Am
Instructions
Specifications
SKU: 705063
GTIN:
Manufacture Name: Suncoast Performance
Shipping Weight: 5 lb
Shipping Length: 15 in
Shipping Width: 15 in
Shipping Height: 15 in
EO Number:
Cross Reference #
Warranty
California Proposition 65 Warning
California Proposition 65 Warning - P65warnings.ca.gov
705063
