SKU:72530B-03

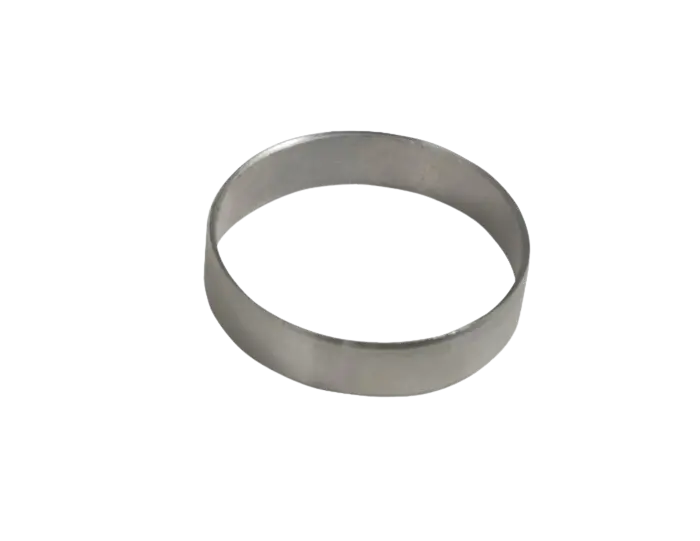

Suncoast Center Pump Gear Bushing
Suncoast Center Pump Gear Bushing
Description

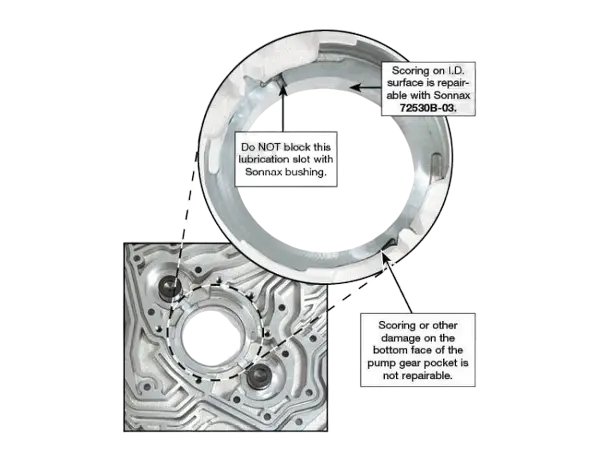

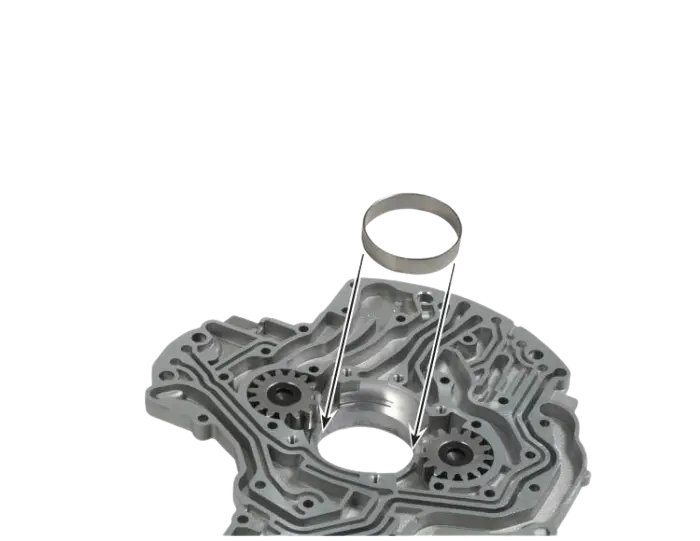

Chrysler 68RFE pump bodies are frequently found to have a scored bearing surface or pump wear and fractures where the center gear drive flange passes through the pump. The Sonnax center pump gear 72530B-02 and/or bushing 72530B-03 salvages pumps with this type of wear. The score damage is machined out of the pump when the center pump gear bore is oversized to accept a precision, steel-backed aluminum bushing.
- Allows salvage of pump bodies scored at center gear bearing surface
- Redesigned center gear drive flange reduces turbine hub engagement play and noise
- The correctly installed steel-backed aluminum alloy precision bushing extends pump life
Fitments
2023 Ram 2500
2023 Ram 3500
2023 Ram 4500
2023 Ram 5500
2022 Ram 2500
2022 Ram 3500
2022 Ram 4500
2022 Ram 5500
2021 Ram 2500
2021 Ram 3500
2021 Ram 4500
2021 Ram 5500
2020 Ram 2500
2020 Ram 3500
2020 Ram 4500
2020 Ram 5500
2019 Ram 2500
2019 Ram 3500
2019 Ram 4500
2019 Ram 5500
2018 Ram 2500
2018 Ram 3500
2018 Ram 4500
2018 Ram 5500
2017 Ram 2500
2017 Ram 3500
2017 Ram 4500
2017 Ram 5500
2016 Ram 2500
2016 Ram 3500
2016 Ram 4500
2016 Ram 5500
2015 Ram 2500
2015 Ram 3500
2015 Ram 4500
2015 Ram 5500
2014 Ram 2500
2014 Ram 3500
2014 Ram 4500
2014 Ram 5500
2013 Ram 2500
2013 Ram 3500
2013 Ram 4500
2013 Ram 5500
2012 Ram 2500
2012 Ram 3500
2012 Ram 4500
2012 Ram 5500
2011 Ram 2500
2011 Ram 3500
2011 Ram 4500
2011 Ram 5500
2010 Ram 2500
2010 Ram 3500
2010 Ram 4500
2010 Ram 5500
2009 Ram 2500
2009 Ram 3500
2009 Ram 4500
2009 Ram 5500
2008 Ram 2500
2008 Ram 3500
2008 Ram 4500
2008 Ram 5500
2007 Ram 2500
2007 Ram 3500
Instructions
Specifications
SKU: 72530B-03
GTIN: 840385622110
Manufacture Name: Suncoast Performance
Shipping Weight: 2 lb
Shipping Length: 4 in
Shipping Width: 4 in
Shipping Height: 4 in
EO Number:
Cross Reference #
Warranty
California Proposition 65 Warning
California Proposition 65 Warning - P65warnings.ca.gov
72530B-03
Suncoast Center Pump Gear Bushing
Chrysler 68RFE pump bodies are frequently found to have a scored bearing surface or pump wear and fractures where the center gear drive flange passes through the pump. The Sonnax center pump gear 72530B-02 and/or bushing 72530B-03 salvages pumps with this type of wear. The score damage is machined out of the pump when the center pump gear bore is oversized to accept a precision, steel-backed aluminum bushing.
- Allows salvage of pump bodies scored at center gear bearing surface
- Redesigned center gear drive flange reduces turbine hub engagement play and noise
- The correctly installed steel-backed aluminum alloy precision bushing extends pump life
