Suncoast 35 SPLINE SOLID BILLET INPUT SHAFT
Suncoast 35 SPLINE SOLID BILLET INPUT SHAFT
Description
The Sonnax Smart-Tech® Big Input Shaft Kit, 22121B-08K, is the ultimate solution to prevent input shaft spline twist and breakage in high-torque Chrysler 47RH, 47RE and 48RE diesel applications. Compared to the best 300M 23-spline shafts, the Sonnax input shaft is 35% stronger at both the spline portion of the shaft and the sealing ring/cross-hole area of the shaft, eliminating all concerns of failure at these critical points.

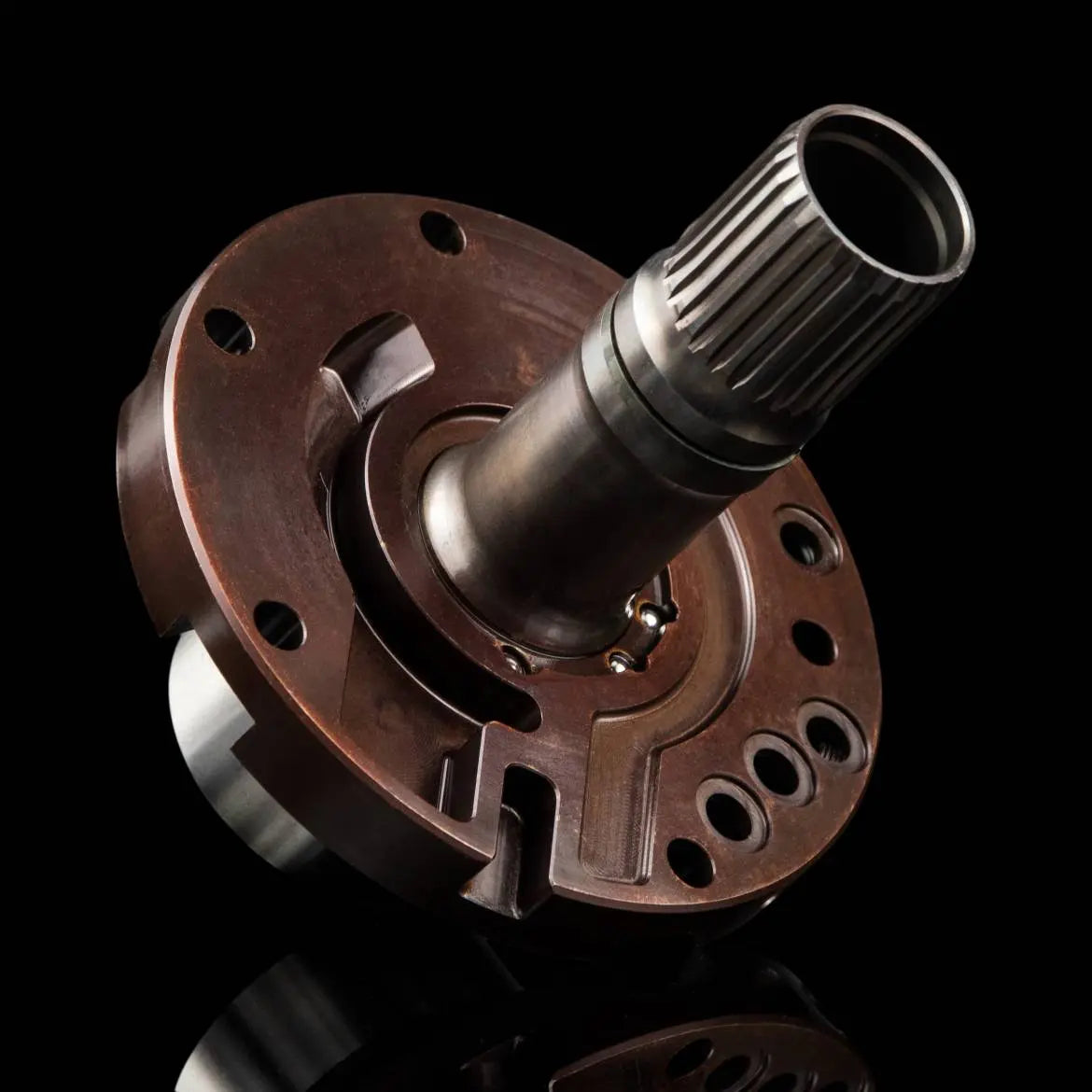

The larger sealing ring and cross-hole area require a custom stator/pump cover assembly. The stator assembly features standard 48RE tube splines made of high-strength steel, improved retention in stator body, 48RE matched pump porting, and special rubber seals to eliminate oil leakage between cover and pump body.

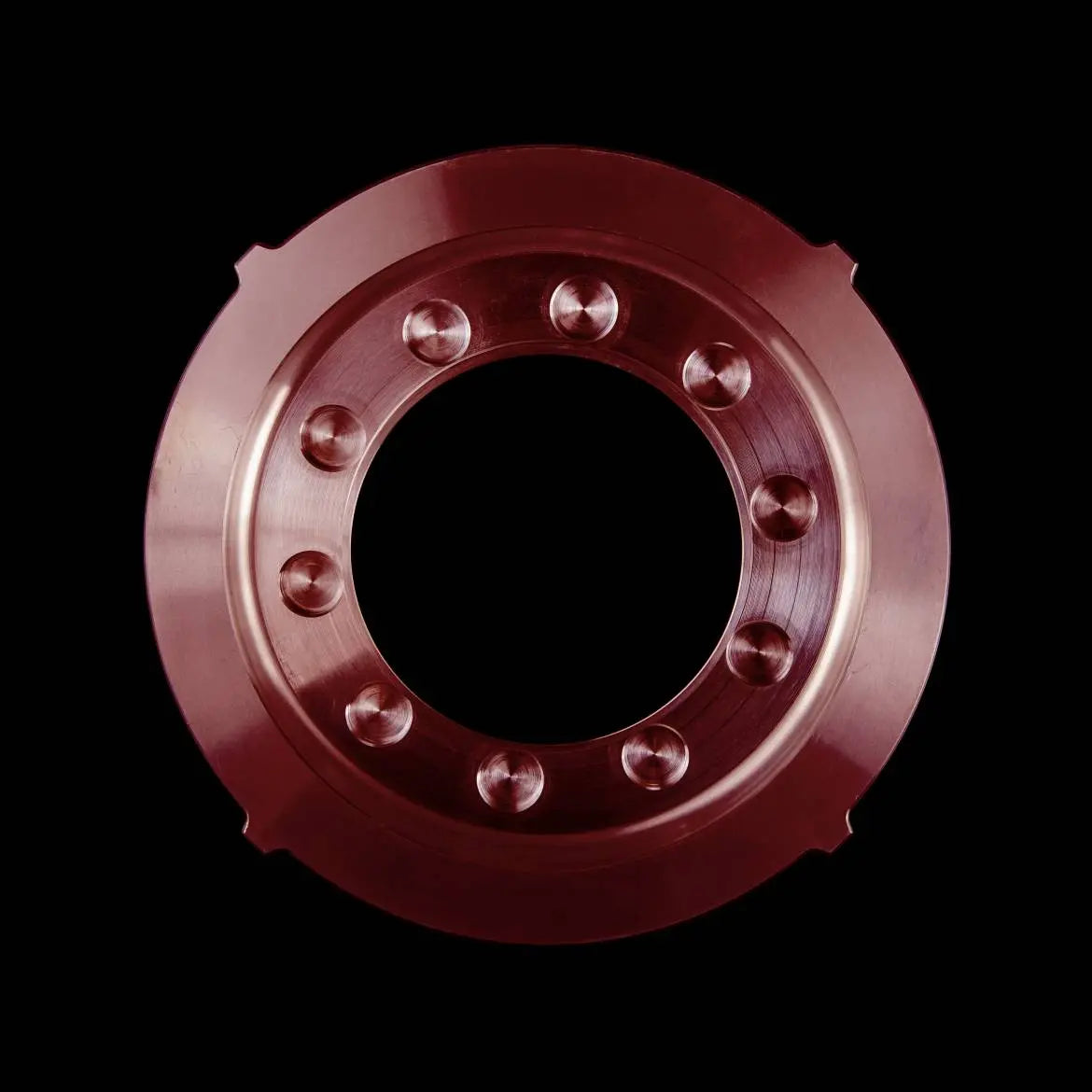

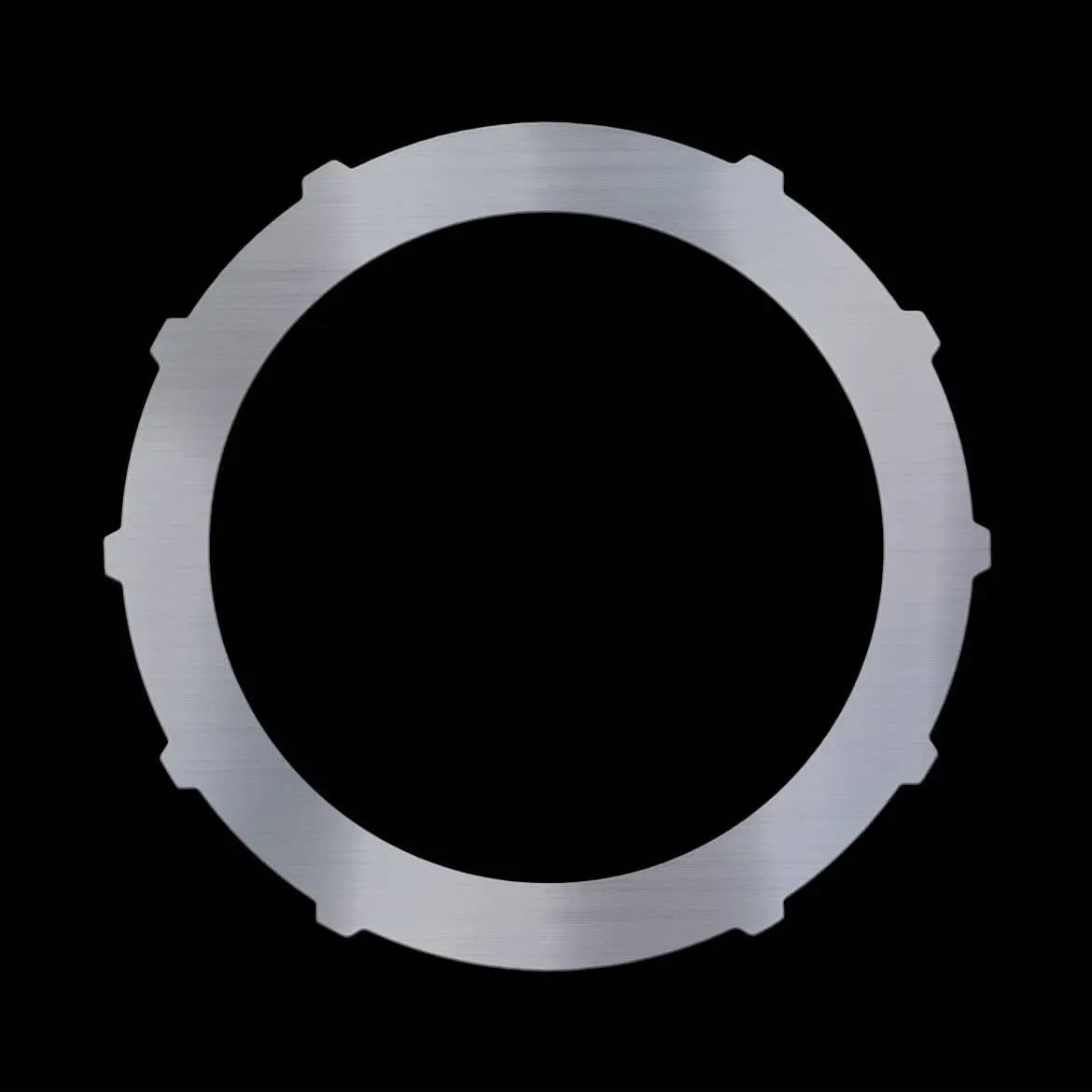

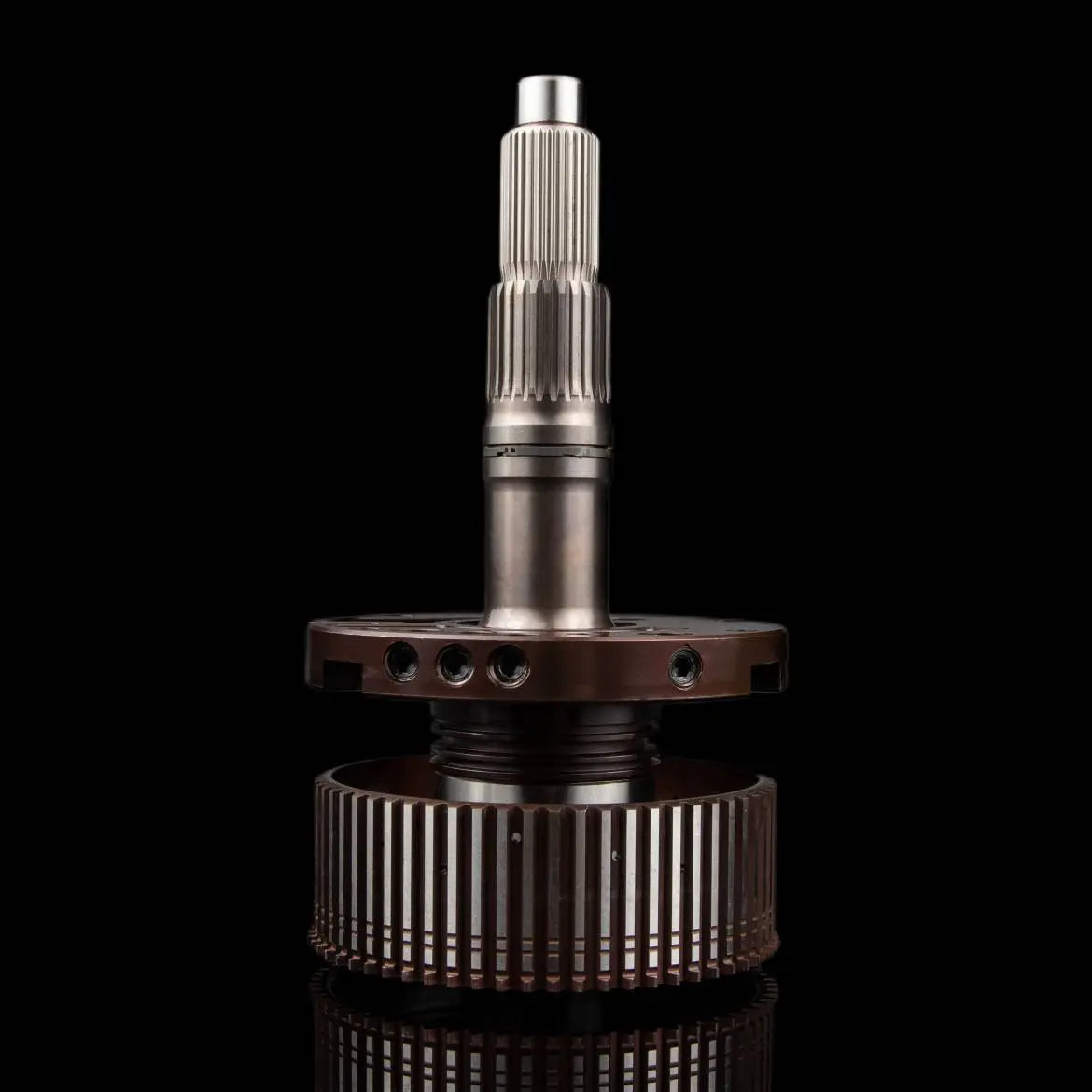

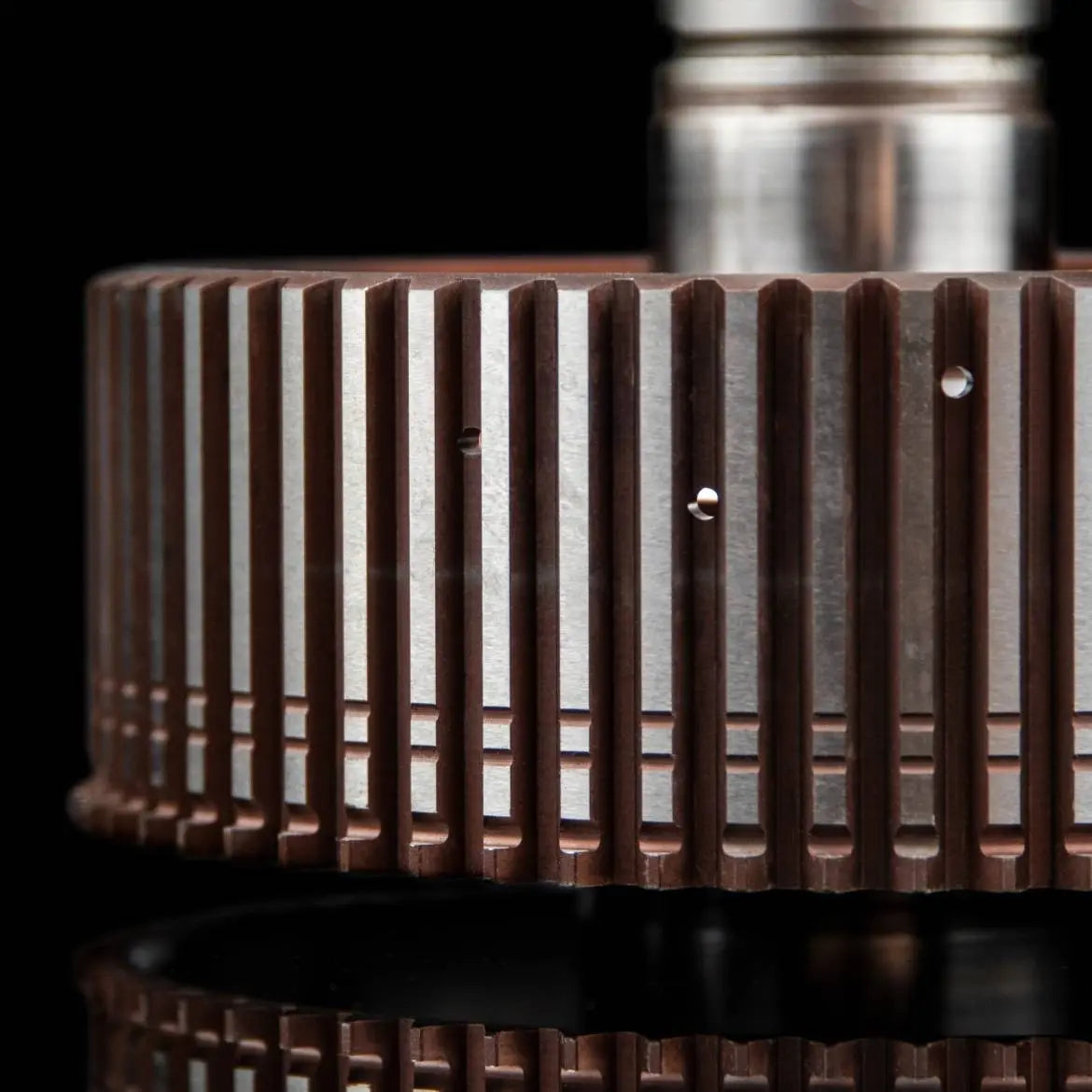

The longer direct (front) clutch hub portion of the shaft has longer splines that allow for one extra (OE-thickness) direct friction plate when used with the included thinner billet aluminum direct piston, all while keeping OE-thickness steels, backing plate, OE waved retaining ring and OE clutch clearances.
Some common aftermarket modifications designed to include extra clutches require reduced steel thickness and decrease the heat absorption capacity of the clutch pack. Others reduce clearance and eliminate the waved retaining ring, which contributes to excess 2-3 shift overlap. The Sonnax kit avoids these problems by increasing the number of frictions from five to six, adding to the steel mass of the clutch pack and maintaining the OE thickness backing plate and clearances for the optimum combination of increased capacity and durability.

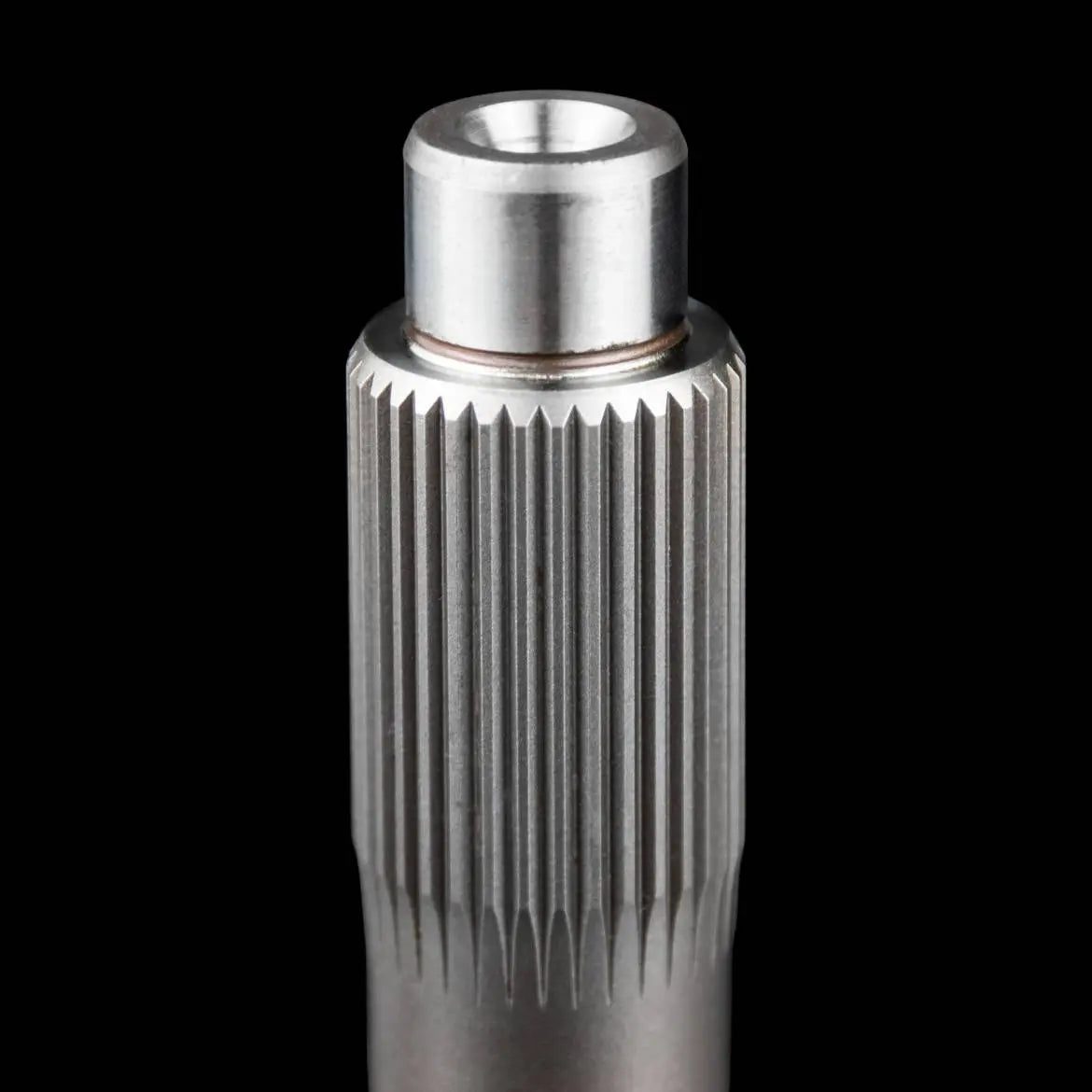

- Extreme duty, 1-1/8” diameter 35-spline input shaft
- .100” larger diameter at sealing ring cross hole area

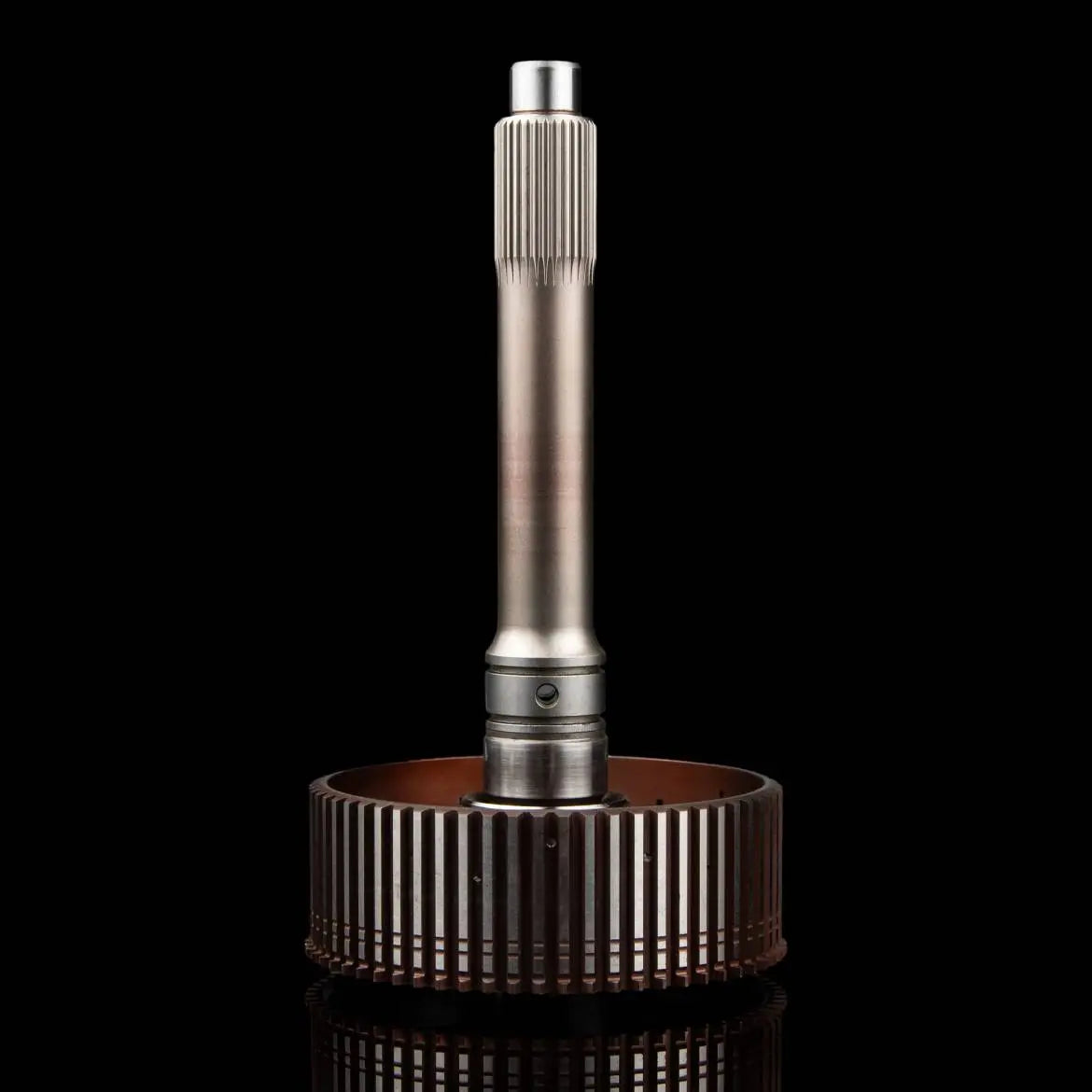

- One-piece shaft forged from ultra-high strength 300M steel eliminates weak connection between shaft and clutch hub
- Keeps OE oil flow areas and eliminates leakage for predictable, trouble-free lockup, release and apply
- Custom stator assembly optimizes performance and long-term durability
Fitments
Instructions
Specifications
SKU: SC-22121B-08K
GTIN: 840385612135
Manufacture Name: Suncoast Performance
Shipping Weight: 12 lb
Shipping Length: 12 in
Shipping Width: 6 in
Shipping Height: 6 in
EO Number:
Cross Reference #
Warranty
California Proposition 65 Warning
California Proposition 65 Warning - P65warnings.ca.gov
SC-22121B-08K
Suncoast 35 SPLINE SOLID BILLET INPUT SHAFT
The Sonnax Smart-Tech® Big Input Shaft Kit, 22121B-08K, is the ultimate solution to prevent input shaft spline twist and breakage in high-torque Chrysler 47RH, 47RE and 48RE diesel applications. Compared to the best 300M 23-spline shafts, the Sonnax input shaft is 35% stronger at both the spline portion of the shaft and the sealing ring/cross-hole area of the shaft, eliminating all concerns of failure at these critical points.
The larger sealing ring and cross-hole area require a custom stator/pump cover assembly. The stator assembly features standard 48RE tube splines made of high-strength steel, improved retention in stator body, 48RE matched pump porting, and special rubber seals to eliminate oil leakage between cover and pump body.
The longer direct (front) clutch hub portion of the shaft has longer splines that allow for one extra (OE-thickness) direct friction plate when used with the included thinner billet aluminum direct piston, all while keeping OE-thickness steels, backing plate, OE waved retaining ring and OE clutch clearances.
Some common aftermarket modifications designed to include extra clutches require reduced steel thickness and decrease the heat absorption capacity of the clutch pack. Others reduce clearance and eliminate the waved retaining ring, which contributes to excess 2-3 shift overlap. The Sonnax kit avoids these problems by increasing the number of frictions from five to six, adding to the steel mass of the clutch pack and maintaining the OE thickness backing plate and clearances for the optimum combination of increased capacity and durability.
- Extreme duty, 1-1/8” diameter 35-spline input shaft
- .100” larger diameter at sealing ring cross hole area
- One-piece shaft forged from ultra-high strength 300M steel eliminates weak connection between shaft and clutch hub
- Keeps OE oil flow areas and eliminates leakage for predictable, trouble-free lockup, release and apply
- Custom stator assembly optimizes performance and long-term durability
