Suncoast 68RFE CAT 2 2007.5 TO 2010 REBUILD KIT (WITHOUT CONVERTER)

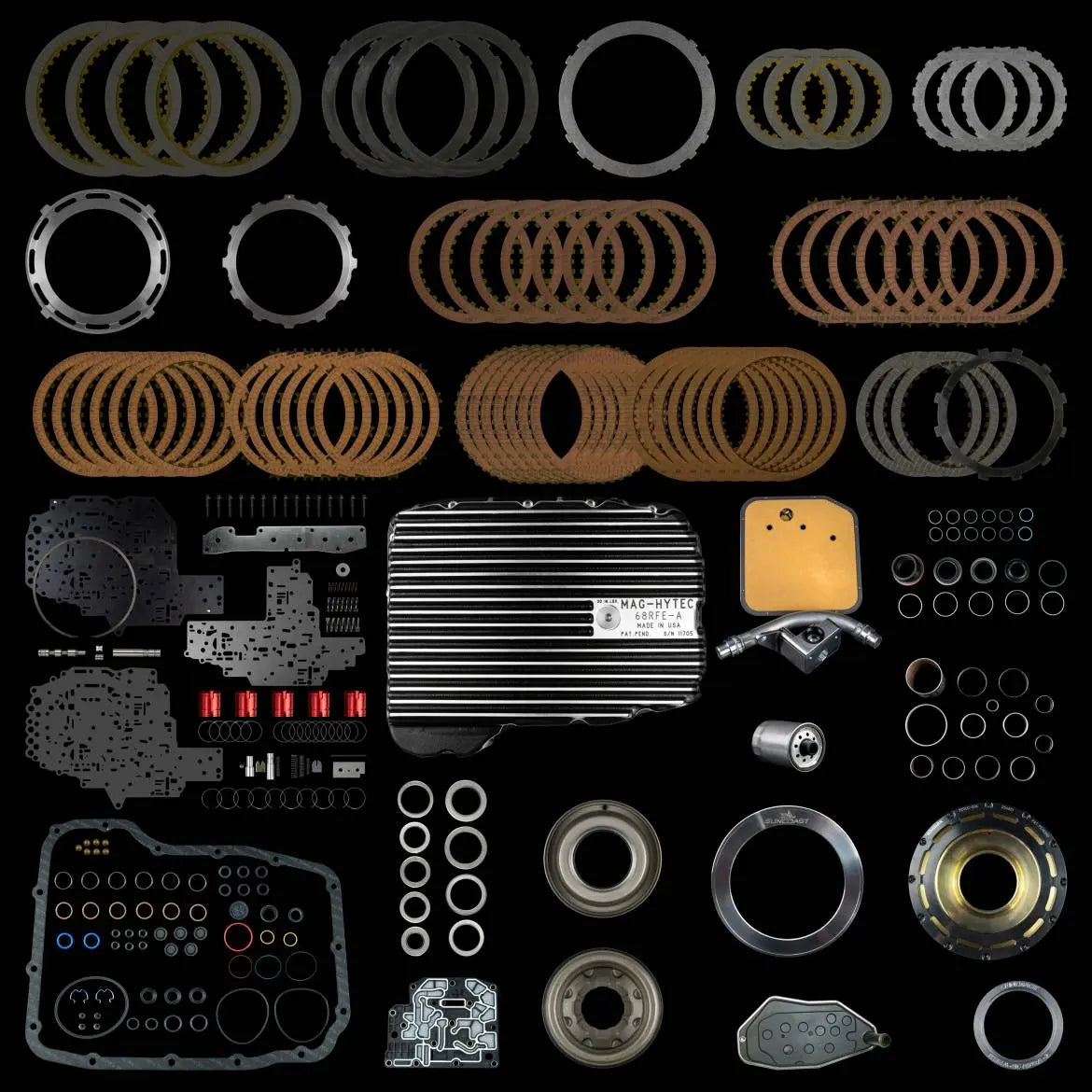

Kit Includes the Following

• Sonnax Smart-Tech® Overdrive Clutch Housing Kit
• New 68RFE Thrust Washer Kit
• New 68RFE Thrust Bearing Kit
• 68RFE Complete Gasket and Sealing Kit

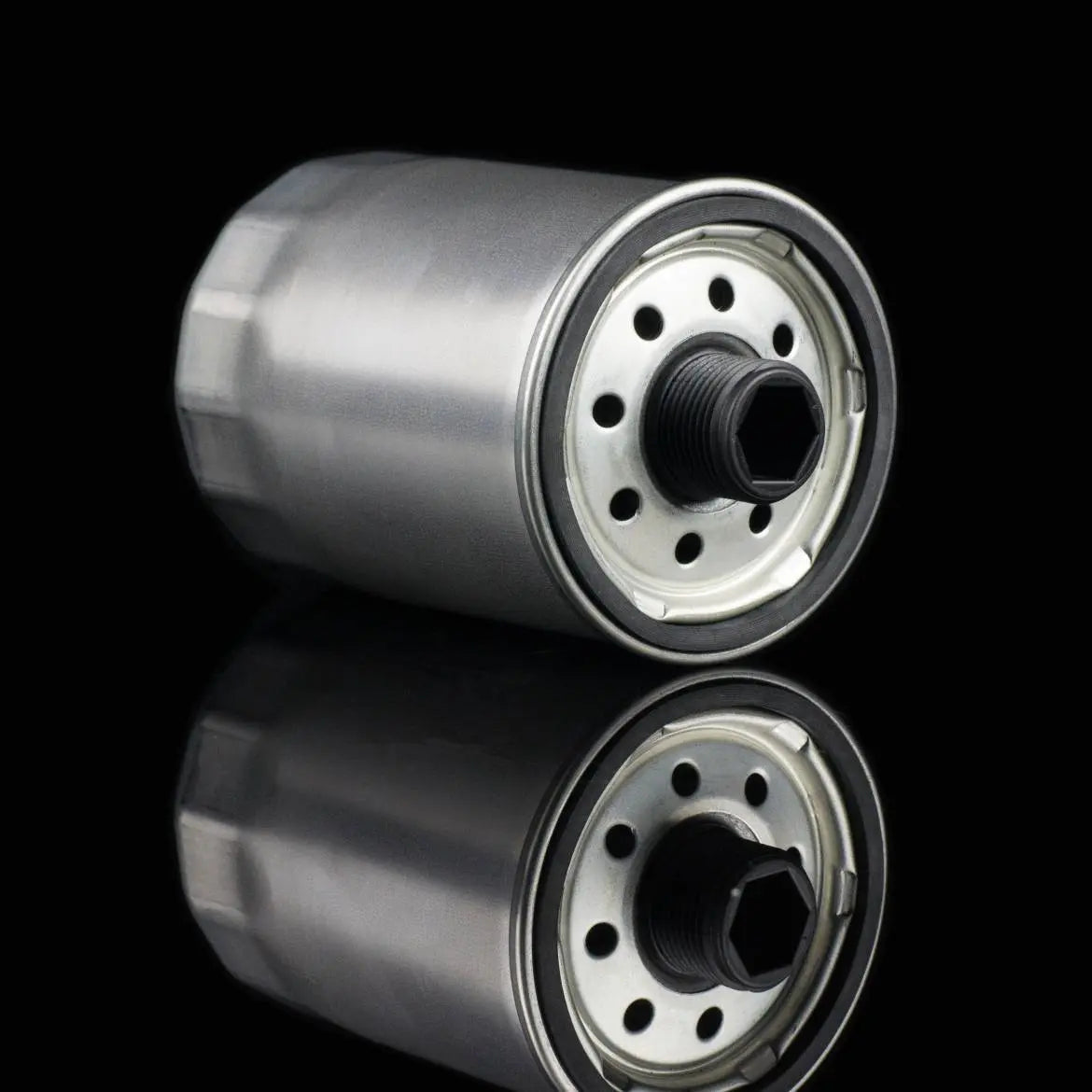

• 68RFE Spin-on Filter
• 68RFE Pan Filter
• 68RFE Thrust Bearing Kit
• Upgraded 2C Clutch Set
• 68RFE Billet 2C Piston
• 68RFE Accumulator Plate Kit

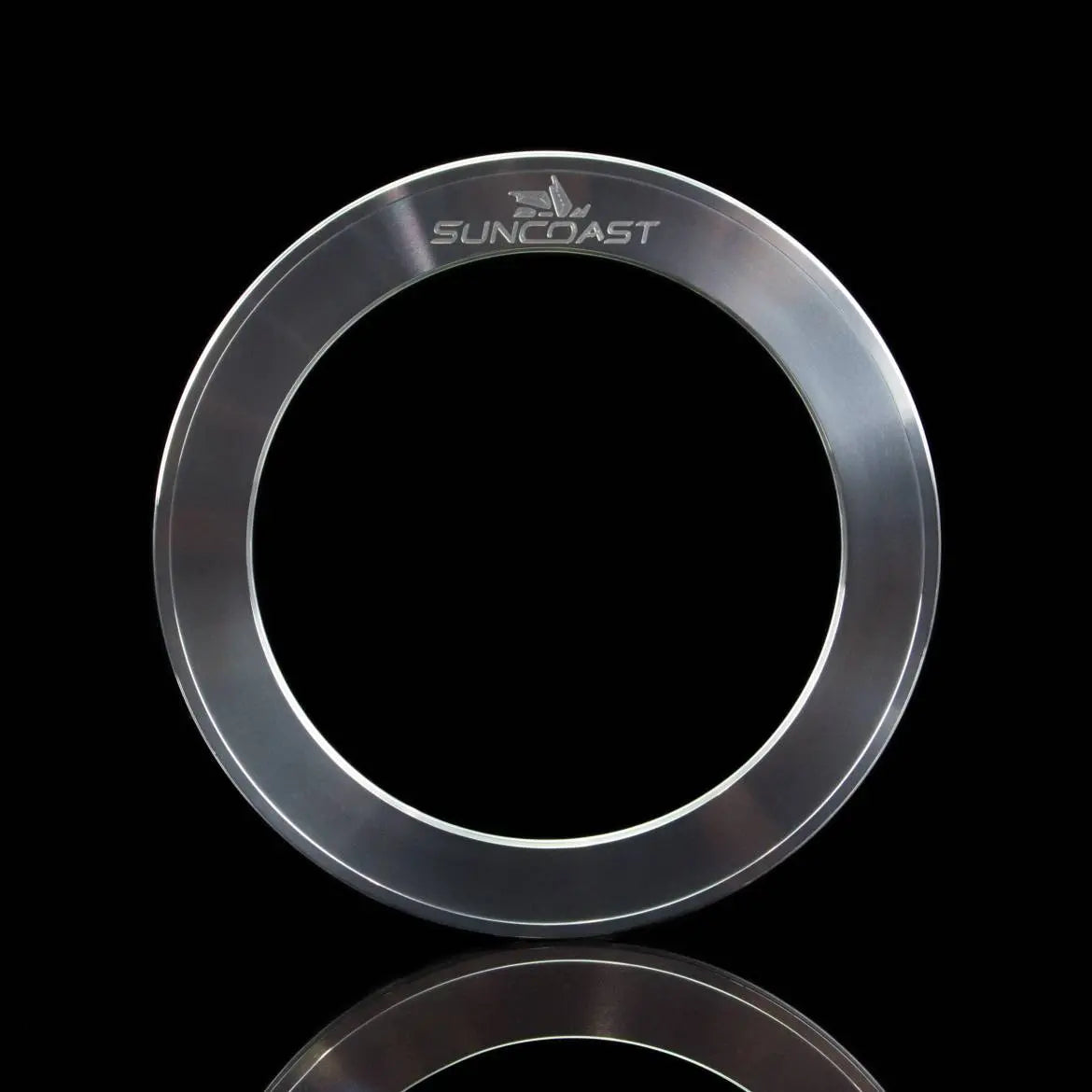

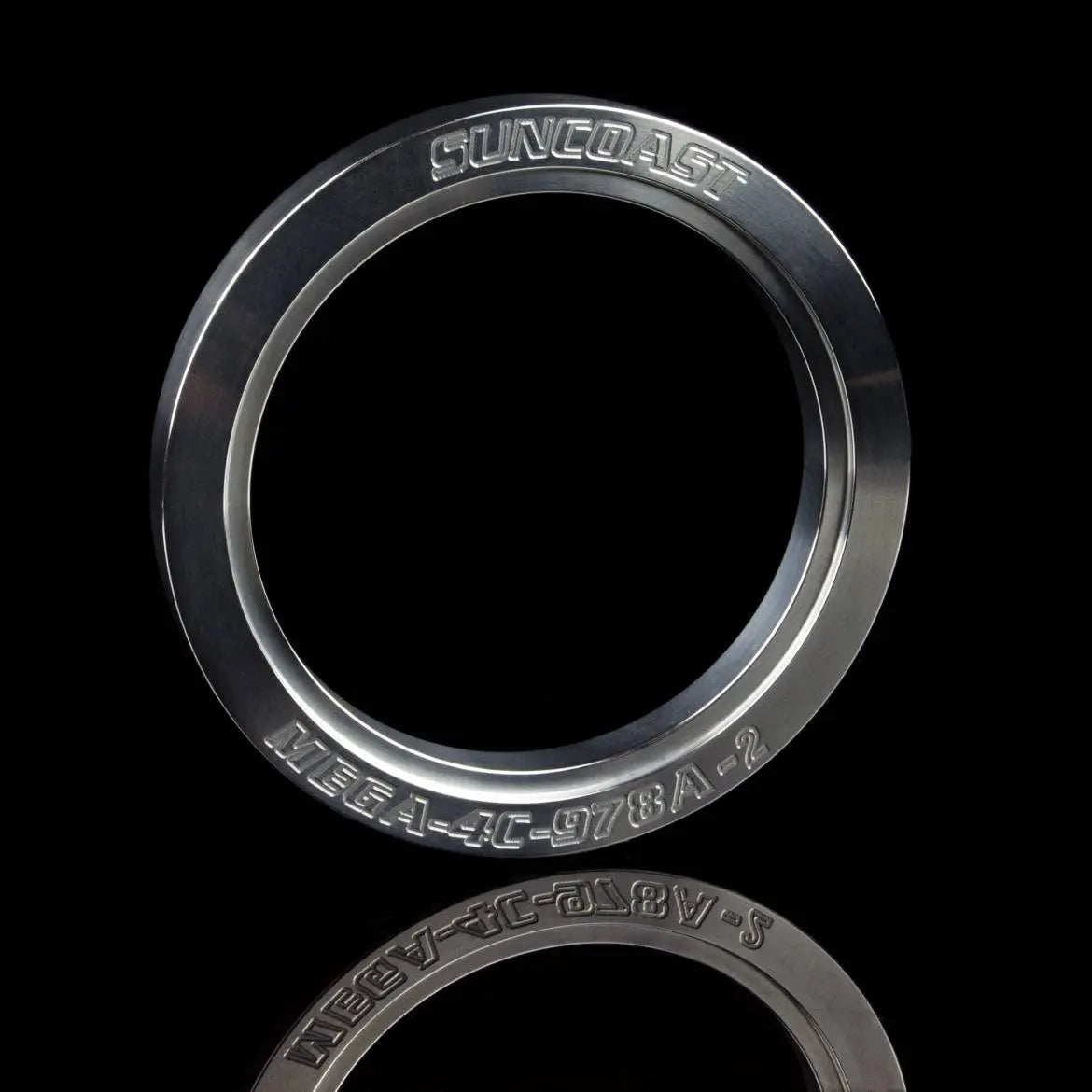

• 4C Snap Ring Retainer

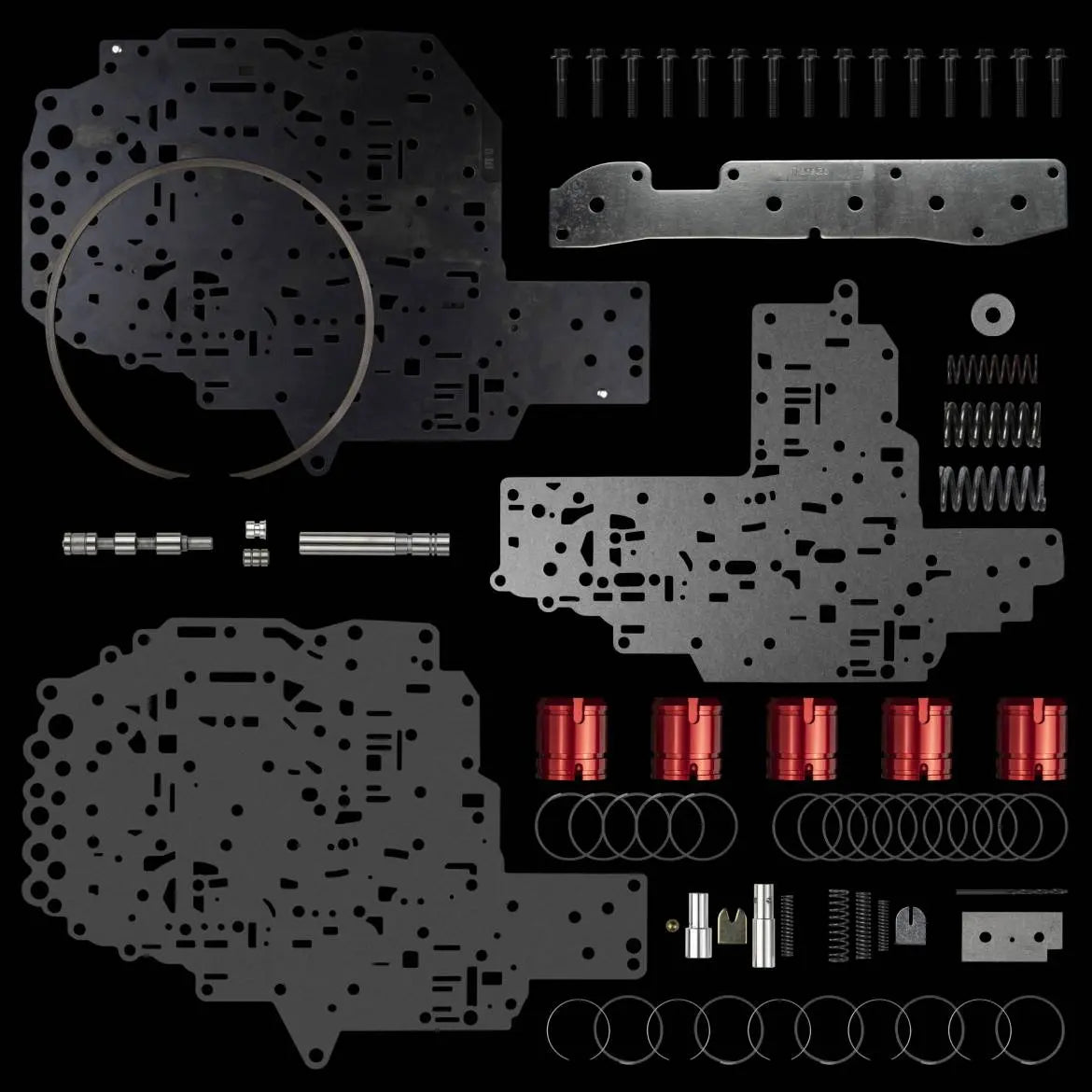

• Transgo 200 PSI Valve Body Kit (2007-2018 ONLY)
• Accumulator Piston Kit

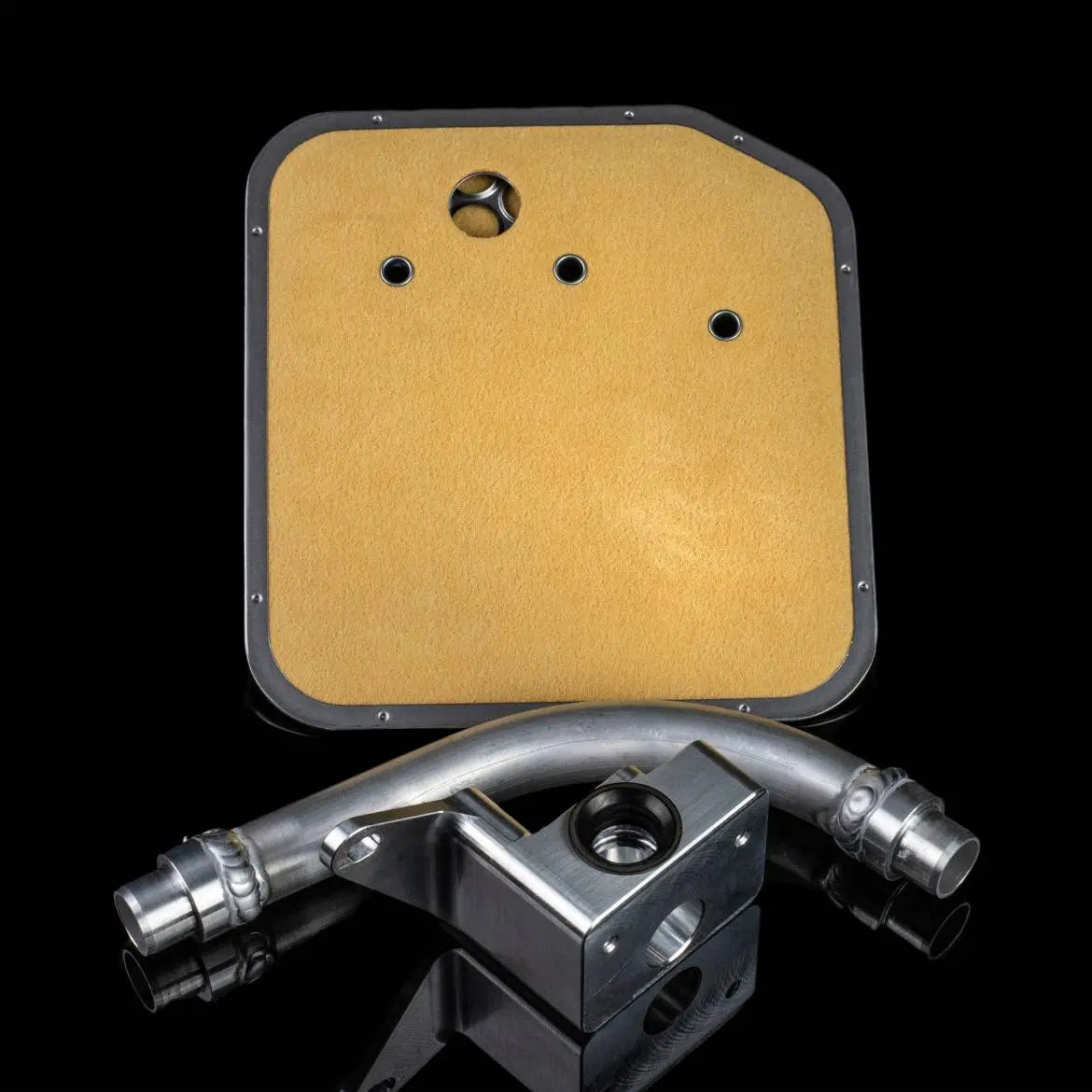

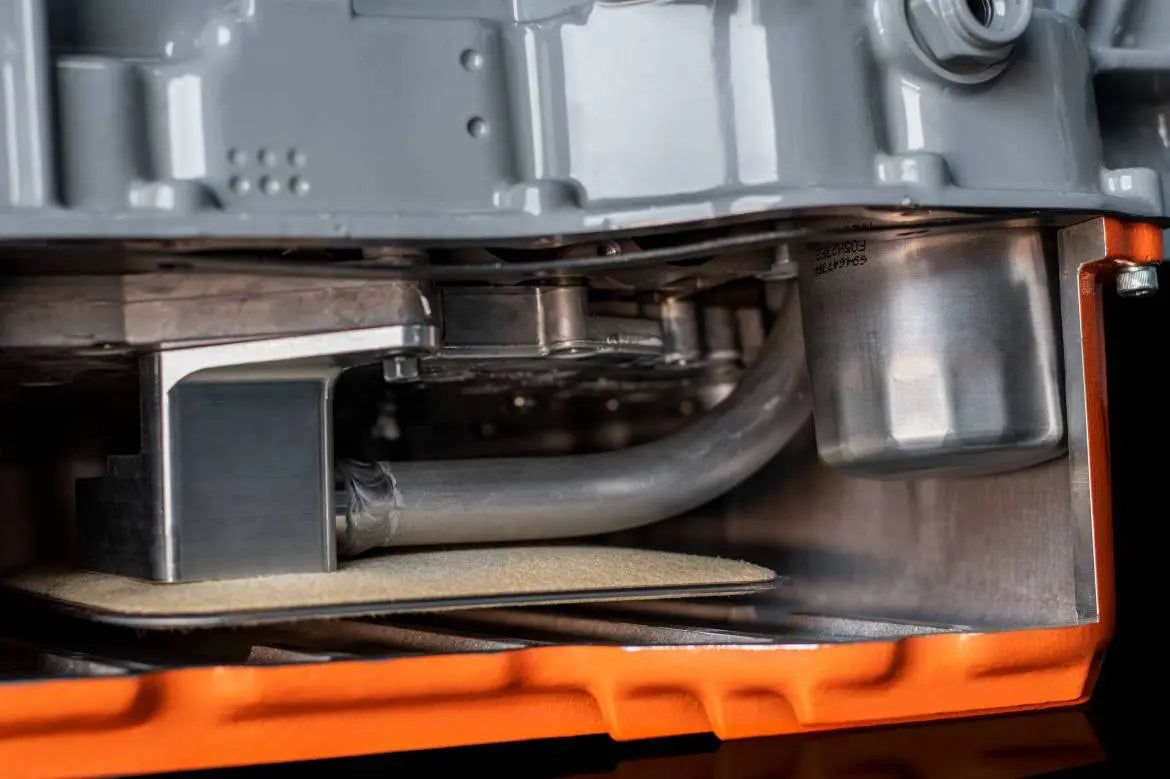

• Zero Cavitation Filter Kit

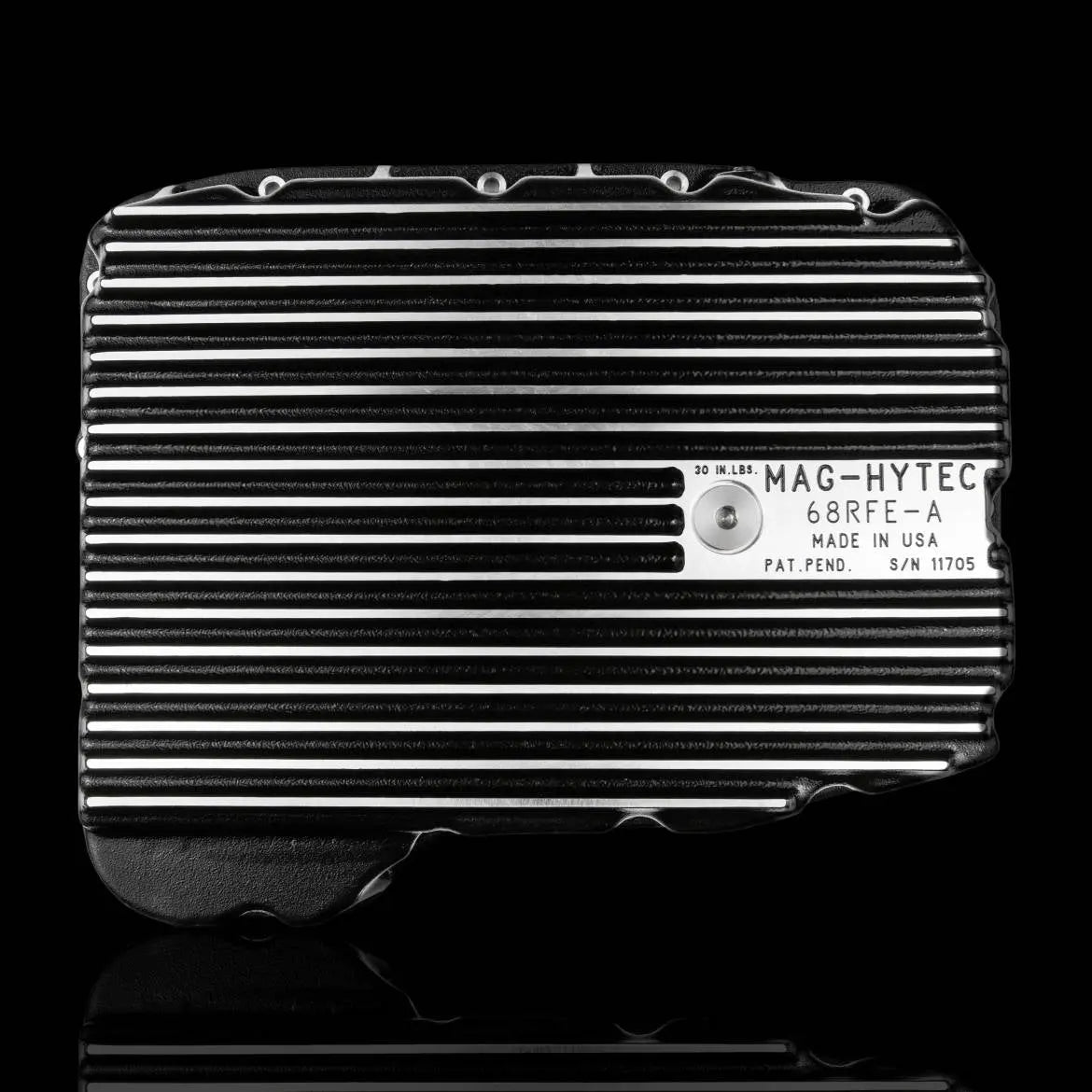

• SunCoast Deep Pan (4 additional quarts )

In this new SunCoast Category 2 68RFE Rebuild Kit, we specifically add two changes versus the Category 1 68RFE Rebuild Kit: an upgraded SunCoast Deep Pan and the Sonnax Smart-Tech® Overdrive Clutch Housing Kit<.

The 68RFE

The 68RFE transmission is the big brother to the 45/545RFE transmission. The RFE platform was originally designed by Chrysler and was introduced in 1999 with the debut of the new Jeep Grand Cherokee. The "RFE" stands for Rear-wheel drive Fully Electronic control. The RFE design was mostly noted in the new design to have 3 planetary sets for a 4-speed transmission in the 45RFE.

In 2007, Chrysler debuted the new 6.7 Powerplant in the all new Dodge Ram, and Dodge wanted a transmission that was specifically designed for function. The previous platform utilized the Torqueflite 48RE platform. The 46/47/48 Chrysler platforms were 3 and 4-speed units that were mechanically and hydraulically controlled, with the most notable control system being governor pressure.

The first improvement Chrysler wanted to make over the Torqueflite platform was, obviously, the amount of forward gears. For the 68RFE transmission, Chrysler opted to change to a six-speed unit. The additional gears allowed Chrysler to add higher 1st-gear ratios and tighter shift recovery from one gear to the next. The tighter shift recovery essentially keeps the vehicle in higher averaged horsepower and torque numbers, while also adding torque multiplication.

The gear ratios were increased. as well. The new 68RFE boasts a whopping 3.23:1 first gear, compared to the 2.45:1 first gear found in the previous 47/48RE platform. Chrysler also increased second gear to a 1.83:1 versus the 1.45:1 found previously. The 68RFE was also given two overdrive gears, with 5th being .81:1 and 6th with the very deep .62:1. The predecessor had a single overdrive that was a .69:1.

The Category Kits

The SunCoast Category 68RFE transmission rebuild kits are designed and developed with intentions of taking a systematic approach to solving the issues with the 68RFE transmission. We approach each deficiency and need with careful consideration.

These kits offer you the same recipes that are used in our facility when we build these units. We aim to offer you the most complete series of 68RFE rebuild kits available on the market today with proven combinations for a successful build.

2010 Dodge 4500
2010 Dodge Ram 2500
2010 Dodge Ram 3500
2010 Dodge Ram 2500 Van
2010 Dodge Ram 3500 Van
2010 Ram 2500
2010 Ram 3500
2010 Ram Ram 2500 Van
2010 Ram Ram 3500 Van
2009 Dodge 4500
2009 Dodge Ram 2500
2009 Dodge Ram 3500
2009 Dodge Ram 2500 Van
2009 Dodge Ram 3500 Van
2009 Ram 2500
2009 Ram 3500
2009 Ram Ram 2500 Van
2009 Ram Ram 3500 Van
2008 Dodge 4500
2008 Dodge Ram 2500
2008 Dodge Ram 3500
2008 Dodge Ram 2500 Van
2008 Dodge Ram 3500 Van
2008 Ram 2500
2008 Ram 3500
2008 Ram Ram 2500 Van
2008 Ram Ram 3500 Van

SKU: SC-68-2-07510-LC

GTIN:

Manufacture Name: Suncoast Performance

Shipping Weight:

Shipping Length:

Shipping Width:

Shipping Height:

EO Number:

Cross Reference #
