SKU:SC-8HP90/95-E
Suncoast 8HP90/95 BILLET E-CLUTCH DRUM
Suncoast 8HP90/95 BILLET E-CLUTCH DRUM
Description
8HP95/95 Billet E-Clutch Drum
Features & Benefits:
- Manufactured from 7075-T6 billet aluminum alloy
- New oil channels machined in hub feed for improved critical E-clutch oil distribution
- Redirected oil channels for more even fluid disbursement
- Oil lube moved from critical torsional fatigue area in spline area
- Hub machined radius to keep hub from bottoming out of input shaft step.
- New proprietary self lubricating bushings help prevent scoring of input shaft
- Large lube orifices for improved clutch heat dissipation
With the 6.2 supercharged Hemi platform, there is no shortage on power, and it has become apparent Mopar is dead set on bringing Satan's fury to your driveway with the Hellcat, the Redeye, and the Hellephant platforms. What this means for the 8HP90/95 transmissions that go behind these behemoths of torque is nothing short of controlled chaos. Within the chaos we begin to see the weaknesses unveiled.
It is not uncommon to find the E-clutch drum on these units fail catastrophically, resulting in what can be costly collateral damage to your unit. This new 8HP90/95 Billet E-Clutch Drum is the solution you have been looking for.

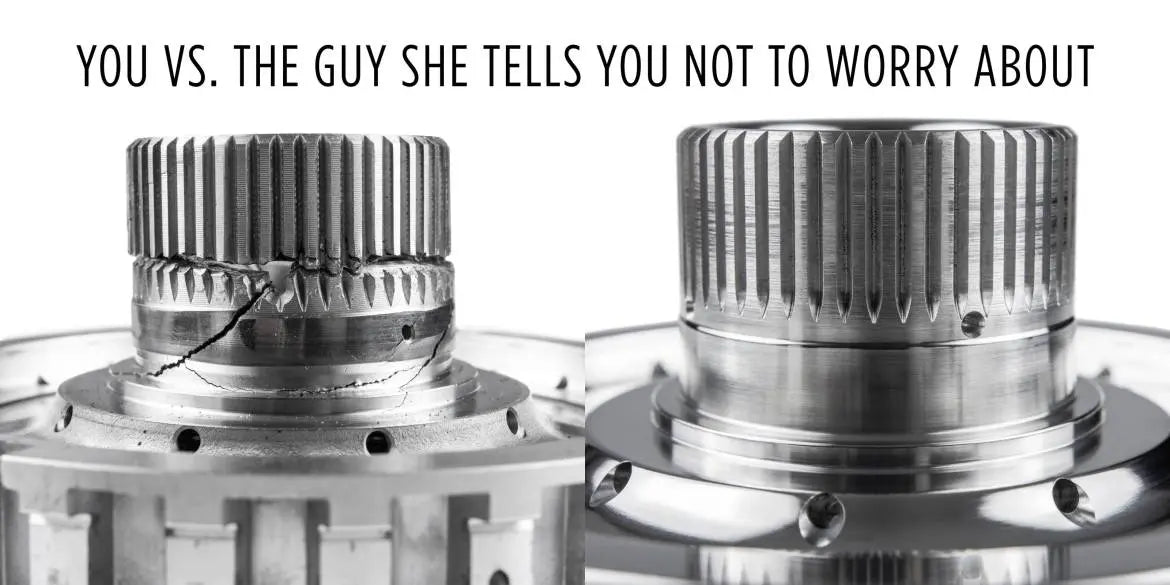

We start with improving the material we manufacture this drum with. The factory unit is manufactured from a cast material that is highly susceptible to torsional fatigue, which will result in failures as you see above. This new 8HP90/95 Billet E-Clutch Drum is manufactured from 7075-T6 billet aluminum alloy, which has a superior yield strength of 69,000 psi. This improvement alone reduces the chance of catastrophic failure, resulting in expensive collateral damage to your 8HP90/95 transmission.

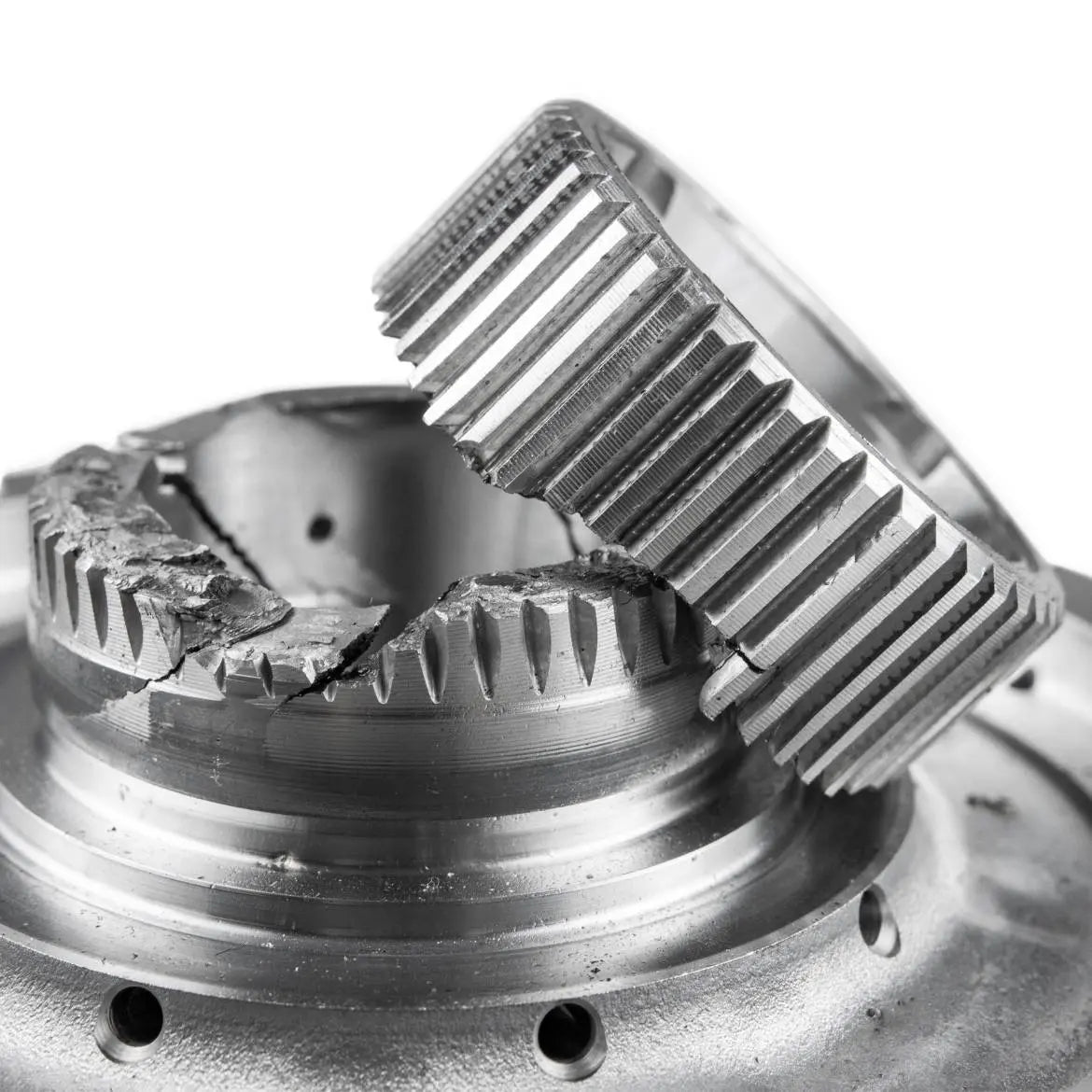

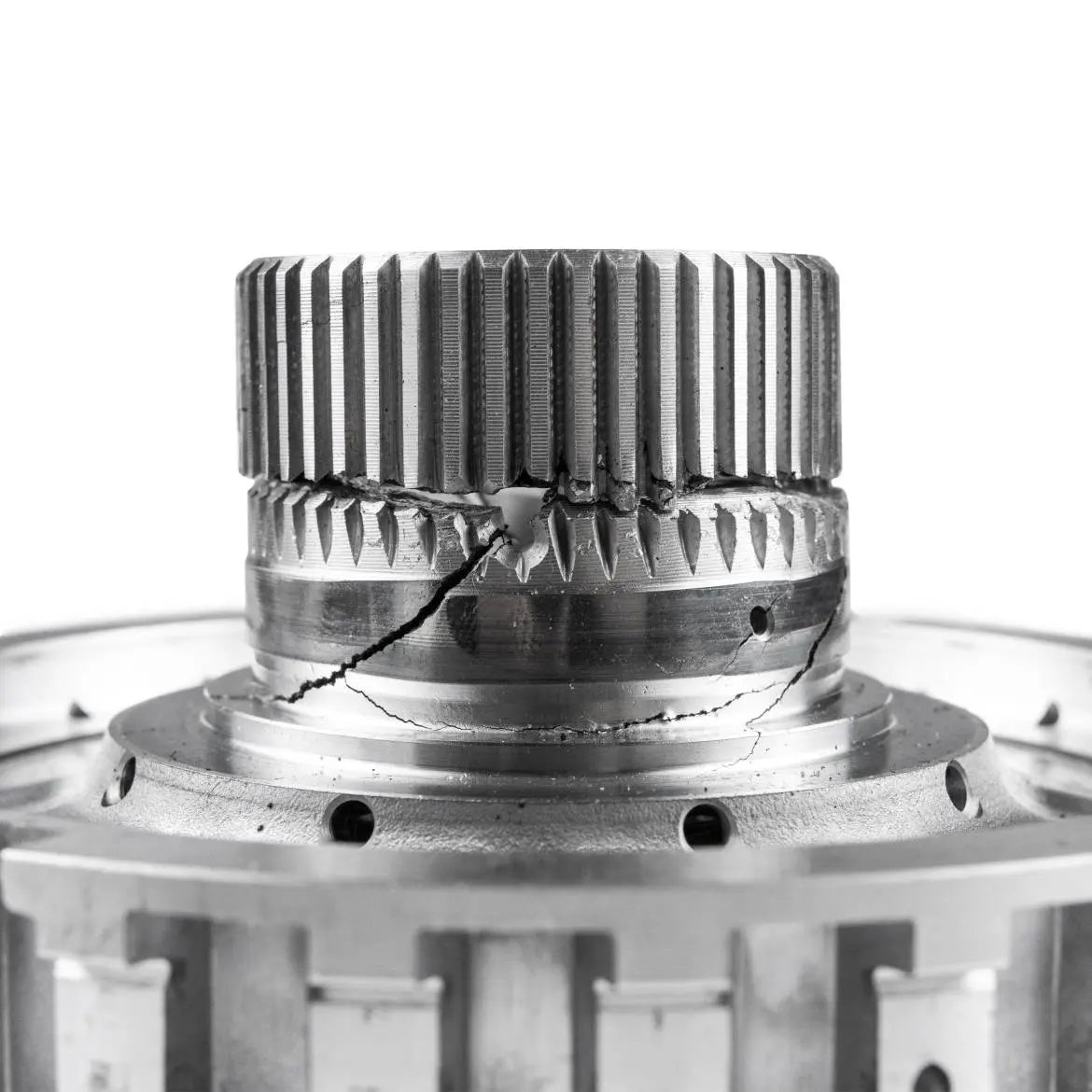

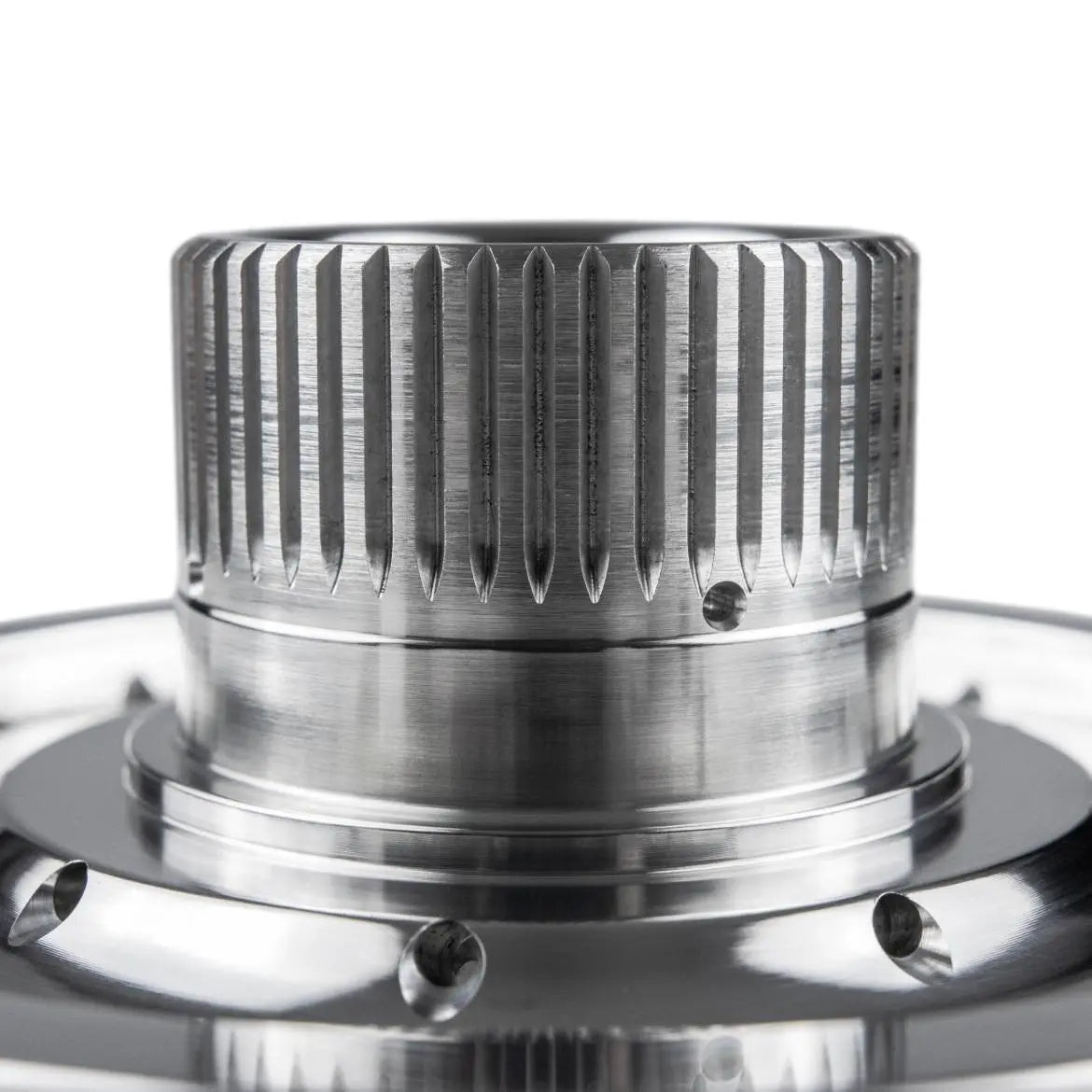

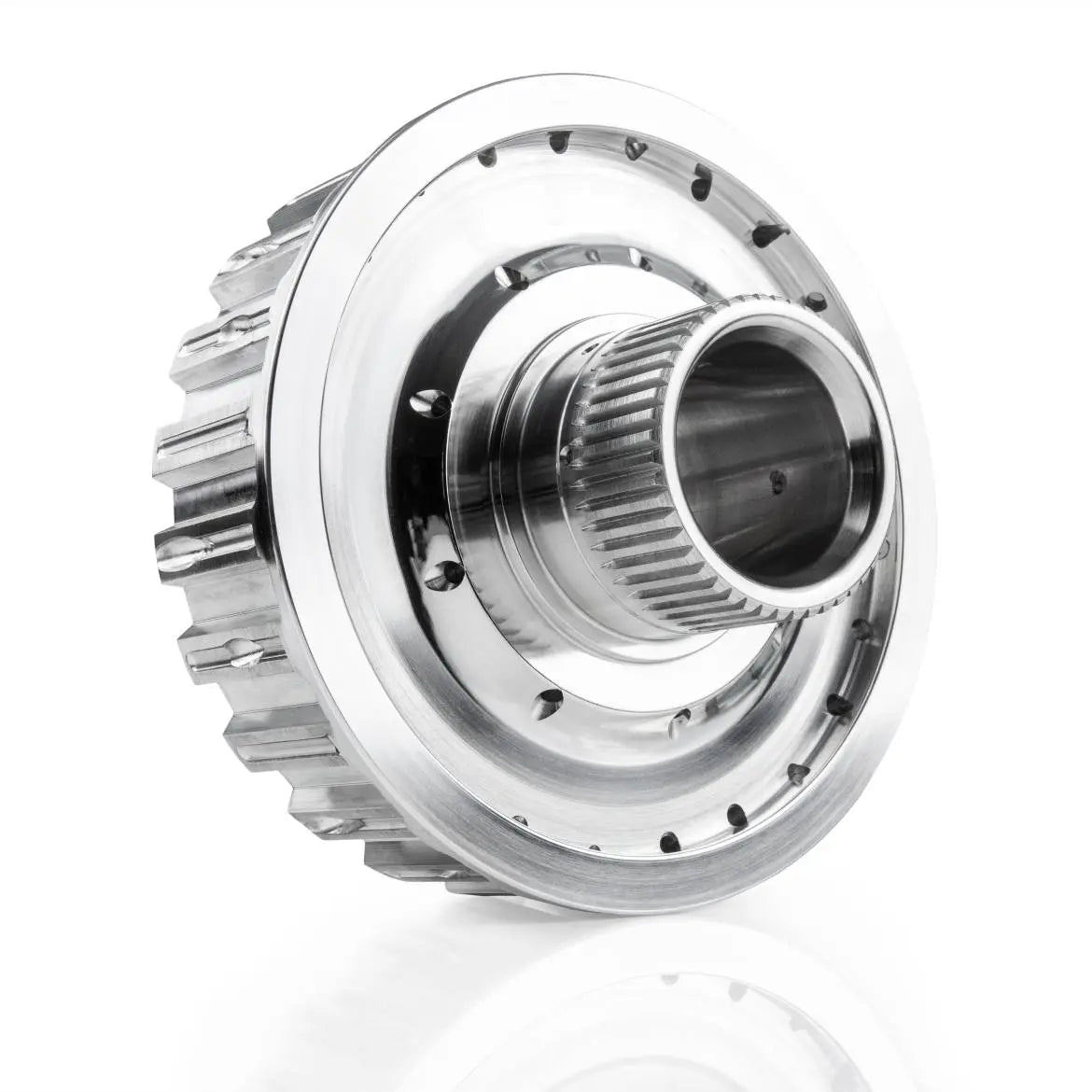

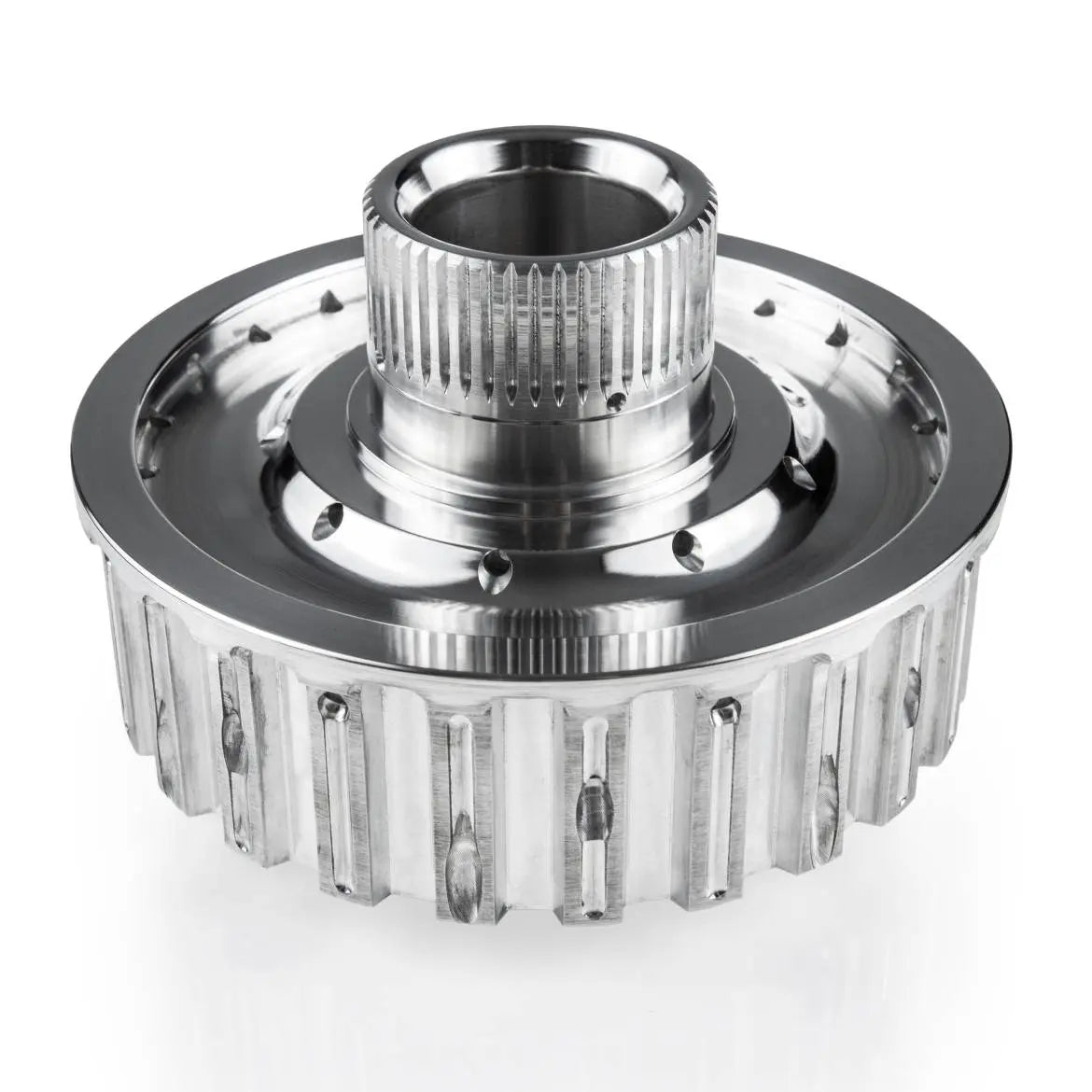

The oil lube feed for the spline area has been moved from the splines to the larger shoulder of the hub. This improves overall strength of the hub without having the oil lube feed in a critical stress area. The size of the orifices has also been enlarged for better lubrication. If you notice in the photos above, the oil feed holes within the spline are the weak points in which the critical failures occur.

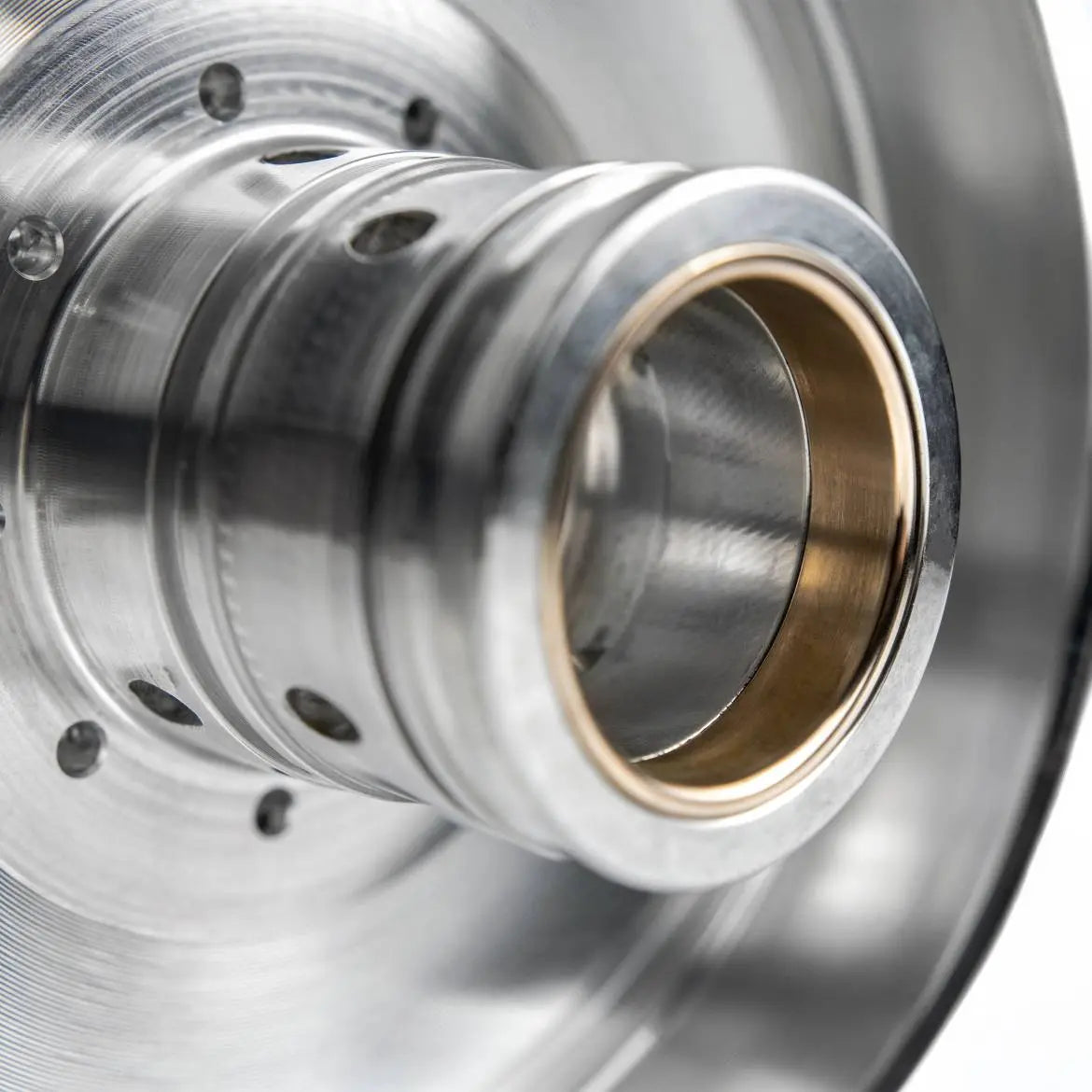

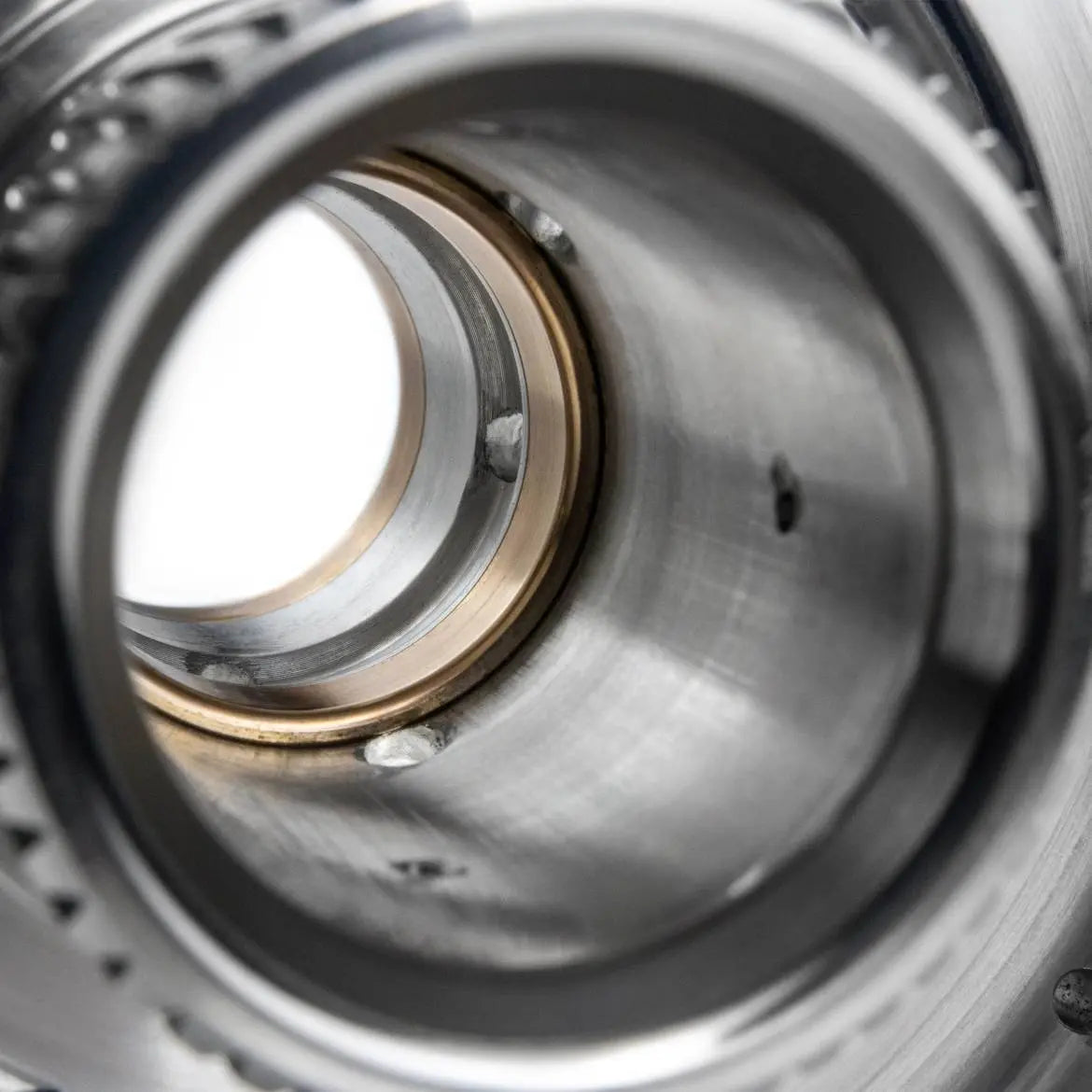

The proprietary bushings in this drum are self-lubricating to assist in preventing scoring of the input shaft, reducing critical hot spots within the shaft and diminishing uneven tempering.

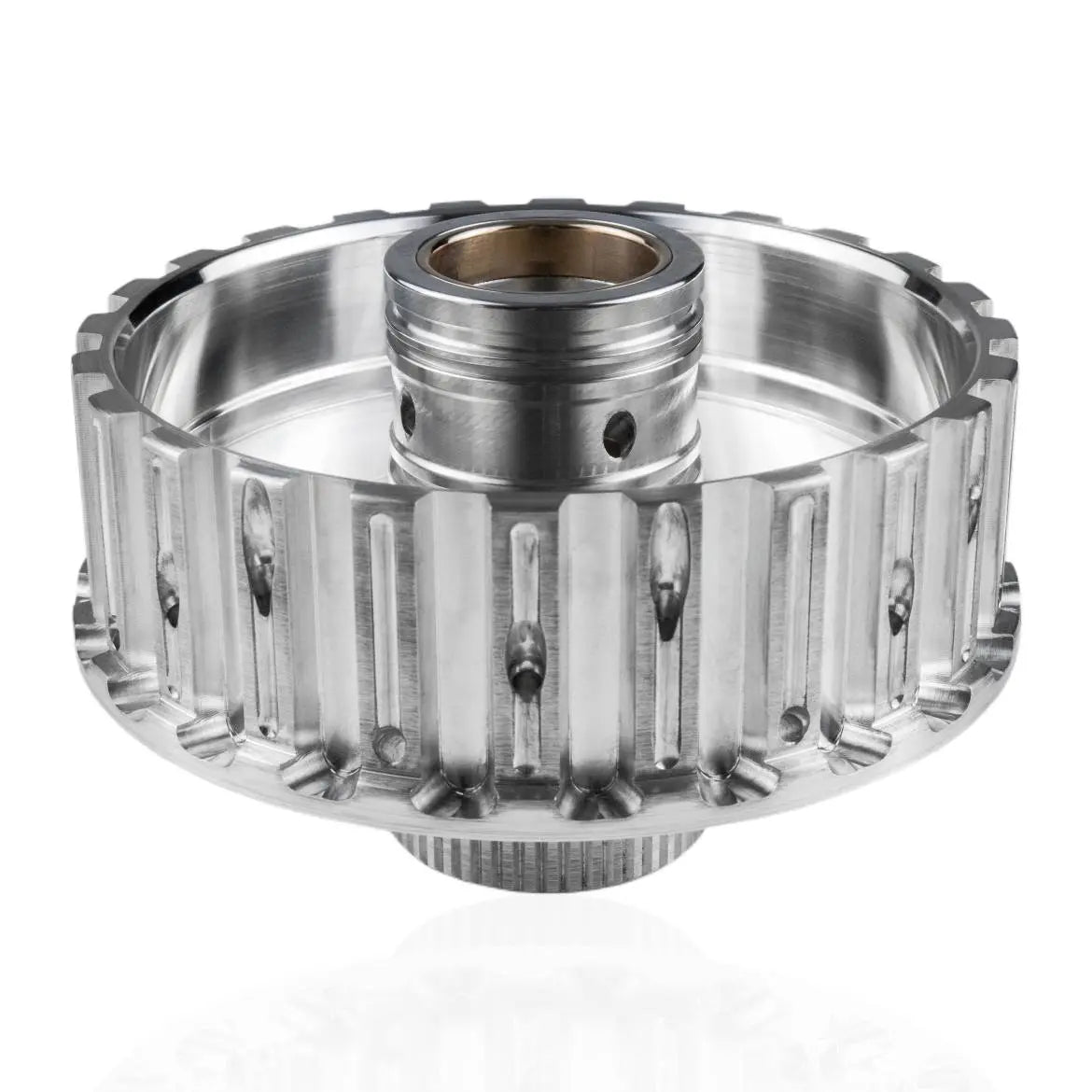

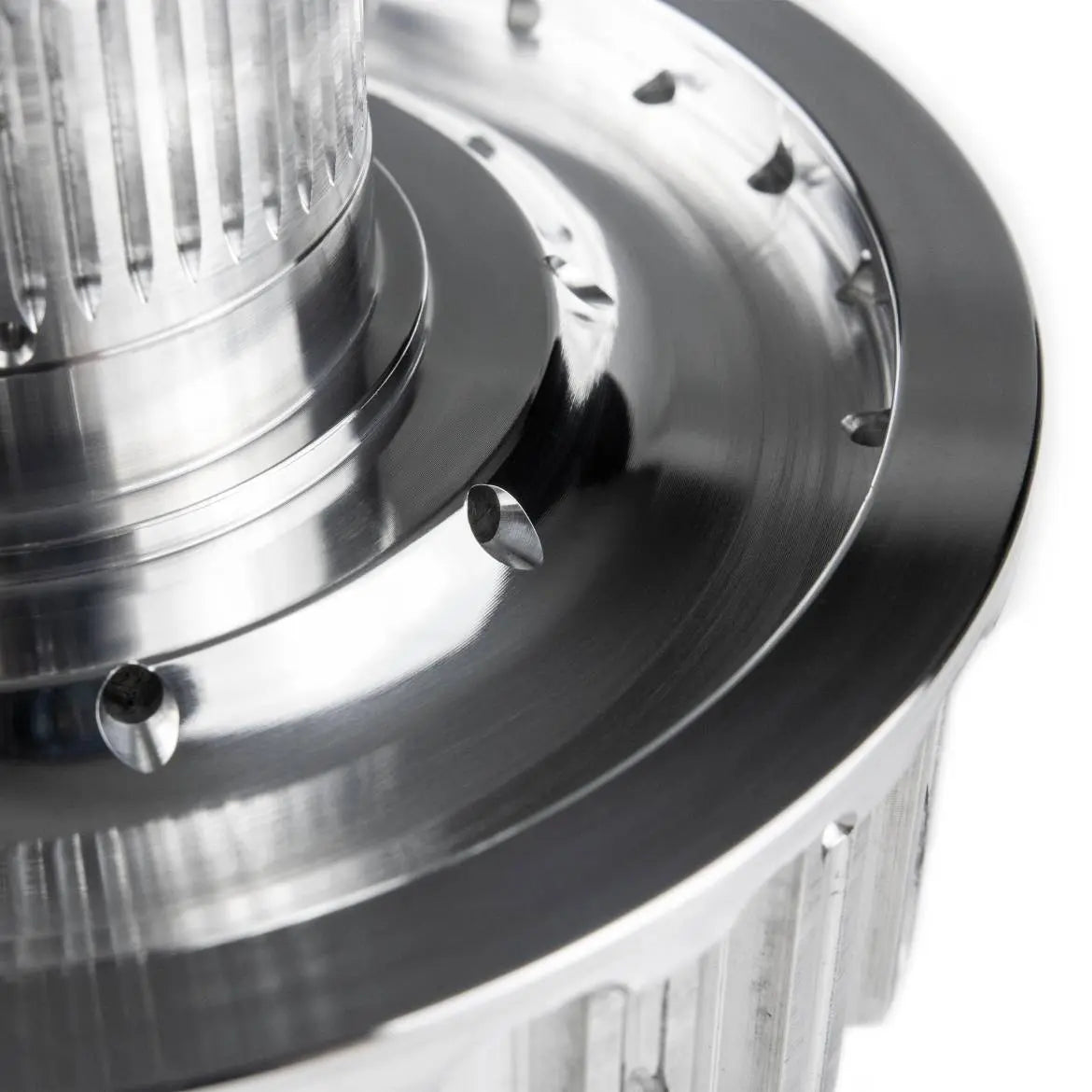

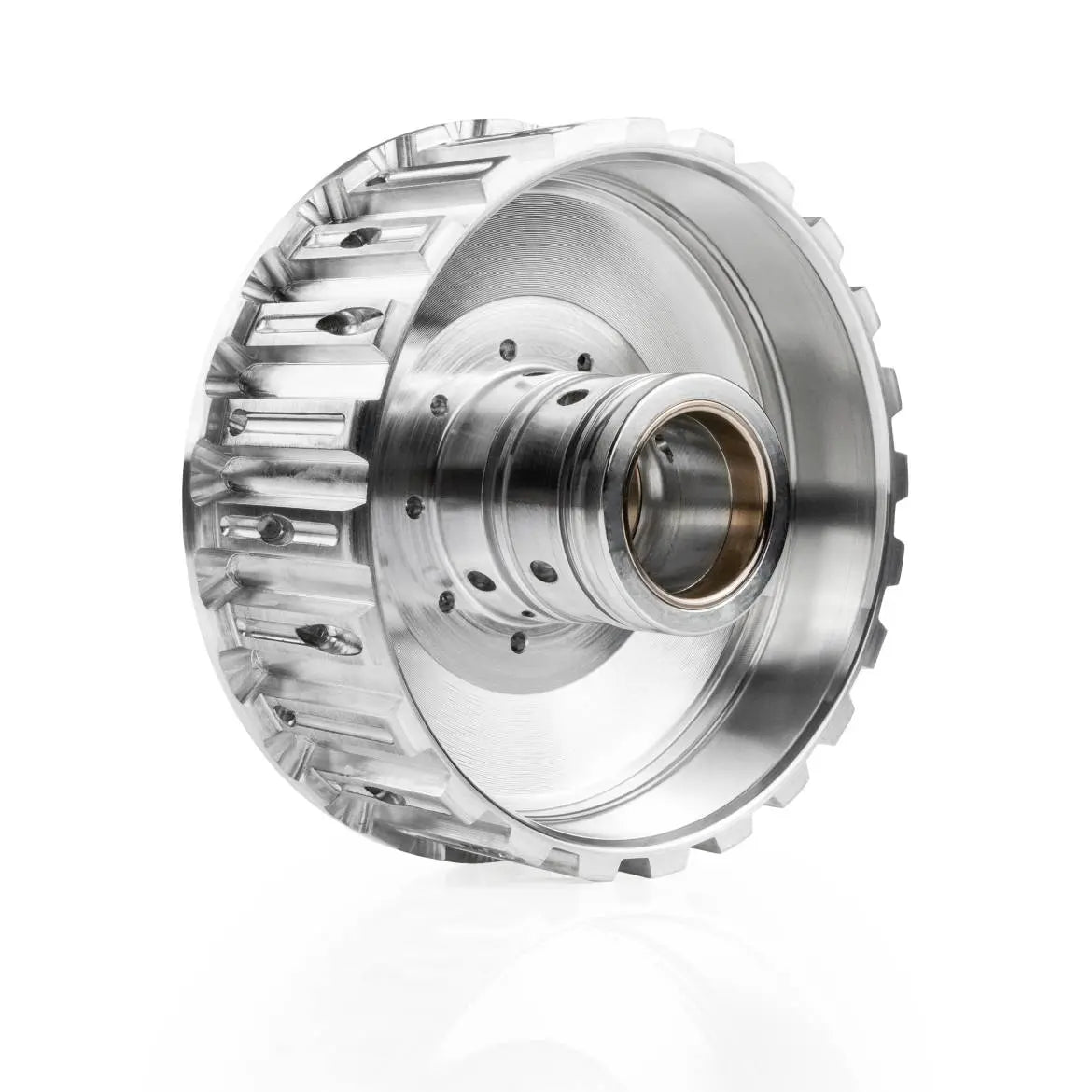

There are also critical improvements made directly to the oil feed of this new 8HP90/95 Billet E-Clutch Drum. In the pictures above, you will notice that the shoulder which holds the internally splined clutch has now received a machined channel to improve E-clutch oil distribution and increase oil volume to the E-clutches. This increased oil volume also aids in the cooling of these ever-so-problematic E-clutches, leading to increased lifespan.
In higher horsepower applications, we have seen cradle movement the causes low drive shaft clearance. Previously when this occurred, the drum would contact the step in the input shaft, which could and would result in beautiful fine metal art being dispersed throughout your 8HP90/95 transmission. This new 8HP90/95 Billet E-Clutch Drum features a machined radius around the hub to keep the drum from bottoming out on the input shaft when this transpires.
This 8HP90/95 Billet E-Clutch Drum has been tested in some of the world's fastest 8HP90/95 equipped vehicles in the world, including our very own Brian Carter's Hellcat, and has consistently put down low-8-second passes for the past two seasons.
Fitments
2026 Audi RS6
2026 Audi RS7
2026 Audi SQ7
2026 Audi SQ8
2026 BMW M5
2026 BMW X5 M
2026 BMW X6 M
2026 Dodge Challenger
2026 Dodge Charger
2026 Land Rover F-type R
2026 Land Rover Range Rover
2026 Land Rover Range Rover Sport
2025 Audi RS6
2025 Audi RS7
2025 Audi SQ7
2025 Audi SQ8
2025 BMW M5
2025 BMW X5 M
2025 BMW X6 M
2025 Dodge Challenger
2025 Dodge Charger
2025 Land Rover F-type R
2025 Land Rover Range Rover
2025 Land Rover Range Rover Sport
2024 Audi RS6
2024 Audi RS7
2024 Audi SQ7
2024 Audi SQ8
2024 BMW M5
2024 BMW X5 M
2024 BMW X6 M
2024 Dodge Challenger
2024 Dodge Charger
2024 Land Rover F-type R
2024 Land Rover Range Rover
2024 Land Rover Range Rover Sport
2023 Audi RS6
2023 Audi RS7
2023 Audi SQ7
2023 Audi SQ8
2023 BMW M5
2023 BMW X5 M
2023 BMW X6 M
2023 Dodge Challenger
2023 Dodge Charger
2023 Land Rover F-type R
2023 Land Rover Range Rover
2023 Land Rover Range Rover Sport
2022 Audi RS6
2022 Audi RS7
2022 Audi SQ7
2022 Audi SQ8
2022 BMW M5
2022 BMW X5 M
2022 BMW X6 M
2022 Dodge Challenger
2022 Dodge Charger
2022 Land Rover F-type R
2022 Land Rover Range Rover
2022 Land Rover Range Rover Sport
2021 Audi RS6
2021 Audi RS7
2021 Audi SQ7
2021 Audi SQ8
2021 BMW M5
2021 BMW X5 M
2021 BMW X6 M
2021 Dodge Challenger
2021 Dodge Charger
2021 Land Rover F-type R
2021 Land Rover Range Rover
2021 Land Rover Range Rover Sport
2020 Audi RS6
2020 Audi RS7
2020 Audi SQ7
2020 Audi SQ8
2020 BMW M5
2020 BMW X5 M
2020 BMW X6 M
2020 Dodge Challenger
2020 Dodge Charger
2020 Land Rover F-type R
2020 Land Rover Range Rover
2020 Land Rover Range Rover Sport
2019 Audi RS6
2019 Audi RS7
2019 BMW M5
2019 BMW X5 M
2019 BMW X6 M
2019 Dodge Challenger
2019 Dodge Charger
2019 Land Rover F-type R
2019 Land Rover Range Rover
2019 Land Rover Range Rover Sport
2019 Land Rover XJR
2018 Audi RS6
2018 Audi RS7
2018 BMW M5
2018 BMW M6
2018 BMW X5 M
2018 BMW X6 M
2018 Dodge Challenger
2018 Dodge Charger
2018 Land Rover F-type R
2018 Land Rover Range Rover
2018 Land Rover Range Rover Sport
2018 Land Rover XJR
2017 Audi RS6
2017 Audi RS7
2017 BMW M5
2017 BMW M6
2017 BMW X5 M
2017 Land Rover F-type R
2017 Land Rover Range Rover
2017 Land Rover Range Rover Sport
2017 Land Rover XJR
2016 Audi RS6
2016 Audi RS7
2016 BMW M5
2016 BMW M6
2016 BMW X5 M
2016 Land Rover F-type R
2016 Land Rover Range Rover
2016 Land Rover Range Rover Sport
2016 Land Rover XJR
2015 Audi RS6
2015 Audi RS7
2015 BMW M5
2015 BMW M6
2015 BMW X5 M
2015 Land Rover F-type R
2015 Land Rover Range Rover
2015 Land Rover Range Rover Sport
2015 Land Rover XJR
2014 Audi RS6
2014 Audi RS7
2014 BMW M5
2014 BMW M6
2014 Land Rover F-type R
2014 Land Rover Range Rover
2014 Land Rover Range Rover Sport
2014 Land Rover XJR
2013 Audi RS6
2013 Audi RS7
2013 BMW M5
2013 BMW M6
2013 Land Rover F-type R
2013 Land Rover Range Rover
2013 Land Rover Range Rover Sport
2013 Land Rover XJR
2012 BMW M5
2012 BMW M6
Instructions
Specifications
SKU: SC-8HP90/95-E
GTIN: 840385613767
Manufacture Name: Suncoast Performance
Shipping Weight: 5 lb
Shipping Length: 8 in
Shipping Width: 10 in
Shipping Height: 10 in
