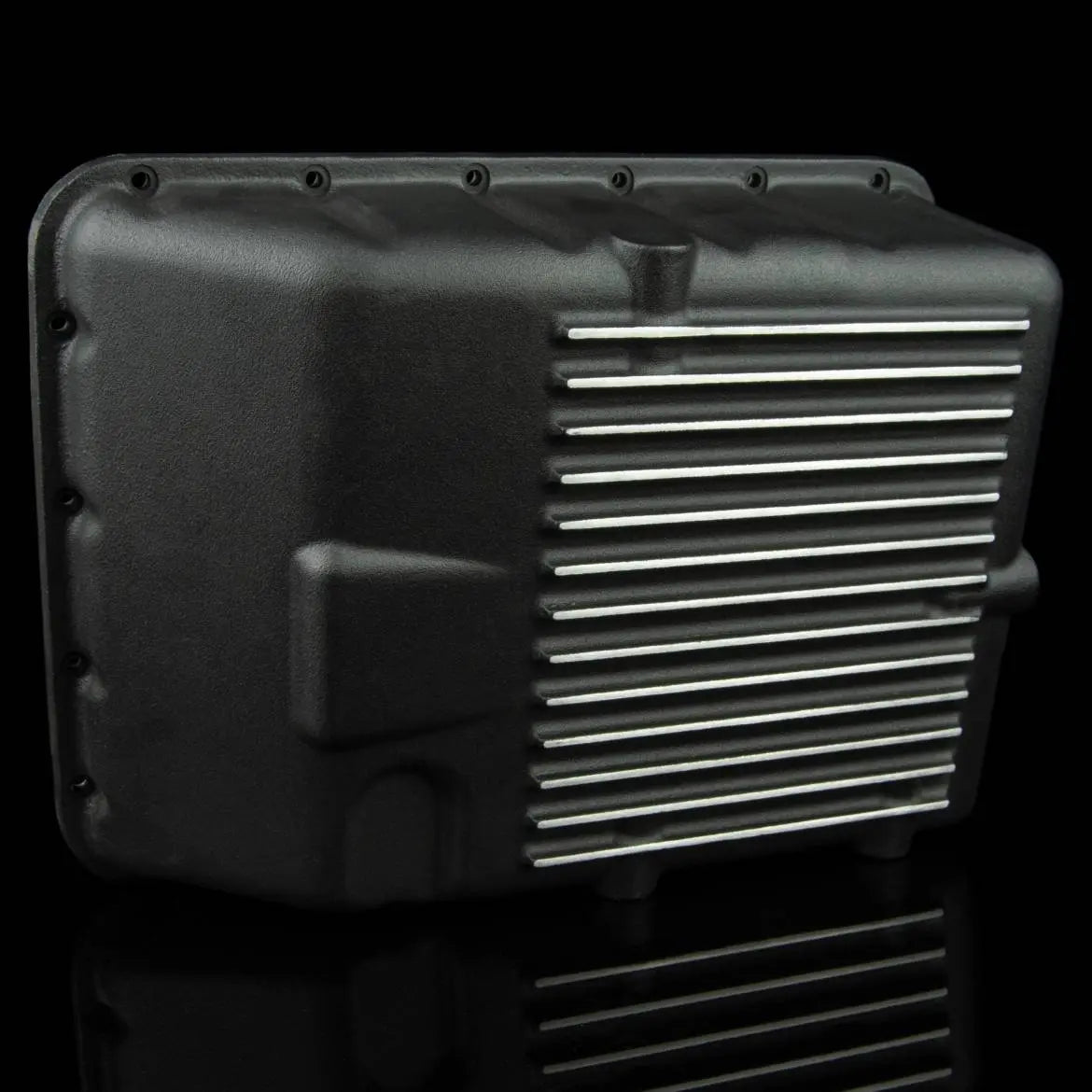

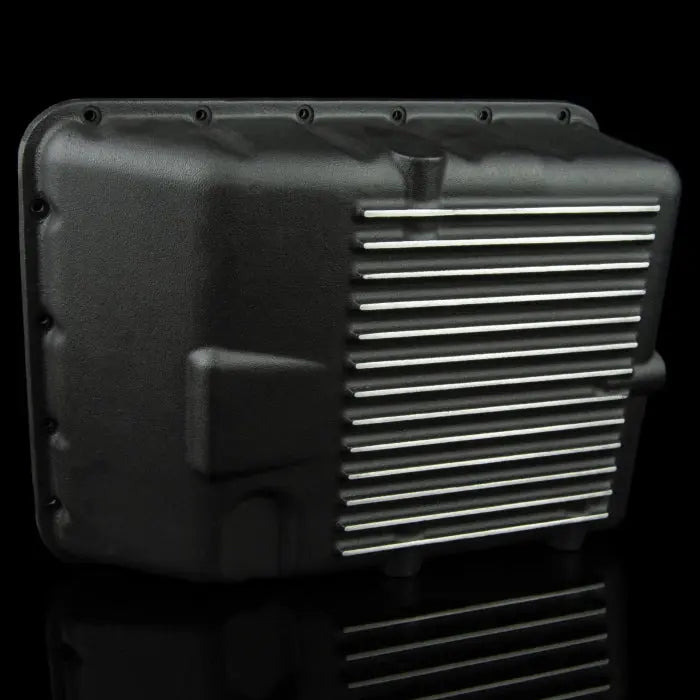

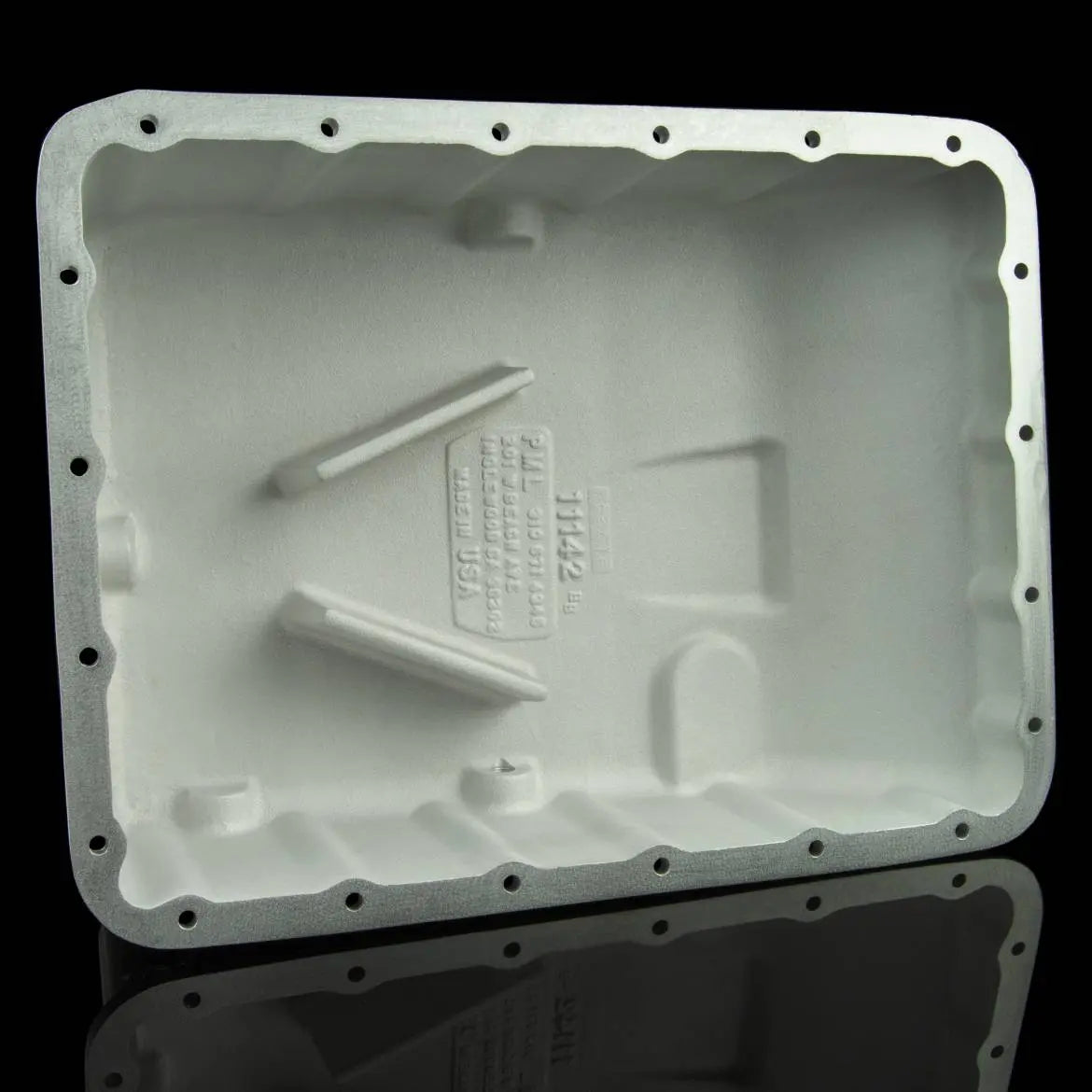

Suncoast PML AS69 DEEP PAN BLACK
Suncoast PML AS69 DEEP PAN BLACK
Description
AS69RC PML DEEP PAN
Features Include The Following:
- Increased oil capacity for cooler temperatures
- Sand-cast aluminum with raised fins
- 3/16-inch thick wall construction to add strength to the transmission case
- 3/8-inch thick gasket flange will not bend when bolts are tightened
- Machined gasket surface for a secure seal
- Boss cast into pan can be machined for a temperature sensor
- Drain hole and magnetic drain plug for easier, less messy maintenance

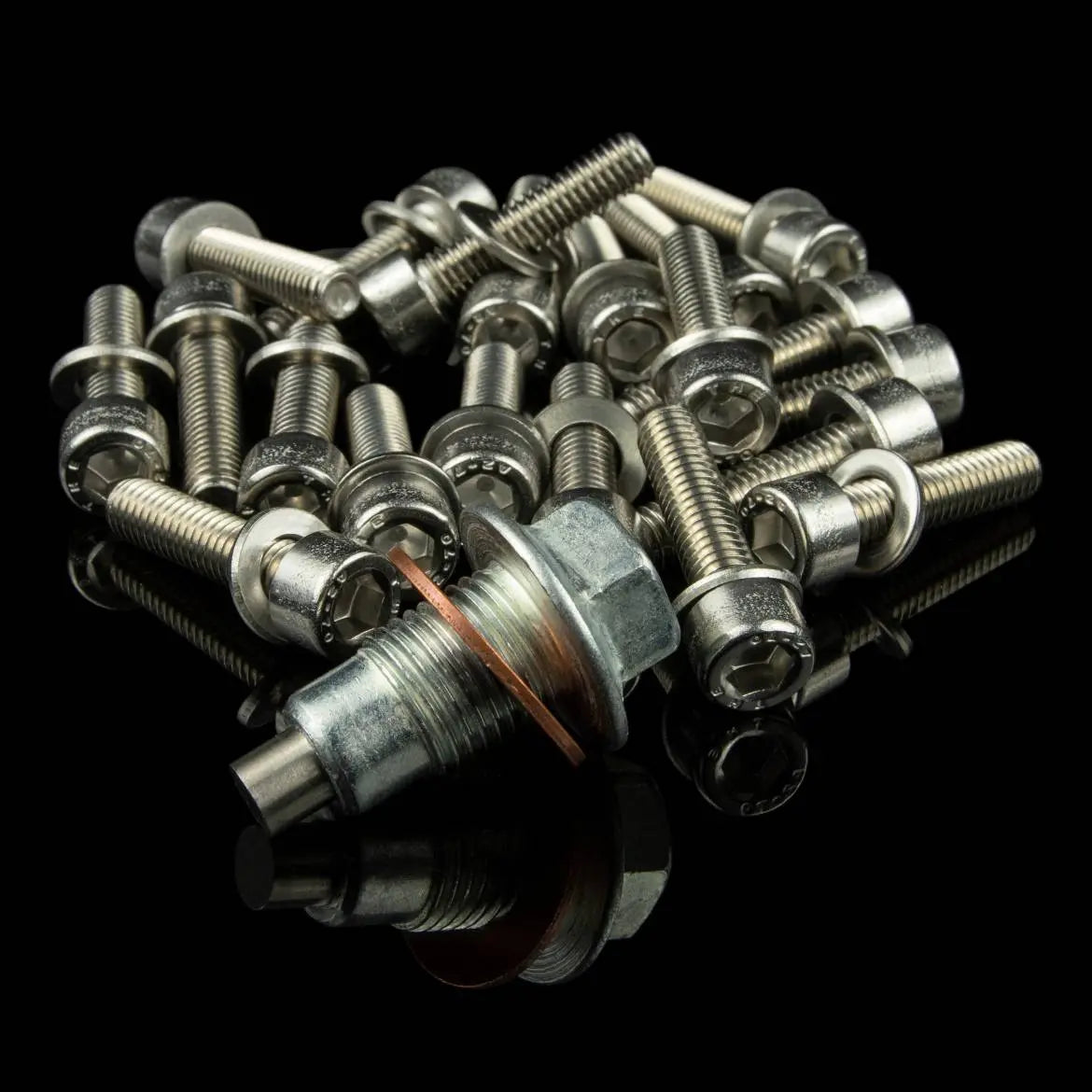

The Aisin AS69RC transmission is found in 2013 and newer Ram 3500, 4500, 5500 trucks with the 6.7 Cummins Diesel. This PML pan features heavy duty construction, extra capacity, drain, and cooling fins. PML designed this pan to provide as much clearance as possible to the bolts at the rear of the pan. There is a cross member below these bolts and to access them on the stock pan or the PML pan, you will probably need to jack up the transfer case. This pan works with the stock gasket and filter. PML provides new mounting bolts and a magnetic drain plug with the pan.
Fitments
2018 Ram 3500
2017 Ram 3500
2016 Ram 3500
2016 Ram 4500
2016 Ram 5500
2015 Ram 3500
2015 Ram 4500
2015 Ram 5500
2014 Ram 3500
2014 Ram 4500
2014 Ram 5500
2013 Ram 3500
2013 Ram 4500
2013 Ram 5500
Instructions
Specifications
SKU: SC-AS69-DB
GTIN: 840385613880
Manufacture Name: Suncoast Performance
Shipping Weight: 15 lb
Shipping Length: 17.5 in
Shipping Width: 13.5 in
Shipping Height: 6.5 in
EO Number:
Cross Reference #
Warranty
California Proposition 65 Warning
California Proposition 65 Warning - P65warnings.ca.gov
