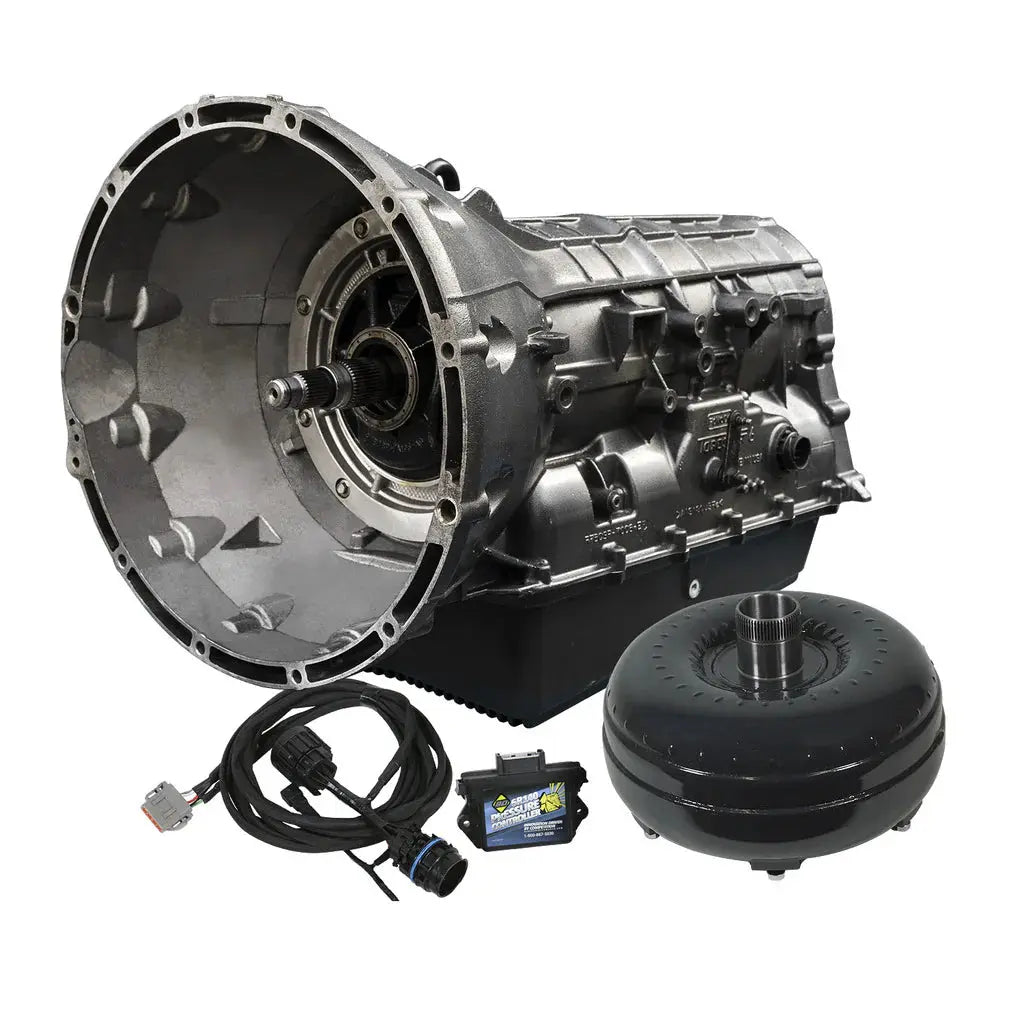

TORQUEMASTER FORD 6R140 TRANSMISSION & CONVERTER PACKAGE 6.7L POWER STROKE 2017-2019 2WD/4WD

BD Transmission & Torque Converter Package – Ford Applications

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Features

TRANSMISSION:
More clutches compared to stock and competitors

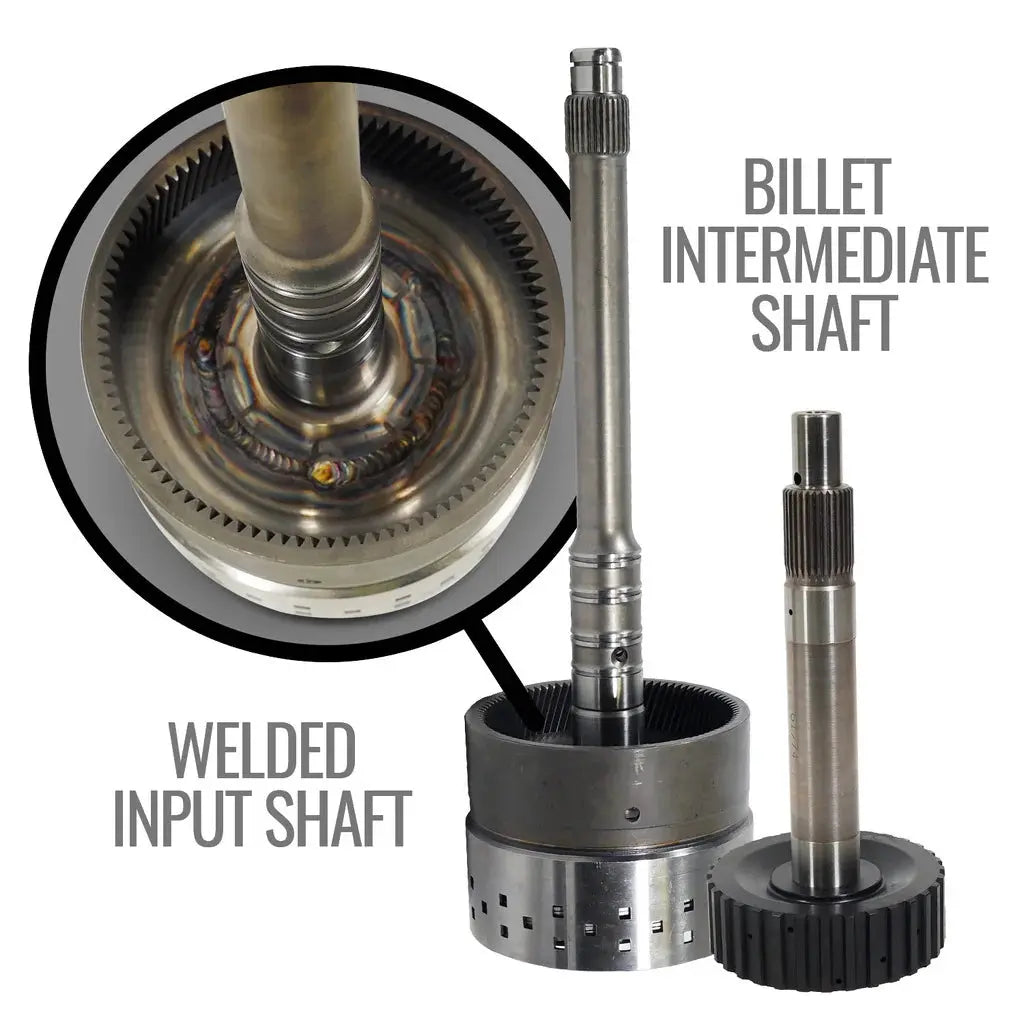

Billet intermediate shaft to handle higher power
Upgraded input shaft is tig welded to prevent OEM weld failure in demanding applications
Custom BD patented pressure plates increase clutch count without sacrificing part strength
Clutch Count: FORWARD 6 (20% increase over stock)
Clutch Count: DIRECT 6 (20% increase over stock)
Clutch Count: INTERMEDIATE 8 (60% increase over stock)
Clutch Count: OVERDRIVE 8 (14% increase over stock)
Clutch Count: LOW REVERSE 5
Brand new valve body
Electronic Line Pressure Controller for up to 300psi Line Pressure

PRESSURE CONTROLLER:
76% more theoretical holding power
Delivers up to 300psi line pressure at WOT
Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
Does not create parasitic load or extra heat when inactive

TORQUE CONVERTER:
Ideal upgrade converter for heavy tow use or higher horsepower
Captured clutch design maintains good drivability feel
Four surface clutch assembly doubles the OEM friction area
Increased count of steels increases heat dissipation
23% increased piston area for additional clutch clamping force
Billet bearing hub, piston and clutch retainer
Stamp forged 1-piece cover
Furnace-brazed pump and turbine fins

Install Time

12 Hours
Will need Ford Scanner

Note

2WD applications require the yoke adapter and rear mount bracket be transferred over during installation
For PTO option please call us at 1-800-887-5030
Ford scanner required to update the TCM with the new solenoid code and initiate a relearn – very critical component to make sure the transmission works properly
Transmission is compatible with both 2wd and 4wd applications
Will not fit early 2011 trucks with 8-bolt flex plate – will have to update to 6 bolt flex plate.

Emissions

This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

2017 Ford: Powerstroke 6.7L
2018 Ford: Powerstroke 6.7L
2019 Ford: Powerstroke 6.7L

SKU: 1064514BM

GTIN: 990011410854

Manufacture Name: BD Diesel

Shipping Weight: 400

Shipping Length: 23.5

Shipping Width: 44.5

Shipping Height: 27.3

EO Number:

Cross Reference #
