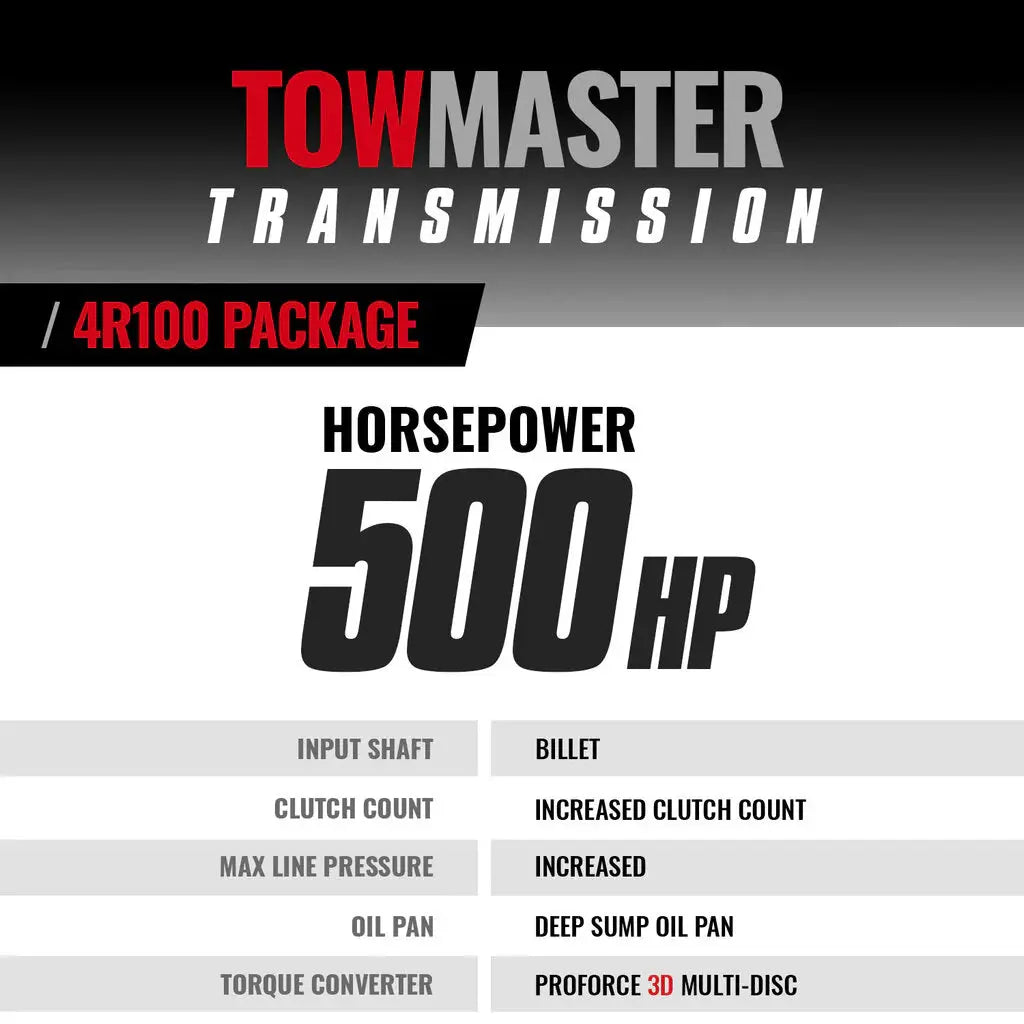

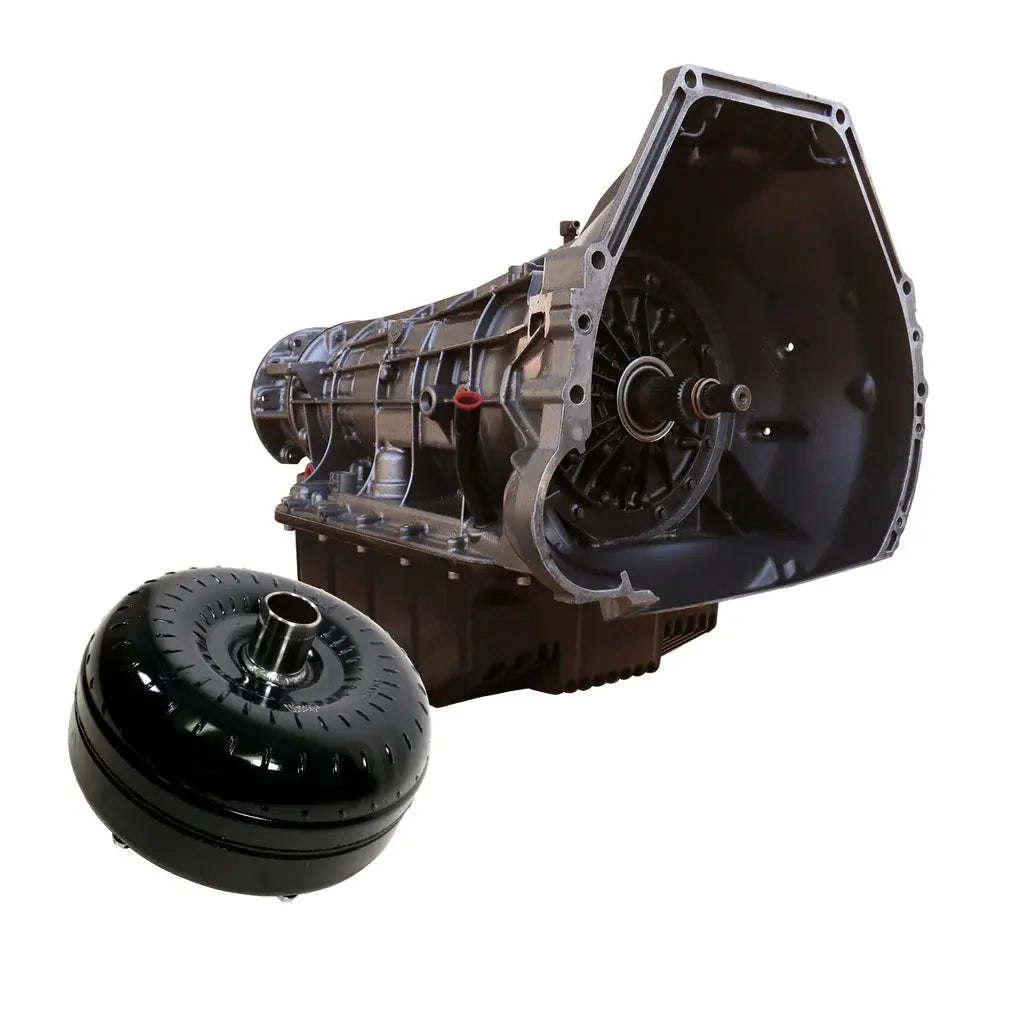

TowMaster Ford 4R100 Transmission & Converter Package - 1999-2003 4wd c/w Billet Input Shaft

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street, or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

Features

Transmission:

• Increases drivetrain durability
• Billet 300M input shaft
• BD aluminum HD deep pan adds 6qt fluid capacity
• Re-calibrated accumulator body for quicker, firmer shifts
• Full shift kit with line mod valve increases pressure
• Triple the amount of lock-up clutch material
• Additional lube circuits to OD planet, output, and intermediate shafts
• Direct and intermediate feeds drilled/tapped to prevent case leaks
• Upgraded OD snap ring and machined center support
• Reworked front pump and fully rollerized geartrain
• Clutch Counts:
• Coast Clutch: 2
• Forward: 5 (25% over stock)
• Direct: 5
• Low Reverse: 7 (17% over stock)
• Intermediate: 4 (33% over stock)
• Overdrive: 4 (33% over stock)
• Each transmission is dyno tested
• 1990–2003 units include auxiliary frame-mounted full flow filter kit

Torque Converter:

• Enhanced stall for street/towing applications
• Torque-multiplying cast aluminum stators
• Lower RPM response than stock converter
• More efficient operation, less heat, better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins

Install Time
7 Hours

Note

• No race abuse covered
• Remote filter required for inspection with cooler flow rate in GPM at oil/air transmission cooler outlet
• Does not have PTO provision
• Excursion requires factory-style pan – BD Deep Pan will interfere with crossmember

Emissions
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included.

1999 Ford: Powerstroke 7.3L
2000 Ford: Powerstroke 7.3L
2001 Ford: Powerstroke 7.3L
2002 Ford: Powerstroke 7.3L
2003 Ford: Powerstroke 6.0L

SKU: 1064444BM

GTIN: 990011411400

Manufacture Name: BD Diesel

Shipping Weight: 337

Shipping Length: 23.5

Shipping Width: 44.5

Shipping Height: 27.3

EO Number:

Cross Reference #
