Part # FPE-CTDT-HX35-KIT

Turbo Drain Tube Kit for 1994-2002 5.9L Cummins

$94.99

⚠ WARNING: Cancer & Reproductive Harm

California Proposition 65 Warning - P65warnings.ca.gov

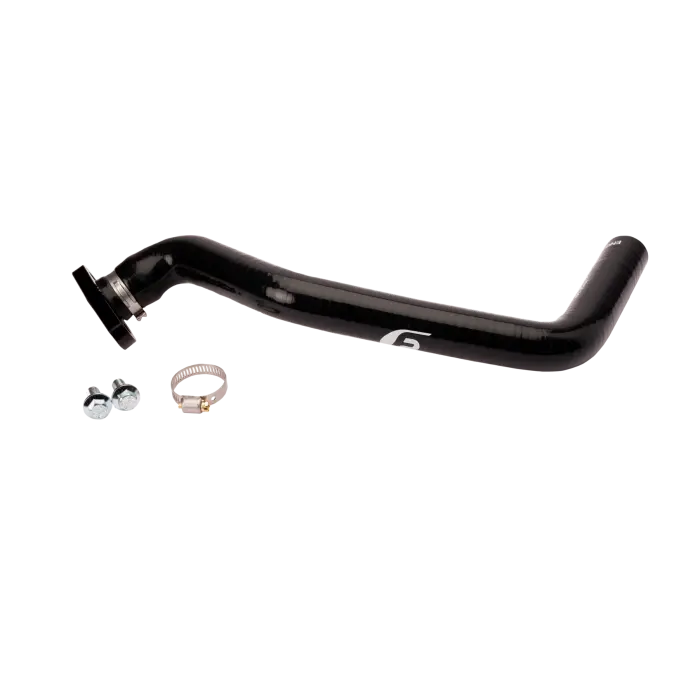

Eliminate the headaches of installing non-flexible OE drain lines with the Silicone Hose Turbo Drain Tube Kit, designed for 12V/24V 5.9L Cummins engines equipped with factory HX35 and HY35 turbochargers or aftermarket drop-in replacements like the Cheetah Series. This kit ensures proper oil drainage while simplifying the installation process.




  • Formed silicone hose for long-lasting durability
  • Black anodized billet aluminum flange with integral O-ring for a leak-free seal
  • New fasteners included for secure installation
  • Designed for use with factory and aftermarket turbochargers

The Silicone Hose Turbo Drain Tube Kit is the perfect solution for eliminating the frustrations associated with the non-flexible OE drain line on 12V/24V 5.9L Cummins engines. This kit is specifically designed for use with factory-installed HX35 and HY35 turbochargers, as well as aftermarket replacements like the Cheetah Series, offering a smooth and flexible solution to ensure proper oil drainage.

This drain kit features a larger internal diameter (ID) smooth silicone hose, providing enhanced durability and flexibility compared to the rigid factory options. The anodized billet aluminum flange includes an integral O-ring, ensuring a leak-free installation and preventing oil leaks during operation. For added convenience, new fasteners are included, making installation hassle-free.


Features

  • Formed silicone hose for increased longevity and durability
  • Anodized billet aluminum flange with integral O-ring for leak-free installation
  • New fasteners included for easy and secure mounting

Application Notes

  • Direct replacement for Cummins part numbers 3918585 and 3946300
  • Fits HX35 and HY35 turbochargers installed in the factory location
  • Compatible with aftermarket drop-in replacements like the Cheetah Series

Warranty Information
No specific warranty information is provided for this product.


Technical Specifications

  • Application: 12V/24V 5.9L Cummins engines with factory HX35 and HY35 turbochargers
  • Material: Silicone hose and black anodized billet aluminum flange
  • Includes: Silicone hose, billet flange with O-ring, new fasteners
FPE-CTDT-HX35-KIT
