SKU:1030606-1/2
Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines
Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines
Description

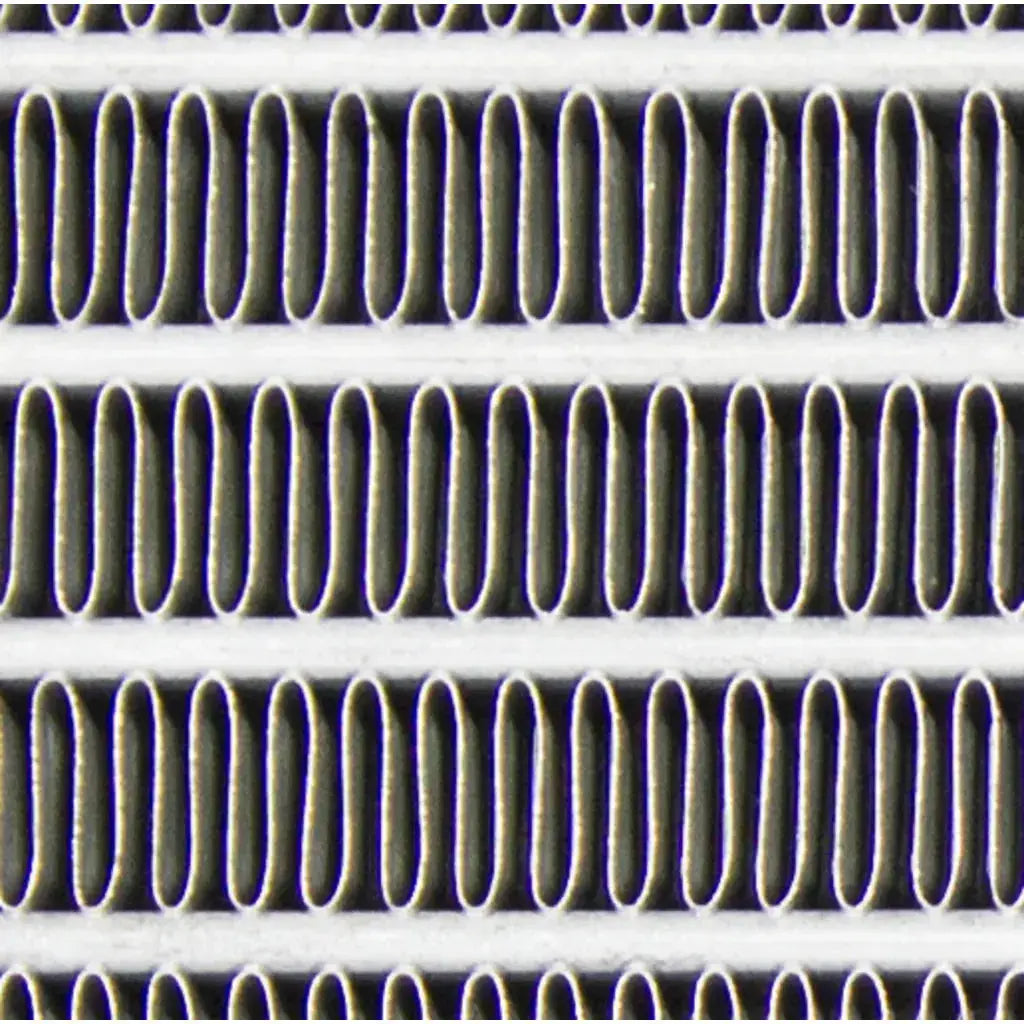

Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
FEATURES
- 22% more cooling over other designs
- 200 Micro Extruded passages
- Large surface area to transfer heat for external air flow cooling
- Turbulent oil flow design promotes a more complete cooling
- Large 5/8-inch ports prevents inlet/outlet restriction
- Furnace brazed rails tested to 300psi
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
- 33,930 BTU/HR rating; supports over 30,000 GVW
- Complete kits include fittings, clamps, hoses, and hardware
- Galvanized Build-It-Yourself bracket kit for quick installation
- Pre-wired loomed harness with plug-in connectors
- Dodge 47RH / 47RE / 48RE / 68RFE – 1/2-inch cooler lines
- Ford 5R110 / 6R140 – 1/2-inch cooler lines
INSTALL TIME
3 Hours 30 Minutes
NOTE
Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
EMISSIONS
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
Fitments
1994 Ram: Cummins 5.9L
1995 Ram: Cummins 5.9L
1996 Ram: Cummins 5.9L
1997 Ram: Cummins 5.9L
1998 Ram: Cummins 5.9L
1999 Ram: Cummins 5.9L
2000 Ram: Cummins 5.9L
2001 Ram: Cummins 5.9L
2002 Ram: Cummins 5.9L
2003 Ram: Cummins 5.9L
2004 Ram: Cummins 5.9L
2004.5 Ram: Cummins 5.9L
2005 Ram: Cummins 5.9L
2006 Ram: Cummins 5.9L
2007 Ram: Cummins 5.9L
2007.5 Ram: Cummins 6.7L
2008 Ram: Cummins 6.7L
2009 Ram: Cummins 6.7L
2010 Ram: Cummins 6.7L
2003 Ford: Powerstroke 6.0L
2004 Ford: Powerstroke 6.0L
2005 Ford: Powerstroke 6.0L
2006 Ford: Powerstroke 6.0L
2007 Ford: Powerstroke 6.0L
2008 Ford: Powerstroke 6.4L
2009 Ford: Powerstroke 6.4L
2010 Ford: Powerstroke 6.4L
2011 Ford: Powerstroke 6.7L
2012 Ford: Powerstroke 6.7L
2013 Ford: Powerstroke 6.7L
2014 Ford: Powerstroke 6.7L
2015 Ford: Powerstroke 6.7L
2016 Ford: Powerstroke 6.7L
Instructions
Specifications
SKU: 1030606-1/2
GTIN: 990011403399
Manufacture Name: BD Diesel
Shipping Weight: 17
Shipping Length: 18
Shipping Width: 15
Shipping Height: 8
EO Number:
Cross Reference #
Warranty
WARRANTY
Parts: 12-Months / 24,000 Miles
